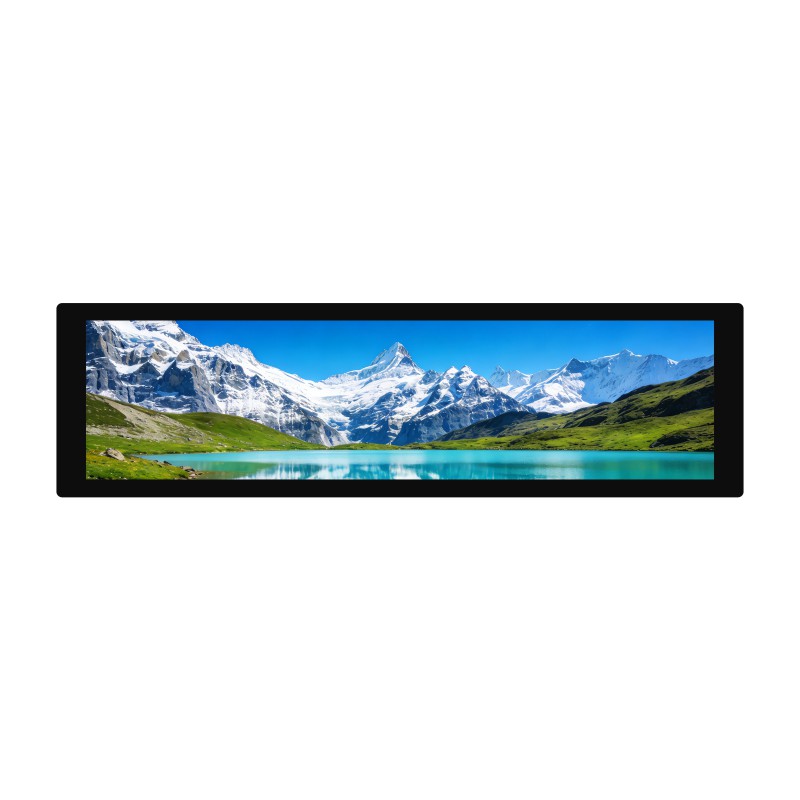

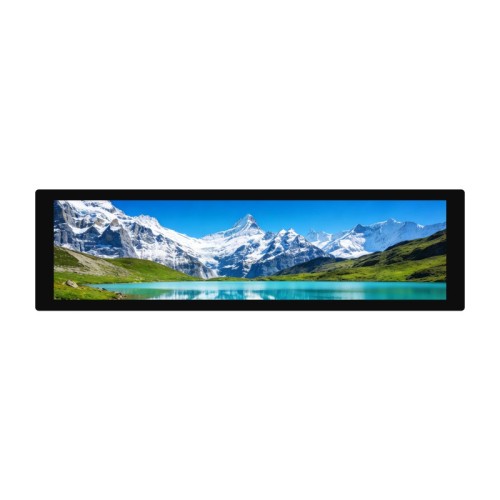

8.8" IPS Display 480x1920 MIPI DSI - Touchscreen - Waveshare 27433
High-quality 8,8-inch touchscreen display with DSI interface, 480 × 1920 resolution, and an IPS panel providing wide viewing angles and excellent color reproduction. It supports up to 10 touch points and software-controlled brightness, making it ideal for Raspberry Pi, ESP32-P4, and Rockchip systems.
Key features:
- Screen diagonal: 8,8 inches
- IPS matrix with high resolution of 480 × 1920 pixels
- Communication interface: MIPI DSI
- Capacitive touch panel supporting up to 10 touch points
- Tempered glass with 6H hardness and full lamination (Optical Bonding) for better clarity and durability
- Software-controlled backlight brightness adjustment
- Default portrait orientation (software-configurable to landscape)
- Wide compatibility with Linux, Android, and GUI libraries (e.g., LVGL)
Wide compatibility and system support
The display is designed for seamless integration with the most popular development platforms:
- Raspberry Pi 3B+ / 4B / 5: Support for Raspberry Pi OS, multi-touch support.
- RK3506: Full support for Buildroot and Ubuntu systems.
- RK3576: Support for Buildroot, Debian, Ubuntu, and Android systems.
- ESP32-P4: Optimized for modern graphical interfaces based on LVGL.
Connection examples
When working with Raspberry Pi 5 or 4B, connect the FFC cable according to the diagram and provide power to the LCD panel via the 5V pin from the GPIO header.
* Motherboards and controllers shown in the photos are not included in the kit.
Connection interface
Technical specification
- Panel type: IPS
- Resolution: 480 × 1920 px
- Interface: MIPI DSI
- Touch type: Capacitive
- Number of touch points: 10
- Backlight: Software-adjustable
- Glass: Tempered 6H
- Technology: Optical Bonding
- Viewing angle: 178°
External dimensions
Kit contents
- 8.8-DSI-TOUCH-A x1
- MIPI-DSI-Cable-12cm x1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- FFC cable 22PIN ~200mm (reversed) x2
- MX1.25 2PIN to MX1.25 4PIN ~150mm cable x1
- Mounting screw set x1
Safety
