8.8" DSI 480×1920 IPS Touch Display for Raspberry Pi

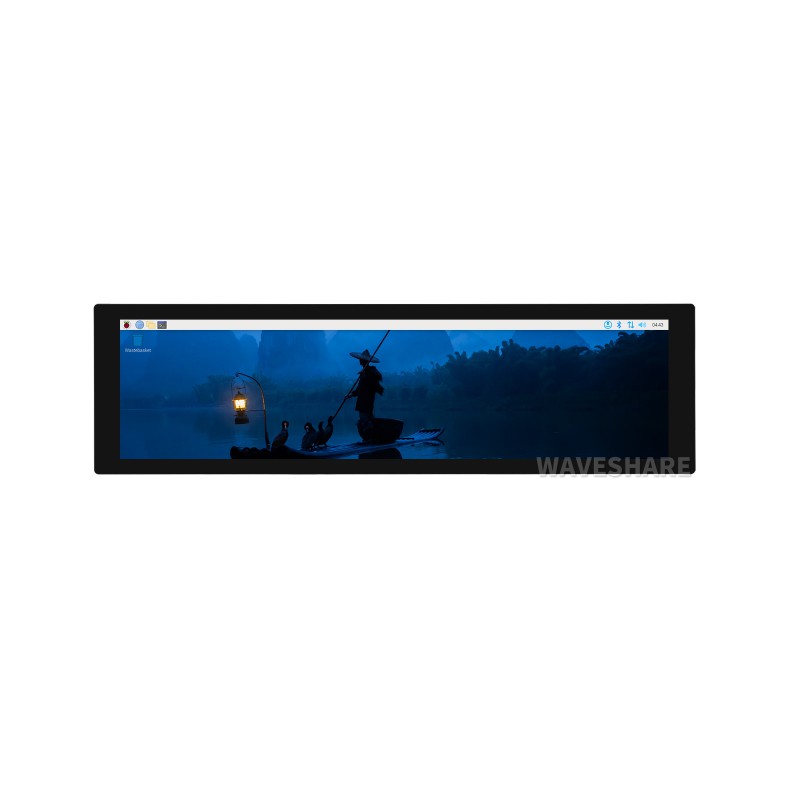

High-quality touch display with a diagonal of 8.8 inches and a resolution of 480×1920, utilizing an IPS matrix with wide viewing angles. The panel, made with Optical Bonding technology and 6H tempered glass, supports 10-point touch and software brightness control, offering a direct connection via the DSI interface.
Key features:
- IPS screen with a hardware resolution of 480×1920 and 178° viewing angles.
- 10-point capacitive touch with 6H tempered glass panel.
- Optical Bonding technology ensuring higher clarity and durability.
- Direct support via DSI interface with refresh rate up to 60Hz.
- Full compatibility with Raspberry Pi 5 / 4B / 3B+ / 3A+ / 3B / CM4 / CM5.
- Support for Bookworm, Bullseye, and Buster operating systems.
- Possibility of software backlight brightness adjustment.
Excellent image quality and touch
The use of an IPS matrix guarantees faithful color reproduction and excellent visibility even at wide angles (up to 178°). Thanks to the optical bonding process, there is no air layer between the touch panel and the display, which eliminates reflections and improves contrast.
Connection examples
The display works with various generations of Raspberry Pi minicomputers. Depending on the model, use the appropriate DSI cable (15-pin or 22-pin) and connect power via pogo pins or GPIO.
Compatibility with Raspberry Pi 5
Compatibility with Raspberry Pi 4B
Compatibility with Compute Module 4 IO Board
Interface description
Technical specification
- Diagonal: 8.8 inches
- Resolution: 480 × 1920 px
- Matrix type: IPS
- Interface: DSI
- Refresh rate: 60Hz
- Touch type: Capacitive (10 points)
- Glass hardness: 6H (tempered)
- Technology: Optical Bonding
- Brightness control: Software
- Viewing angle: 178°
Note: Proper operation of the display with Raspberry Pi requires making appropriate changes to the config.txt file. Detailed configuration instructions for specific systems and models are available on the manufacturer's Wiki page.
Kit contents
- 8.8inch DSI LCD display
- DSI-Cable 12cm
- FPC cable 15PIN 1.0 pitch 50mm
- FPC cable 15PIN 1.0 pitch 160mm
- Mounting screw set
- PH2.0 4PIN cable ~200mm
