Adapter Kart SD (5V i 3.3V) Shield dla Arduino
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
PRODUCT DESCRIPTION
Overview

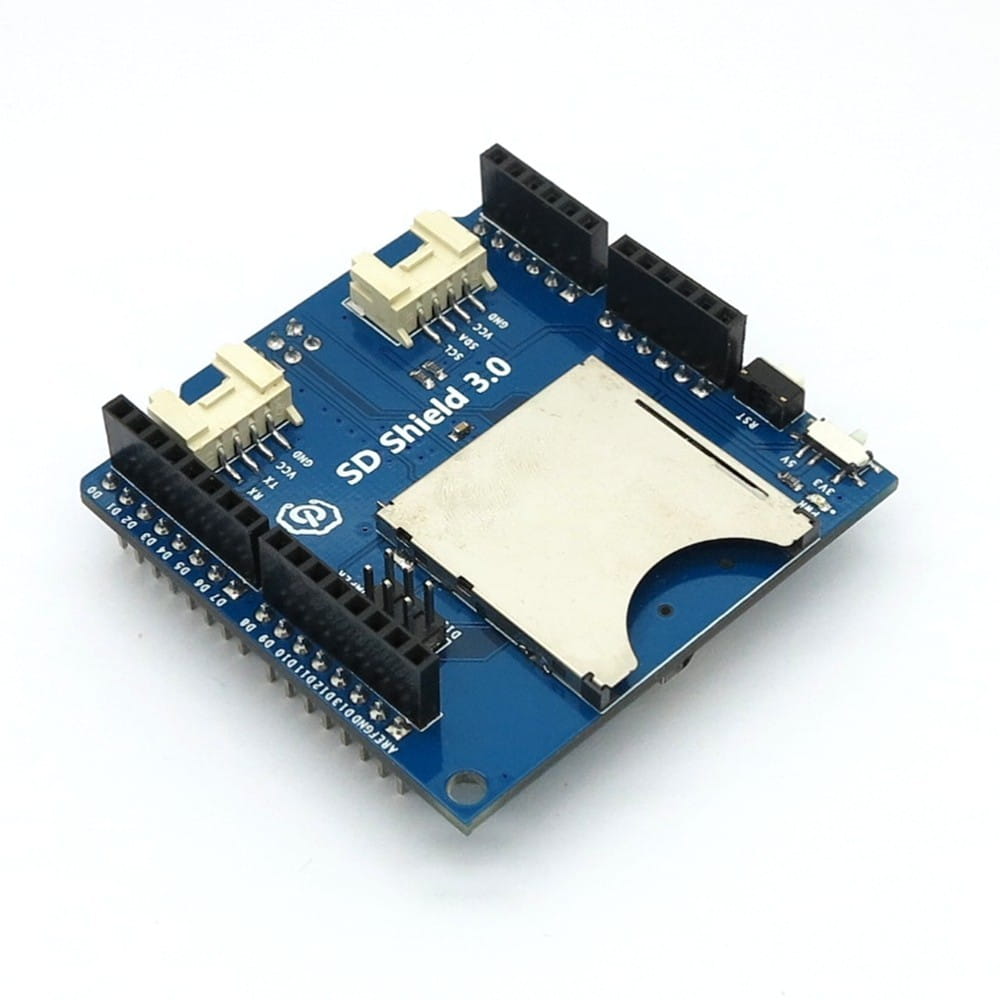

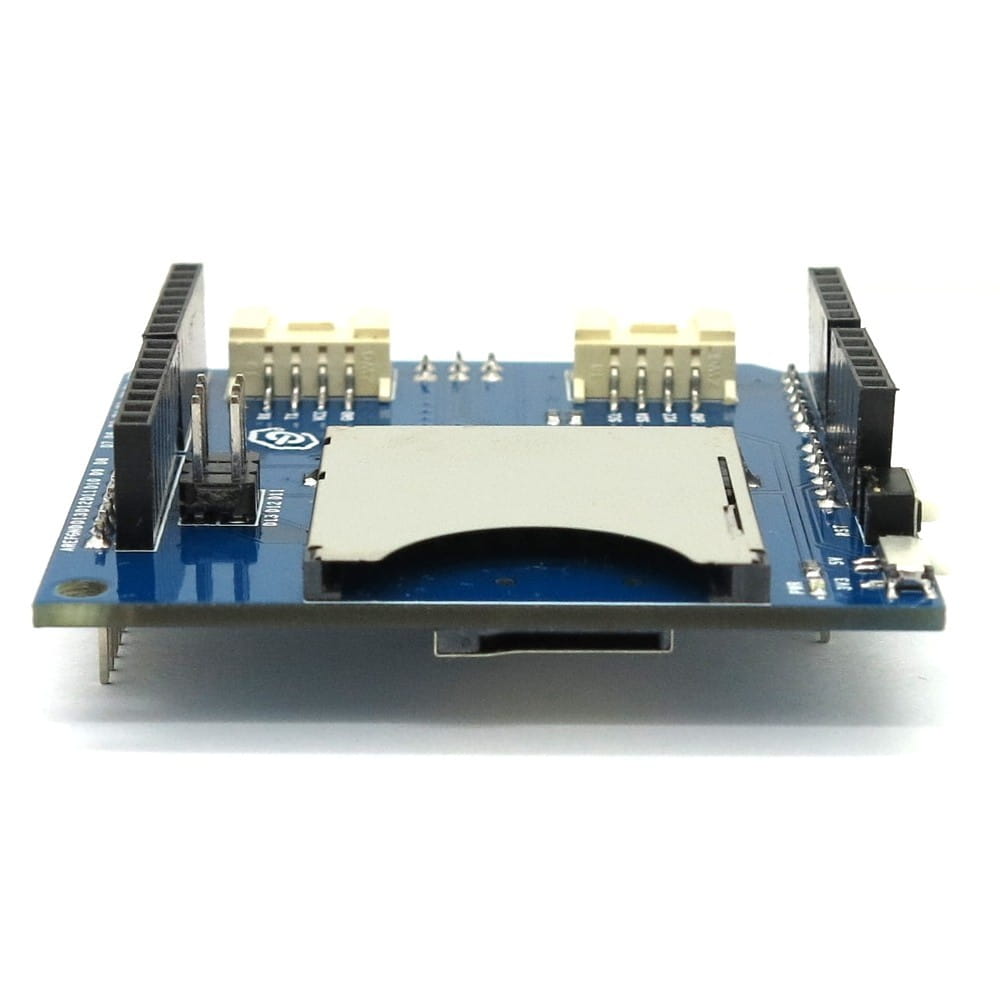

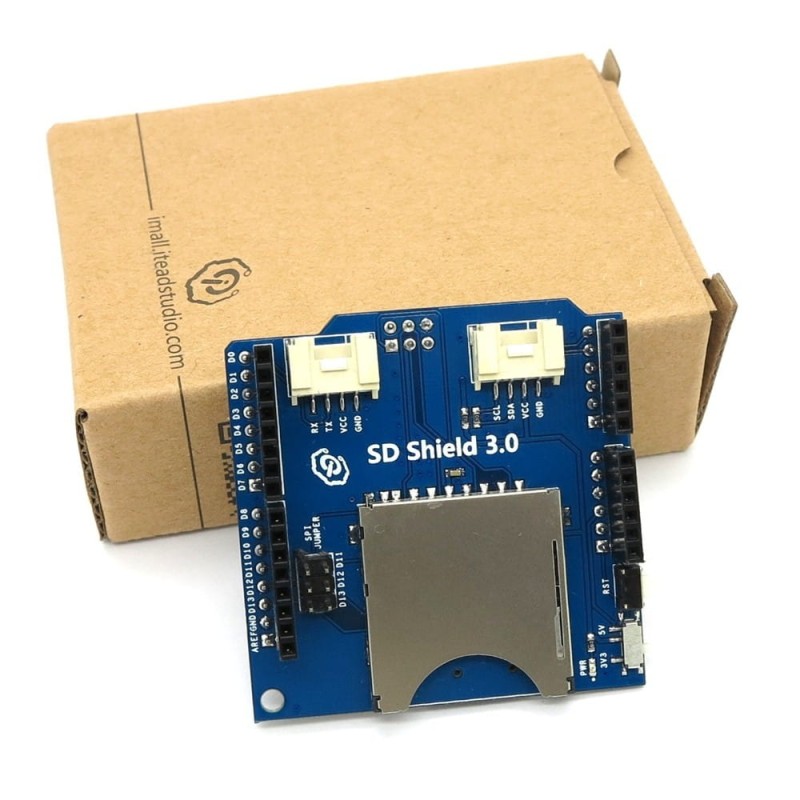

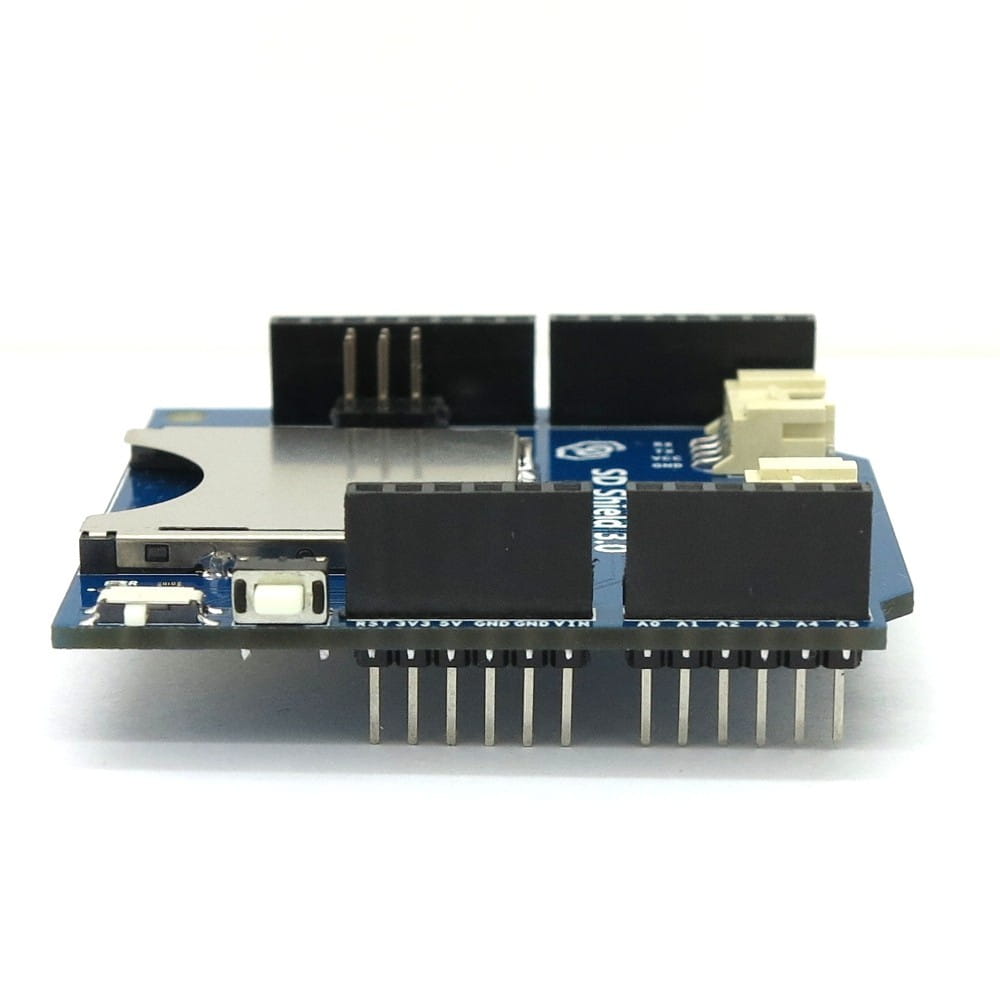

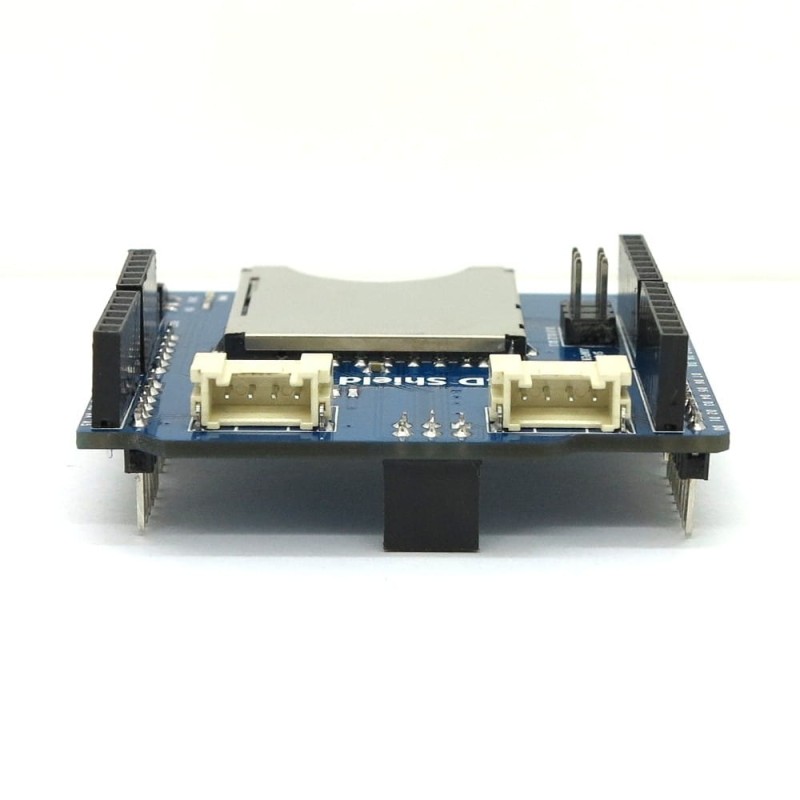

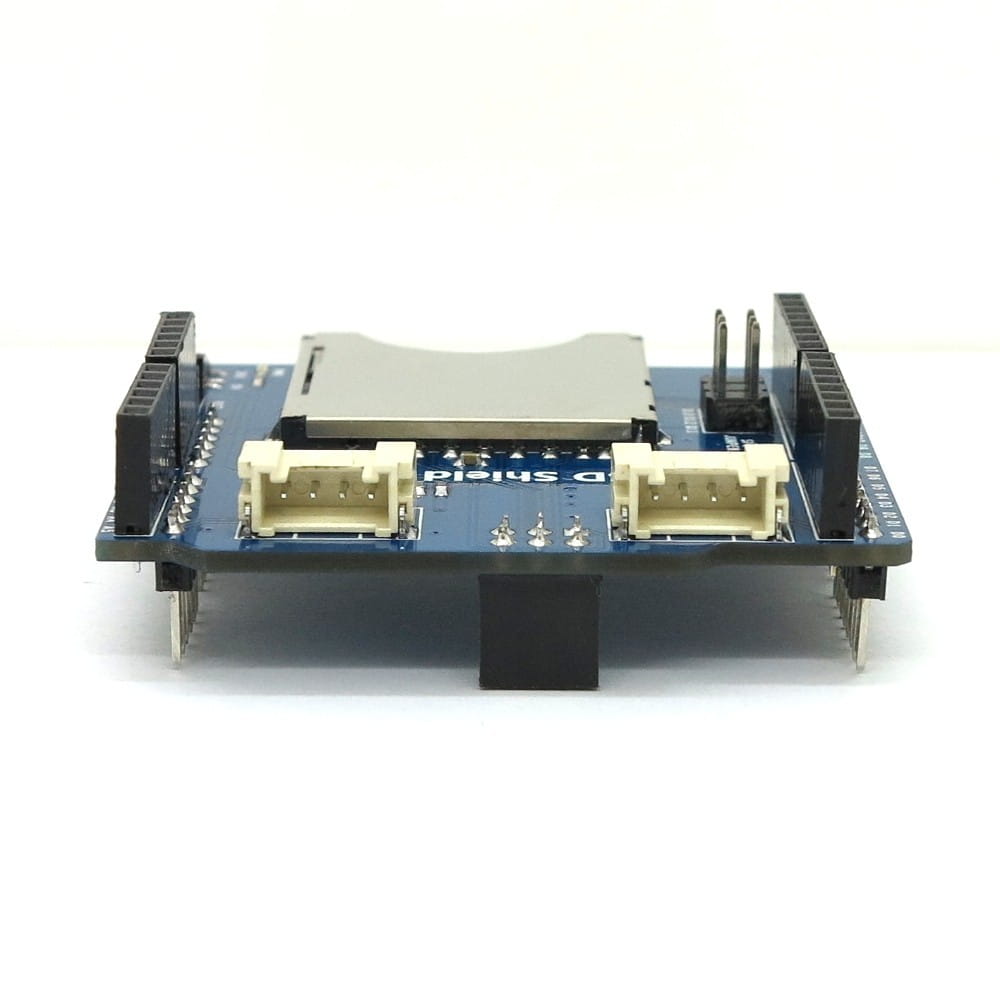

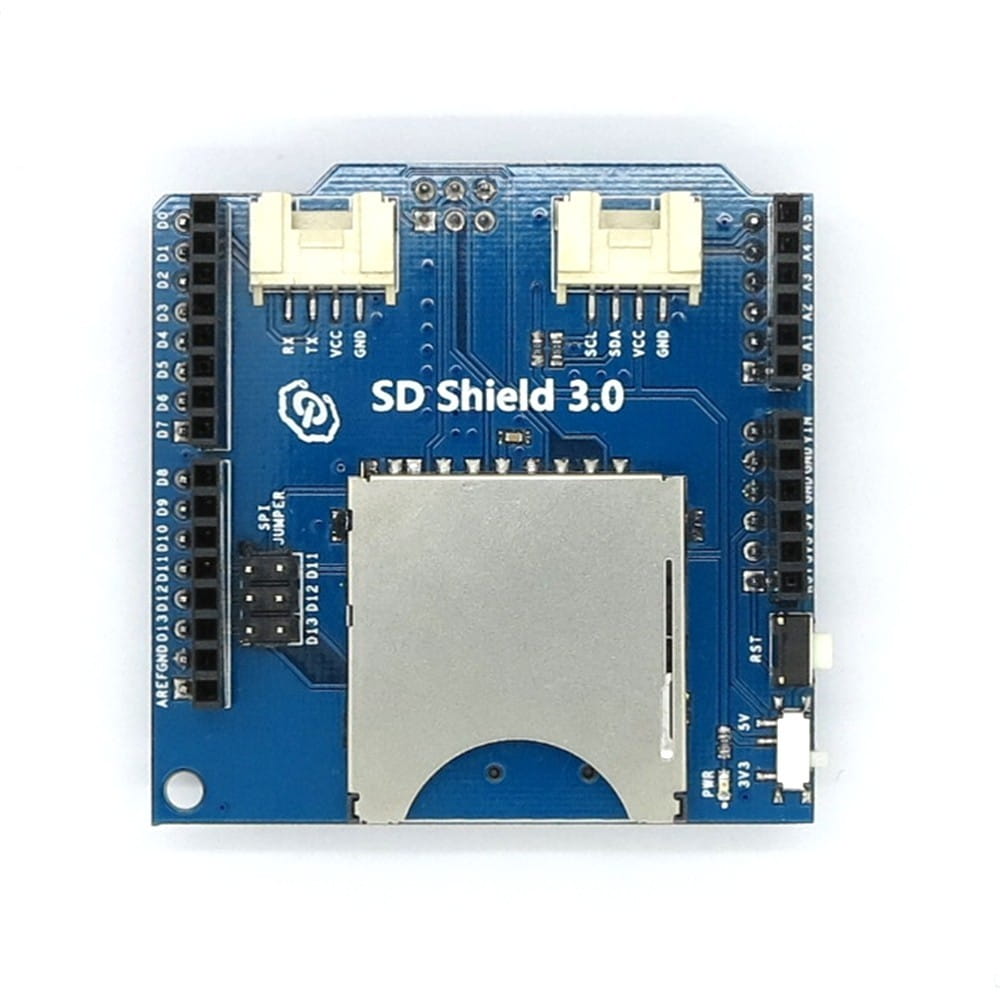

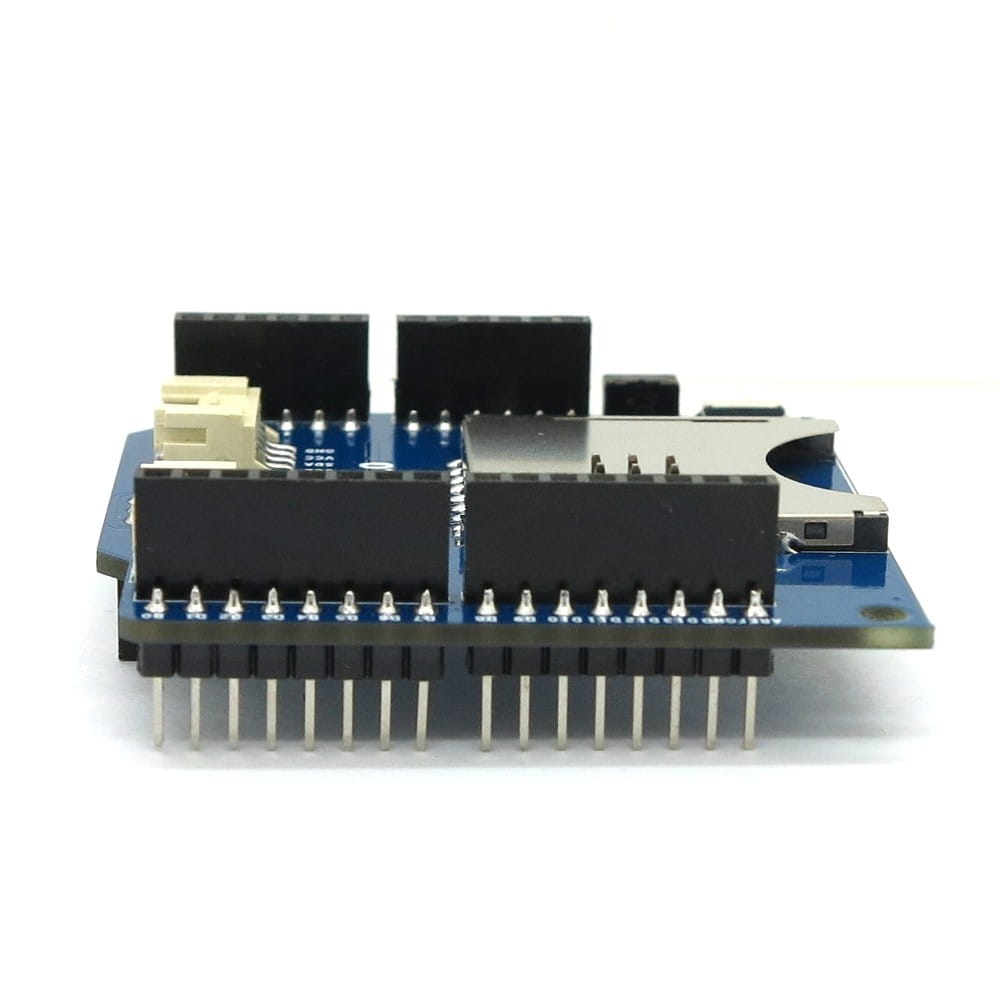

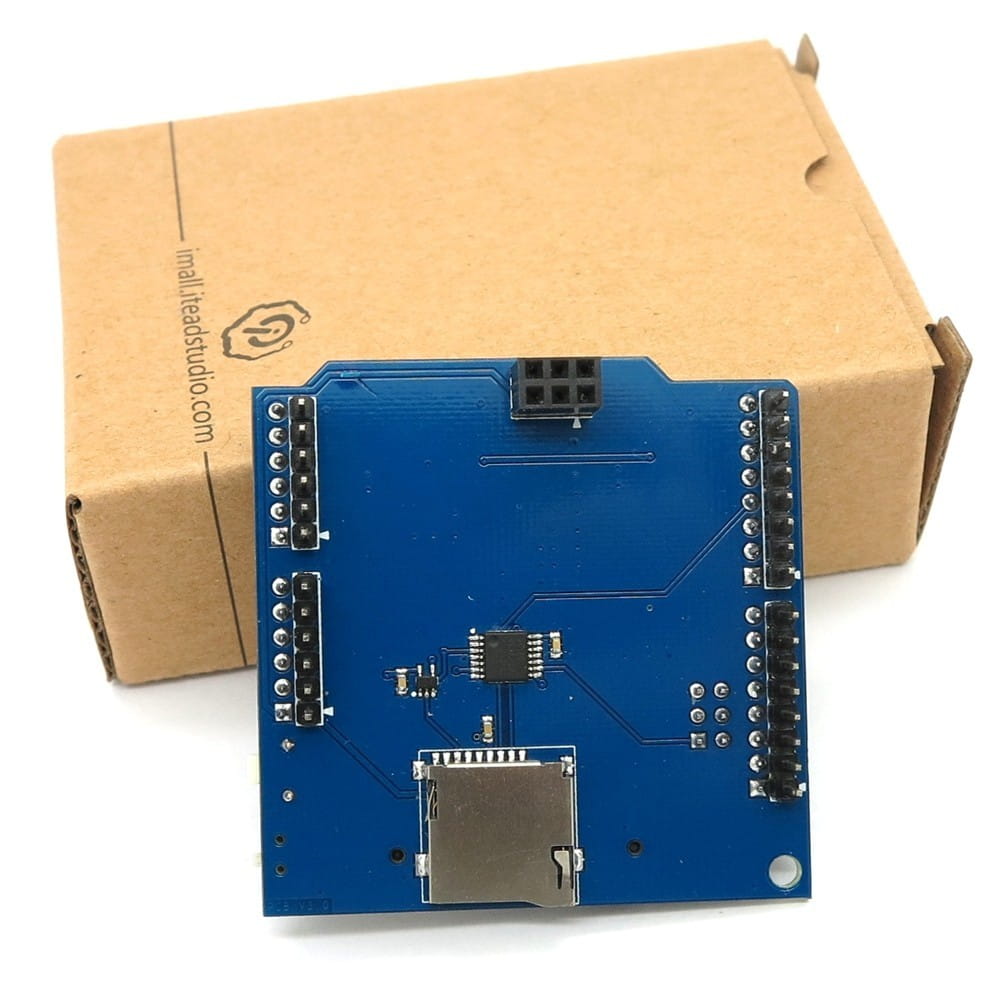

SD Shield 3.0 is a break out board for standard SD and TF card. It is compatible with 5V and 3.3V Arduino mainboards, Arduino-compatible boards and Arduino mainboards that SPI is on ICSP instead on pin D11~13 such as Leonardo.
Features
- Arduino compatible
- Supports both SD card and TF card
- Compatible with 5V and 3.3V Arduino mainboards
- Stackable
Specification
| PCB size | 56.15mm X56.23mm X 1.6mm |
| Operating voltage | 3.3V/5V DC |
| Indicator | PWR |
| Communication interface | UART，IIC，SPI |
| Electronic brick interface | Grove 4pin |
Electrical Characteristics
| Parameter | Min. | Typical | Max. | Unit |
| Supply voltage | 3 | - | 5.5 | VDC |
| Operating level | - | 3.3/5 | - | V |
| Consumption current | - | - | 100 | mA |
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.
Technical support
For technical support, please open a ticket on Itead Support System.
ADDITIONAL INFORMATION
| Link Wiki | No |
|---|---|
| Version | 3.0 |
| Compatible Mainboard |
|
| Shield Functions | Storage |
| Board Size | 56.15mm X56.23mm X 1.6mm |
| Operation Level |
|
| Stackable | No |
| Model | IM140726001 |
| Accessories | No |
| Weight | 35.0000 |
