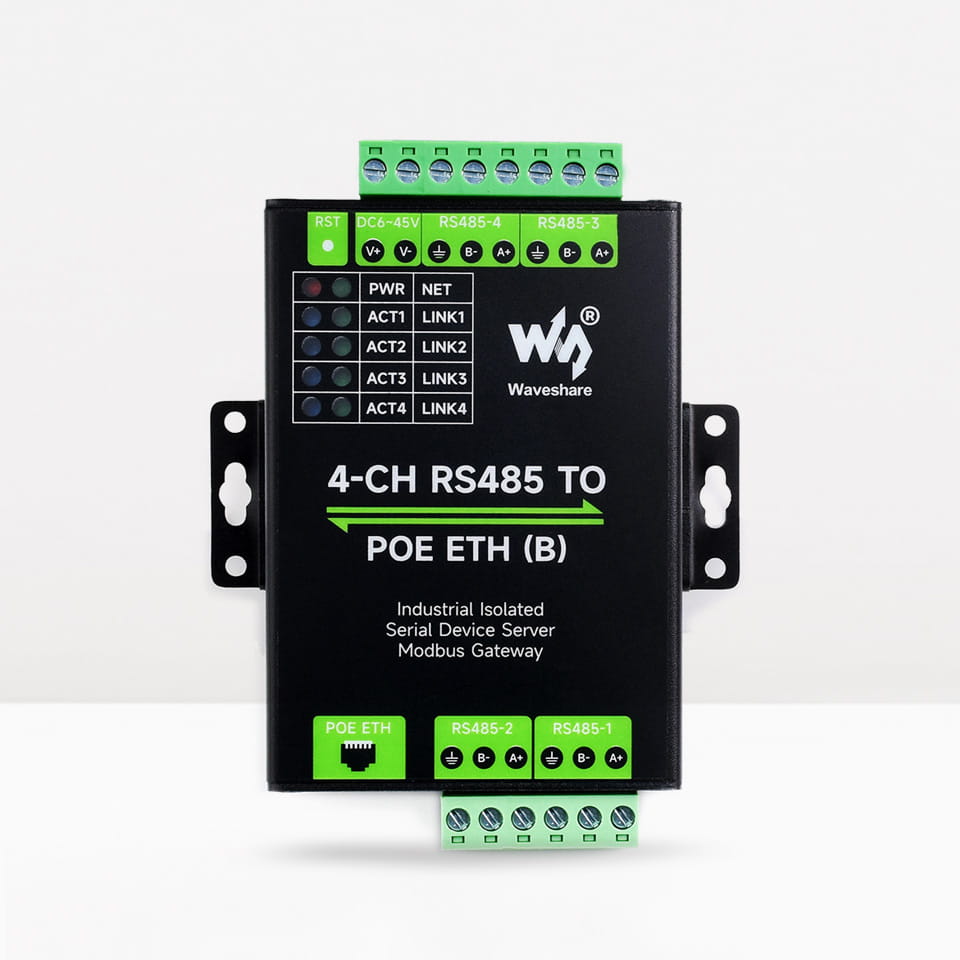

Advanced IoT Gateway and Data Acquirer Converting Four RS485 Channels to ETH with PoE Support
4-CH RS485 to POE ETH (B) is a highly functional IoT gateway serving as a data acquirer equipped with four RS485 channels and an Ethernet port, with optional PoE support (Power over Ethernet). It is a solution designed for industrial applications, enabling bidirectional transparent data transmission between the RS485 interface and Ethernet. The device features compact dimensions, easy installation, and efficiency, making it an ideal choice for a wide range of applications, including data acquisition, IoT gateways, security applications, and intelligent device monitoring. Advanced protection features, including power and signal isolation, provide protection against electromagnetic interference and surges, which is crucial in demanding industrial environments.
Support for a wide range of power voltages (DC 6-45V) and integration with Ethernet networks through an RJ45 port compliant with IEEE 802.3af enables easy and flexible installation in various locations. The device offers full support for standard communication protocols such as ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, allowing seamless integration with network applications and management systems.
Specification:
- Product Type: Serial Server, Modbus Gateway, MQTT Gateway
- Primary Function: Bidirectional transparent data transmission between RS485 and Ethernet
- Communication Interface: 4 × RS485 port, 1 × Ethernet port
- Power Supply: DC 6~45V terminal screw
- Isolation Protection: Power isolation, signal isolation
- Ethernet: RJ45 port with PoE support, compliant with IEEE 802.3af, 10/100M auto-negotiation, 2 KV surge protection
- UART: Isolated RS485 (4 channels can receive and transmit independently at the same time)
- Transmission Speed: 300 ~ 115200 bps
- Parity Bits: None, Odd, Even, Mark, Space
- Data Bits: 5 ~ 9 bits
- Protocols: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Configuration Method: Host, Web browser, Device management function library
- Operating Temperature: -40℃ ~ 85℃
- Humidity: 5% ~ 95% RH
- Dimensions: 91.0 × 64.5 × 24.2 mm
Features:
- Support for TCP server, TCP client, UDP, and UDP multicast. As a TCP client, it also supports TCP server functions, handling up to 30 TCP connections as a server and up to 7 destination IPs as a client.
- Support for various transmission speeds, from 300 to 115200bps, with selectable data bit lengths and parity bits.
- Advanced software features, including Modbus gateway supporting Modbus RTU to Modbus TCP, multi-host function, MQTT gateway, support for JSON to Modbus RTU and 645 protocol, NTP protocol support for network time retrieval, and custom heartbeat and registration packet functions.
- TCP connection security using password authentication.
- Data transmission and delivery via HTTP, allowing direct cloud communication with the device's serial port using HTTP GET command.

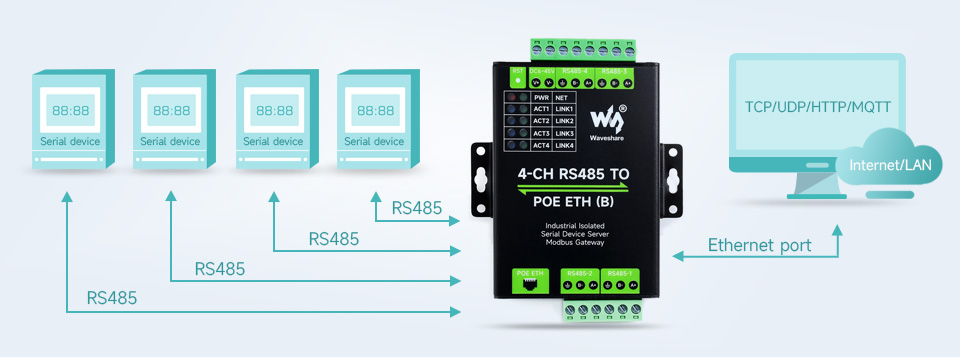

Supports transparent data transmission between four-channel RS485 and ETHERNET

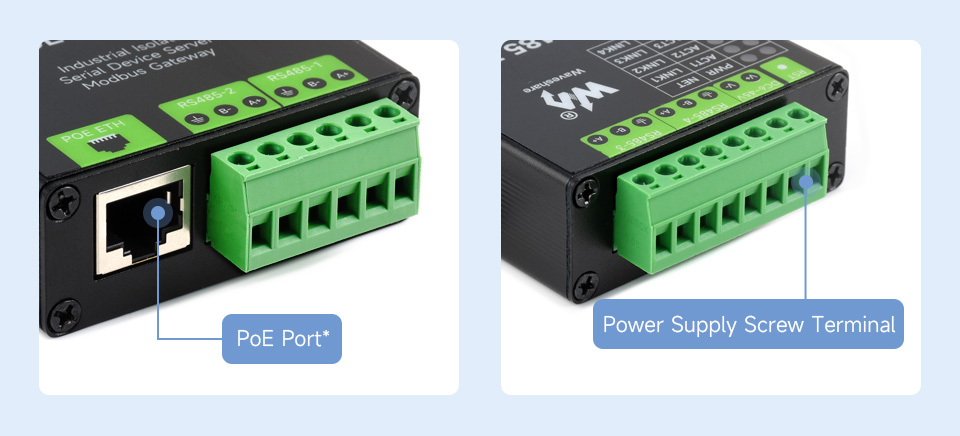

Multiple power options:

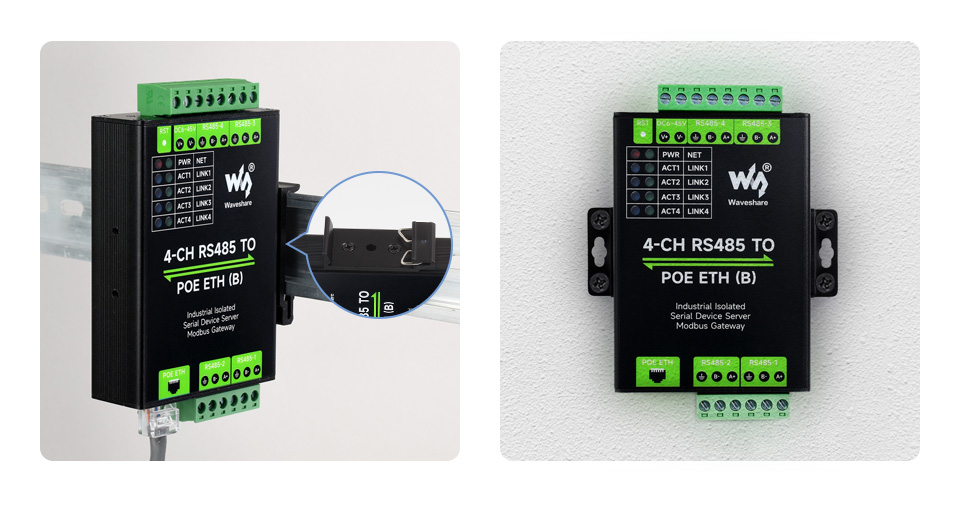

DIN rail mounting capability:

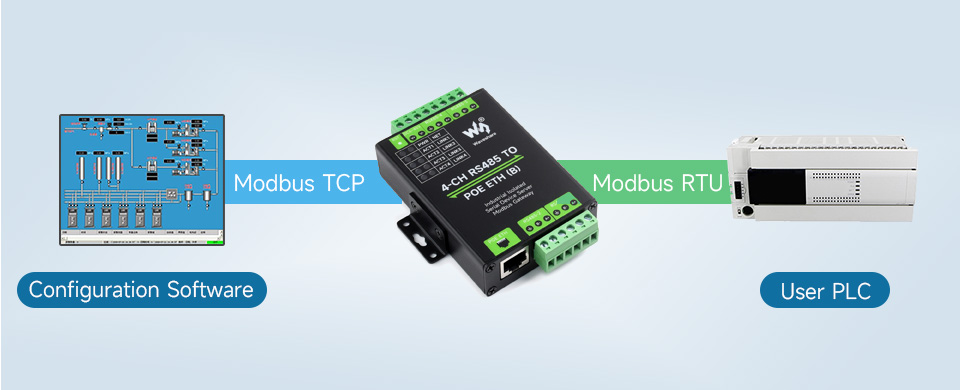

Modbus gateway support:

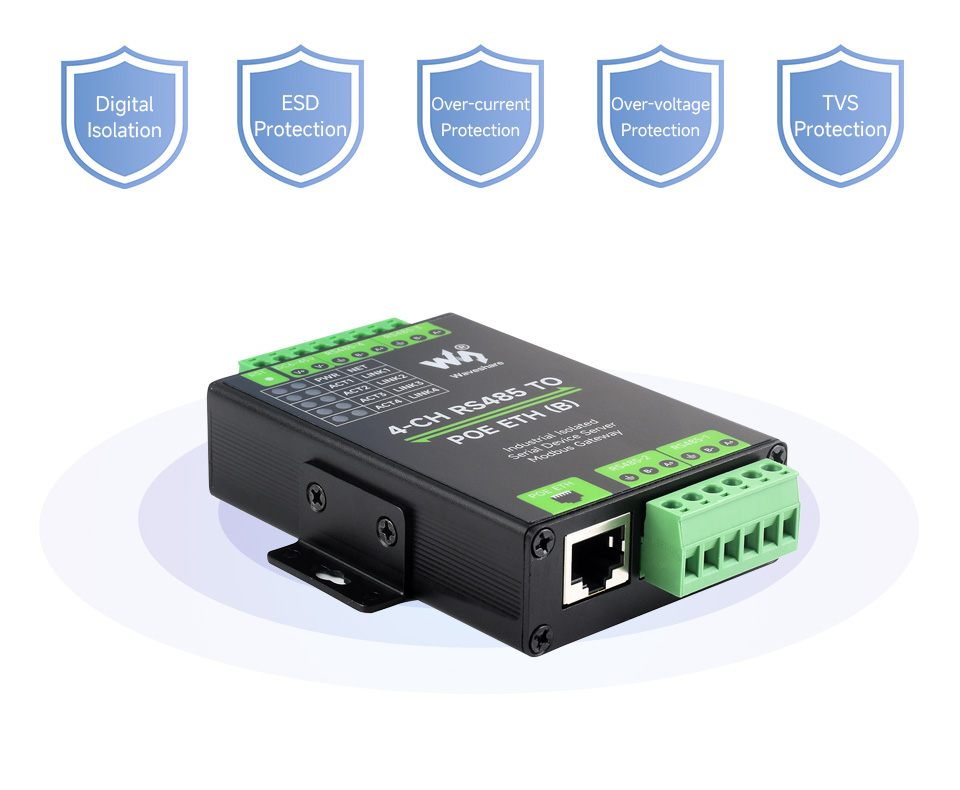

Multilayer protection:

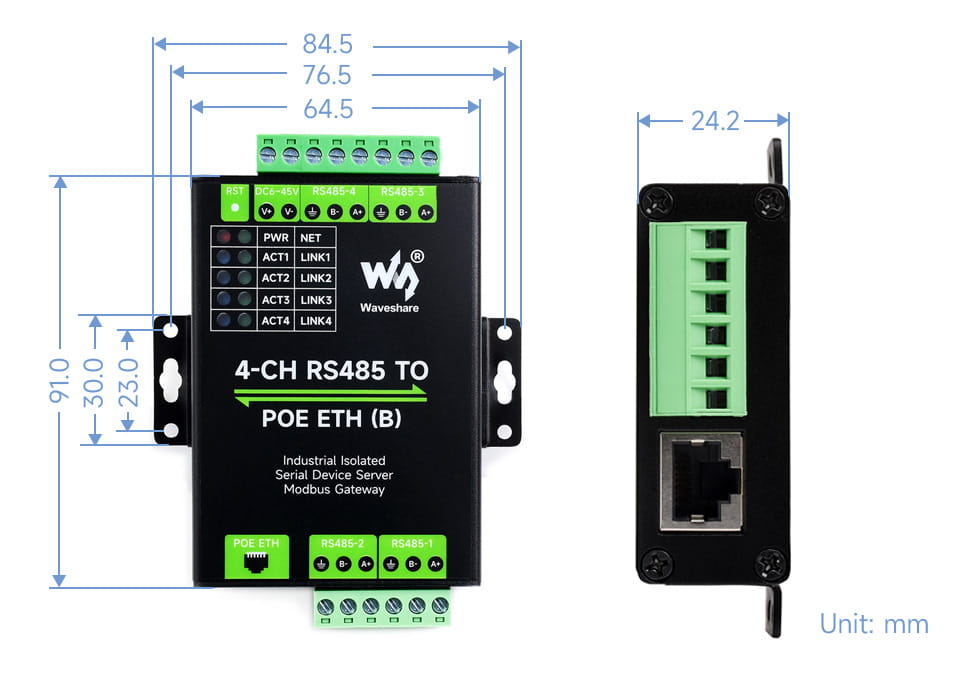

Dimensions:

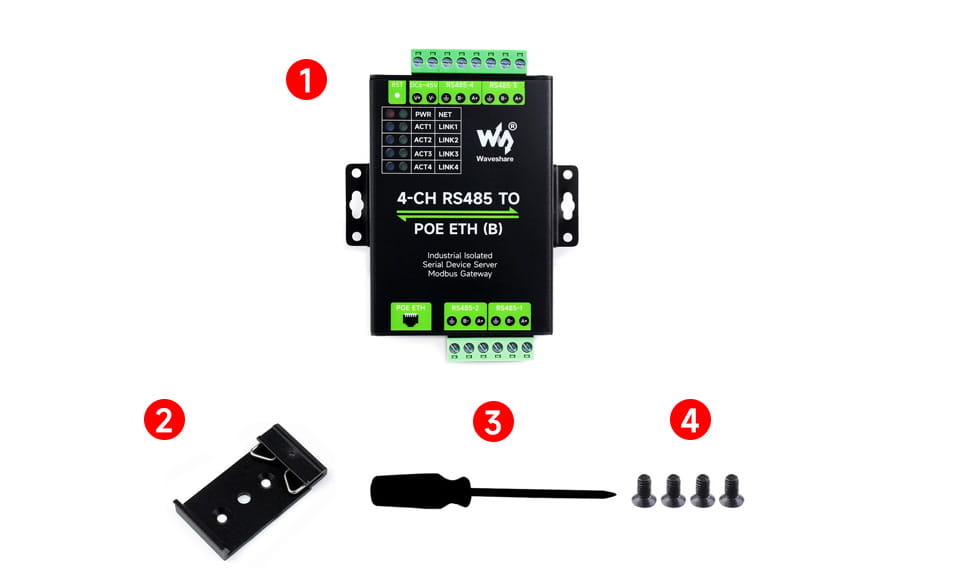

Package includes:
- 4-CH_RS485_TO_POE_ETH_(B) ×1
- DIN Rail Adapter ×1
- Screwdriver ×1
- Screw Set ×1
Wiki: 4-CH_RS485_TO_POE_ETH_(B)
