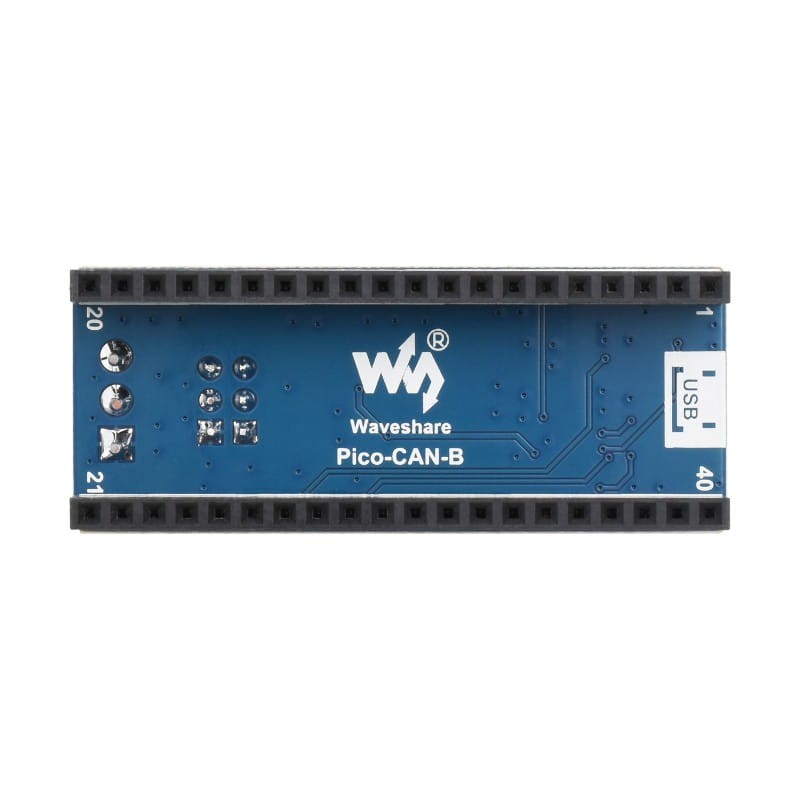

CAN bus (B) module for Raspberry Pi Pico - SPI communication
CAN bus (B) communication module extension for Raspberry Pi Pico, enabling communication using the CAN bus. Thanks to the MCP2515 controller and the SIT65HVD230DR transceiver, the module provides stable data transmission.Ideal for applications in automation, vehicle systems, robotics and communication between embedded devices.
Key features:
- Compatible with Raspberry Pi Pico - standard pin connector
- CAN bus support via SPI interface
- CAN controller MCP2515 and transceiver SIT65HVD230DR
- Available examples in C/C++ and MicroPython for Raspberry Pi Pico

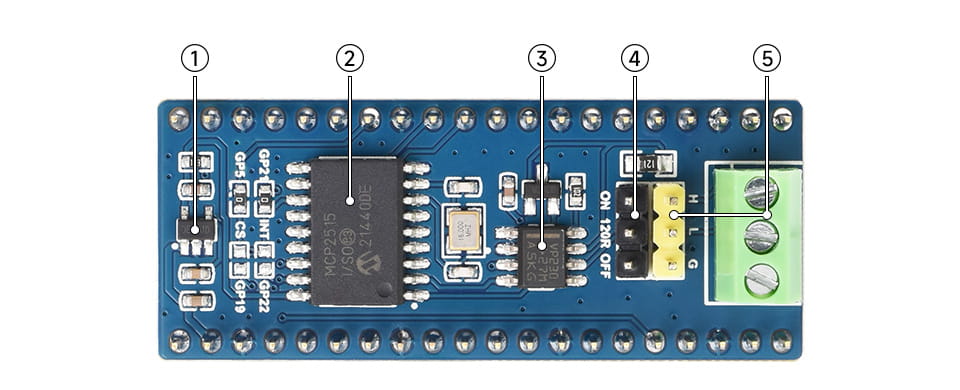

Board description
- RT9013-33GB
500mA low voltage drop, low noise, ultra-fast LDO - MCP2515
Standalone CAN 2.0 controller - SIT65HVD230DR
CAN 3.3V transceiver
- Terminal resistor selection
ON: connected to 120R matching resistor
OFF: disconnected from 120R matching resistor - CAN bus connector
Technical specifications
- Operating voltage: 3.3V ~ 5V
- CAN controller: MCP2515
- CAN transceiver: SIT65HVD230DR
- Communication interface: SPI
- Baud rate: 5 Kbps ~ 1000 Kbps
Kit contents
- Pico-CAN-B x1
Wiki: https://www.waveshare.com/wiki/Pico-CAN-B
