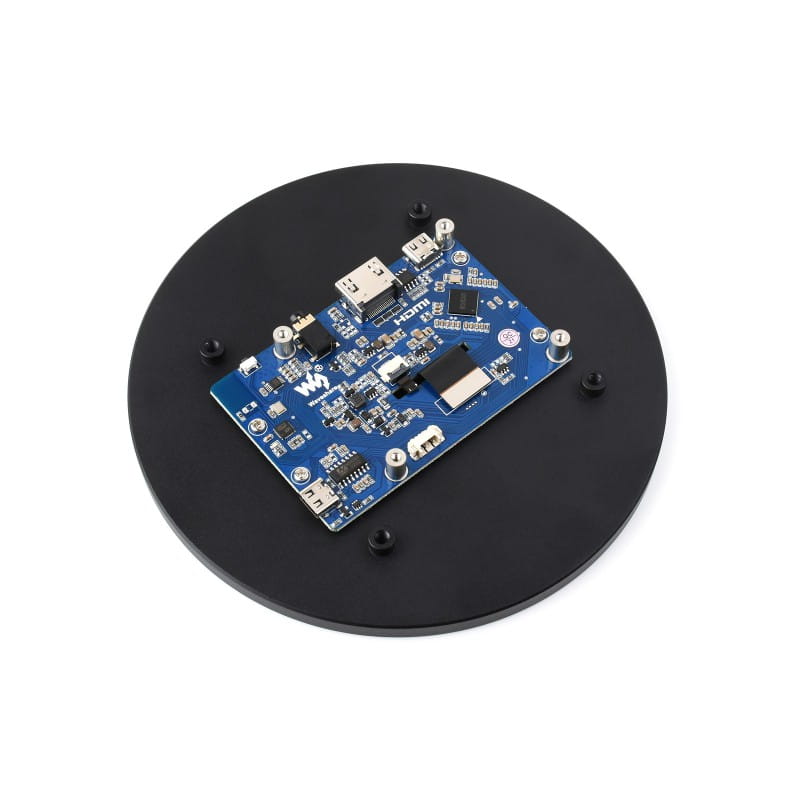

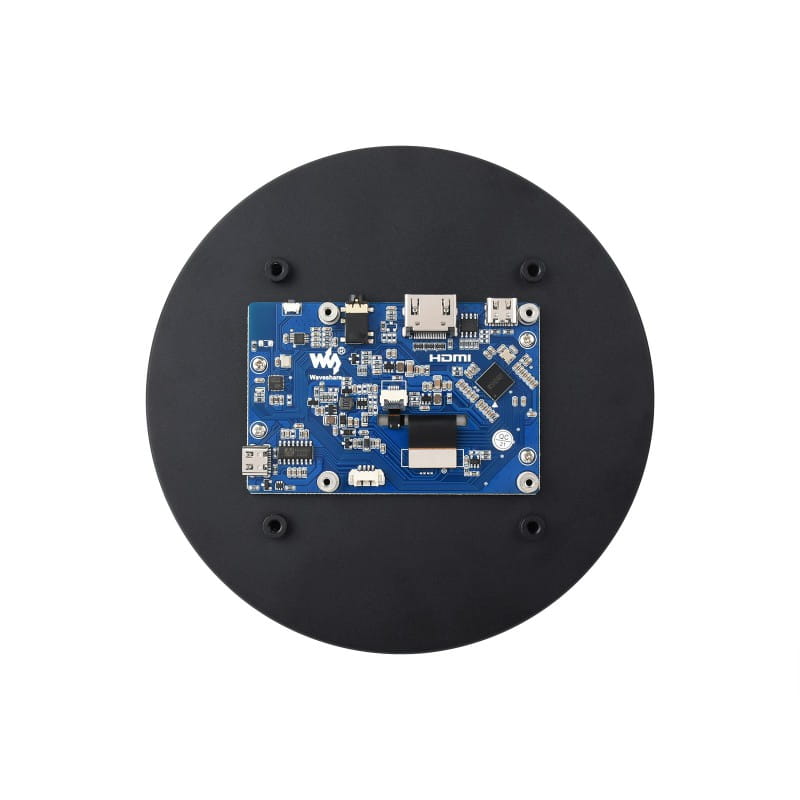

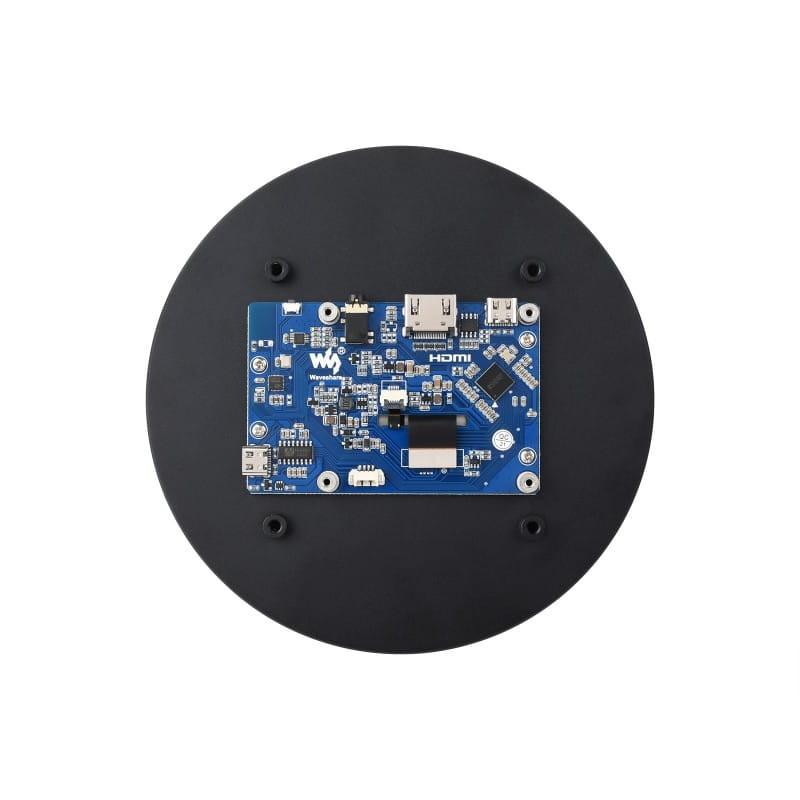

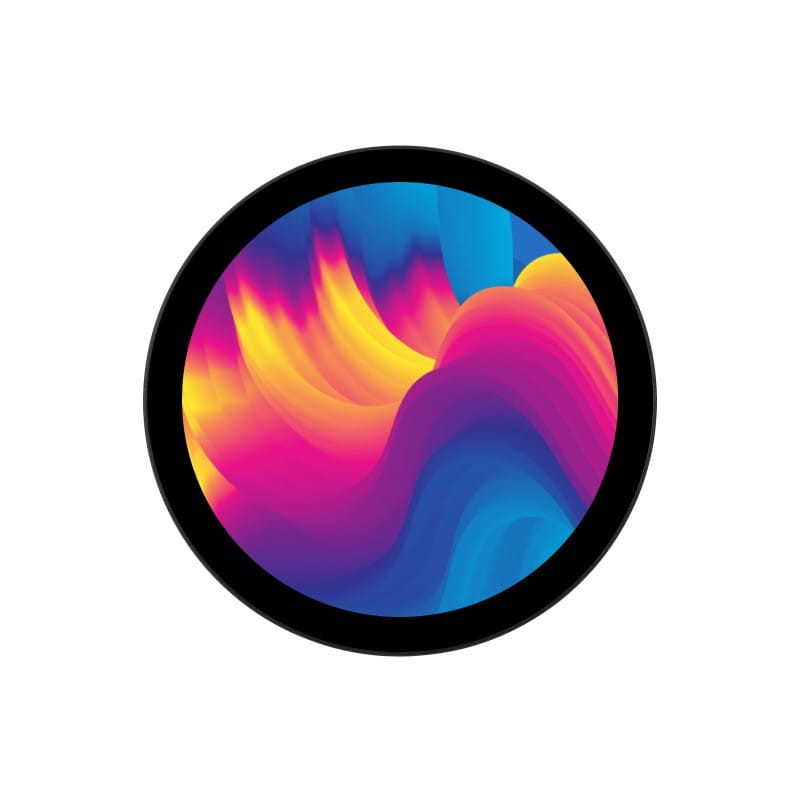

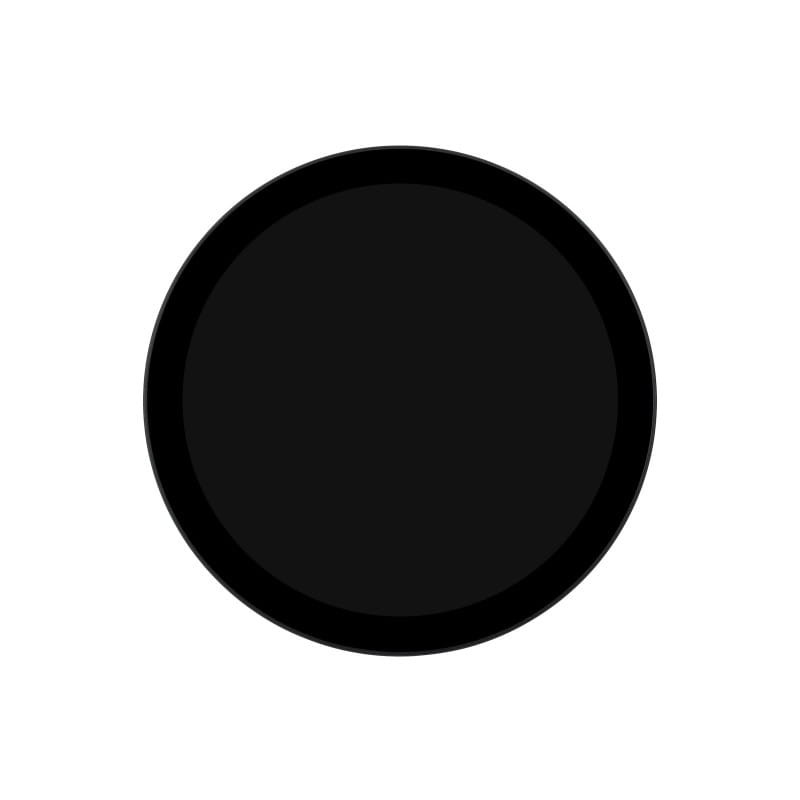

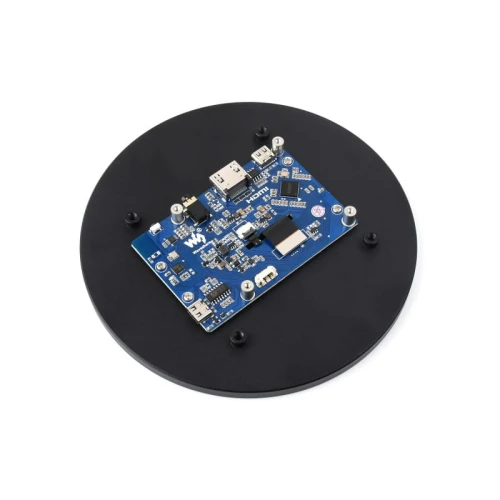

Capacitive Round IPS LCD Display 5" 1080x1080 with Tempered Glass Panel
Regular price:
product unavailable
Capacitive Round IPS LCD Display 5" 1080x1080 with Tempered Glass Panel for Raspberry Pi
The 5-inch Capacitive Round Touchscreen HDMI Display is an advanced high-resolution display module with a resolution of 1080x1080 pixels. Utilizing IPS technology, the display provides bright and vibrant images with a wide viewing angle of up to 160°. Equipped with a 10-point capacitive touch screen, it allows easy and intuitive interaction with the device. The display also features a tempered glass panel for additional protection. The touch interface is USB Type-C, enabling fast and stable data transmission. The display is compatible with Raspberry Pi, Jetson Nano, and personal computers supporting various operating systems.
Microcontroller is not included and is required for full functionality.

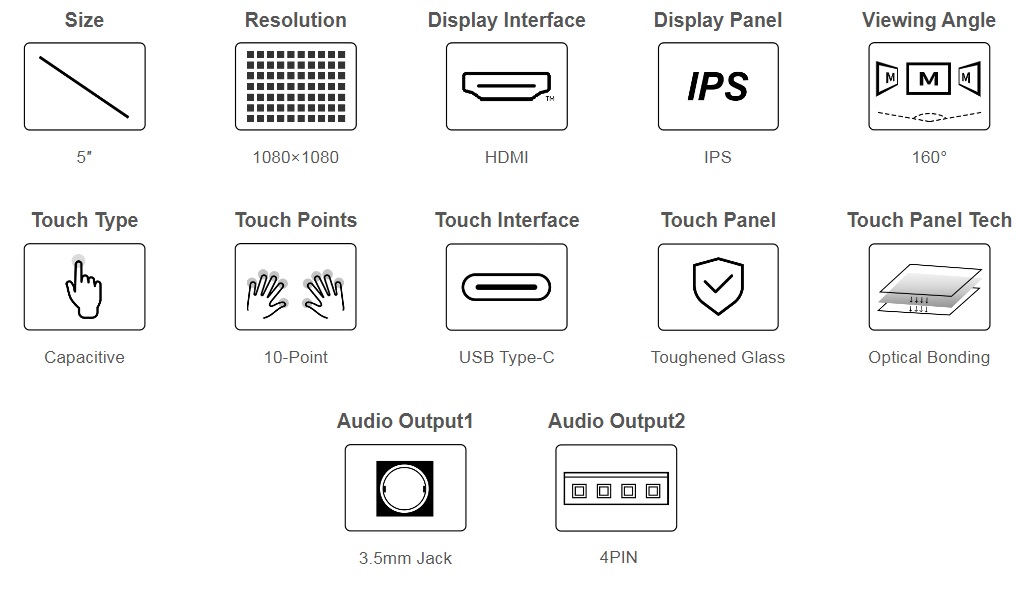

Specifications:
- Screen Size: 5"
- Resolution: 1080 x 1080
- Display Interface: HDMI
- Display Panel: IPS
- Viewing Angle: 160°
- Touch Type: Capacitive
- Touch Points: 10-point
- Touch Interface: USB Type-C

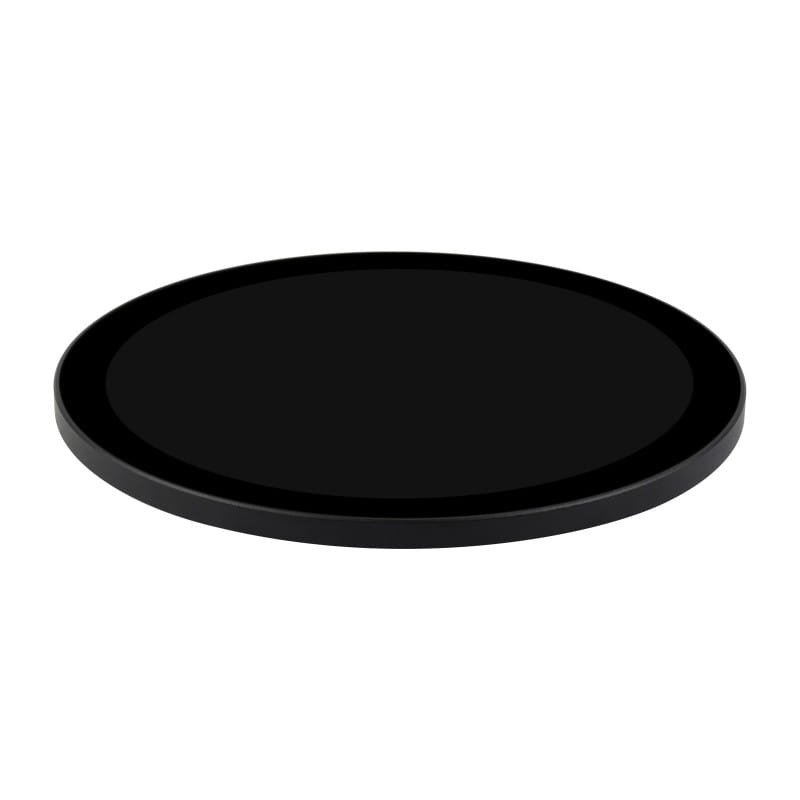

- Touch Panel: Tempered Glass
- Audio Output 1: 3.5mm Jack
- Audio Output 2: 4PIN Header
Product Features:
- Compatibility with Raspberry Pi, Jetson Nano, and personal computers
- Protection with tempered glass panel

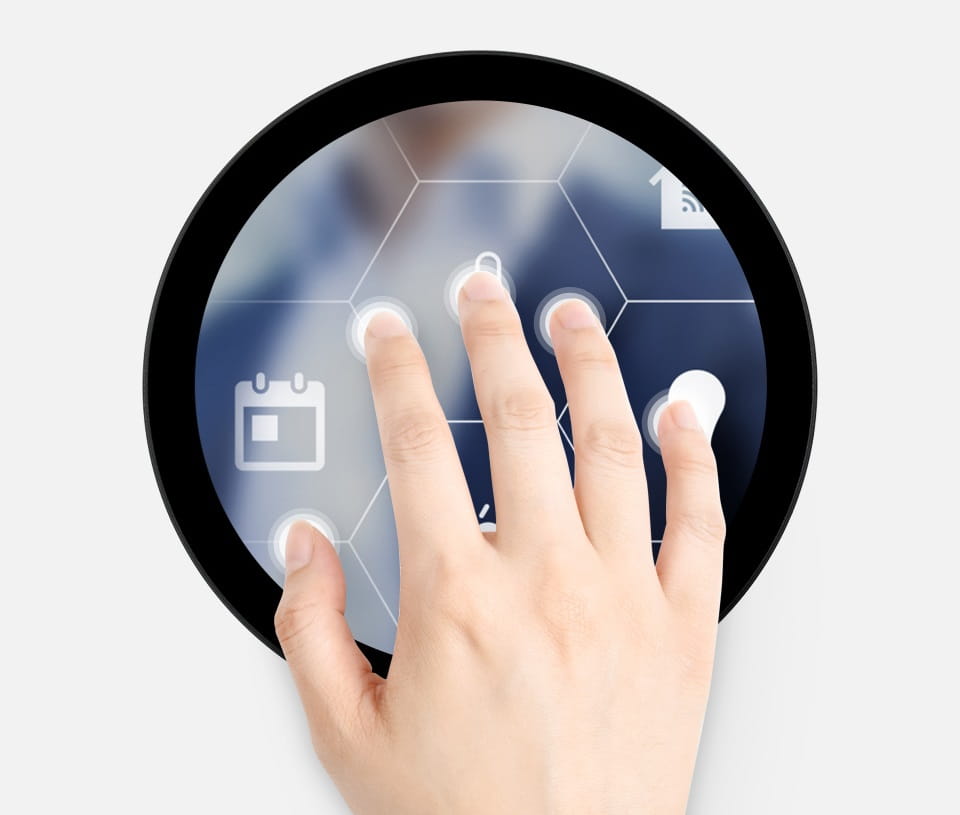

- Multi-touch functionality
- No driver required
- Suitable for smart home, automotive, consumer electronics, and industrial devices.




Compatibility with Raspberry Pi:



Compatibility with Jetson Nano:

Compatibility with Mini PC:

Wide Viewing Angle:

Touch Panel:

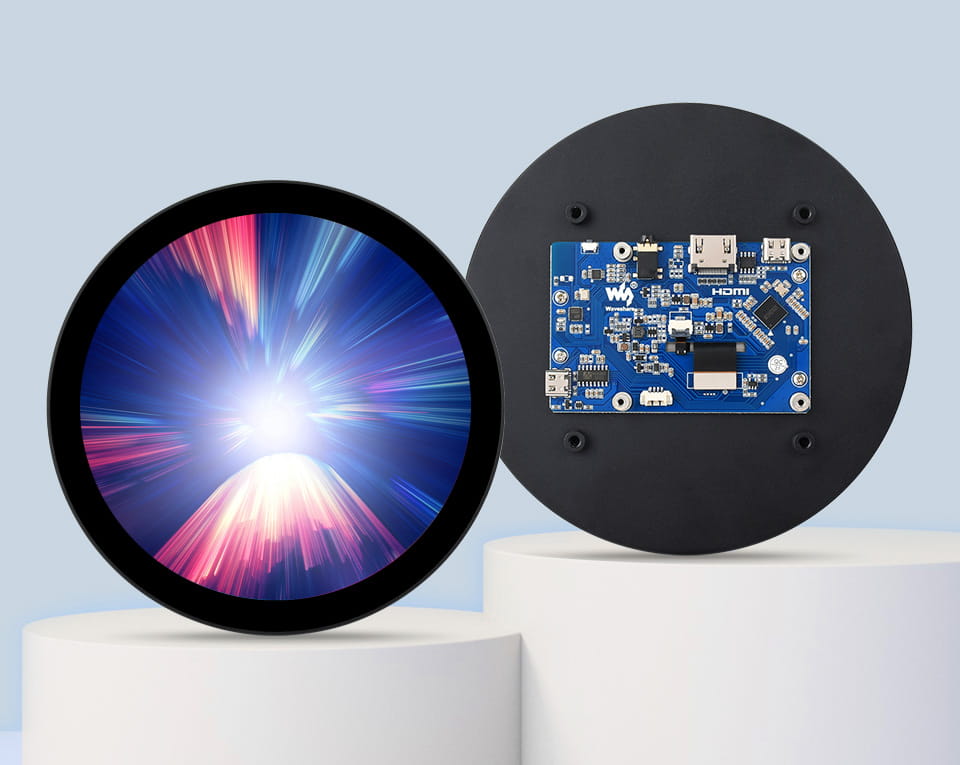

Presentation:



Dimensions:

Package Includes:
- Capacitive LCD IPS display 5" 1080x1080 x1
- Screw pack x1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- USB to Type-C (B) adapter ×1
- USB to Type-C (C) adapter ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1

Wiki: 5inch_1080x1080_LCD
