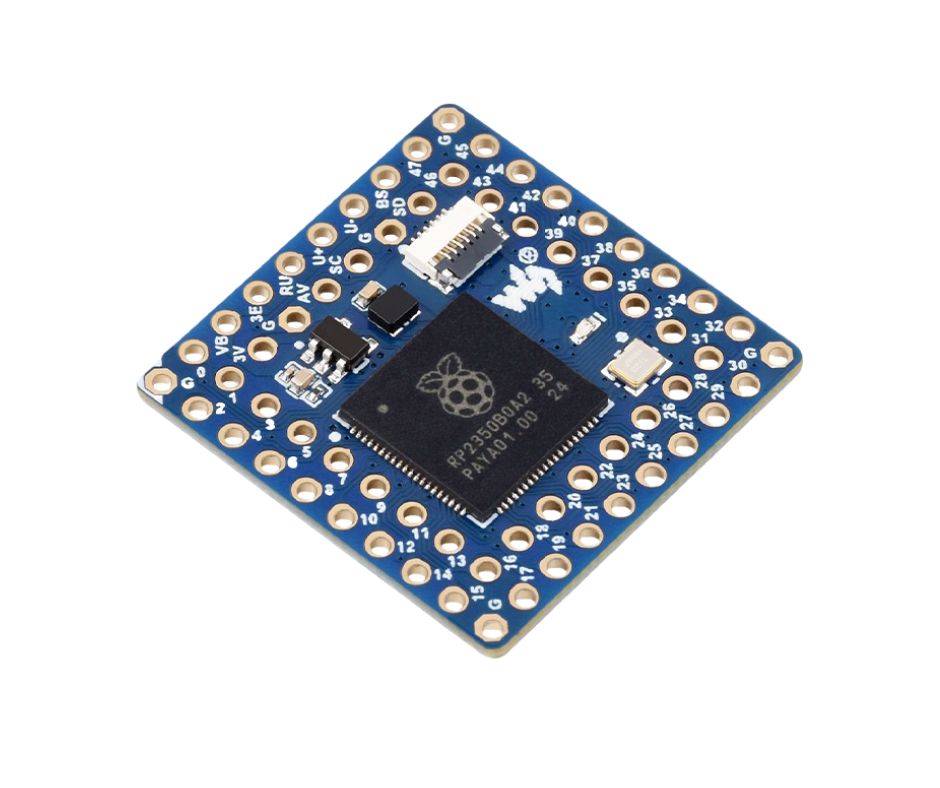

Core2350B Development Board with RP2350B Microcontroller - 8MB PSRAM + USB Adapter
Core2350B development board based on the Raspberry Pi RP2350B microcontroller, 48 GPIO pins, the included adapter allows for easy programming and power supply via the USB-C port. It is an ideal solution for rapid prototyping and integration in advanced projects.
Key Features:
- RP2350B microcontroller from Raspberry Pi
- Dual-core and dual-architecture: 2× ARM Cortex-M33 or 2× Hazard3 RISC-V
- Operating frequency up to 150 MHz
- Memory: 8MB PSRAM, 16MB Flash, 520KB SRAM

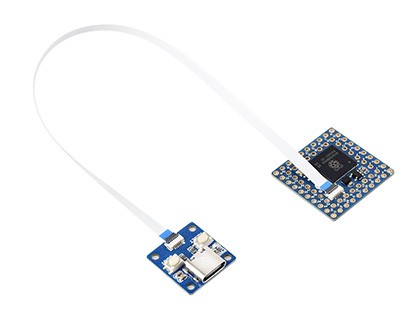

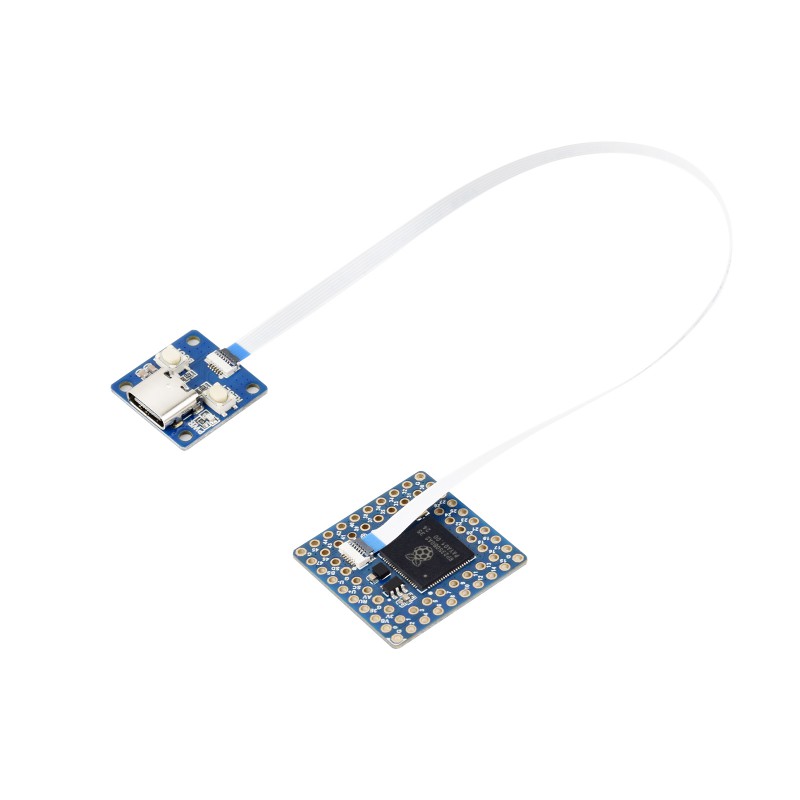

- FPC 6PIN connector with a USB-C adapter included
- 64 pins in a standard 2.54mm pitch for easy integration
- USB 1.1 with Host and Device mode support
- Low-power sleep modes
- Drag-and-drop programming via USB
- 48 multi-function GPIO pins
- Interfaces: 2× I2C, 2× UART, 8× 12-bit ADC, 24× PWM channels
- Onboard temperature sensor

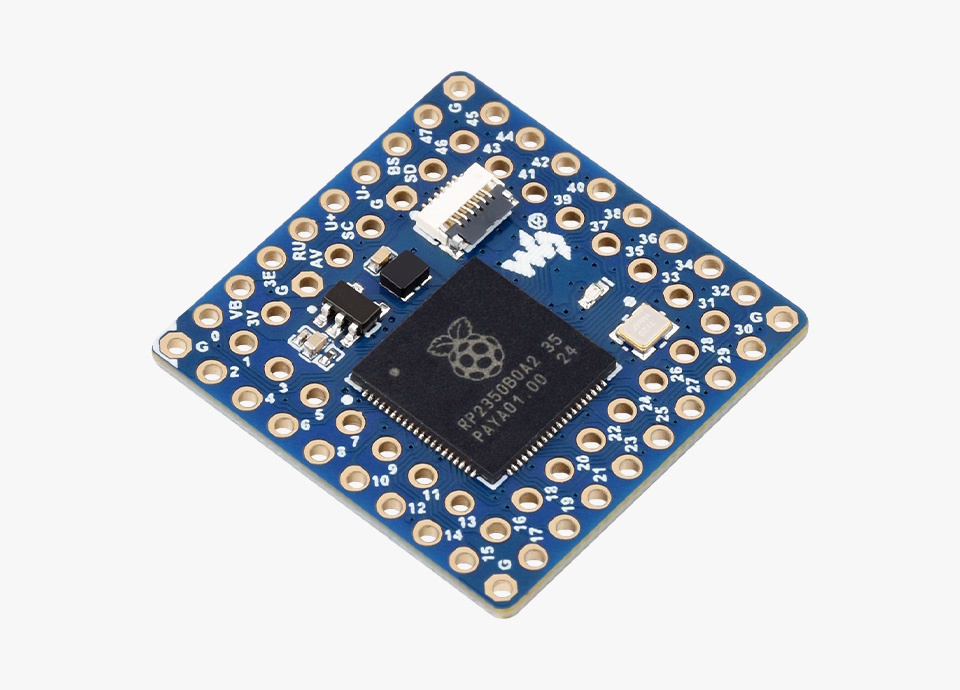

Board Components Description
- RP2350B
Dual-core, dual-architecture, up to 150 MHz - ME6217C33M5G
LDO regulator, 800mA max output current - FPC connector
6PIN, 0.5mm pitch
- LED

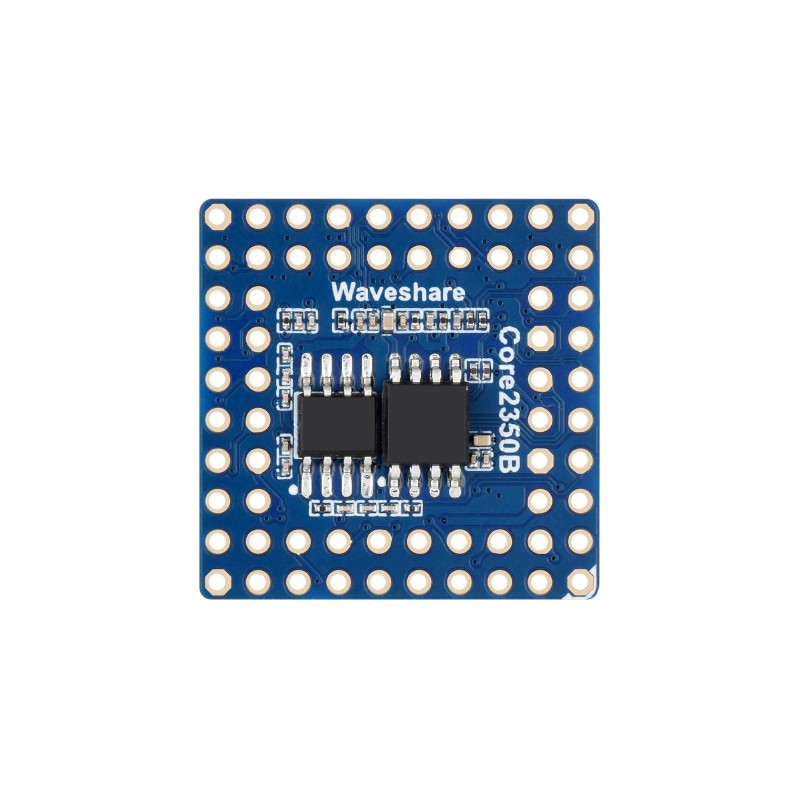

User LED (not a power indicator) - 16MB NOR-Flash
- 8MB PSRAM
Version with 8MB PSRAM

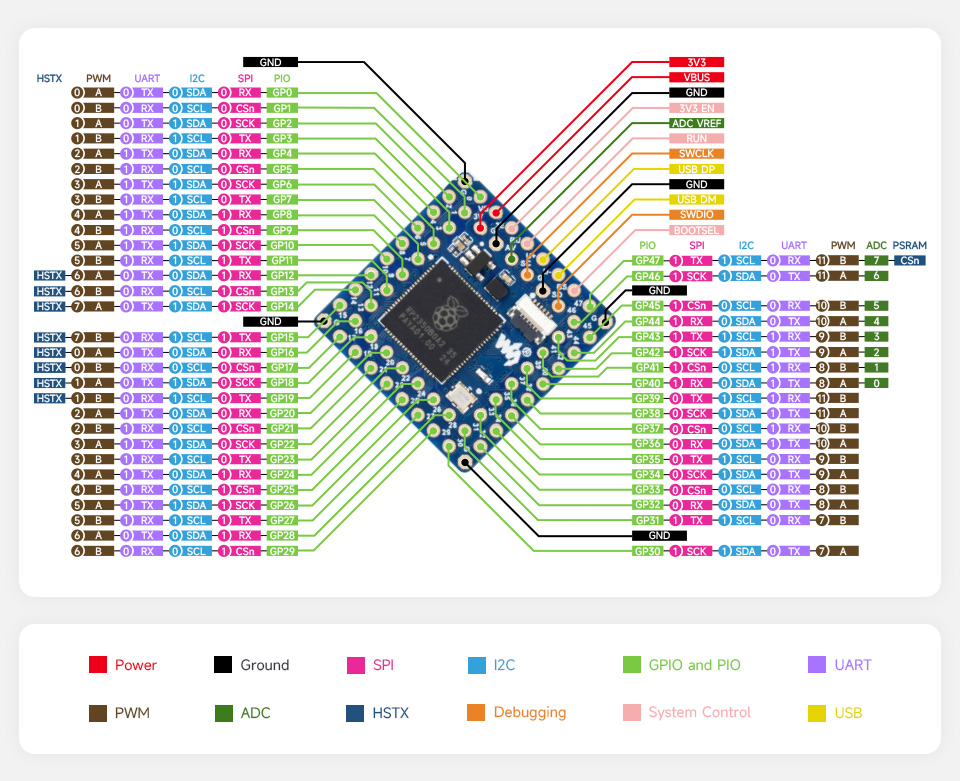

Pinout

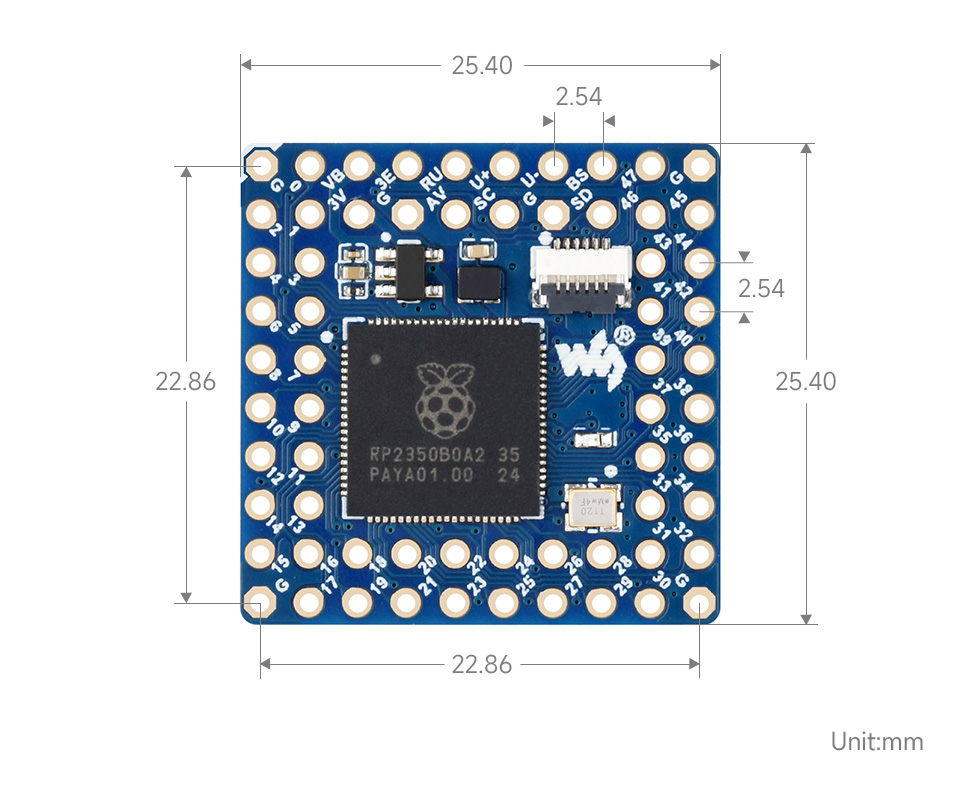

Dimensions

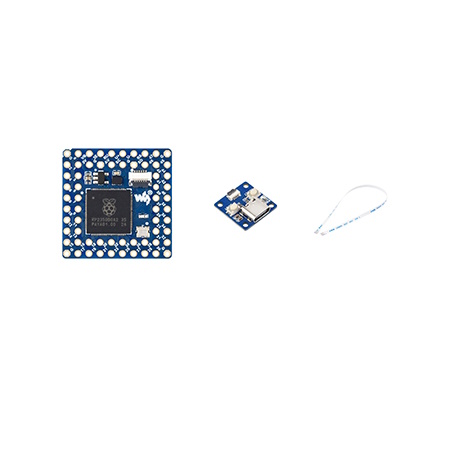

Package Contents - Core2350B2-Kit
- Core2350B board (with 8MB PSRAM) ×1
- RP-Tiny-Adapter-B ×1
- FFC 6PIN cable ×1
