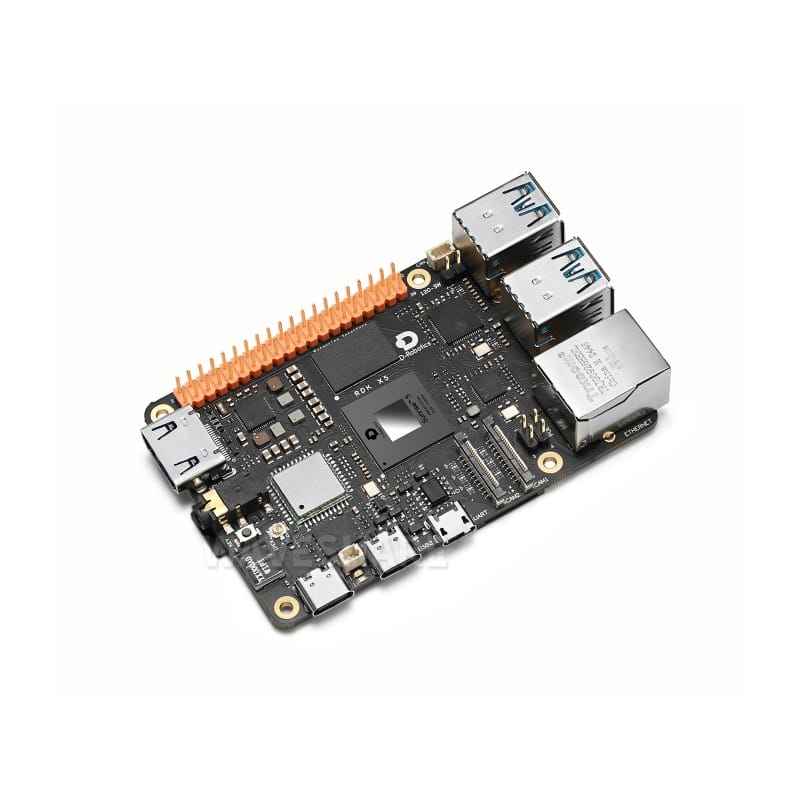

D-Robotics RDK X5 4GB – AI Development Board 10 TOPS Sunrise 5 Cortex A55
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
D-Robotics RDK X5 4GB – AI Development Board 10 TOPS, Sunrise 5, Cortex A55
D-Robotics RDK X5 is a versatile all-in-one development kit for intelligent computing and robotics, powered by the Sunrise 5 chip with 10 TOPS performance. With rich interfaces and support for advanced models such as Transformer, RWKV, Occupancy, or Stereo Perception, it accelerates the deployment of cutting-edge AI applications. This version is equipped with 4GB of RAM.
Key Features:
- Octa-core Cortex A55 processor and 10 TOPS BPU unit (Sunrise 5)
- RAM Memory: 4GB LPDDR4
- Supports Wi-Fi 6 (2.4/5GHz) and Bluetooth 5.4
- 1000M Ethernet with PoE support (requires appropriate module/power supply)
- 4 USB 3.0 Host ports and CAN FD interface for robotics
- Supports large language models (Transformer, RWKV) on the edge (Edge AI)
- Video Outputs: HDMI (1080P/60fps) and 4-lane MIPI DSI
- Camera Inputs: 2x 4-lane MIPI CSI
- Rich GPIO: 40-pin header compatible with Raspberry Pi (SPI, I2C, PWM, UART)
Technical Specification:
- CPU: Octa-core Cortex A55
- BPU (AI): 10 TOPS (Sunrise 5)
- RAM: 4GB
- Storage: Onboard 1G bit NAND + TF card slot (UHS-I)
- Network: 1x RJ45 (1000M, supports PoE), Wi-Fi 6 (2.4/5GHz), Bluetooth 5.4
- USB: 4x USB 3.0 Host (Type-A), 1x USB 2.0 Device (Type-C)
- Video/Camera: 1x HDMI, 1x MIPI DSI, 2x MIPI CSI (4-lane)
- Other interfaces: 1x CAN FD, 1x 3.5mm Audio Jack, UART debug
- GPIO: 40-PIN header (28 GPIO, 3.3V)
- Power: 5V/5A DC (USB-C)
- Dimensions: 85 × 56 × 20 mm
- Operating Temperature: -20°C ~ 60°C
Package Content
- D-Robotics RDK X5 4GB ×1
Note: Power supply is not included in the kit.
