Display 2.41" AMOLED 600×450 Touch Panel ESP32-S3 WiFi and BT RTC IMU
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

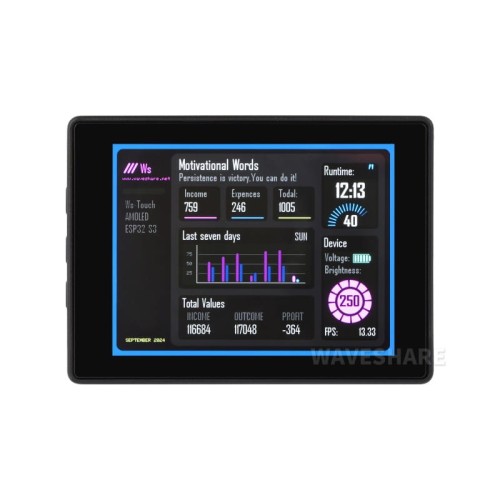

AMOLED 2.41" 600×450 display with touch panel and ESP32-S3
Development module with AMOLED Display 2.41" 600×450px, based on a high-performance ESP32-S3 microcontroller with a dual-core LX7 processor. Equipped with WiFi 2.4 GHz, Bluetooth 5 (LE), 16 MB Flash memory and 8 MB PSRAM, it is ideal for creating modern user interfaces (HMIs), control panels, automation systems and intelligent lighting.
With support for the free LVGL graphics library, the module allows you to seamlessly run graphical touch interfaces, also with multi-point touch support.
Key features:
- AMOLED 2.41" 600x450 display 800 cd/㎡ brightness 16.7M colours

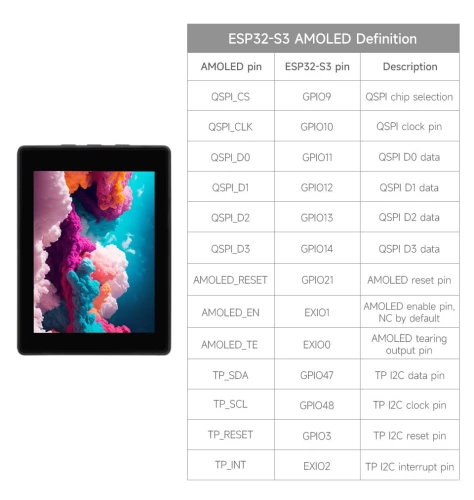

- Display controller: RM690B0 QSPI, touch: FT6336 I2C
- RTC: PCF85063
- IMU 6 axis: QMI8658
- Built-in ESP32-S3
- Wireless connectivity: WiFi 2.4 GHz (802.11 b/g/n), Bluetooth 5 (LE)
- Supports 5-point capacitive touch
- Low power support - flexible power and clock management
- Compatible with LVGL library - for modern GUI development

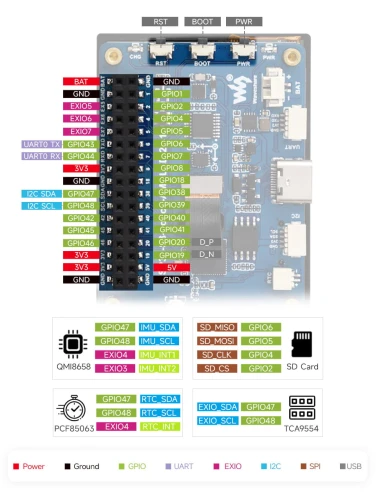

Interoperable with many peripherals

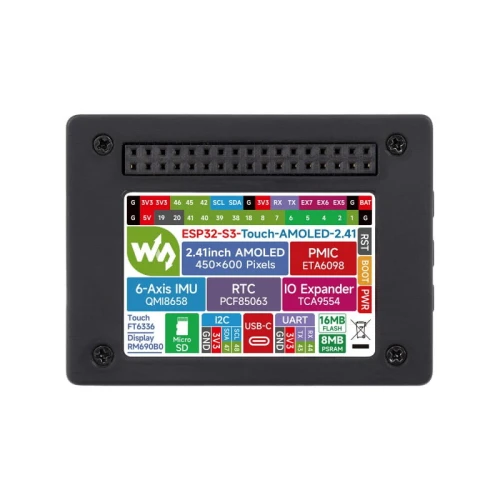

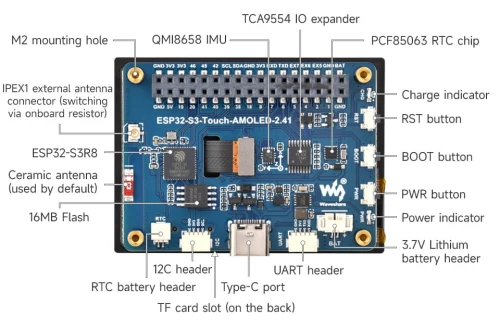

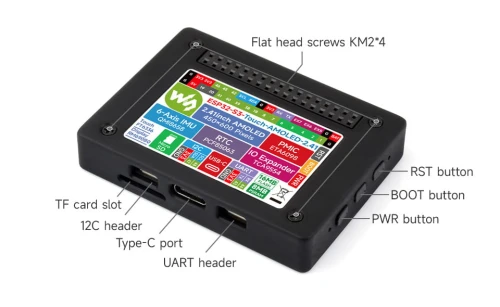

Module design

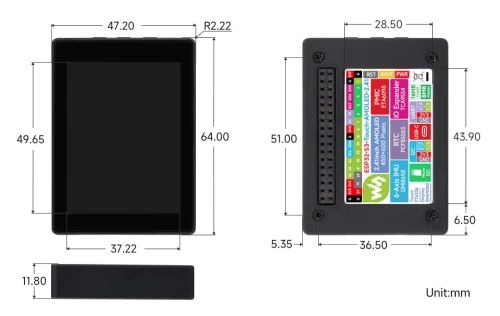

Dimensions
Kit contents
- ESP32-S3-Touch-AMOLED-2.41-B x1
- SH1.0 4PIN x 1
Wiki: https://www.waveshare.com/wiki/ESP32-S3-Touch-AMOLED-2.41
