Display 8" IPS 768×1024 HDMI with Touch Panel
Price:
€86.46
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
3
Vendor:
![WaveShare]()
ELTY - Official Waveshare Distributor
Product code:
8inch 768x1024 LCD Waveshare 27026

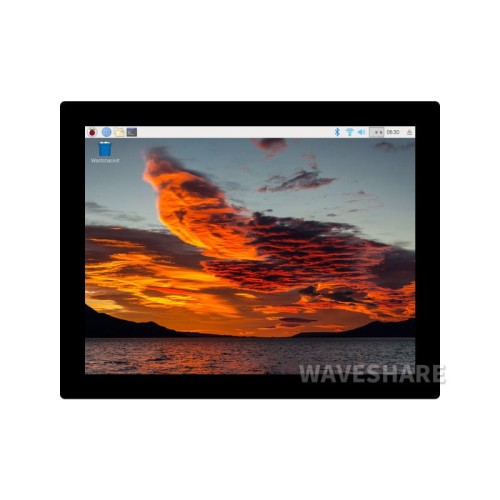

8" Capacitive Touch Screen 768×1024 with HDMI Interface - IPS Panel, 10-Point Touch
High-quality 8" IPS display with 768×1024 resolution with capacitive touch panel. With tempered 6H hardness glass and support for 10-point touch, the screen provides precise and smooth user interaction. Compatible with a range of operating systems and HDMI-enabled devices, including Raspberry Pi and PCs.
Key features:
- 8" IPS display, 768 × 1024 pixel resolution
- Capacitive touch panel with 10-point support
- Tempered glass with 6H hardness
- Wide 178° viewing angles
- Contrast ratio 900:1, brightness up to 350 cd/m²
- Standard HDMI connection for video transmission
- Audio output: 3.5mm jack socket and 4PIN speaker connector
- Power interface: 5V via USB Type-C
- On-screen display (OSD) menu for backlight adjustment
- Support: Raspberry Pi OS, Ubuntu, Kali, Retropie, Windows 7/8/8.1/10/11
Connection to Raspberry Pi 5 and Raspberry Pi 4

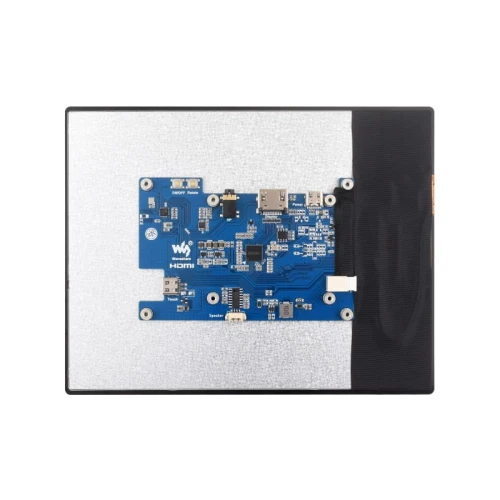

Display board description
- Power switch and brightness control
- Touch rotation
- Audio jack
- HDMI port
- Power connector
- Touch input port
- Speaker output
Technical specifications:
- Display: 8.0" IPS 768 × 1024 pixels
- Touch support: 10-point capacitive touch
- Touchscreen dimensions: 147.30 × 188.00 mm
- Display area: 122.70 × 163.40 mm
- Pixel pitch: 0.1587 × 0.1587 mm
- Maximum brightness: 350 cd/m²
- Contrast ratio: 900:1
- Backlight adjustment: via OSD menu
- Refresh rate: 60 Hz
- Display interface: HDMI
- Power port: USB Type-C 5V
- Power consumption: 4 W
Kit contents
- 8inch 768x1024 LCD ×1
- HDMI flat cable ~1m ×1
- USB-A to Type-C cable ~1m ×1
- USB to Type-C (C) adapter ×1
- USB to Type-C (B) adapter ×1
- HDMI adapter ×1
- HDMI to Micro HDMI Adapter ×1
- Screws
Wiki: https://www.waveshare.com/wiki/8inch_768x1024_LCD
