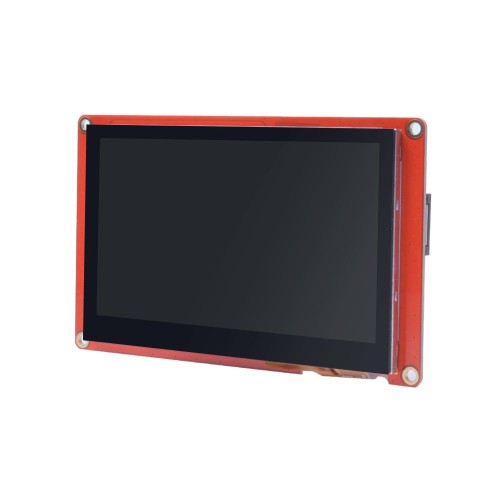

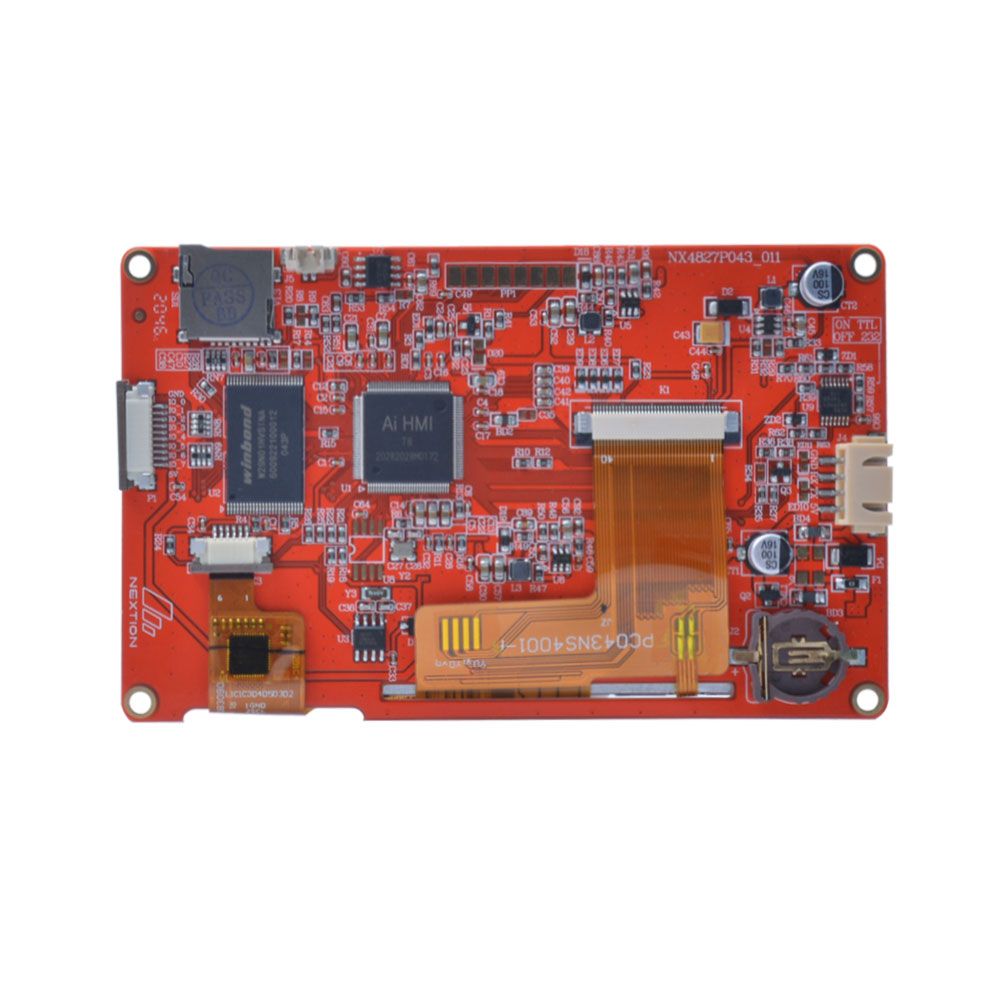

Display Nextion Intelligent 4.3" 480x272 NX4827P043-011C capacitive touch panel

The Nextion Intelligent NX4827P043-011C is the perfect display for quick HMI projects using readily available tools.

The display is controlled via the UART serial bus. The display is recommended for Arduino, Raspberry PI and systems with ESP8266 microcontrollers.

If you need to quickly design an interface with buttons, charts, various controls and allowing for easy operator input then you will find the answer in the Nextion series of products.

Specifications of the presented Nextion Intelligent display NX4827P043-011C:

• Size: 4.3″
• Resolution: 480*272
• Touch panel: capacitive
• Number of colours: 65536
• Flash memory: 128 MB
• RAM: 512KB
• MCU clock: 200 MHz
• EEPROM memory: 1024 Byte
• Number of GPIOs: 8
• Real-time clock: YES
• Enclosed case: NO

Nextion Editor
The layout of the screen and the functional elements can be designed very easily and quickly with a free program on your computer.

Each screen can contain a number of functional elements, known as widgets, which include the following:

• Text: a text field which can be modified while the display is running.
• Number: a number field which can be modified both via the microcontroller and the interactive keyboard on the display.
• Button: a button. Both pressing and releasing a button is easy to register via the microcontroller.
• Progressbar: a progress bar. The value of this bar can be easily set with the appropriate command.
• Picture: allows the creation of a screen background or the insertion of parts of an image anywhere on the screen.
• Gauge: is an analogue pointer with a single pointer.
• Waveform: used to draw up to four graphs.
• Slider: a slider with which you can set various parameters, variables in the programme.
• Checkbox : A checkbox. Each touch changes its state to the opposite.
• Combobox: drop-down list.
• Video: allows the insertion of videos.

Use the mouse to insert the functional elements you will need on the screen and to determine their size on the screen and position.

The finished project prepared in the Nextion Editor software can be transferred to the display in two ways:

1. Uploading the appropriate project file to an SD card and inserting it into the display. When power is applied, the display will automatically load the project into its Flash memory. This is a good way of transferring updates to your own software via the internet.
2. If the display is connected to a computer(using a USB - TTL converter), simply click the UPLOAD button and the software will automatically load into the display via the USB connection.

The way to connect the Nextion displays to the microcontroller:

With the microcontroller controlling the display it communicates via the UART serial bus so you only need to, connect only 4 pins:

• +5V: power supply
• TX: data coming out of the display (e.g. button1 has been pressed) should be connected to RX of the microcontroller.
• RX: data input to the display (e.g. temperature display) should be connected to TX of the microcontroller.
• GND: supply ground

Nextion as display for Arduino

If the software on the microcontroller side is developed on the basis of the Arduino IDE, the manufacturer has also taken care of a lot of simplifications in this case. The Nextion display library created and made available by the manufacturer allows the elements displayed on the screen to be managed very easily. An example of the software is available on our blog.

The kit includes:

• Nextion Intelligent display NX4827P043-011C x1
• Adapter for USB power supply x1
• Connection cables with plugs x1
