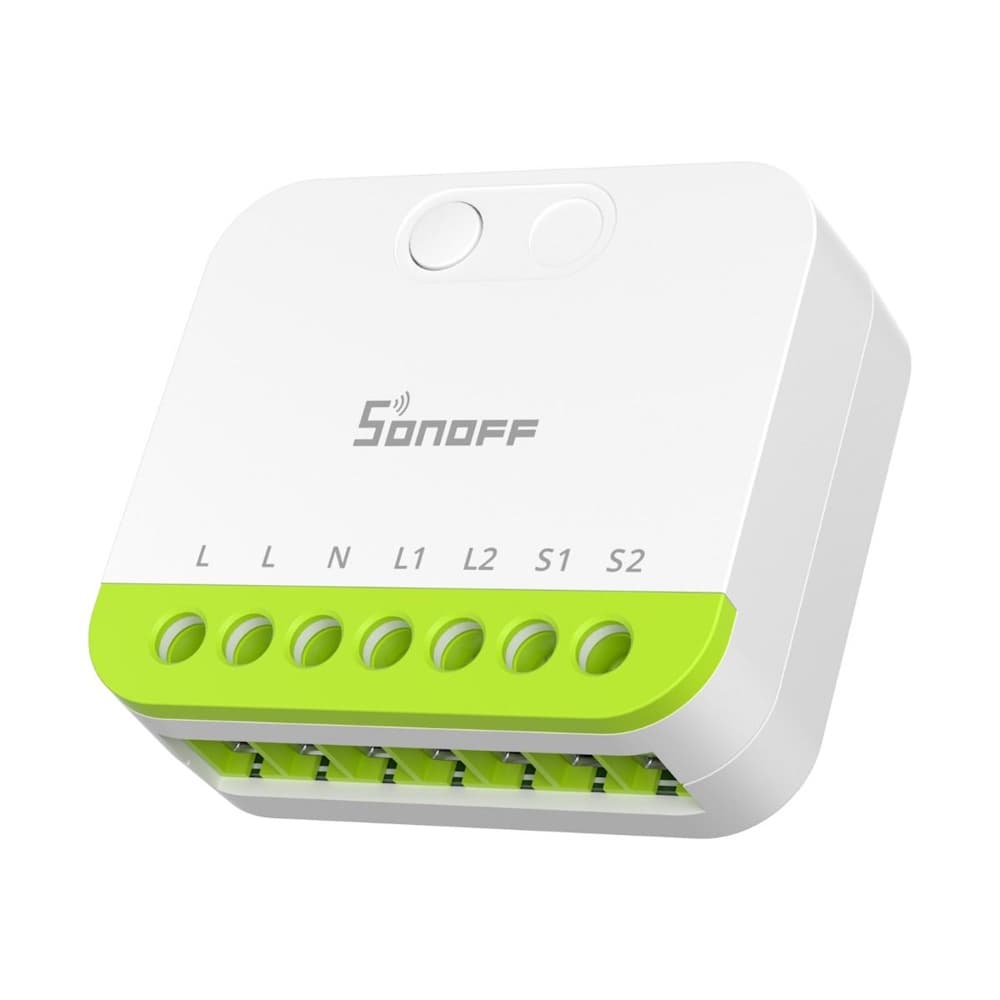

SONOFF MINI DUO – 2-Gang Zigbee Switch (Router) MINI-ZB2GS

SONOFF MINI DUO – 2-Gang Zigbee Switch (Router) | MINI-ZB2GS

A 2-channel relay module operating on the Zigbee 3.0 standard. It enables smart control of two independent lighting circuits or electrical appliances. Unlike the "No Neutral" version, this model requires full power (L+N), allowing it to function as a Zigbee Router, strengthening the mesh network range in your home.

Key Features:

• Zigbee 3.0 Communication – stable operation, fast response, and high compatibility
• Zigbee Router Function – device boosts network signal, extending its range (requires L+N)
• 2-Channel Control – independent control of two circuits
• High Load Capacity: 10A per channel, up to 16A total
• Zigbee Gateway Required: requires a bridge to operate, e.g., SONOFF ZBBridge Pro, iHost, or ZBDongle
• Compact Size (45x39.4x16.8mm) – fits in standard installation boxes
• Supports voice control (Alexa, Google Home) and schedules
• Power-on State – configure behavior after power restoration (on, off, last state)
• Works with Apple Home via Matter Bridge (e.g., Sonoff Zigbee Bridge Ultra)

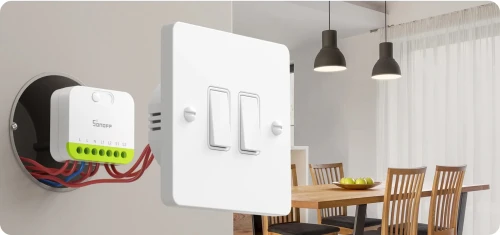

Compact Design, Powerful Performance

Designed for seamless installation in flush-mounted boxes behind existing switches. Despite its small size, it supports a total load of up to 16A, offering flexibility in controlling lighting or outlets.

Extended Zigbee Range (Router Function)

Thanks to constant power supply, MINI DUO acts as a node (router) in the Zigbee Mesh network. It strengthens the signal and transmits it to further devices, eliminating "dead zones" in your smart home.

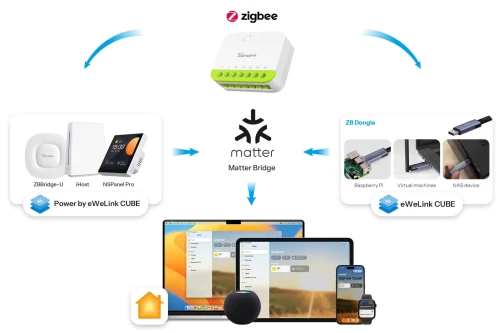

Integration and Matter Support

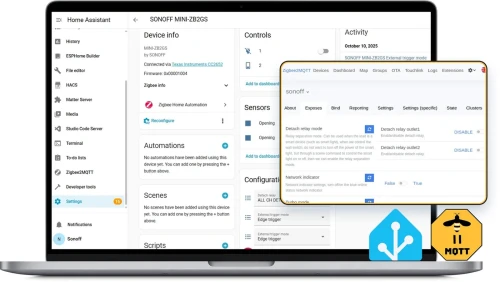

The device seamlessly integrates with open-source platforms and the Apple Home ecosystem (via Matter Bridge, e.g., Sonoff Zigbee Bridge Ultra), connecting different systems into one cohesive unit.

Zigbee Gateway Required

The device communicates using the Zigbee standard, which means a Zigbee 3.0 gateway is required for remote control and scene automation (e.g., Sonoff ZBBridge Pro, NSPanel Pro, or Sonoff iHost).

Technical Specifications:

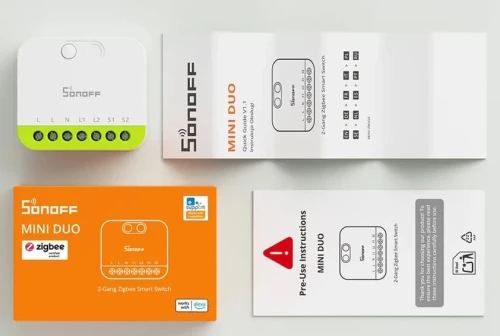

Package Contents

Documentation: https://help.sonoff.tech/docs/MINI-ZB2GS
