E-TEN1122 toggle switch ON-OFF-ON SPDT 3 pins 15A 250V AC

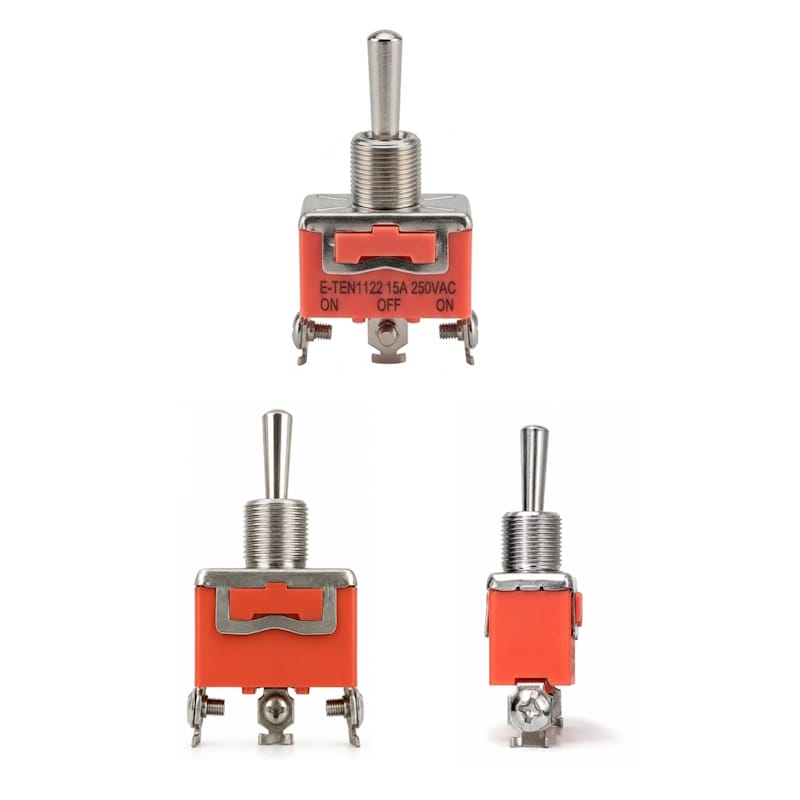

E-TEN1122 toggle switch, a three-position ON-OFF-ON switch designed to control one circuit and switch between two outputs. The contact rating is 15 A at 250 V AC, and it is mounted in a hole with a diameter of 12 mm.
Key features:
- Three stable operating positions: ON-OFF-ON.
- SPDT contact configuration.
- Switching one common contact between two outputs.
- Contact rating up to 15 A at 250 V AC.
- 3 terminals for wire connection.
- Designed for panel mounting.
- Mounting diameter: 12 mm.
Operation
The E-TEN1122 switch operates in an SPDT (Single Pole Double Throw) configuration. Depending on the lever position, the common contact is connected to one of the two other terminals. The middle OFF position disconnects both connections.
Application
- control panels,
- electrical and electronic devices,
- machinery and workshop equipment,
- selecting device operating direction,
- switching between two circuits,
- electronic and DIY projects,
- device repair as a replacement part.
Installation
The switch is designed for panel mounting in a hole with a diameter of 12 mm. The threaded body allows the component to be secured in a housing or control panel.
How does the E-TEN1122 switch work?
The switch has three terminals: a middle common contact and two switched contacts. Depending on the lever position, the common contact is connected to one of the two outputs.
- First ON position: the common contact is connected to the first output.
- Middle OFF position: the common contact is disconnected from both outputs.
- Second ON position: the common contact is connected to the second output.
The ON-OFF-ON layout allows you to choose between two circuits while maintaining a middle position where both circuits are disconnected.
Technical specification
- Model: E-TEN1122
- Type: toggle switch
- Switching method: ON-OFF-ON
- Number of positions: 3
- Contact configuration: SPDT
- Number of terminals: 3
- Rated voltage: 250 V AC
- Rated current: 15 A
- Mounting diameter: 12 mm
- Mounting: panel

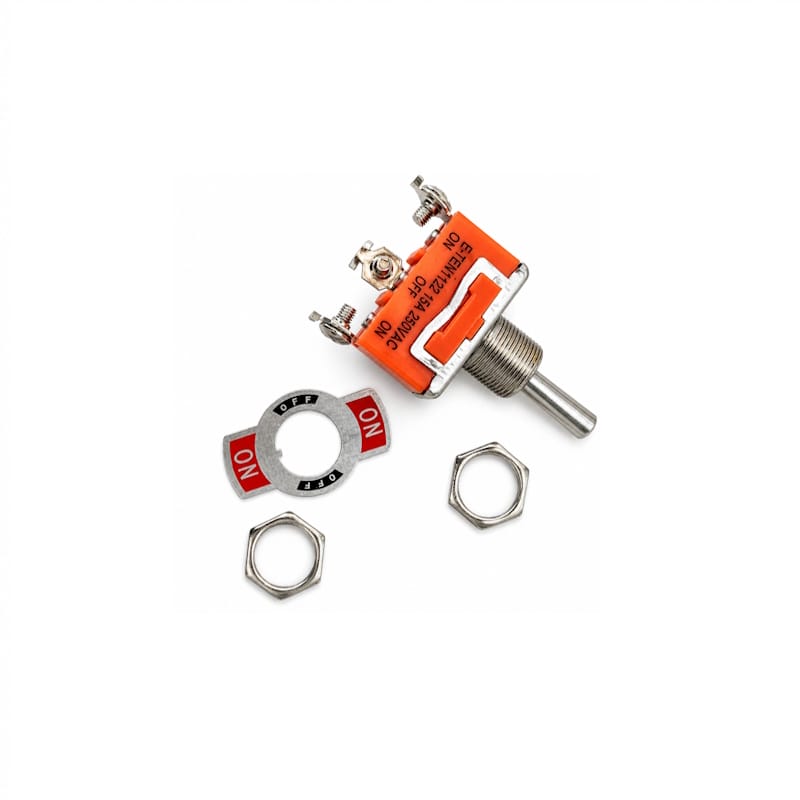

Set contents
- E-TEN1122 toggle switch ON-OFF-ON SPDT – 1 pcs.
Compatible rubber cover
For E-TEN series switches, a compatible waterproof rubber cover with M12 thread is available. The cap protects the switch from water, moisture, dust, and dirt, while allowing convenient operation of the lever.
