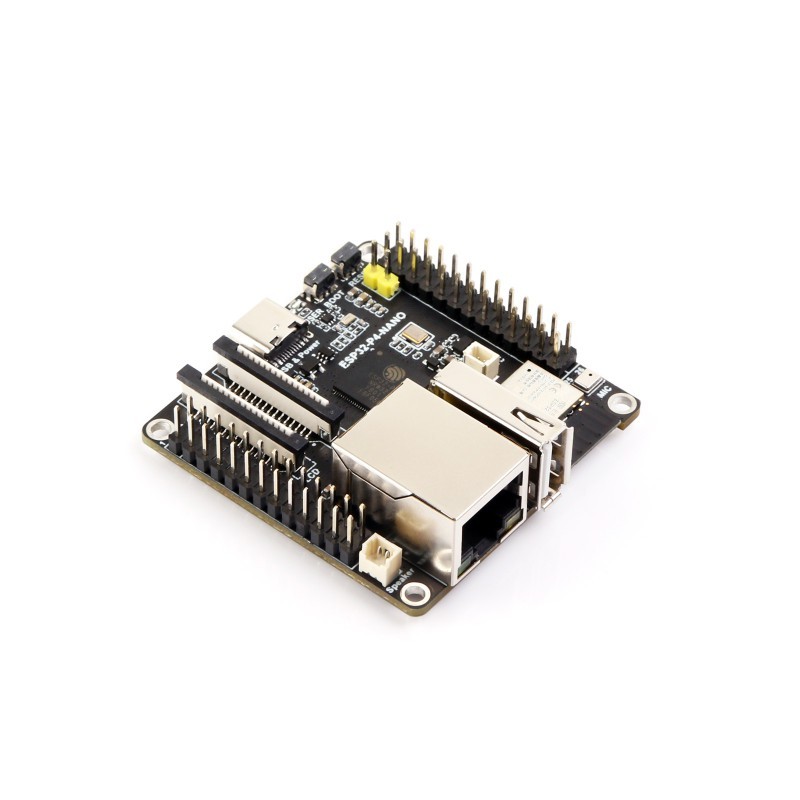

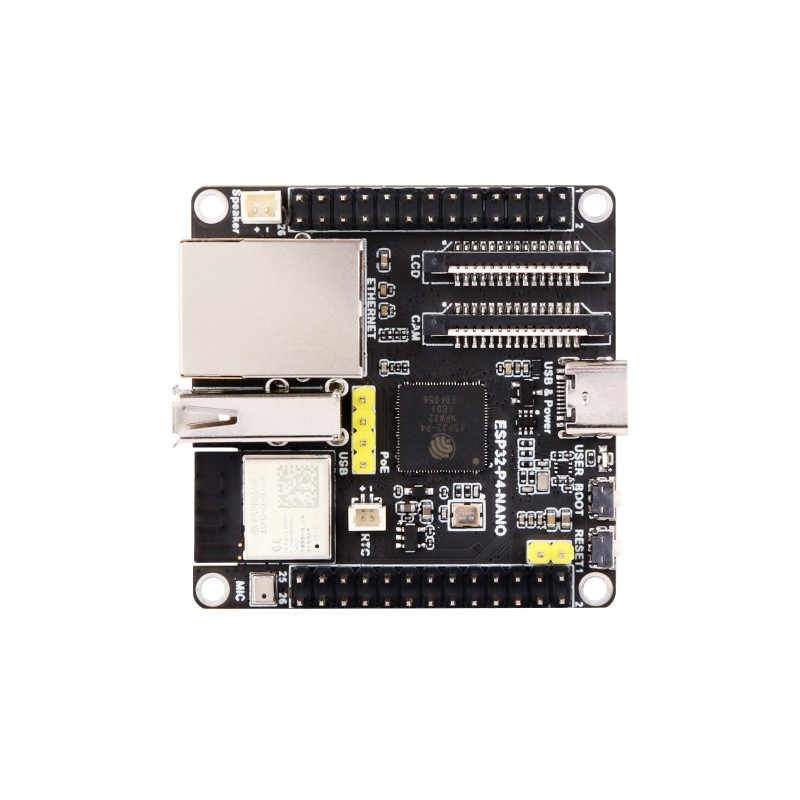

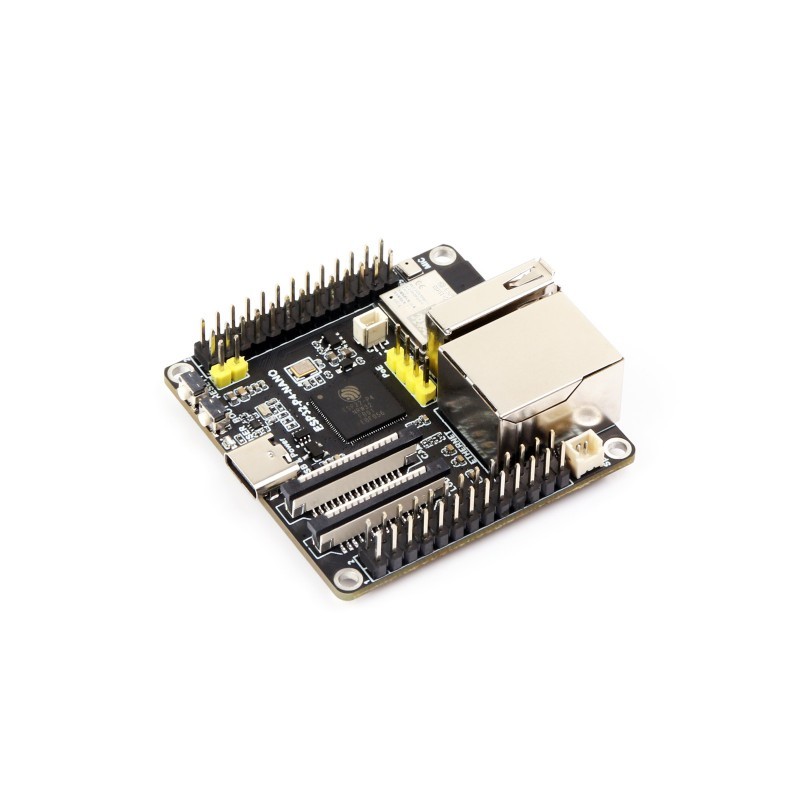

ESP32-P4-NANO – Development Board with ESP32-P4 (RISC-V), Wi-Fi 6, and Bluetooth 5
A development board based on the ESP32-P4 chip with RISC-V processors. It is equipped with rich human-machine interfaces, such as MIPI-CSI (with a built-in ISP image signal processor) and MIPI-DSI. The board supports a wide range of popular peripherals, including SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it offers support for USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0.
Key Features:
- High-performance microcontroller with RISC-V processors
- Memory: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
- Supports Wi-Fi 6 and Bluetooth 5/BLE via the ESP32-C6-MINI-1 module
- 32MB PSRAM (in-package) and 16MB Nor Flash (onboard)
- Advanced image and audio processing capabilities: JPEG Codec, PPA accelerator, ISP processor, H264 encoder
- Rich interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, TF card slot (SDIO 3.0), microphone, speaker and RTC battery headers
- 28 programmable GPIO pins broken out
- Security features: Secure Boot, Flash encryption, cryptographic accelerators, TRNG, and hardware access protection

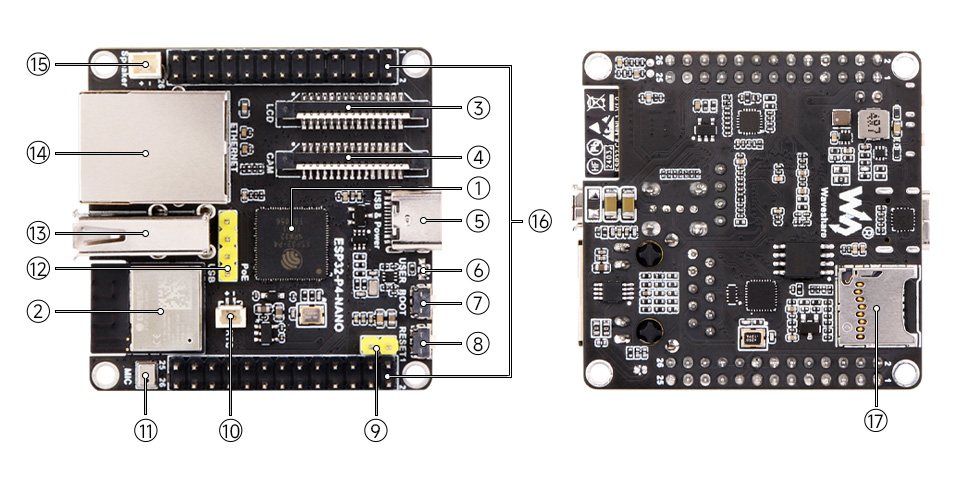

What's On Board
- ESP32-P4NRW32
ESP32-P4 chip with built-in 32MB PSRAM - ESP32-C6-MINI-1
Module extending Wi-Fi 6 and Bluetooth 5, communication via SDIO - Display Connector
MIPI 2-lane - Camera Connector
MIPI 2-lane - USB Type-C Connector
For power, programming, and debugging - USER-LED
Power indicator LED - BOOT Button
Press during power-on or reset to enter download mode - RESET Button
- PoE / External Power Header
For connecting 5V power or a PoE module - RTC Battery Header
For connecting a rechargeable RTC battery (supports rechargeable batteries only) - Onboard Microphone
- PoE Module Header
- USB-A Port
USB OTG 2.0 High-Speed port - RJ45 100M Ethernet Port
- Speaker Header
MX1.25 2P connector, supports 8Ω 2W speakers - GPIO Header
- TF Card Slot
SDIO 3.0 interface

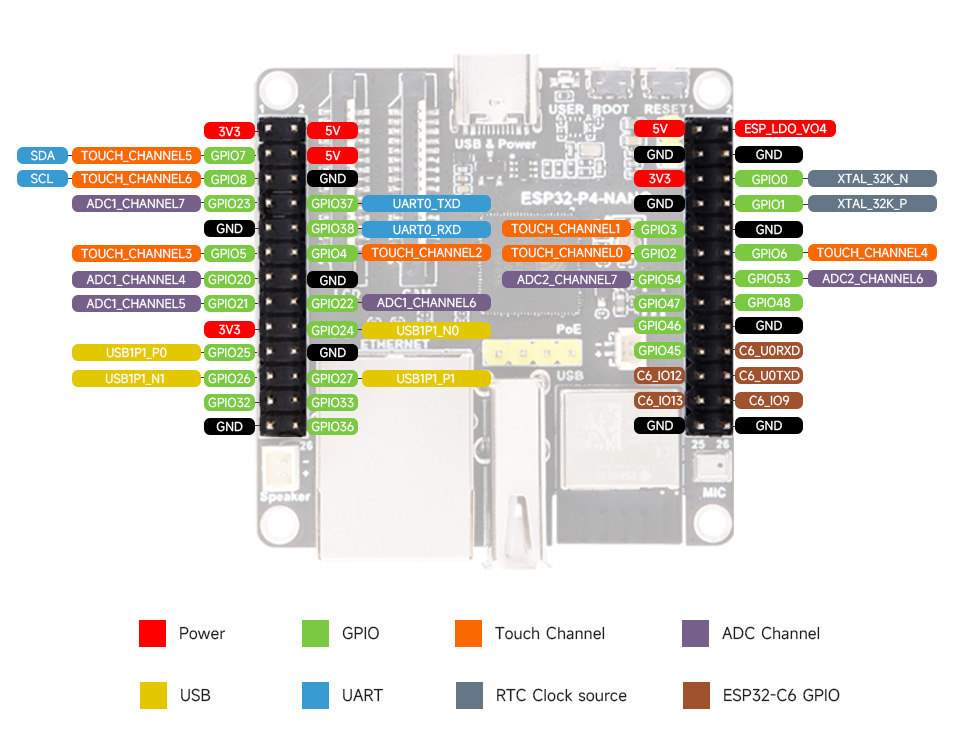

Pinout

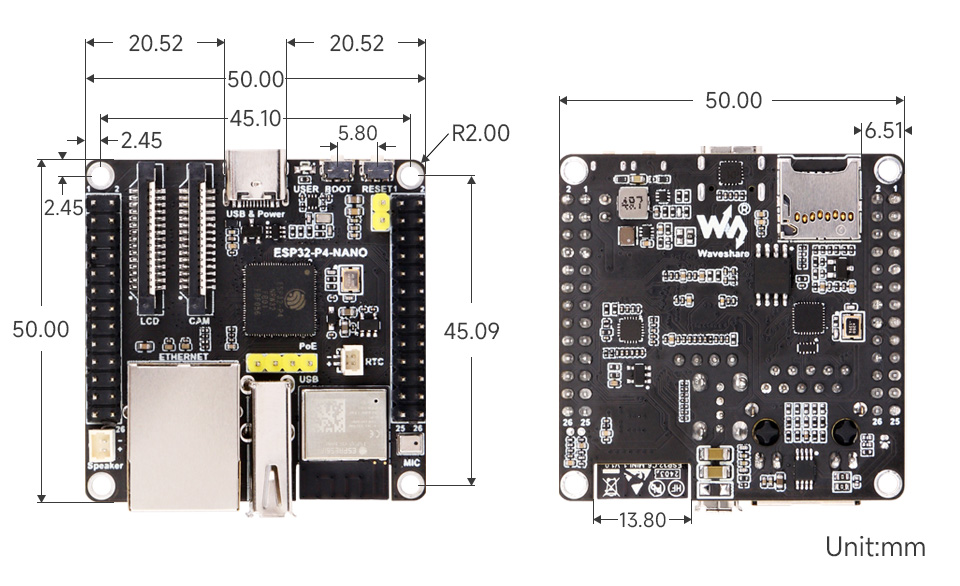

Dimensions
Technical Specification:
- MCU: ESP32-P4
- Processors: RISC-V Dual-Core (HP) + Single-Core (LP)
- Flash Memory: 16MB Nor Flash
- PSRAM Memory: 32MB (in-package)
- SRAM: 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
- Wireless Connectivity: Wi-Fi 6, Bluetooth 5, BLE (via ESP32-C6 module)
- Wired Connectivity: 100M Ethernet
- Interfaces: MIPI-CSI, MIPI-DSI, USB OTG 2.0 HS, SDIO 3.0, SPI, I2S, I2C, PWM, RMT, ADC, UART, TWAI
- GPIO: 28 programmable pins
- Multimedia Processing: JPEG Codec, PPA, ISP, H.264 Encoder
- Audio: Onboard microphone, speaker header
- Security: Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, hardware access protection
- Power Supply: USB-C (5V), external header (5V), PoE
- RTC: Built-in real-time clock with battery header
- Connectors: USB-C, USB-A, RJ45, TF card slot, MIPI connectors, speaker header, RTC battery header, GPIO headers

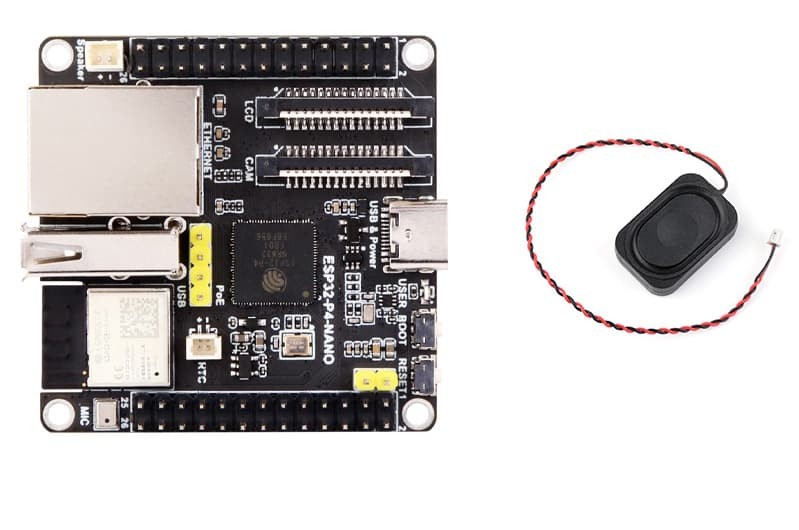

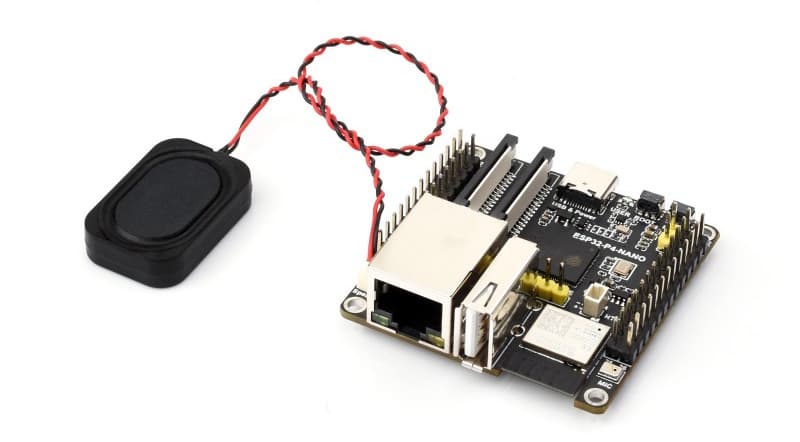

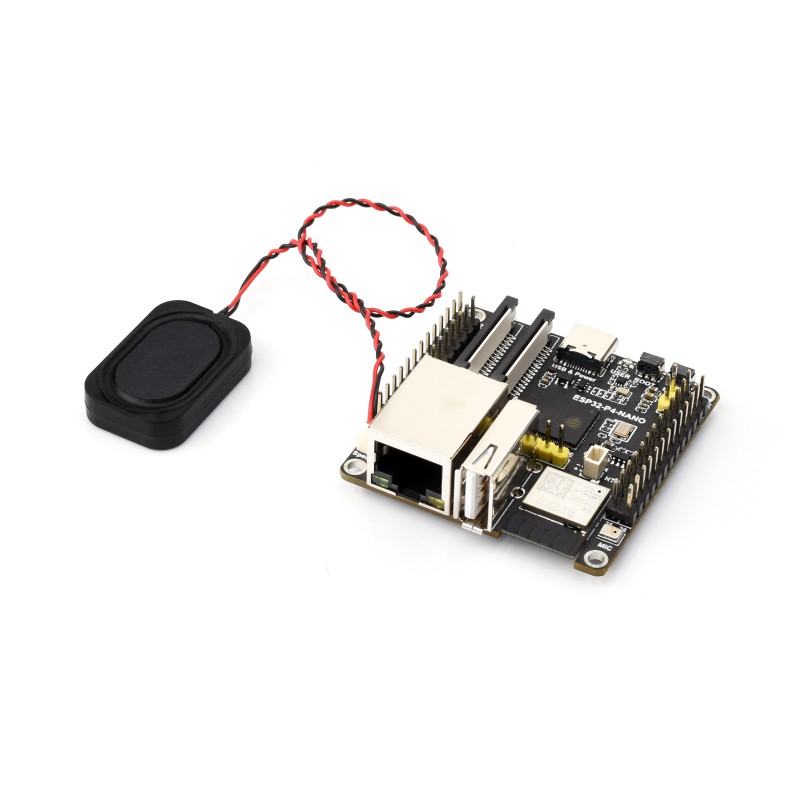

What's in the Box
- ESP32-P4-NANO ×1
- 8Ω 2W Speaker ×1
Wiki: https://www.waveshare.com/wiki/ESP32-P4-NANO
