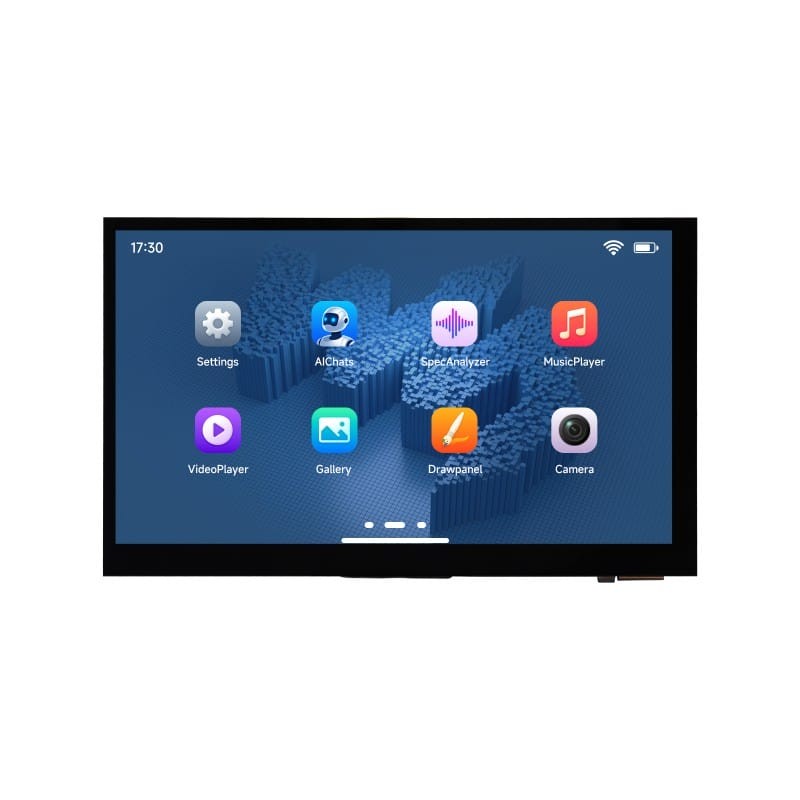

ESP32-P4-WIFI6 7inch Touch Display Development Board WiFi 6 Bluetooth 5
The ESP32-P4-WIFI6-Touch-LCD-7B is a high-performance development board based on the ESP32-P4 chip with an integrated RISC-V 32-bit dual-core processor and an additional ESP32-C6 module supporting Wi-Fi 6 and Bluetooth 5. It features a 7-inch touch screen with 1024×600 resolution, rich HMI interfaces (including MIPI-CSI with ISP), and USB OTG 2.0 HS support.
Key Features:
- High-performance ESP32-P4 microcontroller (RISC-V 32-bit dual-core + single-core)
- Wireless connectivity: Wi-Fi 6 and Bluetooth 5 (LE) via the ESP32-C6 chip
- 7-inch IPS display (1024×600) with 5-point touch panel
- Memory: 32MB PSRAM (in-package), 32MB Nor Flash (on-board)
- Advanced image and voice processing (JPEG encoding, pixel accelerator, ISP, H264 encoder)
- AI Speech Interaction support – compatible with online models (e.g., DeepSeek)
- Rich peripherals: MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 (TF slot)
- Dual microphones with echo cancellation (ES7210 chip) and ES8311 audio codec
- Industrial interfaces: RS485, CAN, I2C, UART
- Security features: Secure Boot, Flash encryption, cryptographic accelerators
7-inch IPS Display
High-quality IPS panel with wide viewing angles and vivid colors. Capacitive touch panel powered by the GT911 chip.
- Resolution: 1024 × 600
- Panel type: IPS
- Touch: Capacitive (5 points)
- Interface: RGB / MIPI
- Brightness: 350 cd/m²
- Viewing angles: 160°
Advanced Audio and AI
Built-in ES8311 codec and ES7210 echo cancellation chip combined with dual microphones enable precise voice capture and voice assistant support.
Expandability
On-board Components
- ESP32-P4-Core: integrated processor and memory
- ESP32-C6-MINI-1 module: Wi-Fi 6 / Bluetooth 5 support
- ESP32-C6 UART connector
- ES8311 Audio Codec
- ES7210 echo cancellation chip
- MIPI DSI LCD connector
- Touch panel connector
- MIPI-CSI (2-lane) camera connector
- MX1.25 battery connector
- PH2.0 speaker header
- RTC battery socket
- Power switch
- Status LED
- USB-A port: USB OTG 2.0 High Speed
- USB-C port (USB 1.1 FS): power and programming
- USB-C port (UART): debugging and logs
- RESET button
- BOOT button
- I2C connector (PH2.0 4PIN)
- UART connector (PH2.0 4PIN)
- CAN connector (PH2.0 4PIN)
- RS485 connector (PH2.0 4PIN)
- Microphones
- GPIO headers (PH2.0 12PIN): 17 programmable pins
- TF card slot (MicroSD)
- Battery space
Dimensions
Package Contents
- ESP32-P4-WIFI6-Touch-LCD-7B ×1
- USB Type-A male-to-male cable ×1
- USB Type-A to Type-C cable (~1m) ×1
- Speaker ×1
- SH1.0 4PIN cable (~150mm) ×1
- PH2.0 12PIN cable (~200mm) ×2
- PH2.0 4PIN cable (~200mm) ×4
Note: Graphics in the photos are for illustrative purposes. The module comes with a basic test demo; complete software examples are available on the manufacturer's Wiki page.
