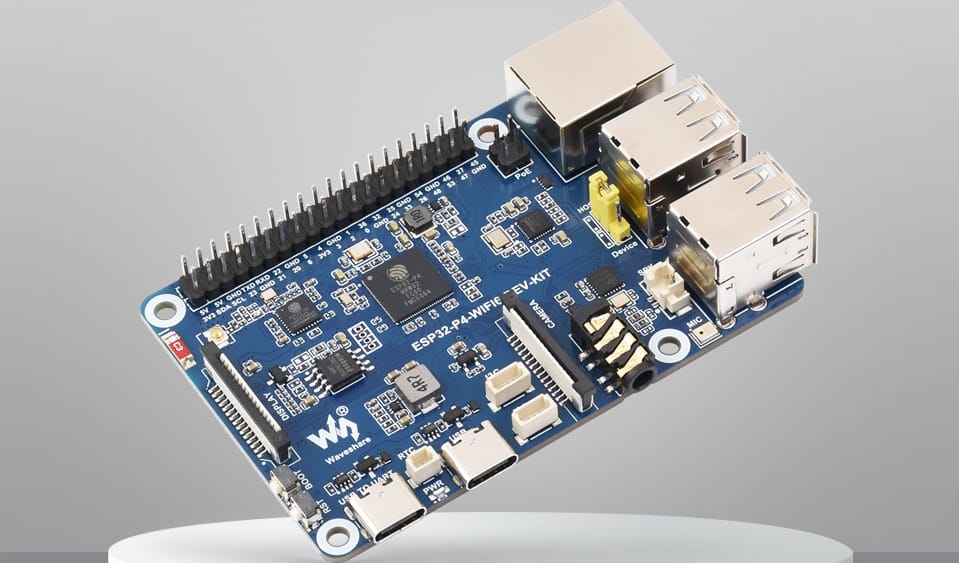

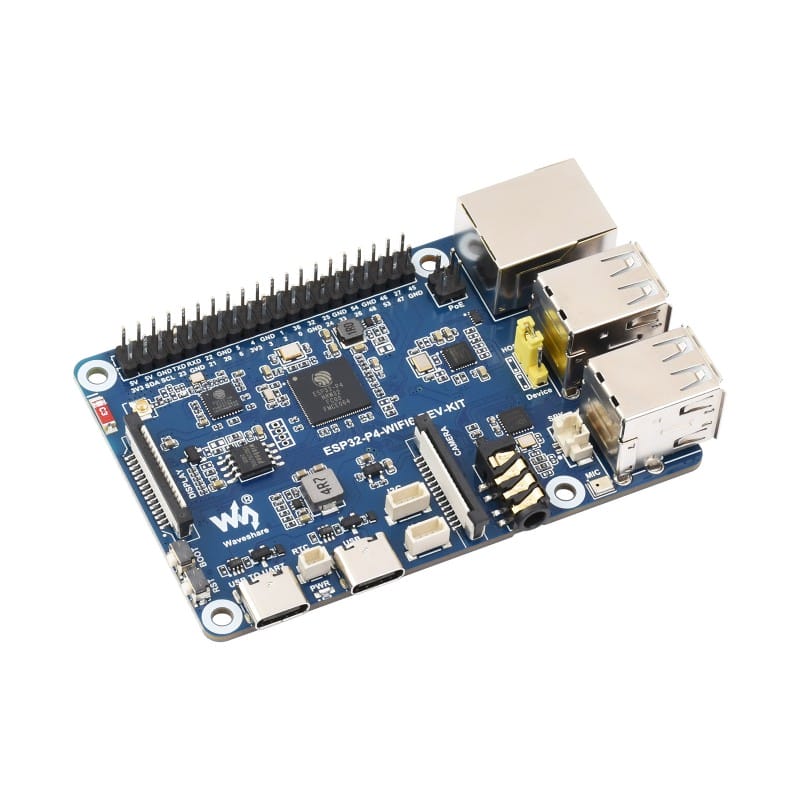

ESP32-P4-WIFI6-DEV-KIT – High-Performance Development Board with Wi-Fi 6 and Bluetooth 5
The ESP32-P4-WIFI6-DEV-KIT is a development board based on the ESP32-P4 chip, featuring an integrated RISC-V processor (dual-core + single-core). With the additional ESP32-C6 chip, it offers support for Wi-Fi 6 and Bluetooth 5.
Key Features:
- ESP32-P4 microcontroller with RISC-V processor (dual-core + single-core)
- ESP32-C6 co-processor providing Wi-Fi 6 (2.4 GHz) and Bluetooth 5 / BLE connectivity
- Large memory capacity: 32MB PSRAM and 16MB Nor Flash
- Advanced image and voice processing: supports H.264 encoding, JPEG Codec, ISP
- Rich multimedia interfaces: MIPI-CSI (camera) and MIPI-DSI (display)
- High-speed wired connectivity: 100M Ethernet port and USB 2.0 OTG (High Speed)
- Audio support: onboard microphone, speaker header, and 3.5mm Jack output
- MicroSD card slot (SDIO 3.0) and connector for PoE module (module not included)
- Advanced security features: Secure Boot, Flash Encryption, cryptographic accelerators
Performance and Integration
The combination of the powerful ESP32-P4 chip and the ESP32-C6 communication module provides unprecedented flexibility. The board supports the SDIO protocol for high-speed communication between chips, ensuring a stable network connection and efficient data transmission.
Board Components Description
- ESP32-P4NRW32: Main chip with 32MB PSRAM
- ESP32-C6: Wi-Fi 6 / BT 5 communication module (SDIO 3.0)
- 16MB Nor Flash
- ESP32-C6 UART pads
- PoE module header: For external PoE module connection
- 40PIN GPIO header
- 100M RJ45 Ethernet port
- USB OTG function selection: Switching to HOST mode
- USB-A ports: USB OTG 2.0 High-speed (HOST/DEVICE jumper selected)
- Speaker header: MX1.25 2P, supports 8Ω 2W speaker
- Onboard microphone
- 3.5mm Audio Jack: Headphone output
- Camera Interface: MIPI-CSI (2-lane), supports e.g., OV5647
- Display Interface: MIPI-DSI (2-lane), supports 5" / 7" / 8" / 10.1" screens
- I2C interface
- I3C interface
- Type-C UART port: Power, programming, debugging
- Type-C USB port: Power, programming
- RTC battery header: Supports rechargeable batteries only
- PWR LED: Power indicator
- ESP32-C6 Ceramic antenna
- BOOT button
- RESET button
- MicroSD card slot: SDIO 3.0 interface
Pinout Definition
Dimensions
Kit Contents
- ESP32-P4-WIFI6-DEV-KIT x1
- 8Ω 2W Speaker x1
- SH1.0 4PIN cable ~150mm x2
