ESP32-P4-WIFI6-Touch-LCD-4.3 - RISC-V development board, Wi-Fi 6, Bluetooth 5
A high-performance development platform based on the ESP32-P4 chip with a dual-core RISC-V processor and a 4.3" IPS touchscreen with a resolution of 480x800. Thanks to the ESP32-C6 coprocessor, it offers modern Wi-Fi 6 and Bluetooth 5 connectivity, supporting advanced MIPI-CSI and MIPI-DSI multimedia interfaces, ideal for HMI systems and edge AI processing.
Key features:
- ESP32-P4 microcontroller with 32-bit RISC-V processors (dual-core + single-core).
- ESP32-C6 coprocessor providing Wi-Fi 6 and Bluetooth 5 (LE) connectivity.

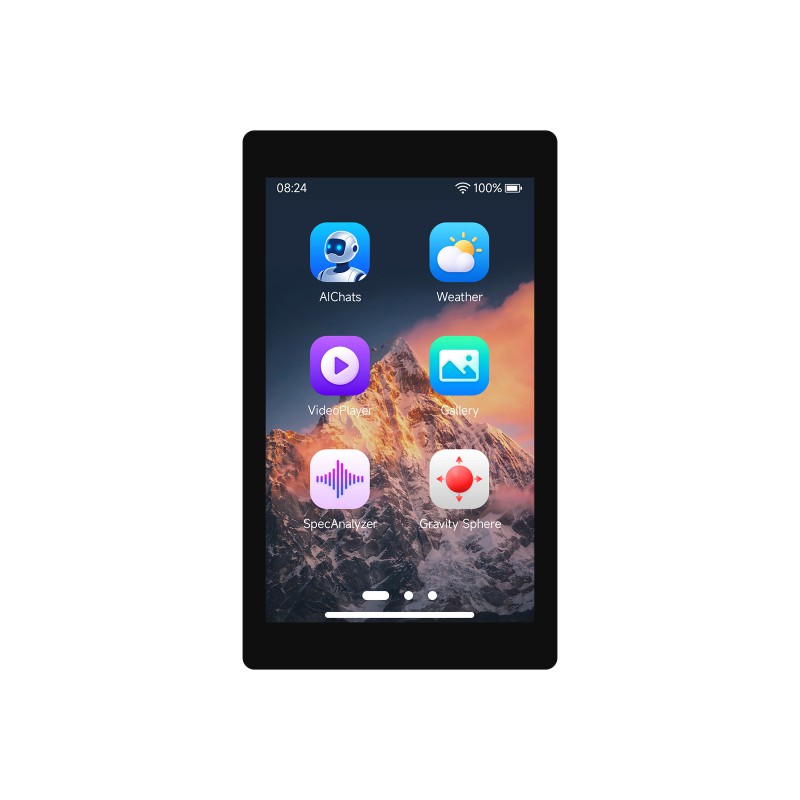

- 4.3" IPS screen with 500 cd/m² brightness and 480x800 resolution with 5-point touch.
- Memory: 32MB Nor Flash and 32MB PSRAM integrated into the chip package.
- Hardware multimedia support: JPEG Codec, ISP, H.264 encoder, and graphics accelerator.
- MIPI-CSI camera interface supporting OV5647 modules.
- Advanced audio: ES8311 codec, ES7210 echo cancellation chip, and two microphones.
- 40PIN GPIO connector compatible with selected Raspberry Pi HAT overlays.
- Fast USB OTG 2.0 High Speed connectivity via Type-C connector.
- TF card slot (SDIO 3.0) and support for 3.7V lithium batteries with charging.
Multimedia processing and security
The ESP32-P4 chip was designed for applications requiring high graphics performance and data security. It features a dedicated key management module and peripherals for digital signatures, which, combined with the H.264 encoder and ISP, allows for the creation of secure video terminals and control panels.
Advanced audio features
The board features an integrated ES8311 audio codec and ES7210 echo cancellation chip, which, combined with a dual-microphone array, allows for precise voice capture. It is an ideal solution for building voice control systems and VoIP communicators.

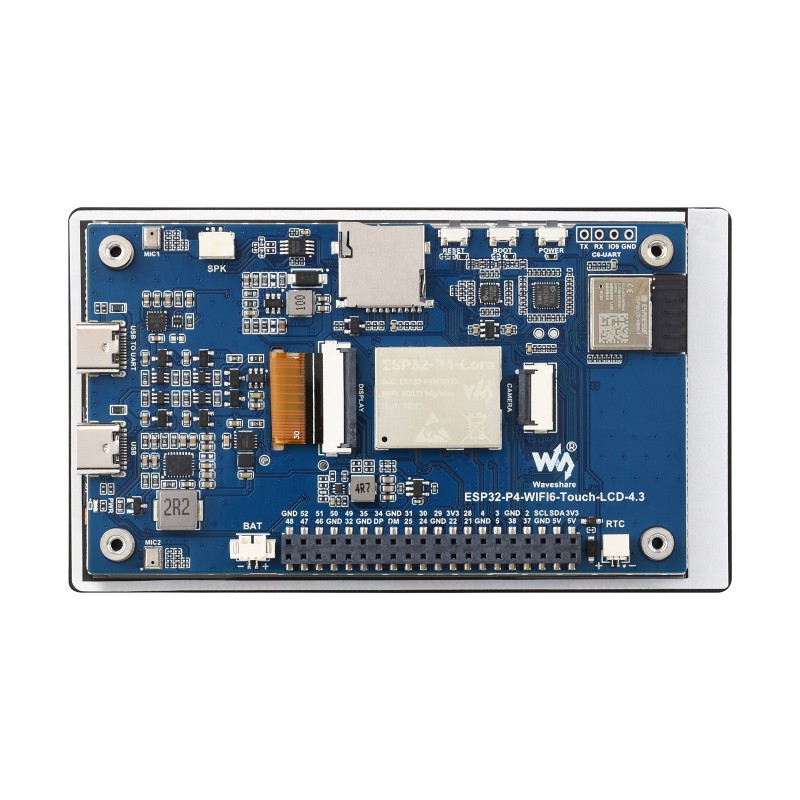

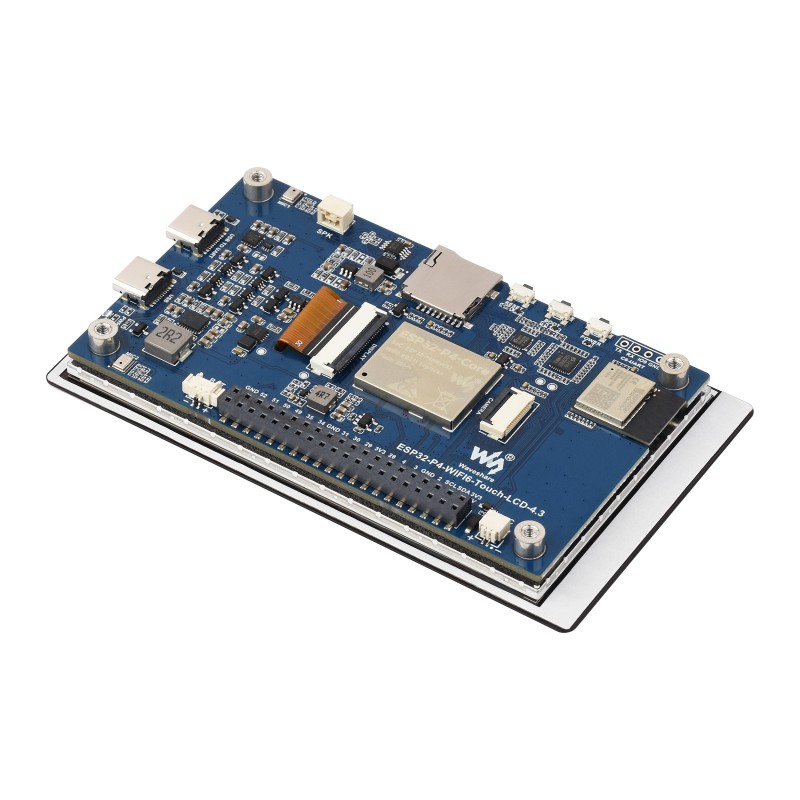

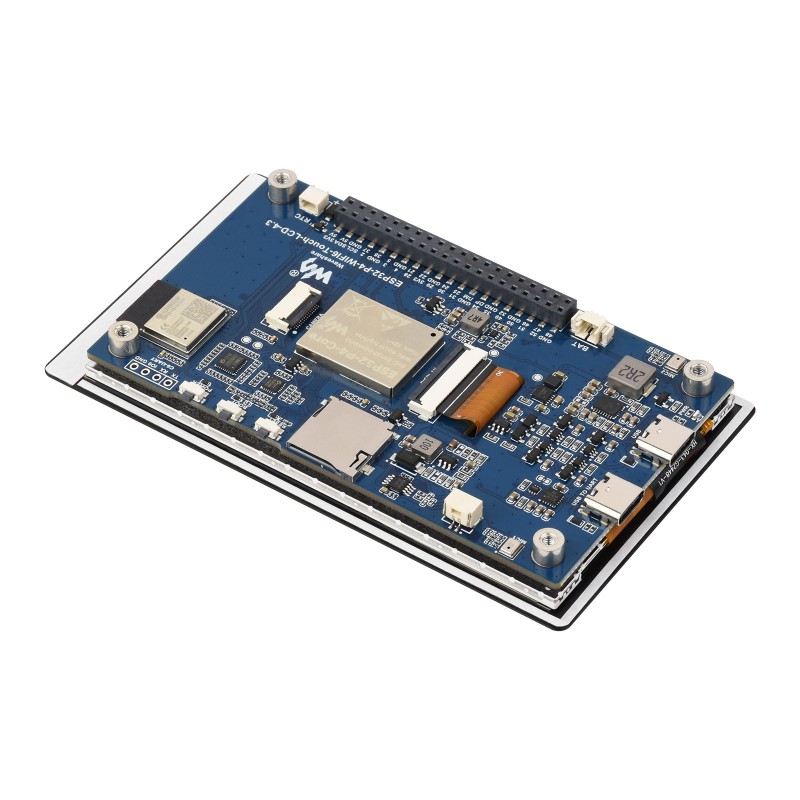

Board layout
- ESP32-P4-Core: ESP32-P4NRW32 chip + 32MB Nor Flash
- ESP32-C6-MINI-1 module: Wi-Fi 6 / Bluetooth 5
- ES7210: Echo cancellation chip
- ES8311: Low-power audio codec
- MIPI CSI interface: Camera connection (15PIN)
- ESP32-C6 UART pads: Module programming
- RTC battery connector: Clock backup
- POWER button: System power on/off
- BOOT / RESET button
- TF card slot: SDIO 3.0 interface
- MIPI DSI interface: Display connection
- Speaker connector: Support for 8Ω 2W speakers
- USB TO UART Type-C: Programming and debugging
- USB OTG Type-C: High Speed 2.0 port
- Onboard microphones: Dual microphone system
- PWR LED indicator: Power status
- Lithium battery connector: MX1.25 2PIN (3.7V)
- 40PIN expansion header: Compatible with RPi HAT
Technical specification
- Screen: 4.3" IPS (480x800)

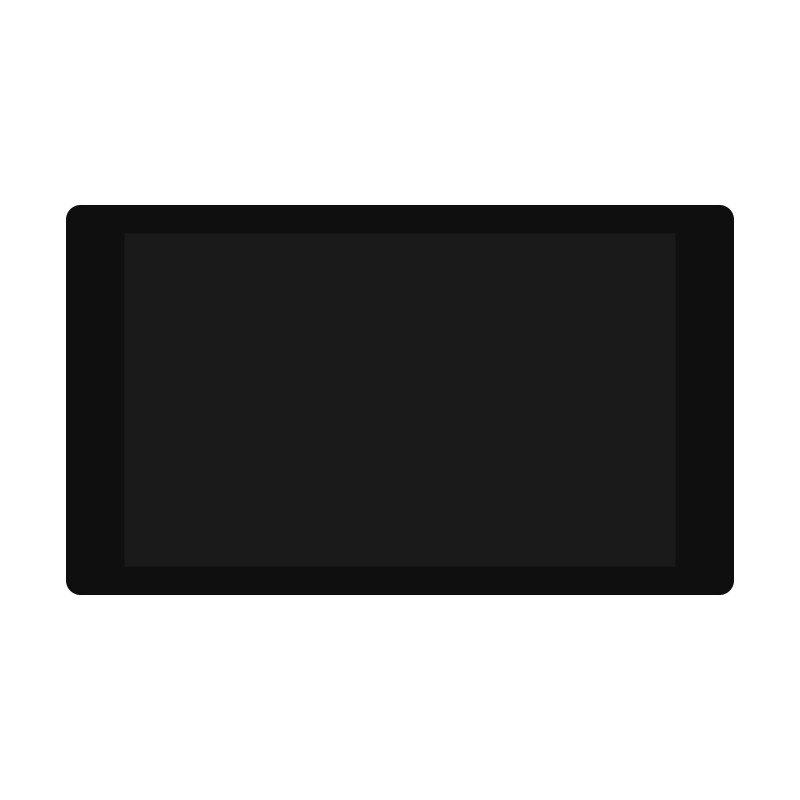

- Brightness: 500 cd/m² (contrast 1000:1)
- Viewing angle: 160°
- Processor: RISC-V Dual-Core (HP) + Single-Core (LP)
- Connectivity: Wi-Fi 6, Bluetooth 5 (LE)
- Memory: 32MB Flash / 32MB PSRAM
- Interfaces: MIPI-DSI, MIPI-CSI, USB OTG, UART
- Audio: ES8311 codec + ES7210 AEC
- LCD Driver: ST7701 (Touch: GT911)
- Power supply: USB-C / Li-Po battery
Kit contents
- ESP32-P4-WIFI6-Touch-LCD-4.3 central unit x1
- Speaker GH1.25 2PIN 8Ω 2W (50mm) x1
Note: The OV5647 camera is not included in the kit and must be purchased separately.
