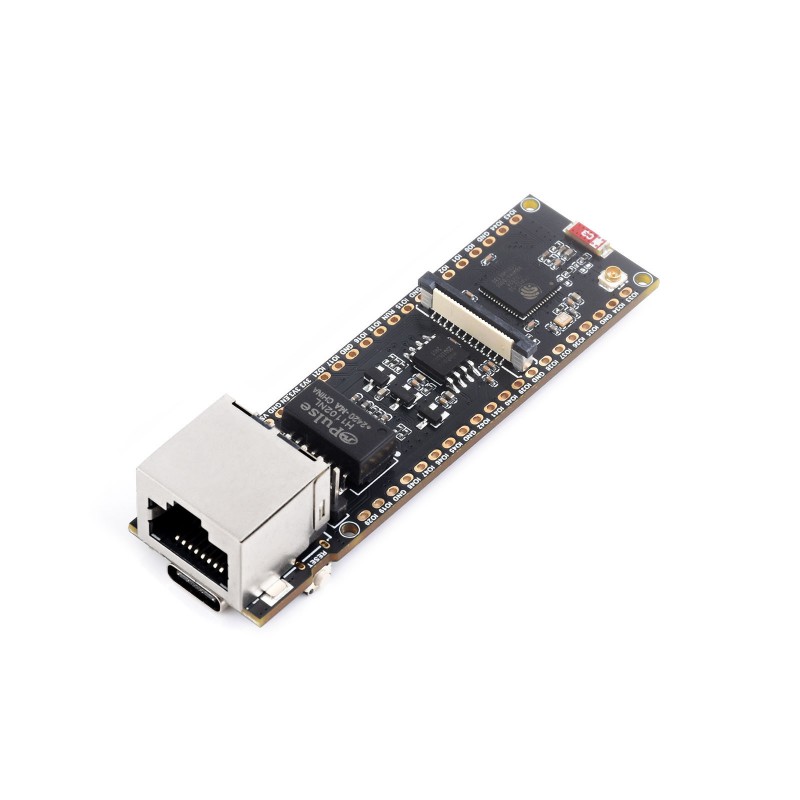

ESP32-S3 ETH Development Board with RJ45 port 10/100Mb/s Wi-Fi Bluetooth and camera support
The ESP32-S3 ETH development board based on the ESP32-S3R8 chip combines wireless Wi-Fi and Bluetooth 5 communication with wired Ethernet 10/100Mb/s via the W5500 chip. It features a dual-core processor 240MHz, 8MB PSRAM, 16MB Flash, a camera connector, a TF slot, and compatibility with Raspberry Pi Pico HAT, making it suitable for IoT, smart home, monitoring, and image acquisition projects.
Key features:
- ESP32-S3R8 chip with dual-core Xtensa 32-bit LX7 processor up to 240MHz.
- Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash.
- Wireless connectivity 2.4GHz Wi-Fi and Bluetooth 5 LE.
- Built-in W5500 chip providing wired Ethernet 10/100Mb/s via SPI.
- RJ45 port with auto-negotiation 10/100M.
- Support for optional PoE module compliant with IEEE 802.3af.
- Camera connector compatible with OV2640, OV5640 and other popular modules.
- USB Type-C port for power, programming, and debugging.
- TF card slot for saving photos, files, and data.
- Compatibility with Pico Header pinout and selected Raspberry Pi Pico HATs.
- Possibility to switch to an external antenna via IPEX 1 connector.
- Designed for IoT, AI, smart home, monitoring, and image acquisition.
Product versions
The series is available in several variants, which makes it easier to choose a kit for a specific project. The basic version contains only the Ethernet board, while other variants expand it with an OV5640 camera and/or a PoE module.

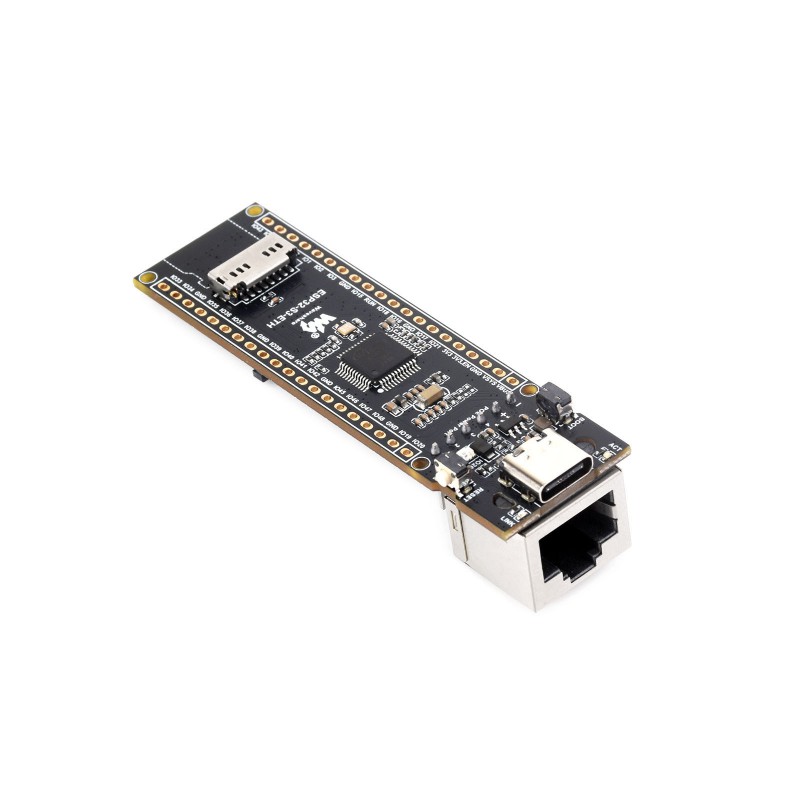

ESP32-S3-ETH
Basic development board with Ethernet.
ESP32-S3-ETH-CAM-KIT
Ethernet board with OV5640 camera.
ESP32-S3-POE-ETH
Ethernet board with PoE module.
ESP32-S3-POE-ETH-CAM-KIT
Ethernet board with OV5640 camera and PoE module.

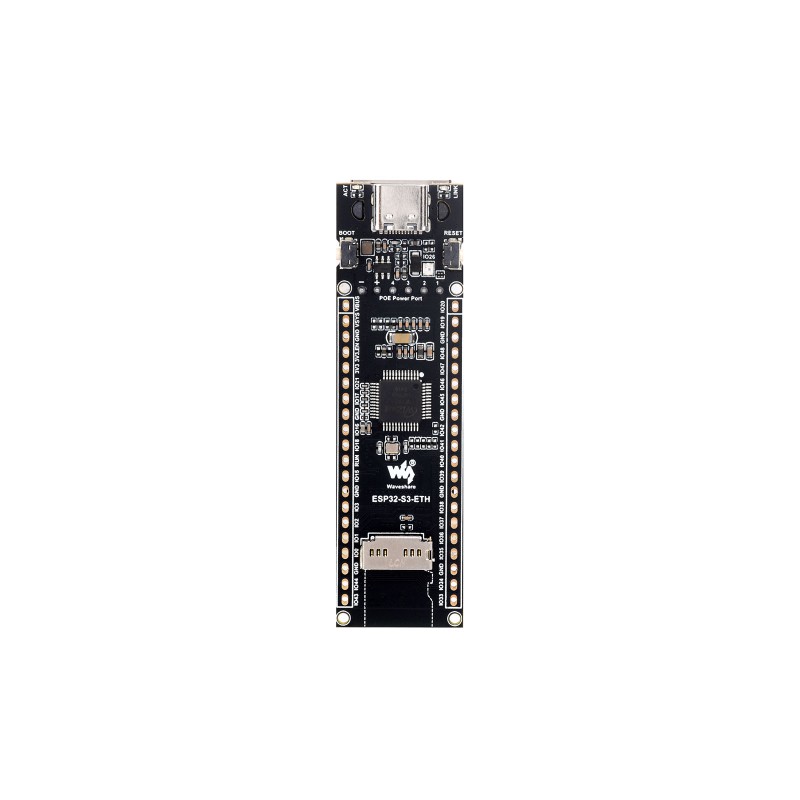

Two power supply methods
The board can be powered via the USB Type-C port or optionally via the PoE module. This solution increases flexibility when deploying the device in network projects, industrial applications, and smart home installations.

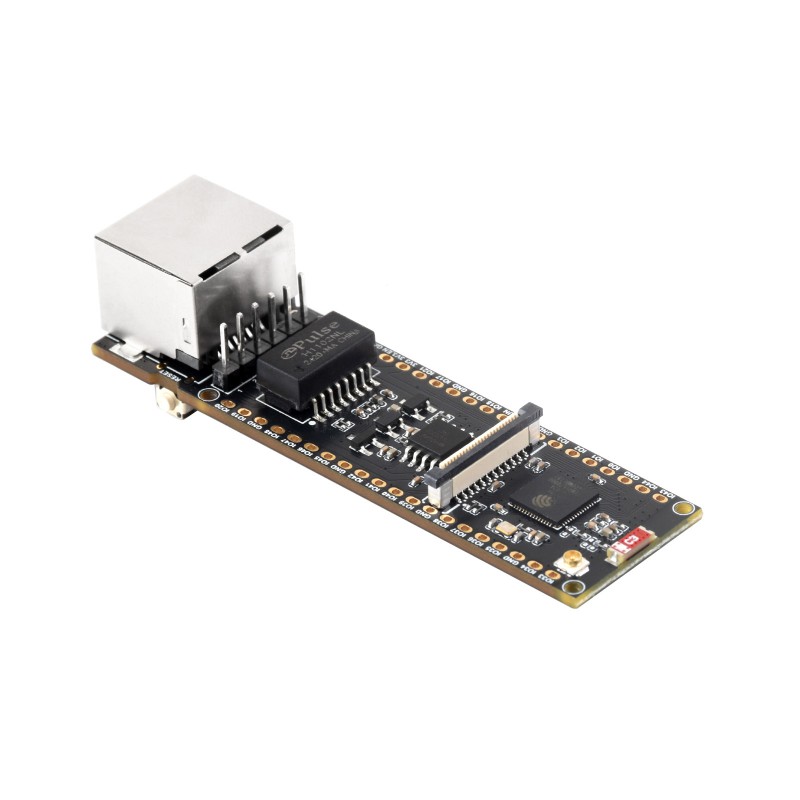

Optional PoE module
After using an additional PoE module, the board can be powered directly via an Ethernet cable. This allows for simultaneous power supply and data transmission with a single cable, which simplifies device installation in hard-to-reach places.
Camera and image acquisition support
The board features a camera connector compatible with OV2640, OV5640 modules, and other popular cameras. Thanks to this, the platform is suitable for applications such as video monitoring, image recording, visual data analysis, and AI Edge projects.

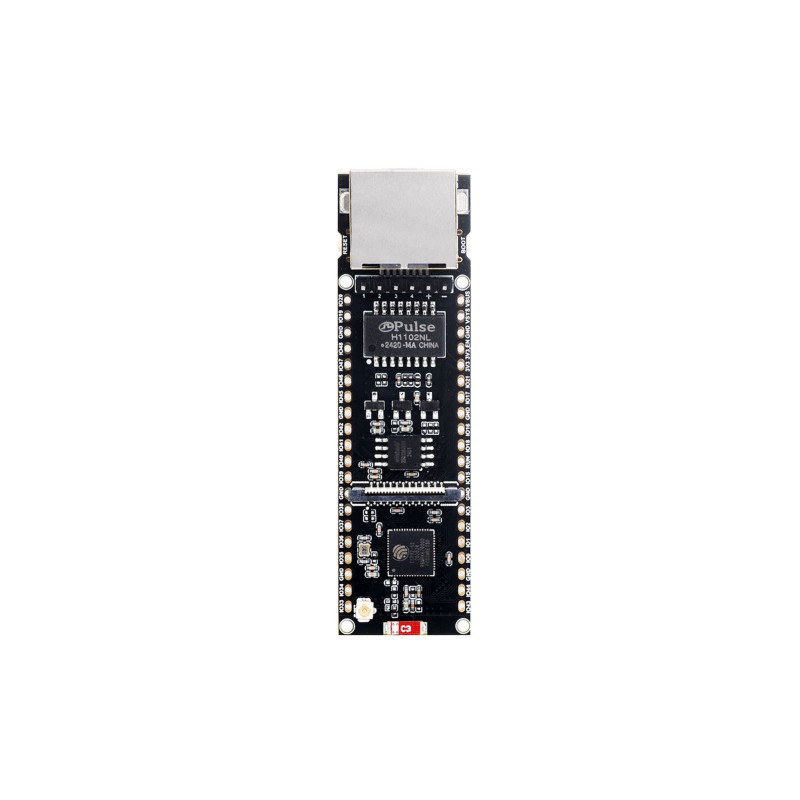

What is on the board
The ESP32-S3 ETH integrates key components necessary to build an efficient network device: ESP32-S3R8 microcontroller, Flash memory, Ethernet controller, RJ45 port, TF slot, camera connector, and expansion interfaces. This allows you to quickly start developing your own device without the need to design additional electronics.
- ESP32-S3R8 – dual-core Xtensa 32-bit LX7 processor up to 240MHz.
- W25Q128 – 16MB Flash memory for program and data.
- W5500 – Ethernet controller.
- H1102NLT – Ethernet transformer.
- JW5060 – voltage regulator.
- USB Type-C – power and programming.
- RJ45 – Ethernet port 10/100M with auto-negotiation.
- PoE module connector – for connecting a PoE module.
- Camera connector – compatible with OV2640, OV5640 and other cameras.
- IPEX 1 – external antenna connector activated by re-soldering a resistor.
- Ceramic antenna – used by default.
- TF slot – memory card support.
- BOOT button.
- ACT indicator.
- LINK indicator.
- RESET button.
Interfaces and compatibility
The board is compatible with the Pico Header pinout, allowing it to work with selected Raspberry Pi Pico HATs. An extensive set of interfaces and access to the rich ESP32 ecosystem allow for quick implementation of network communication, device control, data logging, and image processing.
External dimensions
Compact dimensions of the board facilitate integration with enclosures, embedded systems, and prototype projects. It is a good solution for both testing and ready-made deployments.
Technical specification
- Microcontroller: ESP32-S3R8
- Processor: Xtensa 32-bit LX7, dual-core
- Frequency: up to 240MHz
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 8MB
- Flash: 16MB
- Wireless connectivity: Wi-Fi 2.4GHz, Bluetooth 5 LE
- Ethernet: W5500, 10/100Mb/s, SPI
- Network port: RJ45 10/100M auto-negotiation
- PoE: optional module, IEEE 802.3af
- Camera connector: OV2640, OV5640 and other compatible
- Data storage: TF card slot
- Power and programming: USB Type-C
- Antenna: ceramic + optional external via IPEX 1
- Compatibility: Pico Header, selected Raspberry Pi Pico HATs
Kit contents
- ESP32-S3-ETH development board
