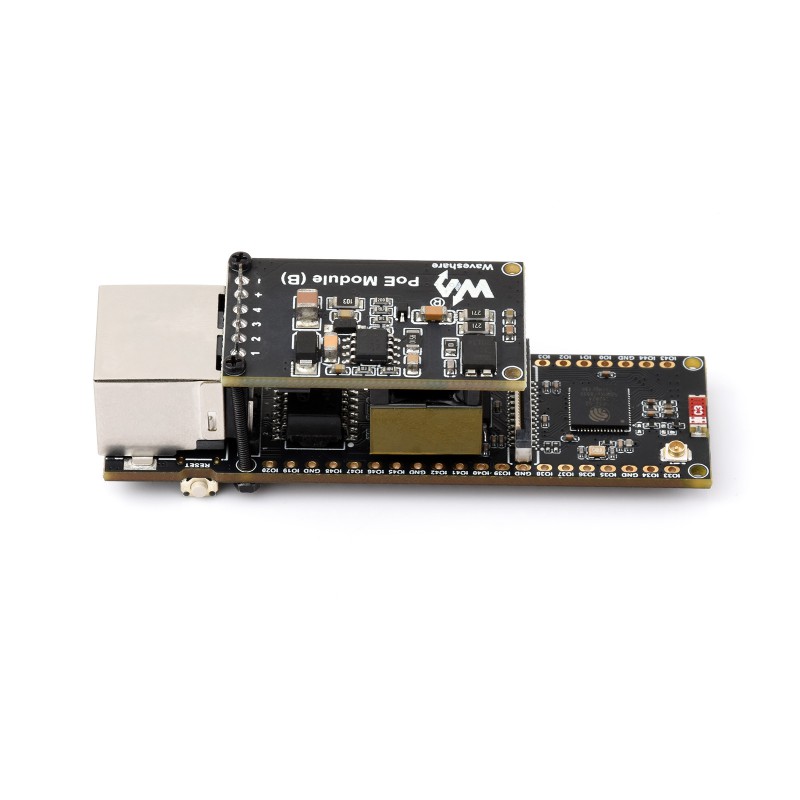

ESP32-S3 POE ETH Development Board with RJ45 WiFi Bluetooth and PoE
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
ESP32-S3 POE ETH Development Board with RJ45 port 10/100Mb/s Wi-Fi Bluetooth and camera support
The ESP32-S3 POE ETH development board based on the ESP32-S3R8 chip combines wireless Wi-Fi and Bluetooth 5 communication with wired Ethernet 10/100Mb/s via the W5500 chip and PoE power supply. It offers a dual-core processor 240MHz, 8MB PSRAM, 16MB Flash, a camera connector, a TF slot, and compatibility with Raspberry Pi Pico HAT, making it suitable for IoT, smart home, monitoring, and image acquisition projects.
Key features:
- ESP32-S3R8 chip with dual-core Xtensa 32-bit LX7 processor up to 240MHz.
- Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash.
- Wireless connectivity 2.4GHz Wi-Fi and Bluetooth 5 LE.
- Built-in W5500 chip providing wired Ethernet 10/100Mb/s via SPI.
- RJ45 port with auto-negotiation 10/100M.
- Included PoE module compliant with IEEE 802.3af.
- Power supply and data transmission via a single Ethernet cable.
- Camera connector compatible with OV2640, OV5640 and other popular modules.
- USB Type-C port for power, programming, and debugging.
- TF card slot for saving photos, files, and data.
- Compatibility with Pico Header pinout and selected Raspberry Pi Pico HATs.
- Possibility to switch to an external antenna via IPEX 1 connector.
- Designed for IoT, AI, smart home, monitoring, and image acquisition.
Product versions
The presented version is the ESP32-S3-POE-ETH, which is a development board expanded with a PoE module. This allows the device to be powered directly via the network cable, simplifying installation and reducing the number of additional cables.
ESP32-S3-ETH
Basic development board with Ethernet.
ESP32-S3-ETH-CAM-KIT
Ethernet board with OV5640 camera.

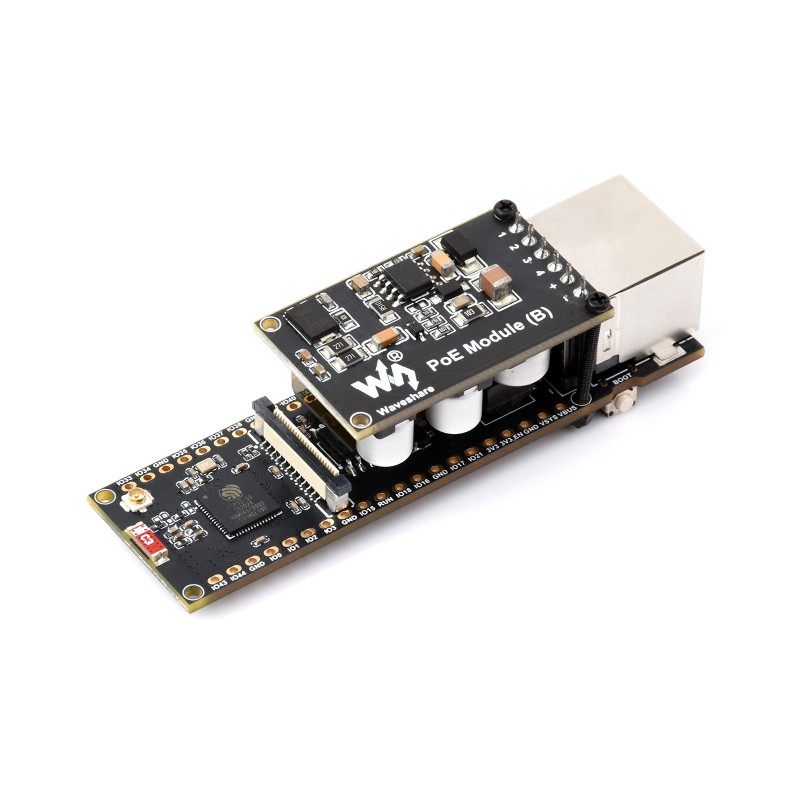

ESP32-S3-POE-ETH
Ethernet board with PoE module.
ESP32-S3-POE-ETH-CAM-KIT
Ethernet board with OV5640 camera and PoE module.
Two power supply methods
The board can be powered via the USB Type-C port or the included PoE module. This solution increases flexibility when deploying the device in network projects, industrial applications, and smart home installations.

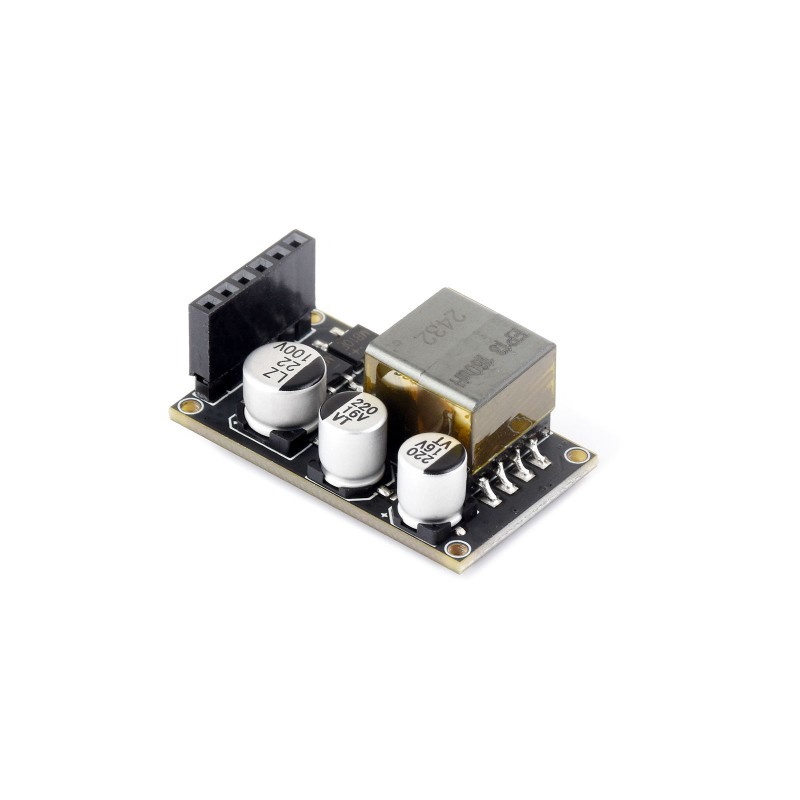

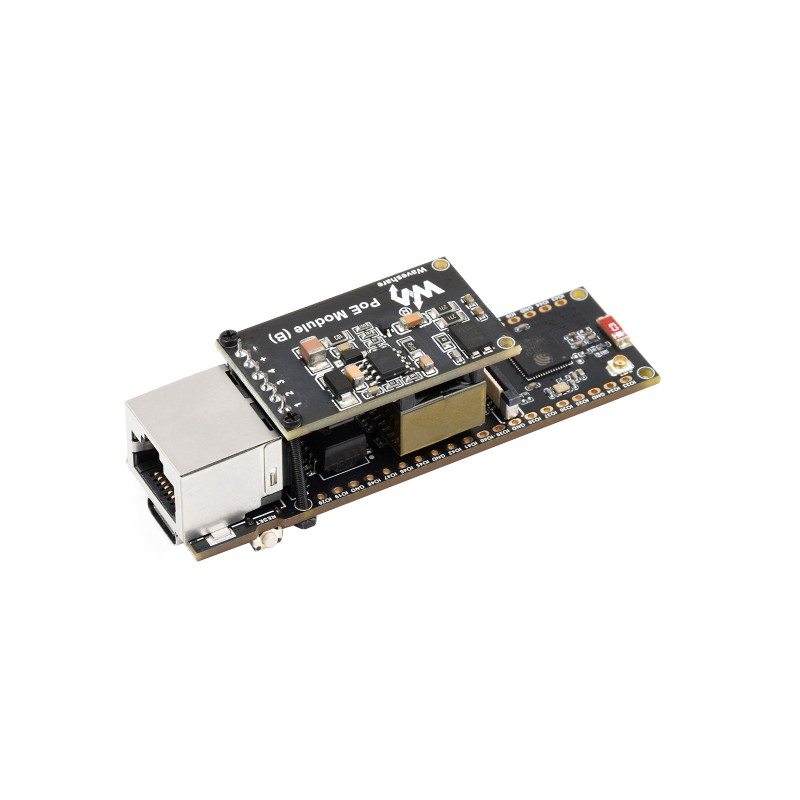

PoE module included
The ESP32-S3-POE-ETH version includes a PoE module, allowing the board to be powered directly via the Ethernet cable. This enables simultaneous power supply and data transmission with a single cable, simplifying device installation in hard-to-reach places.
Camera support and image acquisition
The board features a camera connector compatible with OV2640, OV5640, and other popular cameras. This makes the platform suitable for applications such as video monitoring, image recording, visual data analysis, and AI Edge projects.

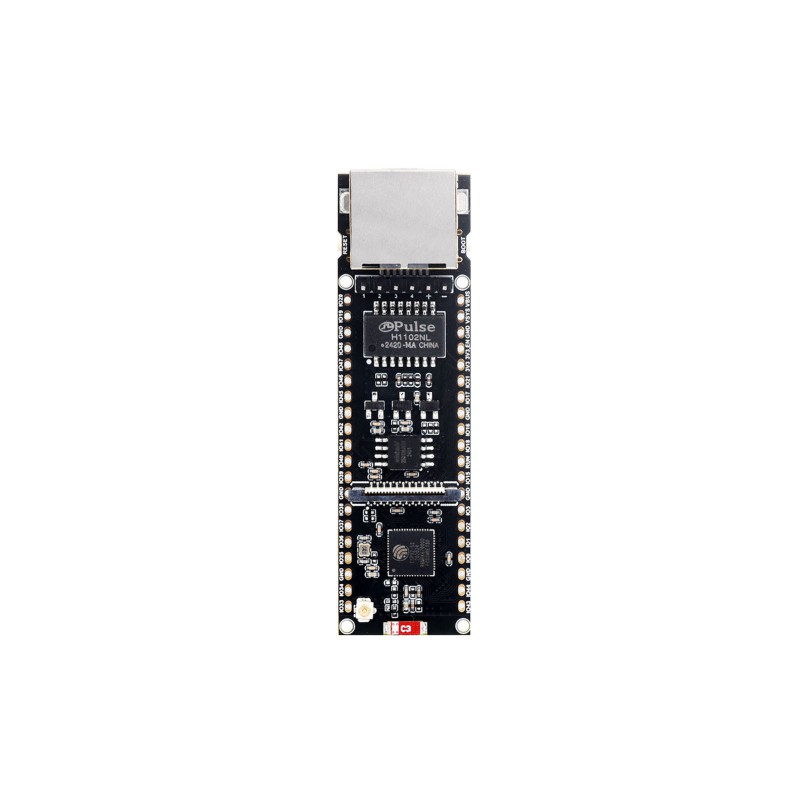

What is on the board
The ESP32-S3 POE ETH integrates key components necessary for building an efficient network device: ESP32-S3R8 microcontroller, Flash memory, Ethernet controller, RJ45 port, TF slot, camera connector, and expansion interfaces. The included PoE module further expands power supply options in network installations.
- ESP32-S3R8 – dual-core Xtensa 32-bit LX7 processor up to 240MHz.
- W25Q128 – 16MB of Flash memory for programs and data.
- W5500 – Ethernet controller.
- H1102NLT – Ethernet transformer.
- JW5060 – voltage regulator.
- USB Type-C – power and programming.
- RJ45 – Ethernet port 10/100M with auto-negotiation.
- PoE module connector – for connecting the included PoE module.
- Camera connector – compatible with OV2640, OV5640 and other cameras.
- IPEX 1 – external antenna connector activated by re-soldering a resistor.
- Ceramic antenna – used by default.
- TF slot – memory card support.
- BOOT button.
- ACT indicator.
- LINK indicator.
- RESET button.

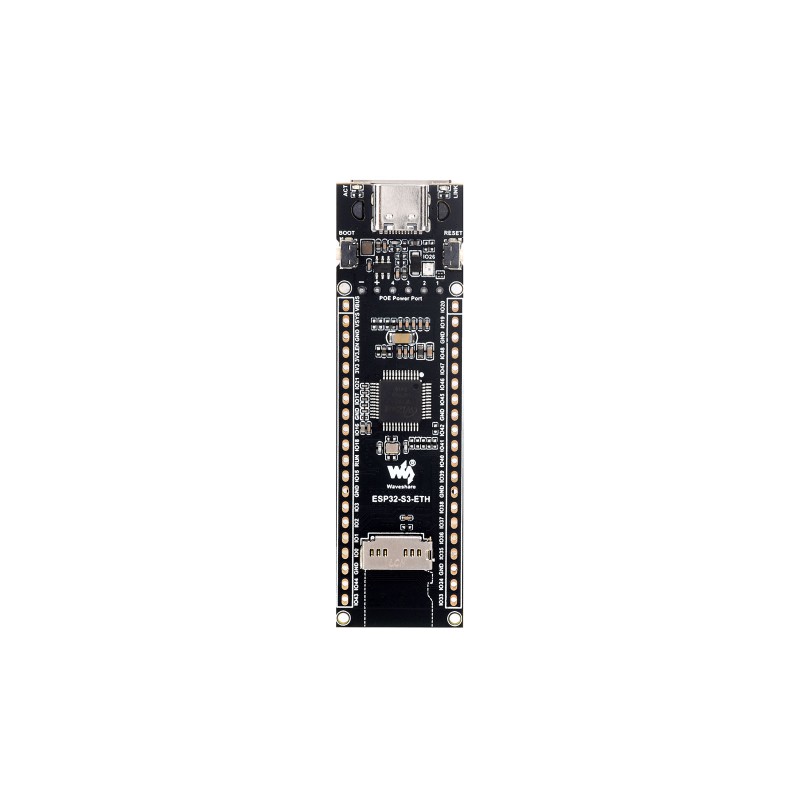

Interfaces and compatibility
The board is compatible with the Pico Header pinout, allowing it to work with selected Raspberry Pi Pico HATs. The extensive set of interfaces and access to the rich ESP32 ecosystem allow for quick implementation of network communication, device control, data logging, and image processing.
External dimensions
The compact dimensions of the board facilitate integration with enclosures, embedded systems, and prototype projects. It is a good solution for both testing and ready-made deployments.
Technical specification
- Microcontroller: ESP32-S3R8
- Processor: Xtensa 32-bit LX7, dual-core
- Frequency: up to 240MHz
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 8MB
- Flash: 16MB
- Wireless connectivity: Wi-Fi 2.4GHz, Bluetooth 5 LE
- Ethernet: W5500, 10/100Mb/s, SPI
- Network port: RJ45 10/100M auto-negotiation
- PoE: module included, IEEE 802.3af
- Camera connector: OV2640, OV5640 and other compatible
- Data storage: TF card slot
- Power and programming: USB Type-C or PoE
- Antenna: ceramic + optional external via IPEX 1
- Compatibility: Pico Header, selected Raspberry Pi Pico HATs
Kit contents
- ESP32-S3-ETH x1
- PoE module x1
- Screws pack x1
- 20PIN male pinheader (black) x2
The kit includes the board and a PoE module for expansion with power over Ethernet.
