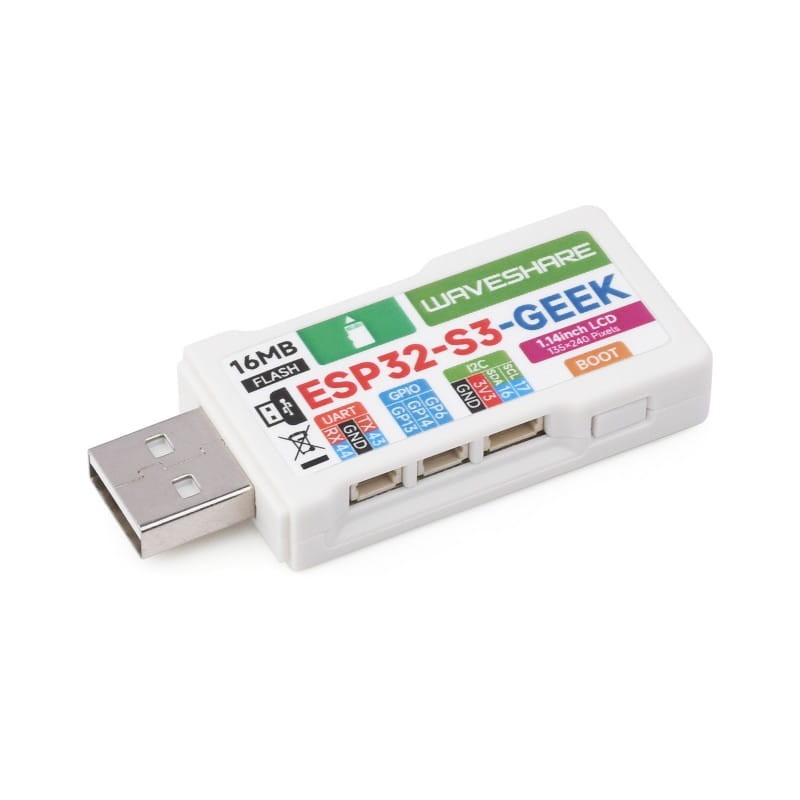

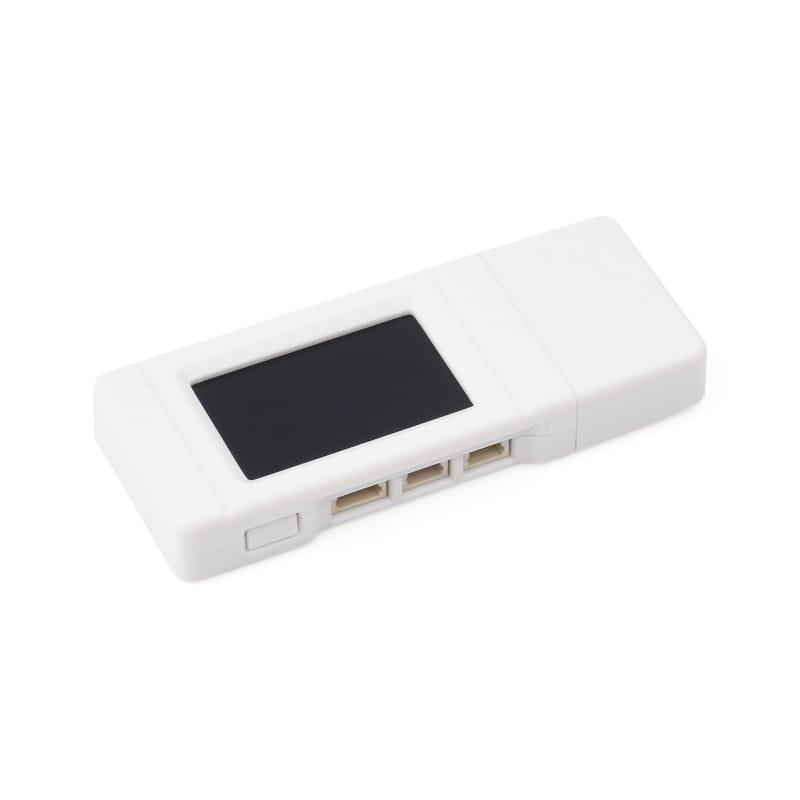

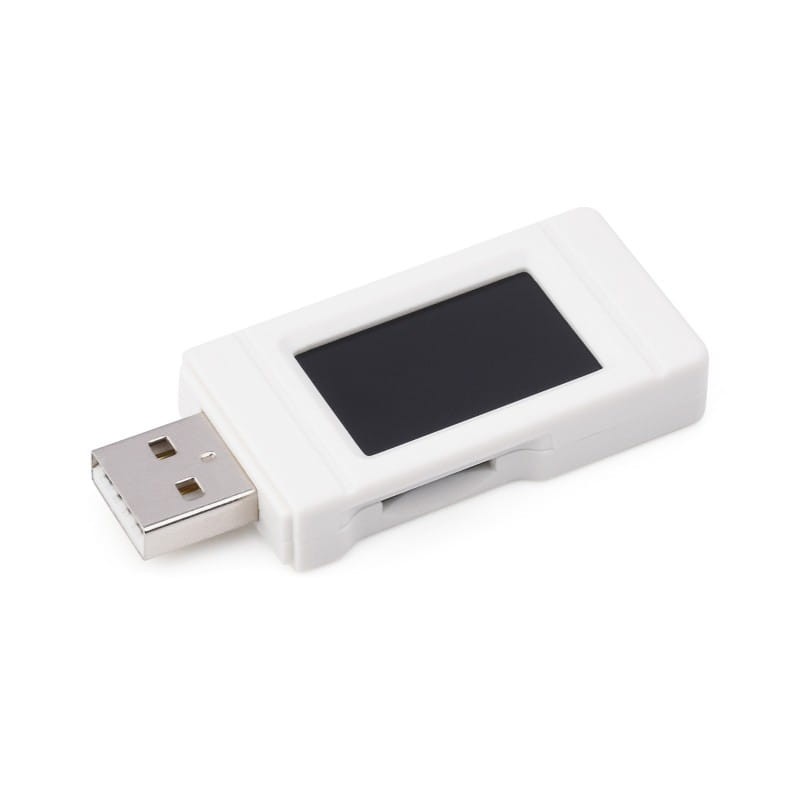

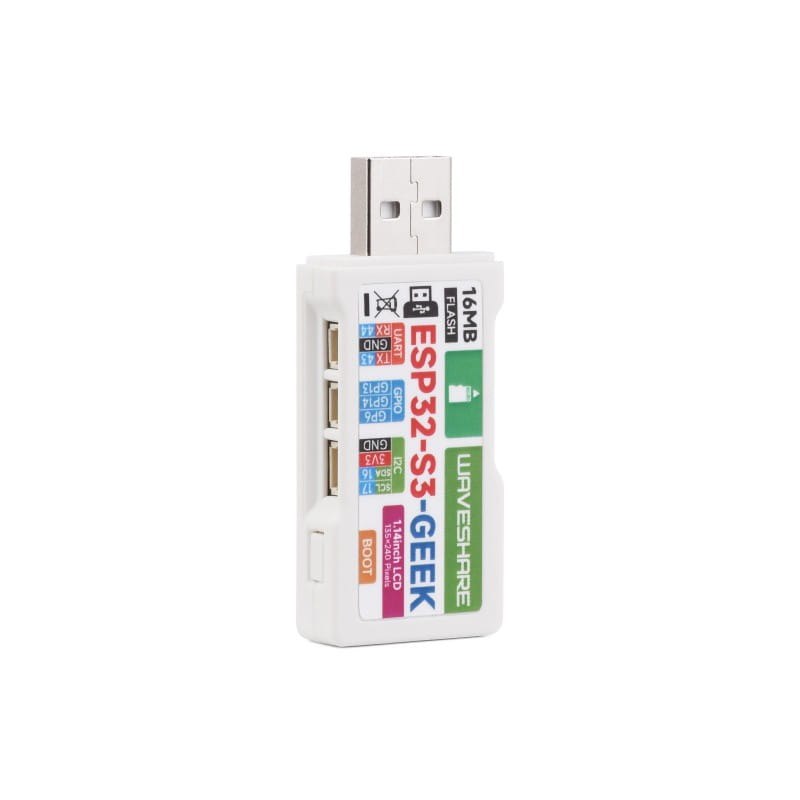

ESP32-S3-GEEK Developer Board with 1.14" 240x135 Display

ESP32-S3-GEEK Developer Board with 1.14" 240x135 Display

The ESP32-S3-GEEK Developer Board, created by Waveshare, is an advanced tool for electronics enthusiasts, enabling the realization of IoT projects with high efficiency and flexibility. Onboard is the ESP32-S3R2 chip with a dual-core Xtensa® LX7 processor, running at up to 240 MHz, providing the computational power necessary to handle complex tasks. Complementing it is a 1.14-inch color LCD IPS screen, offering a clear image at a resolution of 240×135 pixels, significantly enhancing user interaction with the device. The board supports wireless communication via 2.4GHz WiFi and Bluetooth Low Energy 5.0, opening up broad possibilities for creating connected systems. Integrated 16MB Flash and 2MB PSRAM along with I2C, UART, and GPIO ports provide sufficient memory and versatility in connecting external modules and sensors, allowing for quick and efficient project implementation. Designed with ease of use in mind, the ESP32-S3-GEEK provides a rich set of developer tools and online resources to facilitate learning and development. It's an ideal platform for those looking to experiment with new ideas or develop advanced projects in smart home, automation, or wireless communication devices. With its open architecture and community support, ESP32-S3-GEEK is an excellent choice for anyone seeking a flexible and powerful development platform.





Specification:



• Chip: ESP32-S3R2 with dual-core Xtensa® LX7 processor, 32-bit, 240 MHz
• Memory:
• SRAM: 512KB
• ROM: 384KB
• On-chip PSRAM: 2MB
• External Flash: 16MB
• Display: 1.14 inch, 240×135 pixels, 65K colors, IPS LCD
• Wireless Communication:
• 2.4GHz WiFi
• Supports BSS in Station, SoftAP, Station + SoftAP modes
• WiFi 1T1R, up to 150 Mbps
• BLE 5 Bluetooth in high power mode (20dBm)
• Ports:
• UART: 3-pin
• GPIO: 3-pin
• I2C: 4-pin
• Additional: TF card slot, BOOT button, built-in antenna
• Accessories: plastic case, cables



Product Features:



• Versatile Applications: Perfect for creating wireless USB flash drives, ESP32-S3-based WiFi/Bluetooth dongles, and for learning programming.
• Advanced Communication Options: Integrated WiFi and Bluetooth LE for easy integration with other devices and networks.
• Rich Interface Capabilities: Supports multiple peripherals through available I2C, UART, and GPIO ports.
• Flexibility in Project Development: With open online resources and demos, it facilitates learning and development.
• High Computational Power and Memory: With the advanced ESP32-S3R2 chip and ample RAM and Flash memory, the board offers smooth application operation.
• Ease of Debugging and Development: With available ports and BOOT button, it ensures convenience in programming and testing.





























Use Case Example:

Board Layout:

1. USB-A Interface
2. UART Port
3. GPIO Connector
4. I2C Port
5. TF Card Socket
6. W25Q128JVSIQ 16MB NOR-Flash
7. ESP32-S3
8. BOOT Button
9. Built-in Antenna

Dimensions:

Package Includes:

1. ESP32-S3-GEEK ×1
2. Cable Set ×1

Wiki: ESP32-S3-GEEK
