ESP32-S3 development board with touch LCD display 1,54"
Waveshare development board, based on a high-performance dual-core microcontroller ESP32-S3. The module is enclosed in a specially designed case and is equipped with an IPS LCD touch screen with a diagonal of 1.54". It features integrated microphones, an IMU motion sensor, and support for Wi-Fi and Bluetooth 5 connectivity, making it an ideal solution for HMI projects, IoT, voice interaction, and artificial intelligence applications.
Key features:
- High-performance dual-core processor ESP32-S3R8.
- Integrated Wi-Fi 2,4 GHz and Bluetooth 5 (LE) connectivity with an onboard antenna.

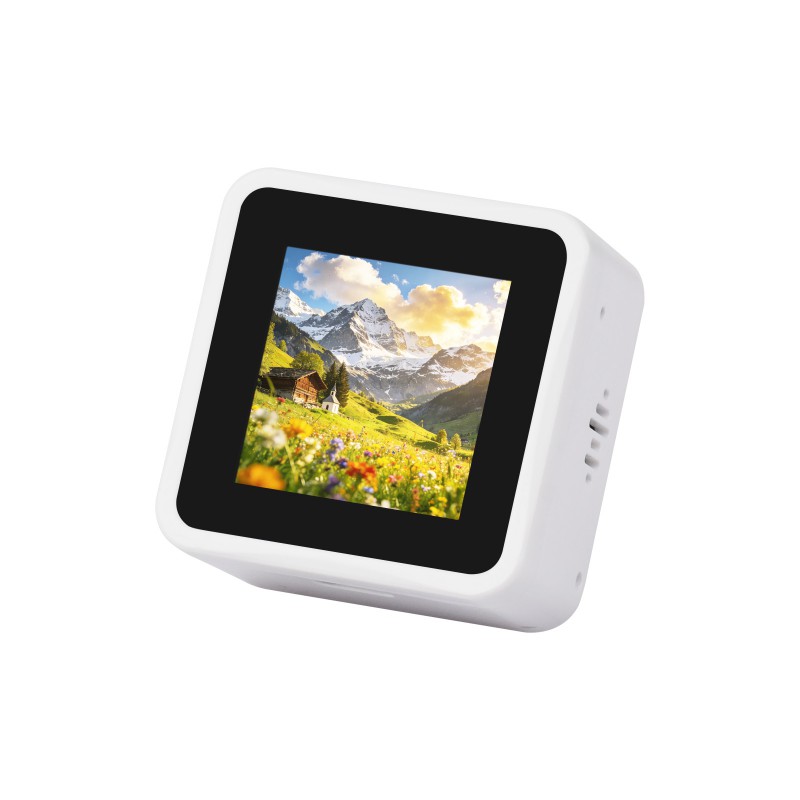

- Capacitive touch display IPS LCD 1,54" with a resolution of 240 x 240 pixels and a color palette of 262K.
- Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, and 16 MB external Flash memory.
- Built-in dual microphones and audio chips (ES7210, ES8311, NS4150B) with hardware echo cancellation.
- 6-axis IMU motion sensor QMI8658 (3-axis accelerometer and 3-axis gyroscope).
- Slot for TF memory card for easy media storage and data logging.
- Battery connector Li-Po 3,7 V (MX1.25) with an integrated charging management circuit.
- USB Type-C interface for convenient programming and powering the module.
Small size, unlimited possibilities
The device is perfect for creating smart controllers and building modern human-machine interfaces (HMI). Thanks to the battery connector, the board can operate independently, and the default software allows for, among other things, running AI-based conversations, audio and video playback, or simple arcade games.
Display specification
- Panel type: IPS
- Diagonal: 1,54 inch
- Resolution: 240 x 240 pixels
- Colors: 262 thousand
- Communication interface: 4-wire SPI
- Display controller: ST7789
- Touch panel type: Capacitive (CST816 chip)
- Active display area: 27,72 x 27,72 mm

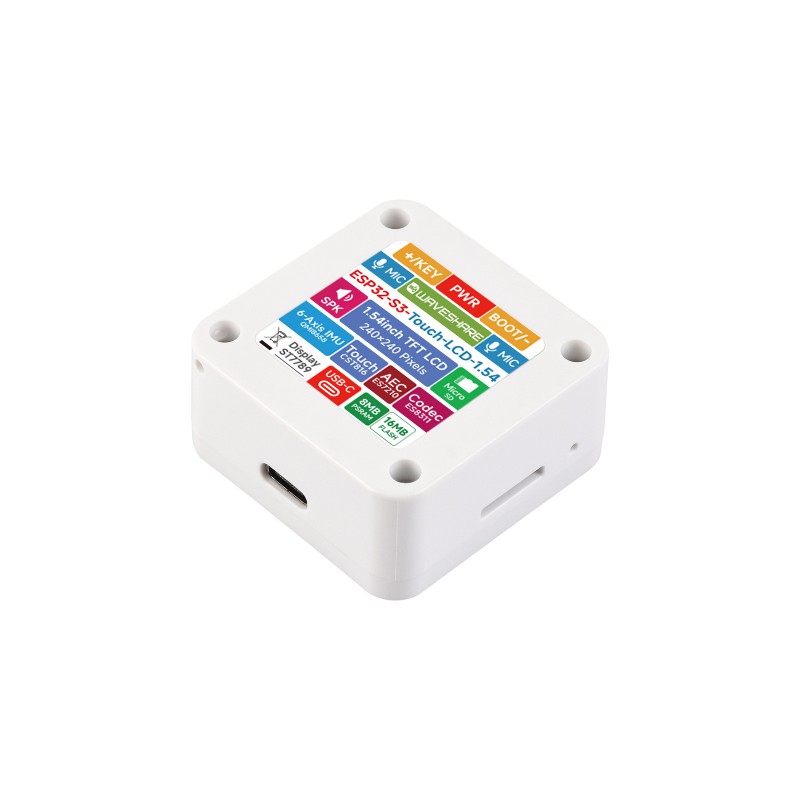

Component layout on the board
- ESP32-S3R8: dual-core processor with an operating frequency of up to 240 MHz.
- 16MB NOR-Flash: built-in storage and program memory.
- NS4150B: audio power amplifier chip.
- ES8311: energy-efficient audio codec.
- ES7210: high-performance decoder / ADC chip.
- Power management chip: controls the safe charging and discharging process of the battery.
- QMI8658: 6-axis IMU sensor containing a 3-axis gyroscope and a 3-axis accelerometer.
- PLUS button: configurable user button.
- PWR button: power button.
- BOOT button: button to facilitate entering programming mode.
- Microphones: used for sound recording and speech recognition.
- TF card slot (MicroSD): allows for additional memory expansion.
- Antenna: integrated antenna on the PCB.
- Lithium battery connector (MX1.25): 2-pin connector supporting 3,7 V cells with charging and discharging support.
- USB Type-C port: universal interface for programming and powering the system.
- Speaker connector (MX1.25): dedicated socket for direct speaker connection.
- Display panel connector.

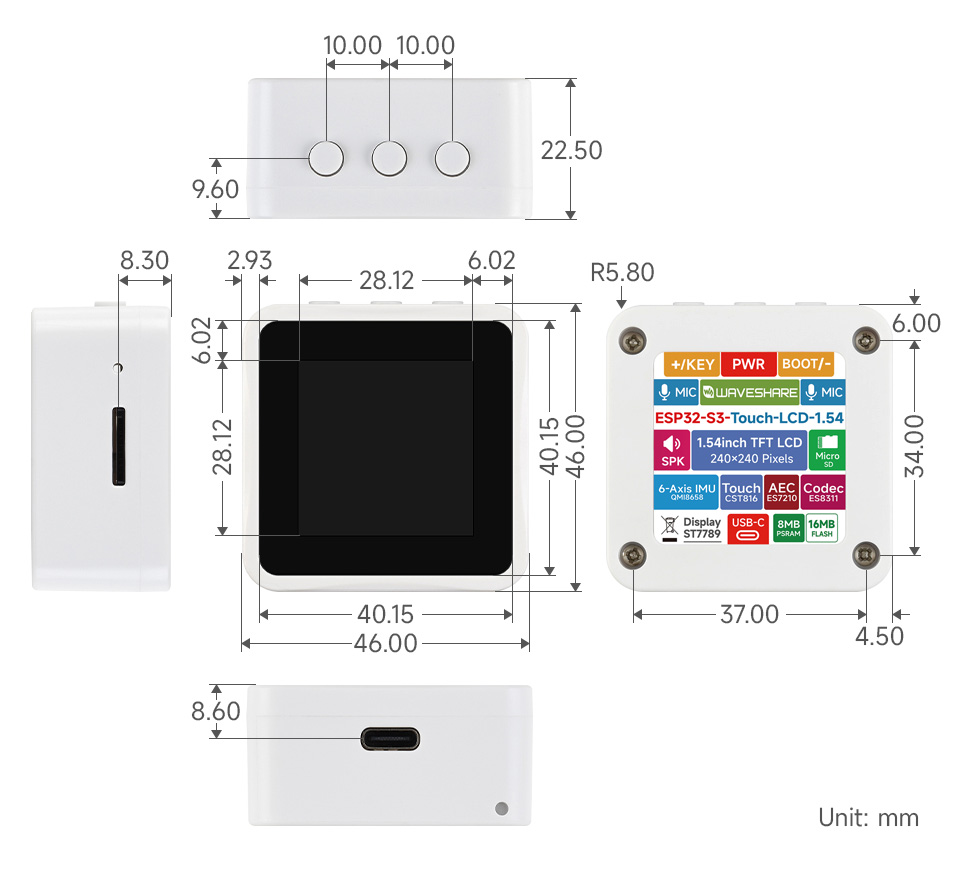

Board dimensions
Kit contents
- ESP32-S3 main board with Touch-LCD 1.54" display - 1 pcs.
- PC insulation spacer - 1 pcs.
