ESP32-S3 Development Board with 1.3" 240×240 Display and Prism Cube
The ESP32-S3-LCD-1.3 is a board with a 1.3" color LCD (262K colors), a lithium battery charging management circuit, a 6-axis sensor (accelerometer and gyroscope), and a Wi-Fi / Bluetooth antenna.
Key Features:
- Equipped with a high-performance dual-core Xtensa 32-bit LX7 ESP32-S3R8 processor, clocked up to 240MHz
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with an additional 8MB PSRAM and 16MB Flash memory
- USB-C connector for modern and easy use
- Onboard 1.3" display with 240×240 pixels resolution and 262K colors
- Integrated ST7789V2 display driver, using SPI communication, which saves IO resources
- Onboard 6-axis IMU QMI8658 sensor (3-axis accelerometer and 3-axis gyroscope) for gesture detection and other applications
- Onboard 3.7V MX1.25 lithium battery charging/discharging header
- 13PIN GPIO header (2.54mm pitch) for connecting peripherals and debugging

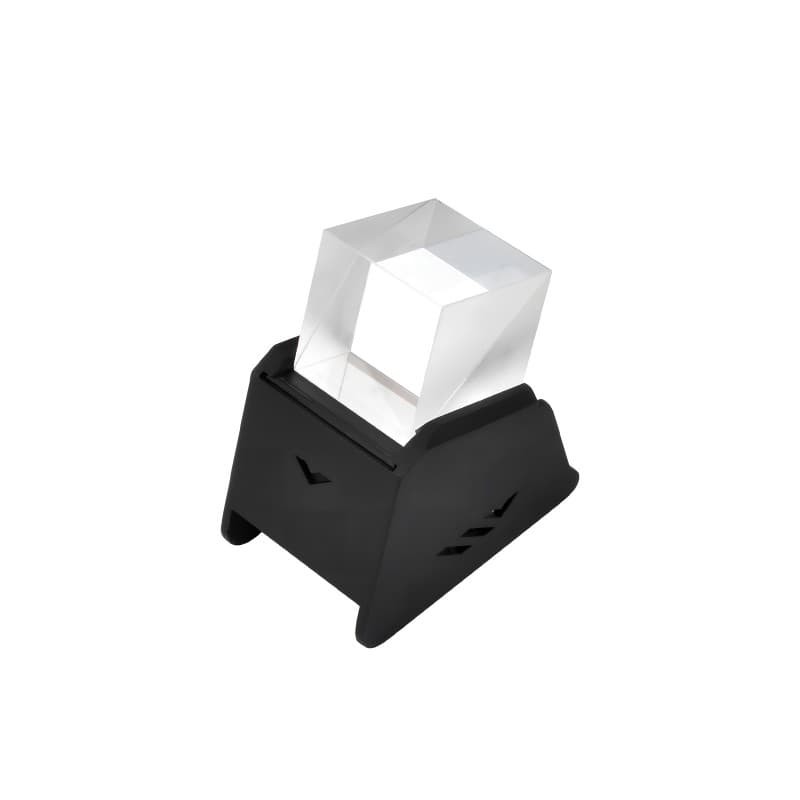

- Included prism cube to enhance the optical display effect

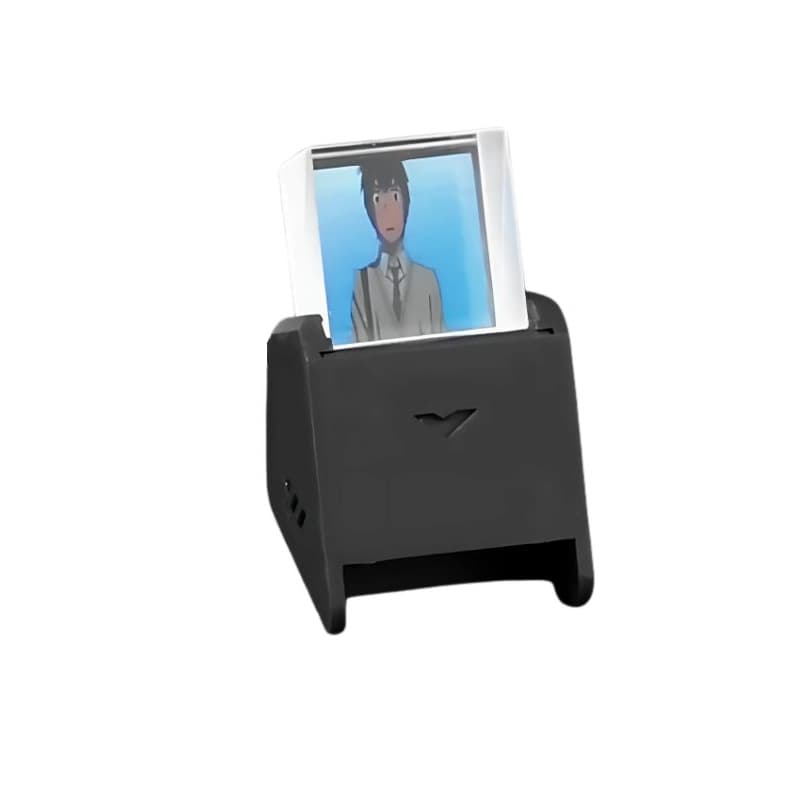

Display Effect with Prism Cube
The prism cube improves the optical effect and provides greater possibilities for project expansion.
Board Description
- ESP32-S3R8
Dual-core processor, operating frequency up to 240MHz - Onboard ceramic antenna
- 16MB Flash
- TF card slot
- Charging indicator
Off when fully charged
- PL4054 battery charge management chip
- ME6217C33M5G
LDO regulator, 800mA output (max.) - MX1.25 battery header
- QMI8658 (on the back)
6-axis IMU (3-axis gyroscope and 3-axis accelerometer)
Pinout
Dimensions
What's in the Box
- ESP32-S3-LCD-1.3-C x1
- Prism cube x1
Wiki: https://www.waveshare.com/wiki/ESP32-S3-LCD-1.3
