Encoder Geared Motor JGA25-371
・Kup teraz i zapłać za 30 dni
product unavailable
Description
Introduction：

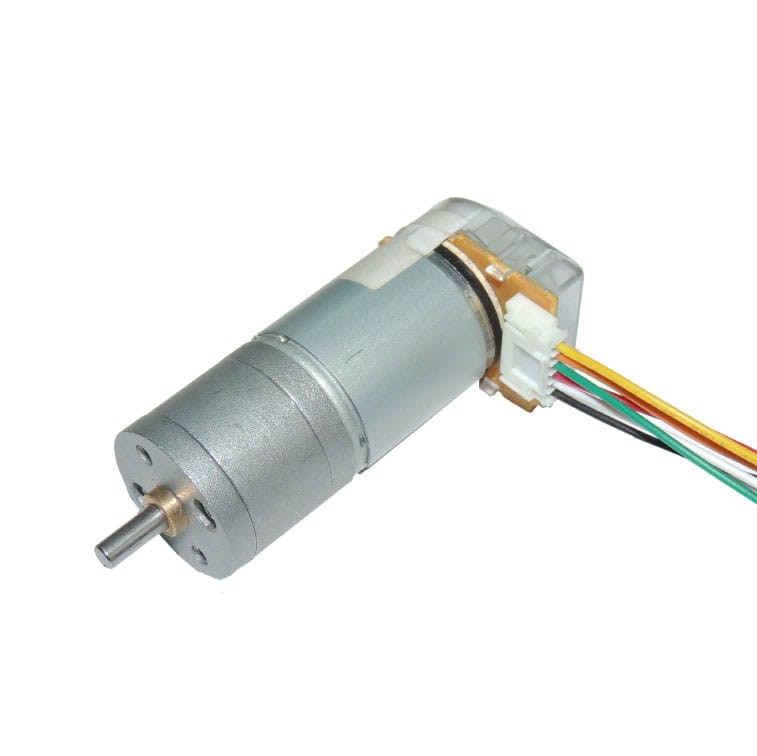

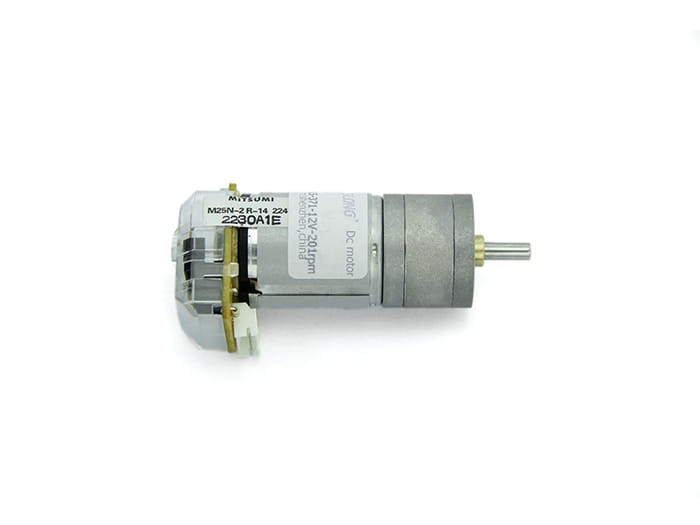

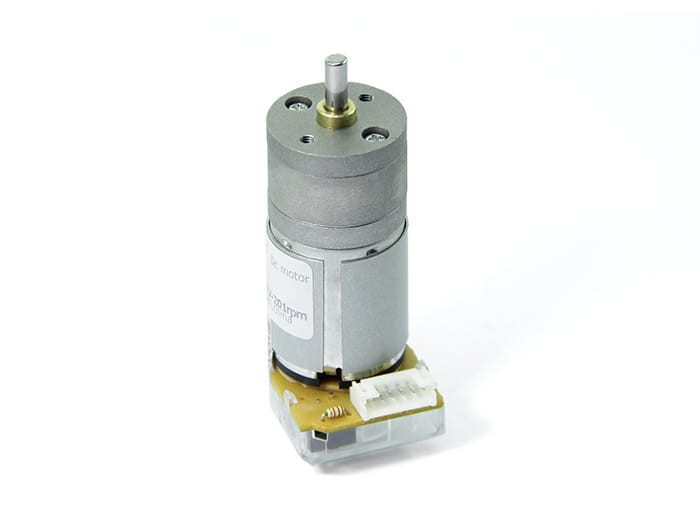

This Motor with encoder, Mainly used in robot platform and car provide power, Good quality and long lifetime, High torgue and Low nosie. It's running at 201RPM.
Specification：
- Rated Voltage: DC 12V
- No load speed: 201rpm
- No Load Current: 46mA
- load Speed: 168rpm
- load Current: 250mA
- load out put: 1.25w
- load torque: 0.53Kg.cm
- Stall torque: 2.65kg.cm
- Stall Current: 1A
- Ratio: 21.3
- Weight:101g

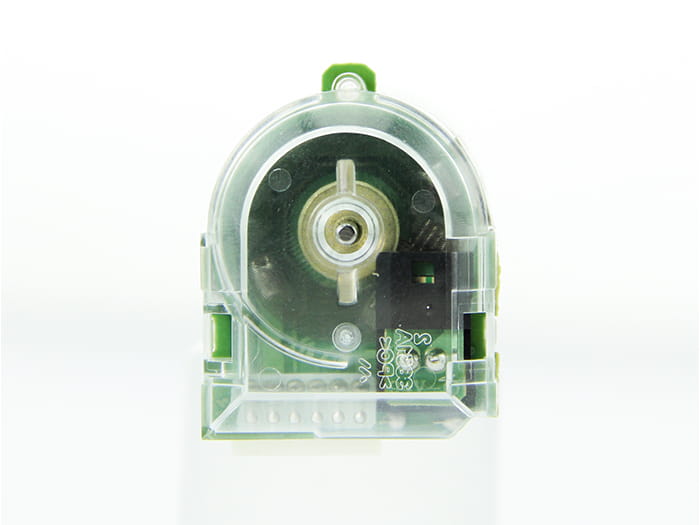

Instruction for encoder
334 lines of code to ensure the measuring precision, also is the motor coil output 334 pieces of pulses, the chip has integrated pulse shaping circuit, the output is a square wave, using the oscilloscope detection is quite stable, direct SCM IO port

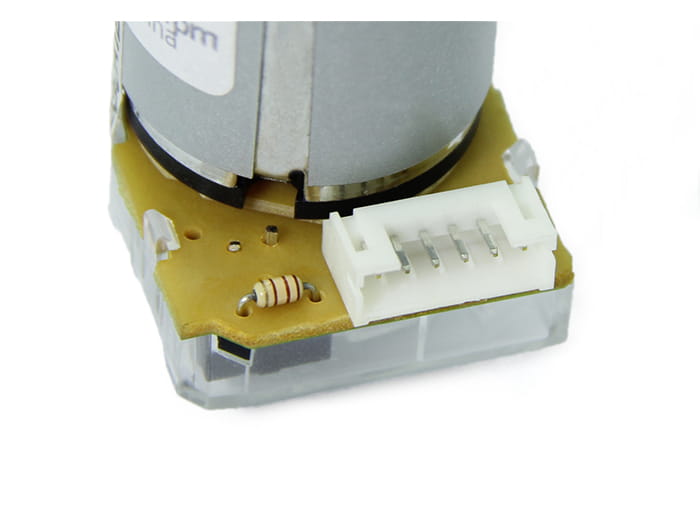

Wiring method
Two yellow lines on the left is a motor lead wire, green and white line is two group of pulse output line, one line can measure speed, double pulse can judge the direction of rotation, the red line is connected to the 3V to 5V power supply for velocity measurement chip power supply, the black line to ground
Dostępne wersje:
12V per minutes no-load speed: 977rpm, 463rpm, 201rpm, 126rpm, 95rpm, 55rpm, 41rpm, 25rpm, 19rpm, 11rpm, 8.6rpm
