Flame Sensor
Price:
€3.17
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru

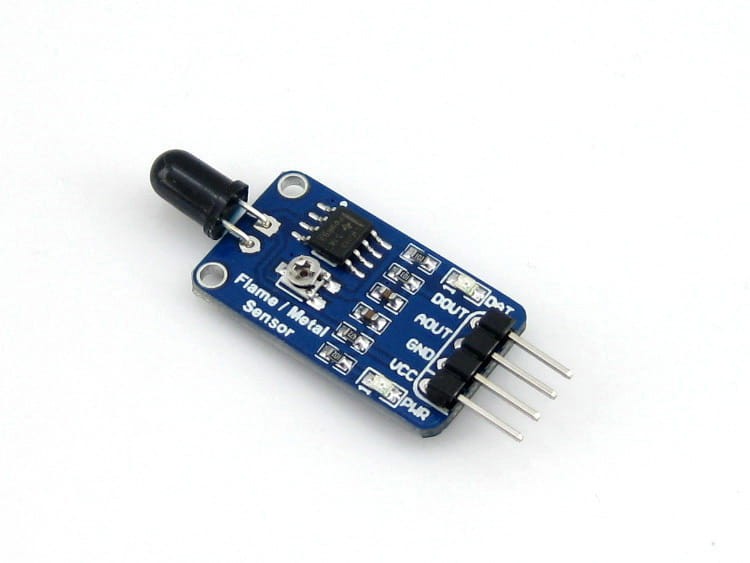

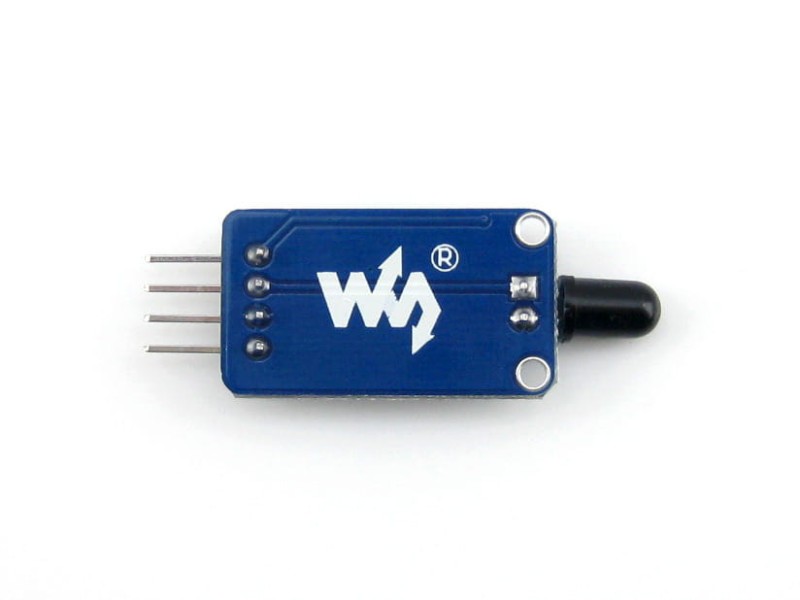

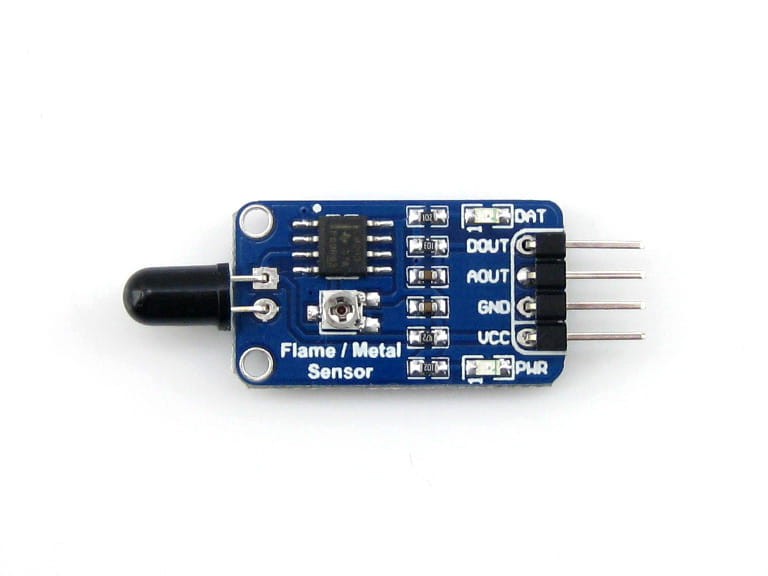

Flame Sensor
Overview
- Sensitive to flame spectrum
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Specifications
- Spectrum range: 760nm ~ 1100nm
- Detection angle: 0 - 60 degree
- Power: 3.3V ~ 5.3V
- Operating temperature: -25℃ ~ 85℃
- Dimension: 27.3mm * 15.4mm
- Mounting holes size: 2.0mm
Applications
- Fire detection
- Fire fighting robot
- Fire alarm
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Note: the Flame Sensor is used for detecting fire without any fire-protection for itself, please keep distance from the fire to avoid damage.
Package Contains
- Flame Sensor × 1
- 4-pin custom connector jumper wire × 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
