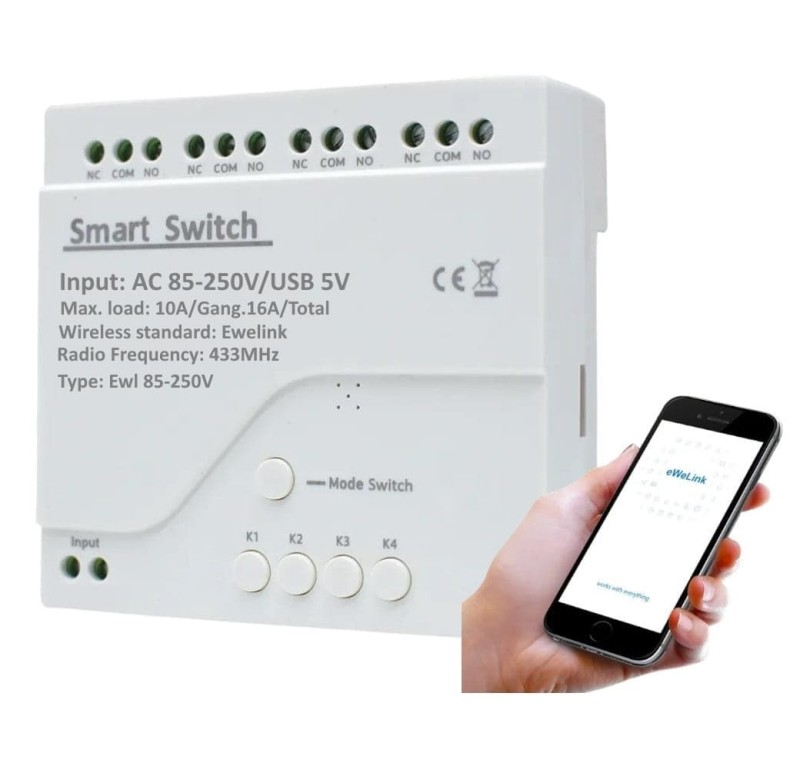

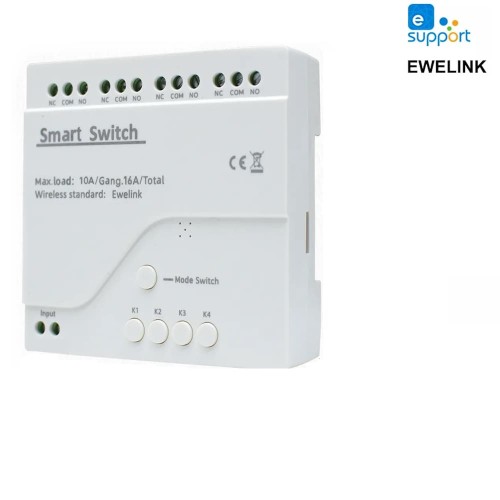

Four-Channel Dry-Contact Wi-Fi Relay Sonoff eWeLink Controlled by Remote

Four-channel WiFi + RF 433MHz controller with voltage-free outputs

a solution for anyone who wants to introduce intelligent control into existing devices. Thanks to its compatibility with the Sonoff eWeLink app, the device offers a full range of functions - from remote on/off to advanced automation and scheduling. The compact dimensions and the ability to be powered by both 5V DC (MicroUSB) and 85-250 V AC make the controller suitable for successful installation in a variety of locations and connection to a wide range of devices, such as garage doors, roller shutters, motors or heating cookers.

Key functions of the controller

1. Remote control
   Switch appliances on and off from anywhere in the world using the eWeLink app.

2. Voice control
   Support for Amazon Alexa, Google Assistant, as well as Siri (via shortcuts), allowing you to conveniently manage your devices using voice commands.

3. Schedules
   Set each of the four channels to automatically turn on and off at specific times to save energy and optimise device operation.

4. Smart scenes
   Create advanced scenarios that link multiple Sonoff devices and ensure your daily activities run smoothly.

5. Shared control
   Share control of individual channels with other eWeLink app users.

6. eWeLink-remote support

7. Support for 433MHz RF remote controls



Three relay modes

1. Normal Each of the four relays can be independently switched on and off.

2. Pulse (Pulse) The relay automatically switches off after a set time (e.g. 1 second), which is ideal for controlling entrance or garage doors.

3. Interlock (Interlock) Only one of the four relays can be switched on at a time. Activating one automatically deactivates the others, which is ideal for controlling motors or roller shutters (prevents simultaneous 'up' and 'down' signals).

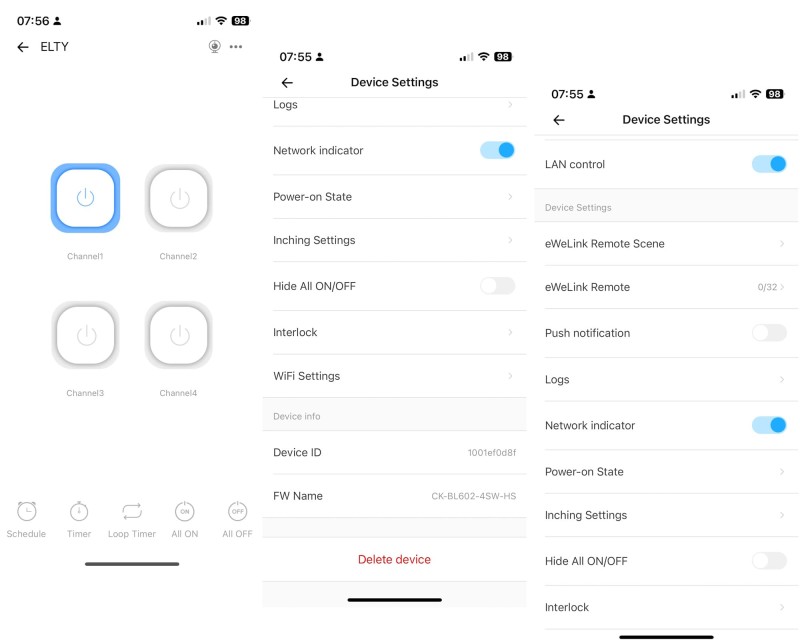

The configuration of the relay operation mode is carried out from the eWeLink application.

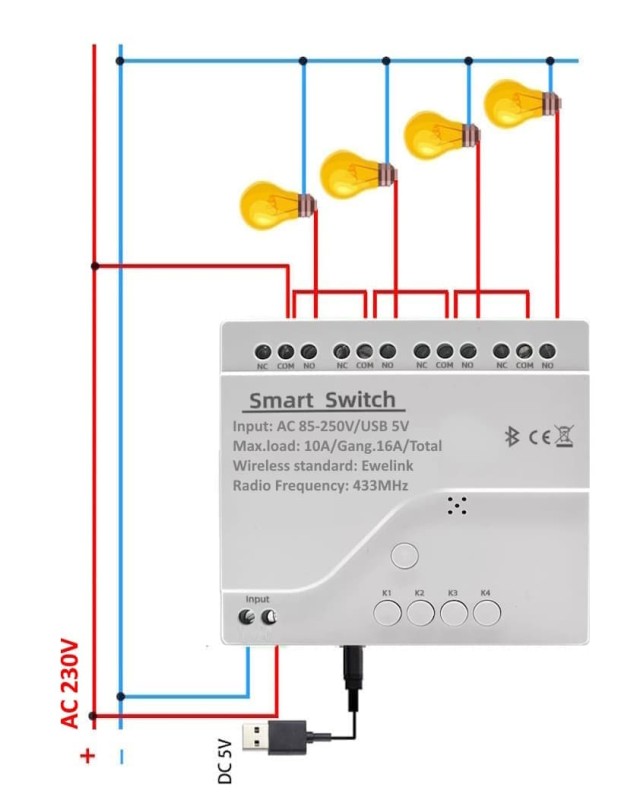

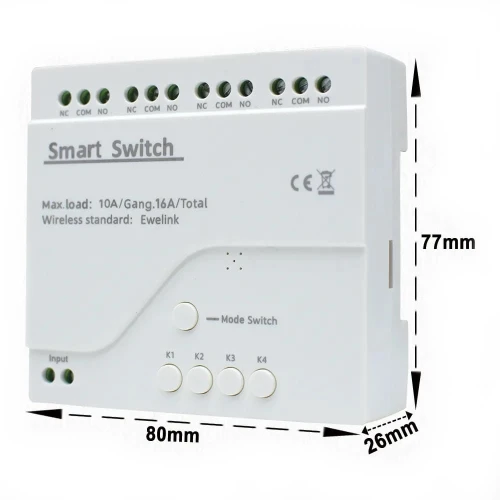

Technical specifications and example of controller connection

Set contains

• 4-channel WiFi + RF 433MHz controller with voltage-free outputs

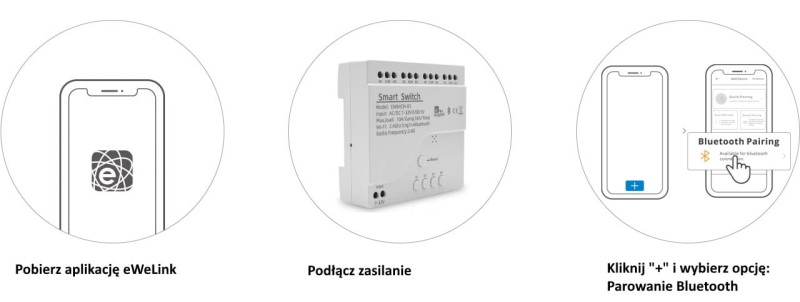

Adding the module to the eWeLink application

1. To put the controller into pairing mode, hold down the K1 button for approximately 10 seconds.
2. After a moment, the red LED will start flashing (3 flashes, pause, 3 flashes, pause...), indicating that the unit is ready for pairing.
3. Open the eWeLink app, switch on Bluetooth on your phone and follow the on-screen instructions.

Adding 433 MHz RF remote controls

1. Hold down the K1, K2, K3 or K4 button respectively until the blue LED on the controller flashes.
2. Release the button.
3. Press the button on the 433 MHz RF remote control you wish to assign to the desired channel.

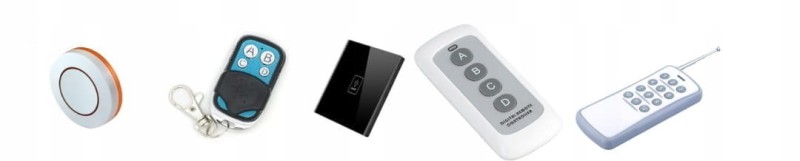

Examples of remote controls from our range suitable for the controller described

The four-channel WiFi + RF 433MHz controller with voltage-free outputs is a multifunctional device with which you can easily modernise and automate existing installations in your home or business. Its versatile capabilities, compact dimensions and wide power supply range make it an indispensable component of a modern, intelligent control system.
