GSM/GPRS/GNSS/Bluetooth HAT dla Raspberry Pi SIM868 (1)

The Raspberry Pi HAT module with SIM868 GSM GPRS Bluetooth is the perfect solution for Raspberry Pi owners who need the ability to communicate via GSM, Bluetooth and use a GPS: GNSS receiver.

Specifications:

• Raspberry Pi interoperability with Raspberry Pi 2B/3B/4B/Zero/Zero W
• Support for SMS, voice calls, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
• Supports GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
• Bluetooth 3.0 communication
• USB to UART converter on CP2102 chip for debugging
• 6x LEDs indicating operating status of the module
• SIM card slot 1.8V/3V
• RTC clock with battery backup
• Communication with Baudrate autodetection (1200bps ~115200bps)
• Module control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supports SIM application toolkit: GSM 11.14 Release 99
• Supported examples for: Raspberry Pi/Arduino/STM32
• Supply/operating voltage: 5V

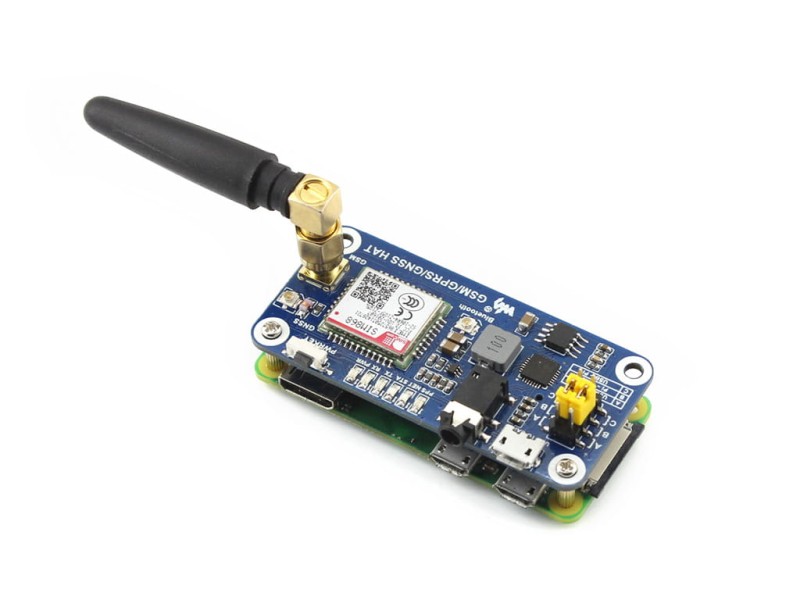

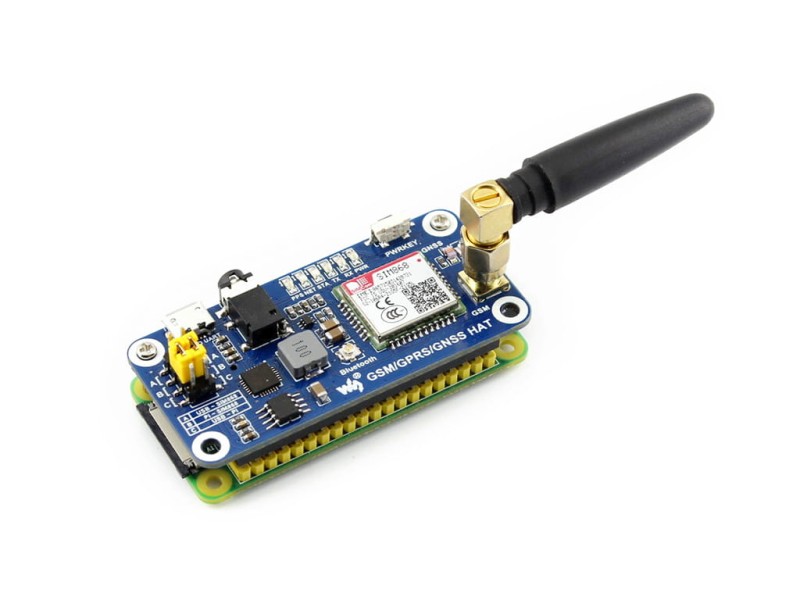

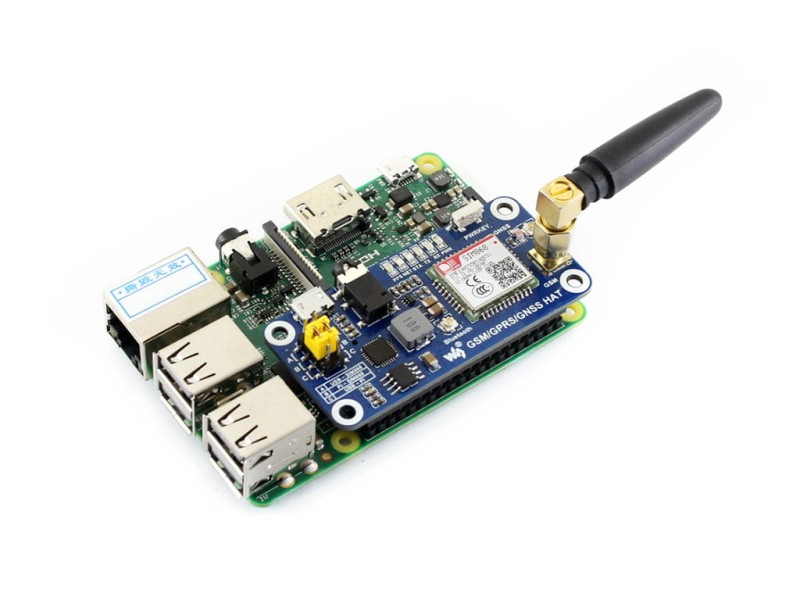

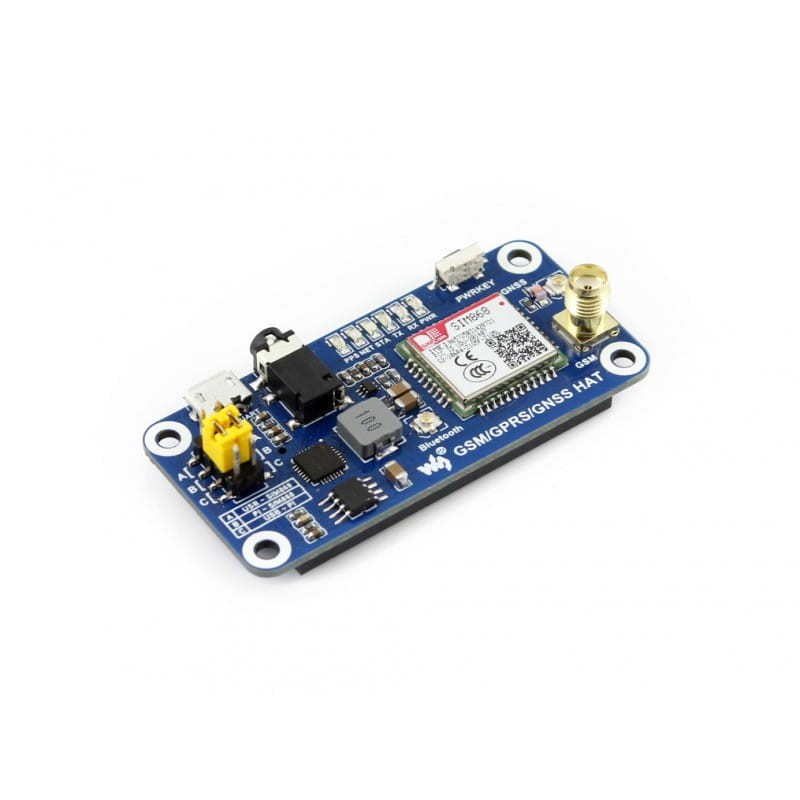

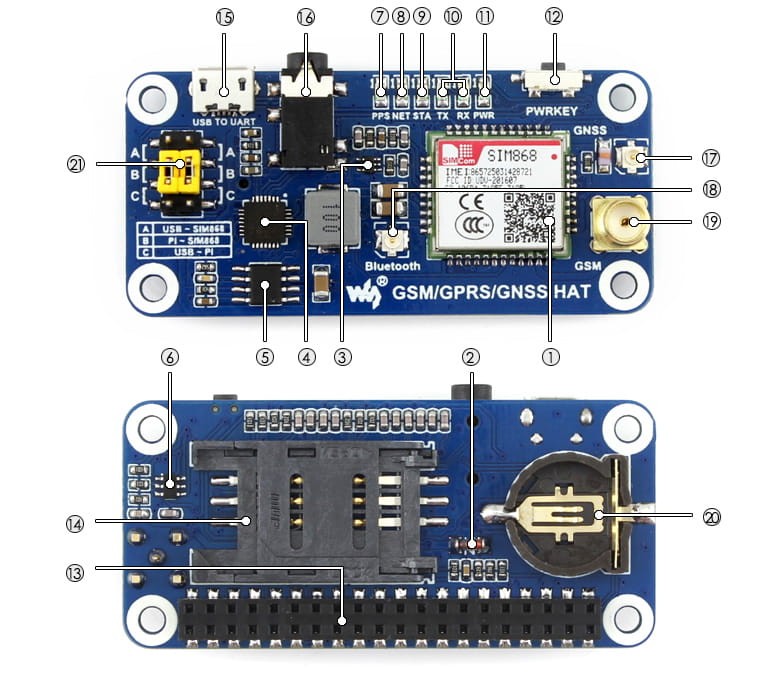

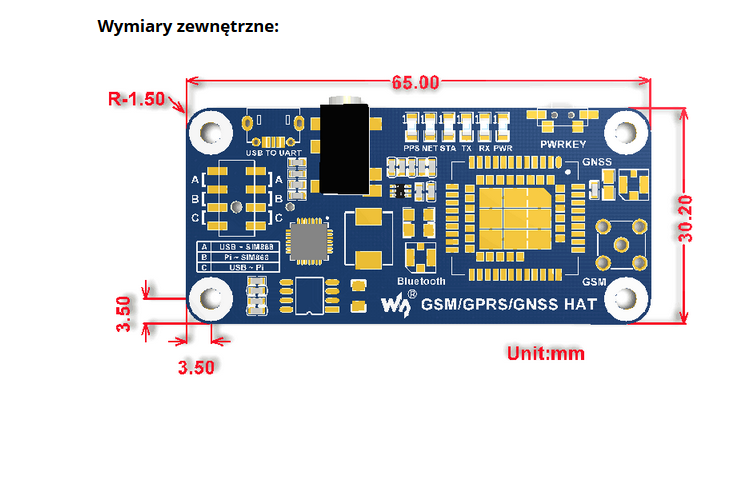

Board description:

• SIM868 module
• ZMM5V1: regulator diode
• SMF05C: TVS diode
• CP2102: USB TO UART converter
• MP1482: power chip
• NDC7002N: voltage level translator
• GPS status indicator
• NET indicator: flashes fast when the module starts up, flashes slowly after GSM register succeed
• STA module working status indicator
• SIM868 UART Tx/Rx indicator
• Power indicator
• SIM868 control button: press the button and hold for 1s, to startup/shutdown the SIM868
• Raspberry Pi GPIO connector

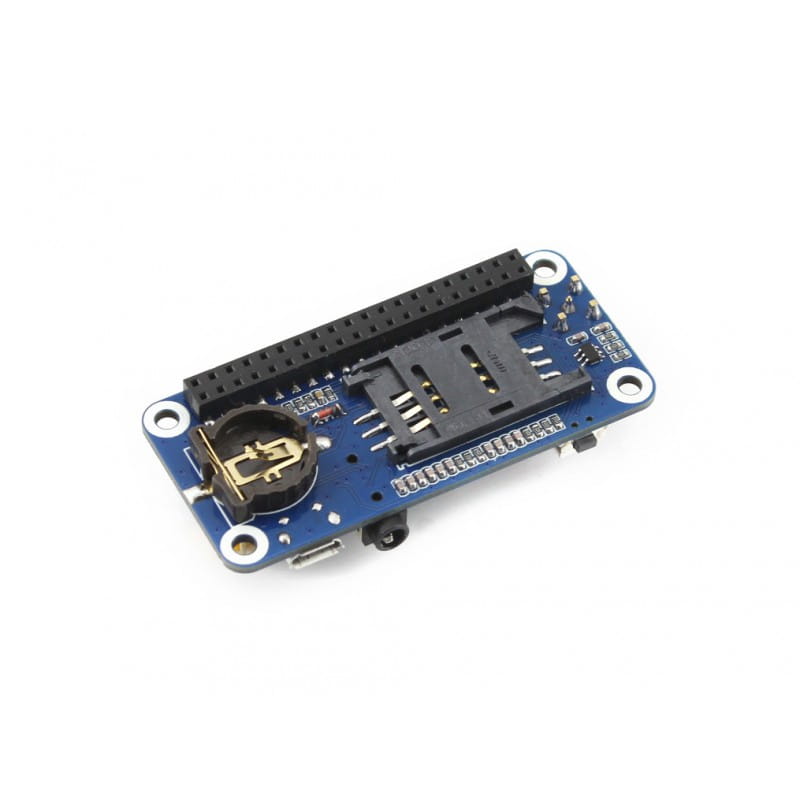

• SIM card slot
• USB TO UART interface
• 3.5mm earphone/mic jack
• GNSS antenna connector
• Bluetooth antenna connector
• GSM antenna connector
• CR1220 battery holder: for RTC backup battery
• UART selection switch:
• A: SIM868 control via USB TO UART
• B: control of SIM868 via Raspberry Pi
• C: access to Raspberry Pi via USB TO UART

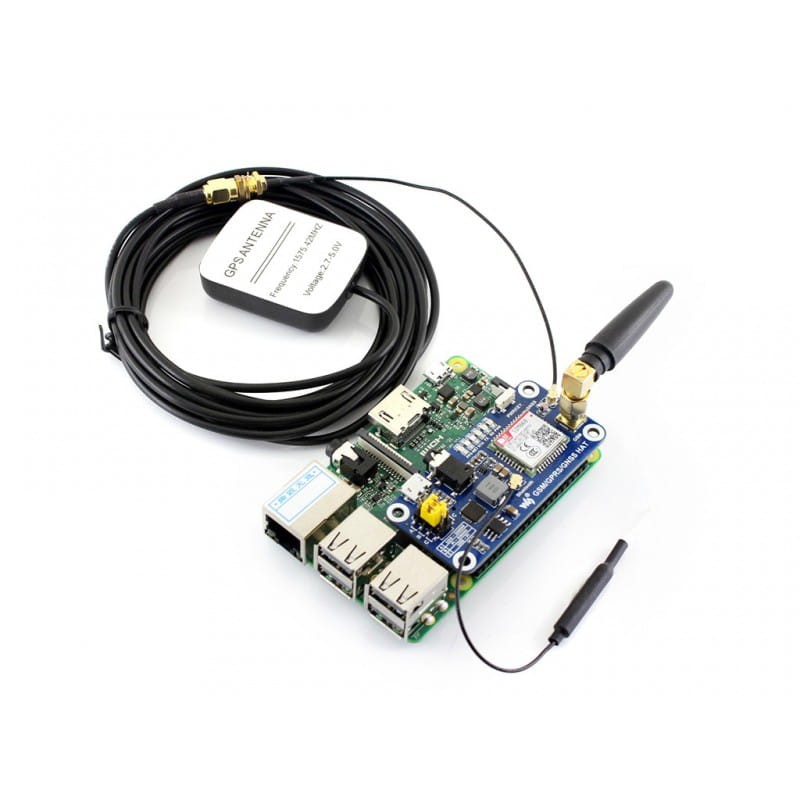

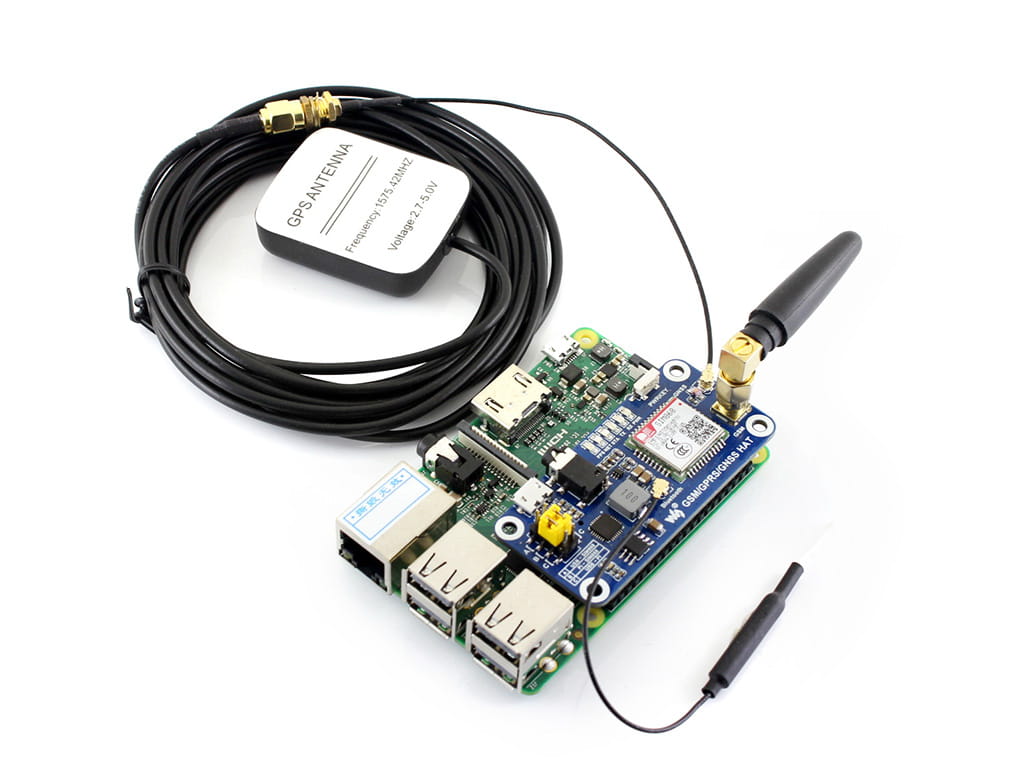

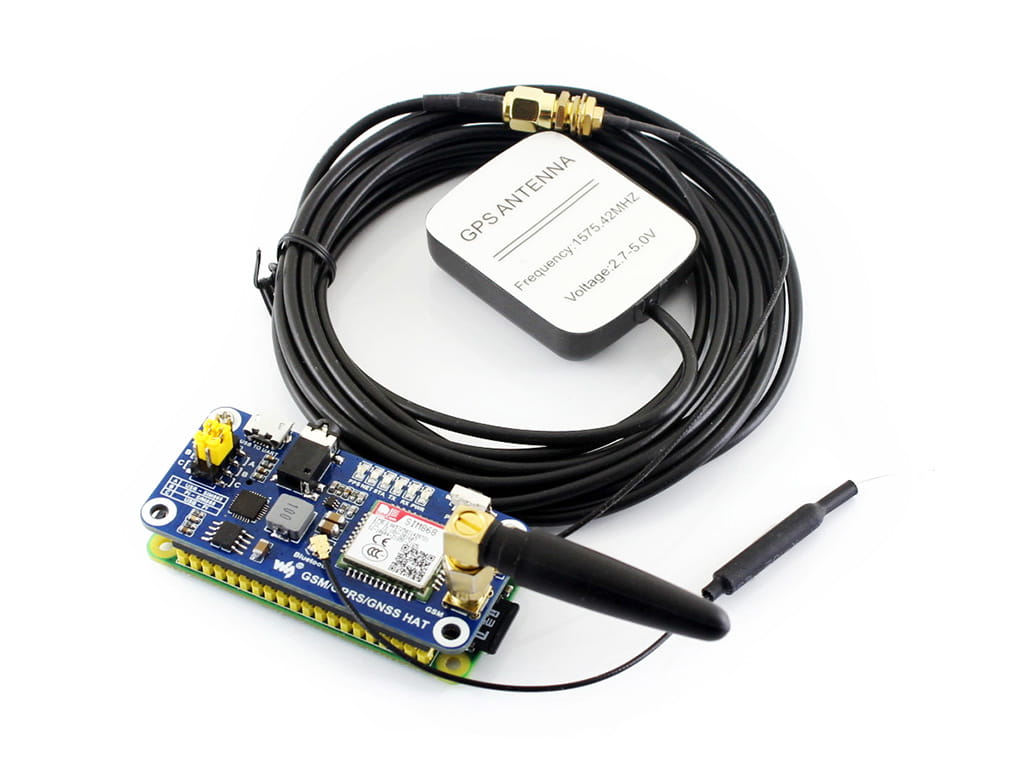

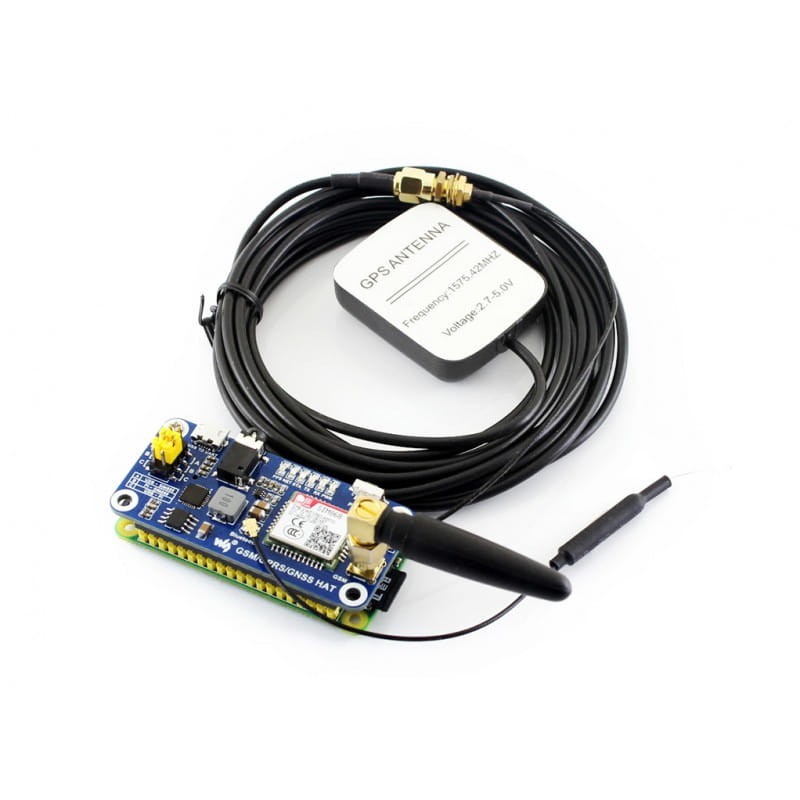

By purchasing you receive:

• Module: GSM/GPRS/GNSS HAT x1
• GSM antenna x1
• External GPS antenna x1
• Bluetooth antenna x1
• USB type A to micro USB cable x1
• Mounting brackets (2 pcs) x1

Wiki:  GSM/GPRS/GNSS_HAT
