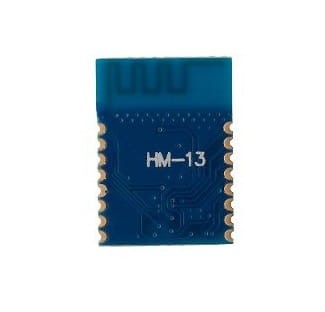

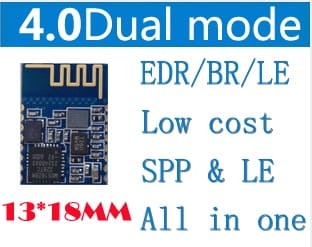

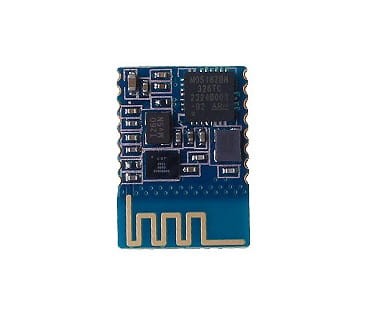

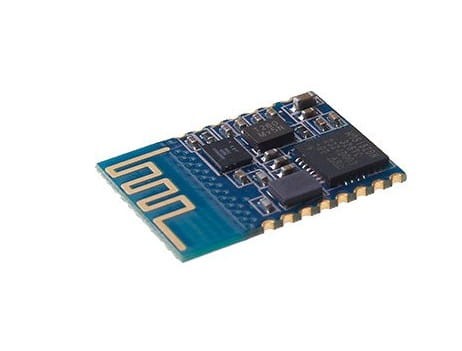

HM-13 Dual Mode Bluetooth 4.0 BLE SPP LE Serial Port Module
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Product parameters
Ø BT Version: Bluetooth Specification V4.0 & BLE
Ø UART send and receive max bytes is 512.
Ø Other device to module in SPP mode: 90 Bytes per packet
Ø Other device to module in BLE mode: 20 Bytes per packet.
Ø Two data transmission mode, balance mode and high speed mode.
Ø Working frequency: 2.4GHz ISM band
Ø Modulation method: GFSK(Gaussian Frequency Shift Keying)
Ø RF Power: -23dbm, -6dbm, 0dbm, 6dbm.
Ø Speed: Asynchronous: 3K Bytes
Synchronous: 3K Bytes
Ø Security: Authentication and encryption
Ø Service: Slave SPP, Peripheral BLE, UUID FFE0,FFE1
Ø Power: +3.3VDC 50mA
Ø Long range: SPP 30 meters, BLE 60 meters.
Ø Power: SPP 13.5mA, BLE 9.5mA.
Ø Working temperature:–5 ~ +65 C
Ø Size: HM-13 18 x 13.5 x 2.2mm
Dodatkowe info na stronie producenta: jnhuamao
Pliki do pobrania:
HM-13 Datasheet
€1.88
