HY-STM32F2xxCore144 Moduł z STM32F207ZGT6 SRAM NAND FLASH
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

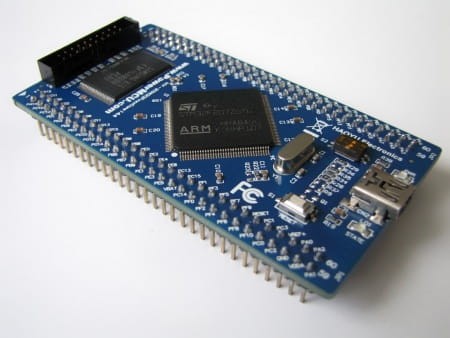

The HY-STM32F2xxCore144 is an easy-to-use MCU core board designed for rapid application. At the core board has a very powerful ST Microelectronics STM32F207ZG Micorocontroller, with the high-performance, high-speed 32-bit ARM Cortex M3 core processor, running at 120 MHz(150DMIPS) with 1MB flash and 128 KB RAM. A comprehensive firmware library and plenty of sample code help you get your program up and running quickly. The HY-STM32F2xxCore144 core board has a double 60-pin DIP with 2.54mm-pitch male header pins already soldered in,so it can be used with standard solderless breadboards and perfboards. All microcontroller ports are available on extension connectors.
● CPU: STM32F207ZGT6 frequency up to 120 MHz、1MB flash、128KB RAM
Ethernet, USB OTG, USB2.0 high speed,CAMERA, FSMC, SPI, 3xI2C,
6xUSART, 2xCAN, 112xfast GPIOs, PWM, 3xADC 12bit, 2xDAC 12bit, DMA
● 25 Mhz main crystal oscillator, 32768 Hz RTC crystal
● USB connector
● RESET button
● Boot select switch
● status LED,On-board LEDs can be used for feedback
● power supply LED
● standard ARM JTAG 20PIN 2.0mm Debug port,JTAG/SWD mode (largess 2.54mm to
2.0mm JTAG conversion board)
● on board voltage regulator 3.3V with up to 800mA current
● on board extension 1MB to 8MB PSRAM or SRAM(default 1MB SRAM),128MB NAND
FLASH, NOR FLASH(reserve)
● double 60-pin DIP header pins,extension headers for all ports
● Can be powered by USB or an external 5V supply
● Compact module: 85 mm × 46 mm
● Easy to Install and Remove
● Easy-to-use, uses the ARM RealView compile engine,API-driven development using
libraries with intuitive interfaces
