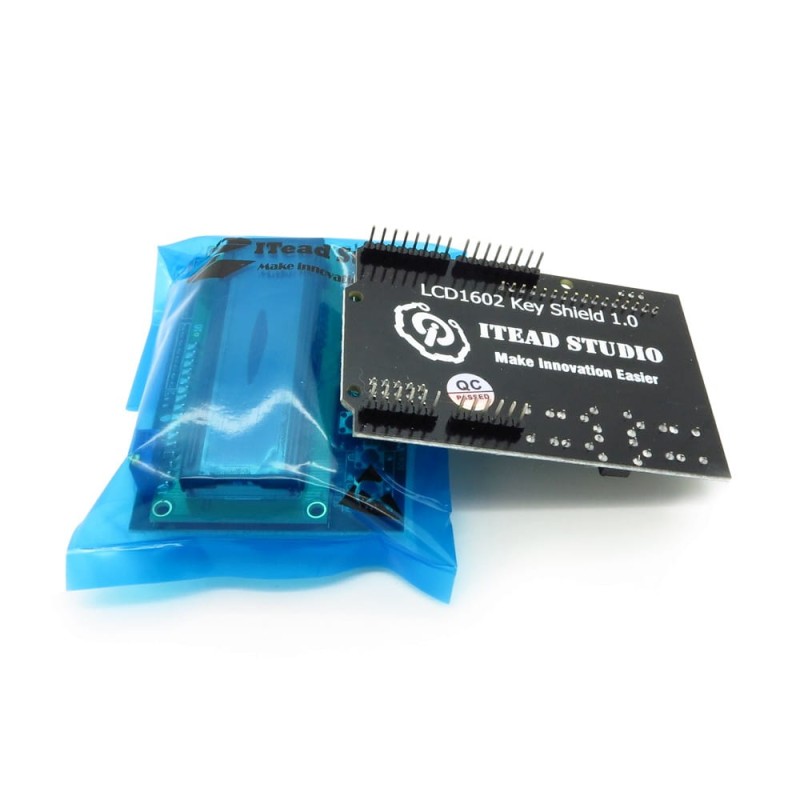

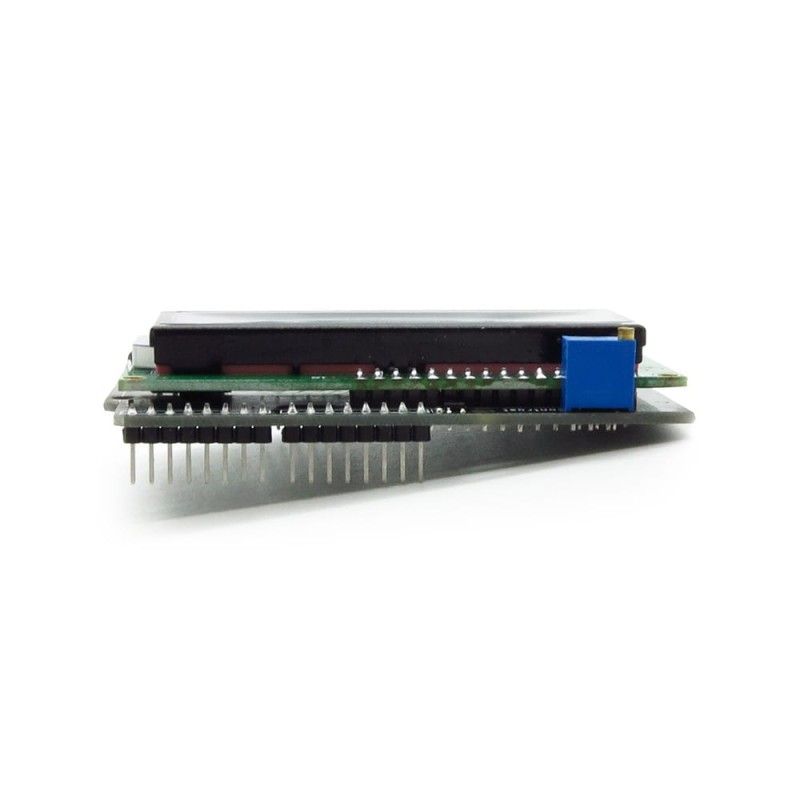

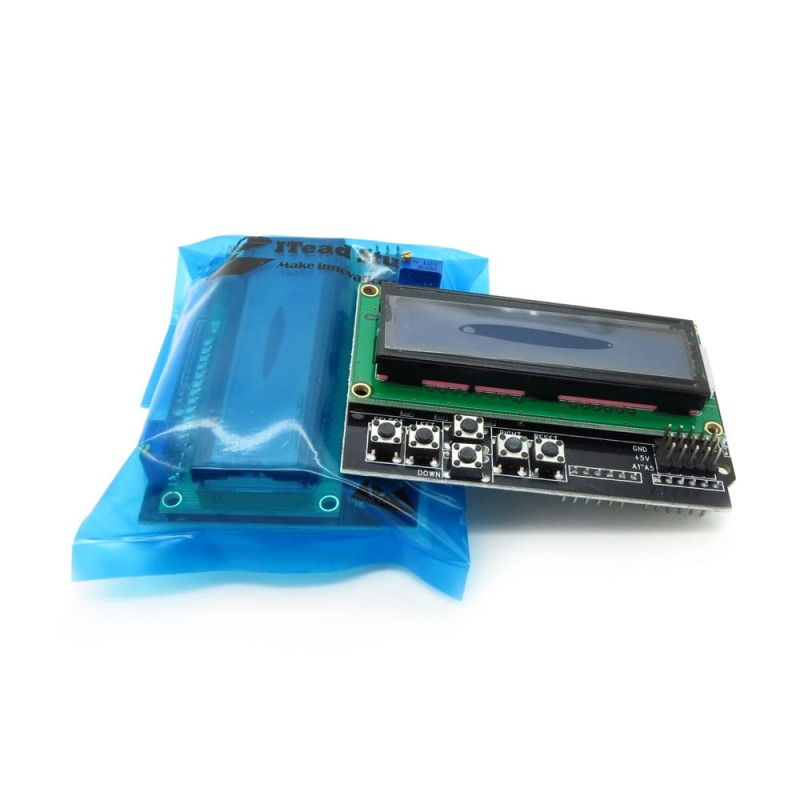

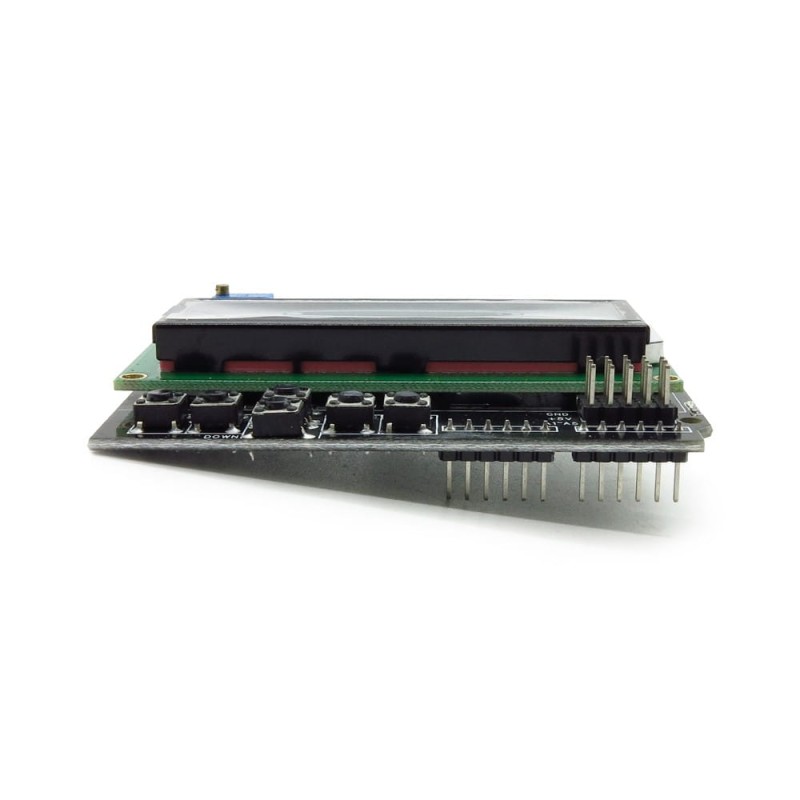

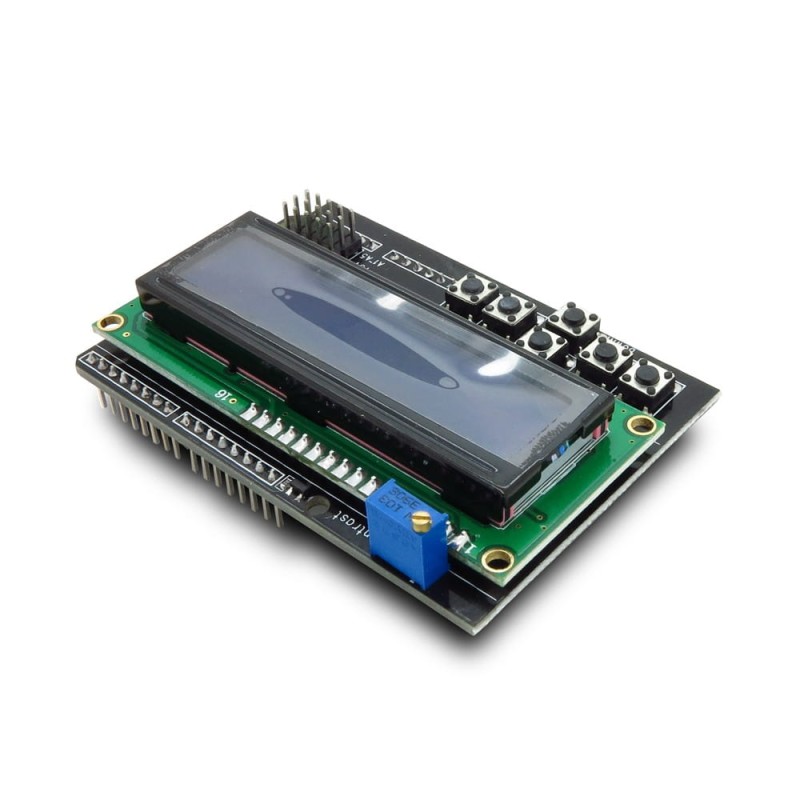

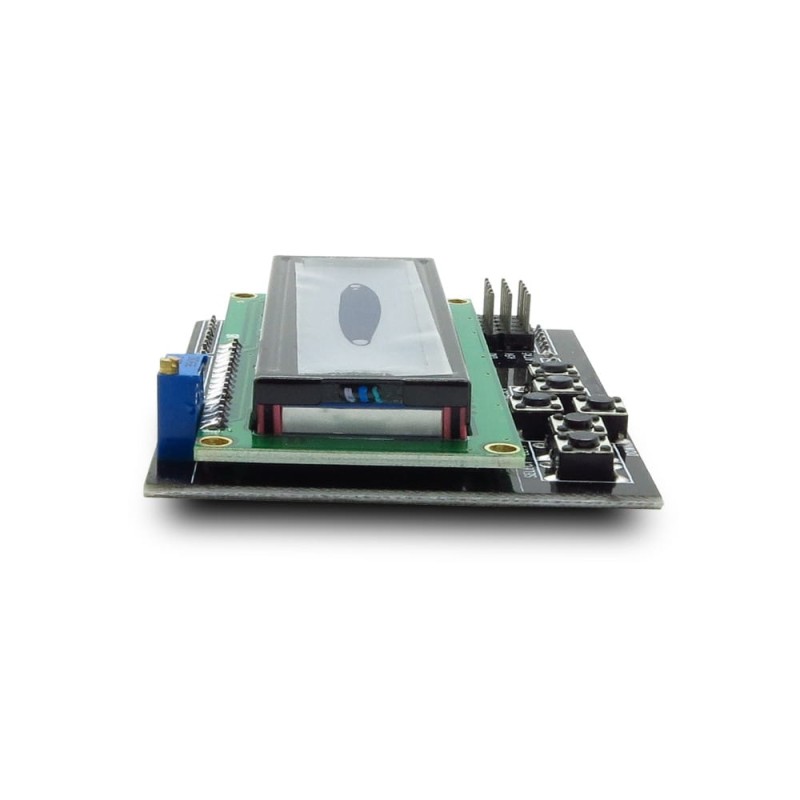

ITEAD 1602 LCD SHIELD
Price:
€5.87
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Vendor:
IteadStudio
Product code:
IM120417018
Overview

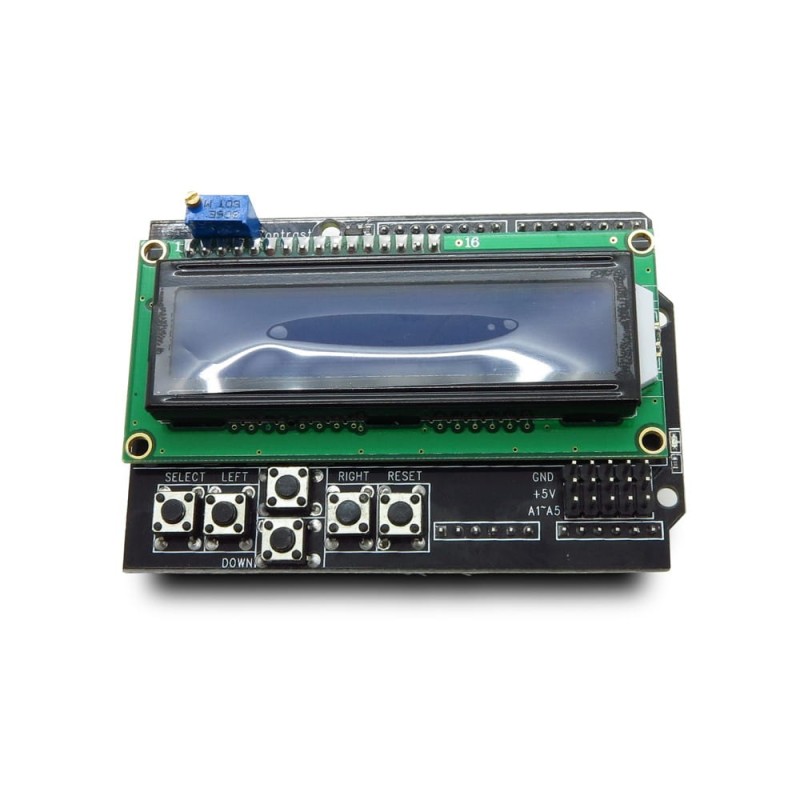

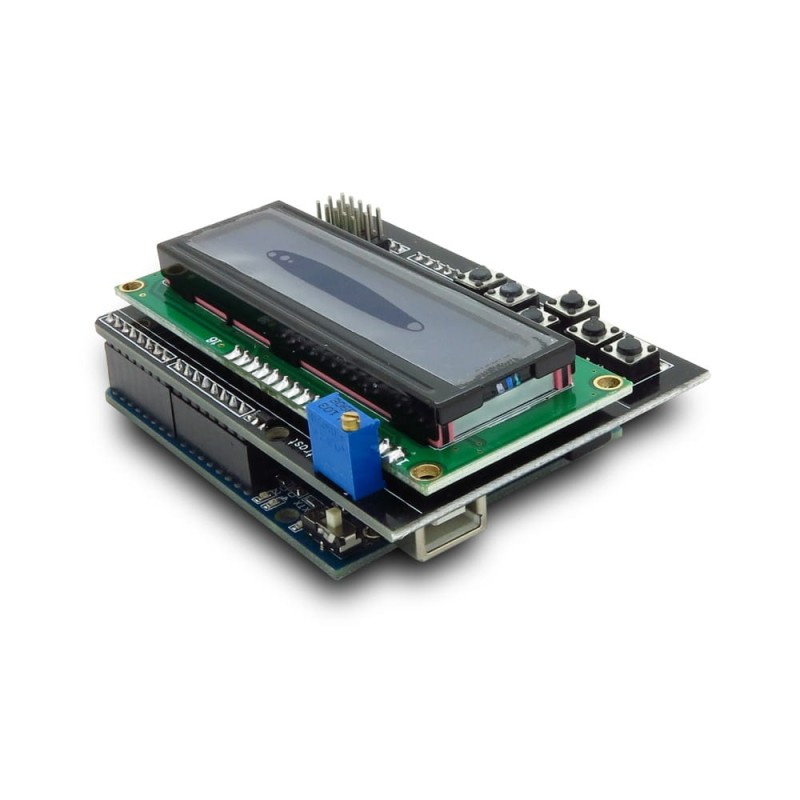

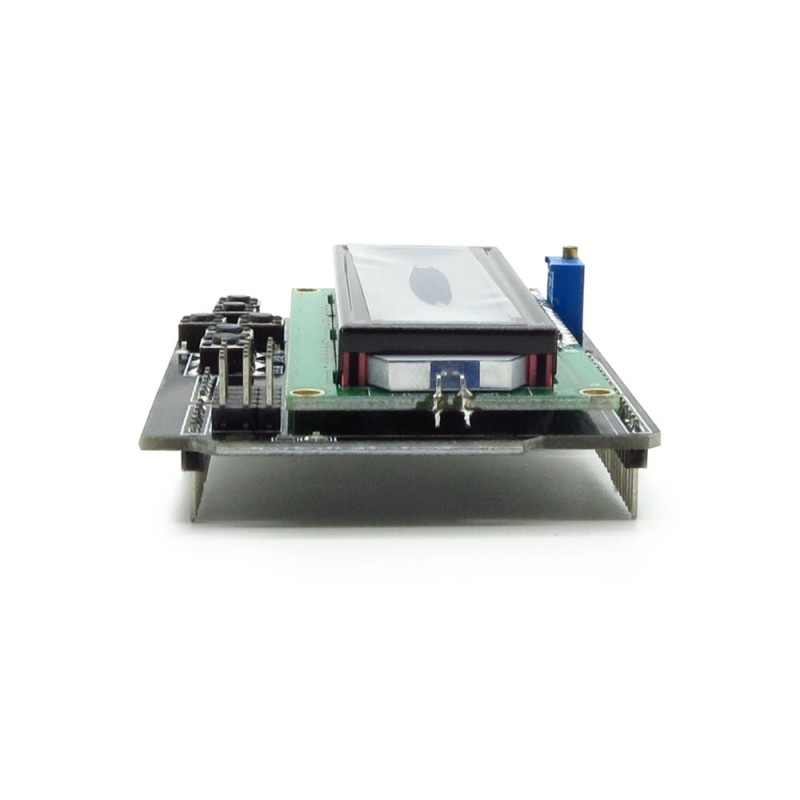

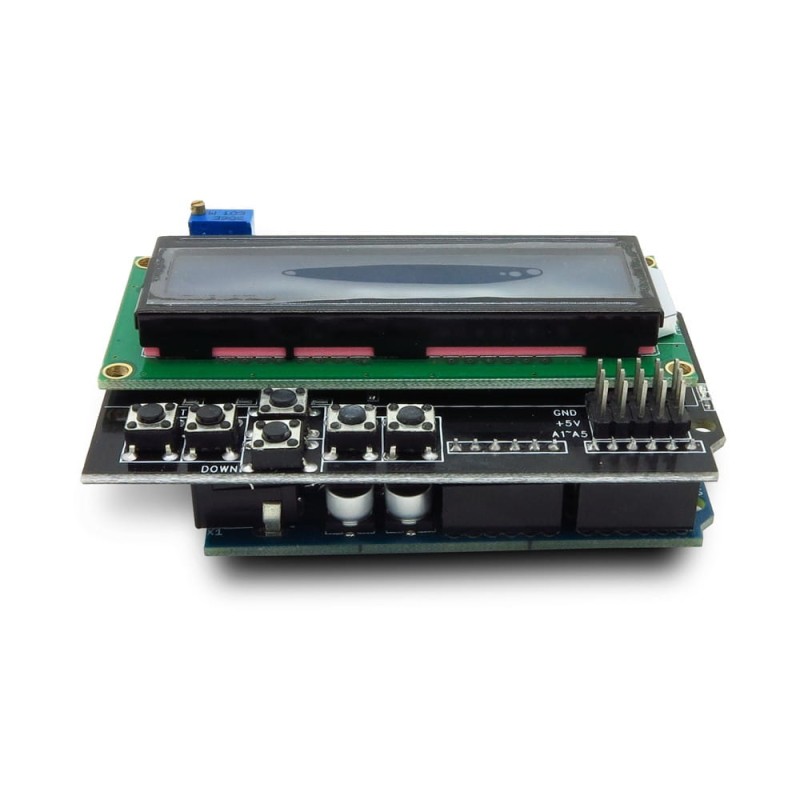

This is a very popular LCD Keypad shield for Arduino board. It can be directly plug onto the Arudino board, no soldering or fly-wiring needed.This Shield uses Arudino LCD4Bit library.
Hardware
|
Pin |
Function |
|
A0 |
Button(select, up, right, down and left) |
|
D4 |
DB4 |
|
D5 |
DB5 |
|
D6 |
DB6 |
|
D7 |
DB7 |
|
D8 |
RS(Data or signal display selection) |
|
D9 |
LCD1602 Enable |
|
D10 |
Backlight control |
SPECIFICATION
| Version | 1.1 |
|---|---|
| Compatible Mainboard |
|
| Shield Functions |
|
| Board Size | 83mm x 57mm |
| Operation Level |
|
| Stackable | No |
| Model | IM120417018 |
| Accessories | No |
| Weight | 70.00g |
DOWNLOAD
