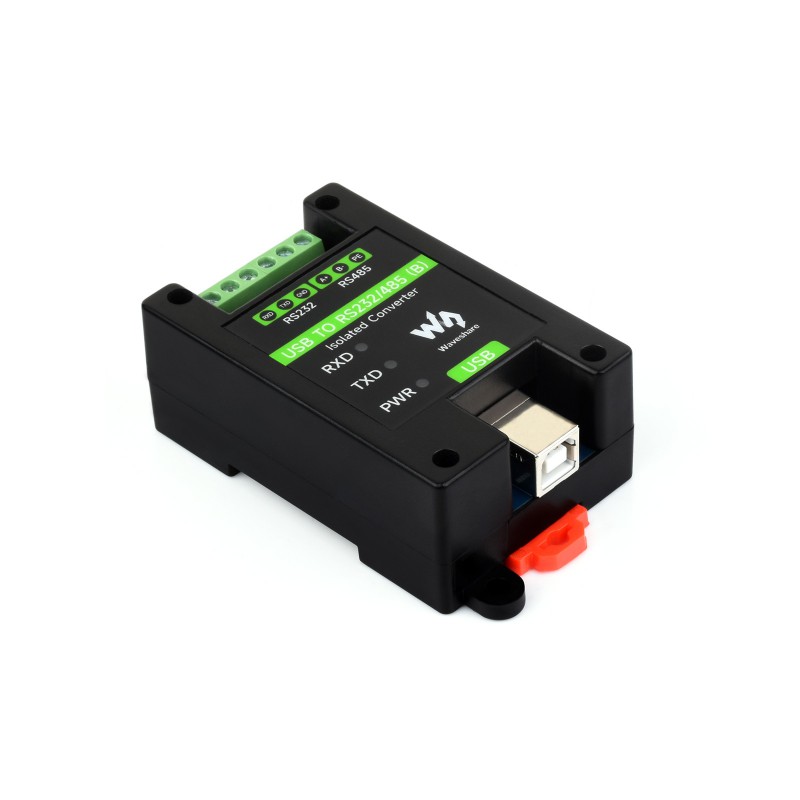

Industrial Isolated USB to RS232/485 Converter
A high-end industrial signal converter from USB to RS232 and RS485, based on the genuine FT232RNL chip. The device ensures fast and stable communication, and thanks to built-in galvanic isolation for power and signals, as well as multi-level protection (lightning, surge, ESD), it is an ideal solution for industrial automation applications and systems requiring high reliability.
Key Features:
- Based on the genuine FT232RNL chip.
- Built-in galvanic power isolation.
- Integrated digital signal isolation.
- Built-in TVS (Transient Voltage Suppressor) circuit – effectively suppresses surges and voltage spikes in the circuit.
- Self-resetting fuse and protective diodes ensure stable current-voltage outputs, protecting against overcurrent and overvoltage.
- Built-in terminal resistor 120R for the RS485 interface, activated/deactivated via jumper.
- Three LED indicators for power status and data transmission.
- Industrial ABS enclosure, suitable for mounting on a DIN rail.
Based on Genuine Chip
The use of the genuine FT232RNL chip ensures better stability and compatibility.
Galvanically Isolated Design
Built-in power and signal isolation provides stable, isolated voltage, high reliability, strong interference immunity, and low power consumption.
Multi-level Protection – Safety and Stability
The TVS circuit, self-resetting fuse, and protective diodes effectively shield the device from surges, overcurrents, and electrostatic discharge.
Interface Description
Wall or DIN Rail Mounting
Enclosure adapted for mounting on a standard 35mm DIN rail.
Dimensions
Technical Specification:
- Product Type: Industrial, Isolated USB to RS232/485 Converter
- Host Port: USB-B
- Device Ports: RS232/485 (screw terminals)
- Operating Voltage (USB): 5V
- Protection (USB): 200mA self-resetting fuse, output isolation
- Range (USB): ~5m
- RS232 Interface:
- Range: ~15m
- Mode: Point-to-point
- Speed: 300bps ~ 921600bps
- RS485 Interface:
- Direction Control: Automatic
- Protection: 600W, 15KV ESD, 120R resistor
- Range: ~1.2km
- Mode: Point-to-multipoint (up to 32 nodes)
- Speed: 300bps ~ 921600bps
- LED Indicators: PWR, TXD, RXD
- Operating Environment: -15°C ~ 70°C, 5% ~ 95% RH
- Operating Systems: Mac, Linux, Android, WinCE, Windows 11/10/8.1/8/7
- Enclosure: ABS, 35mm DIN rail mounting
- Dimensions: 81.9 × 54.0 × 32.0 mm
Package Contents
- USB TO RS232/485 (B) Converter x1
- USB-A to USB-B Cable (~1.2m) x1
- Screwdriver x1
