Industrial RS232/485 to Ethernet and WiFi converter PoE power supply
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Industrial RS232/485 to Ethernet and WiFi converter with PoE power supply
The Waveshare RS232/485 to WiFi and Ethernet (B) industrial communication converter, which enables the integration of devices with RS232 or RS485 interfaces into Ethernet and WiFi networks. The device supports a variety of protocols such as Modbus TCP/RTU, MQTT and HTTPD Client, making it a versatile solution for industrial and IoT applications.
Key features
-

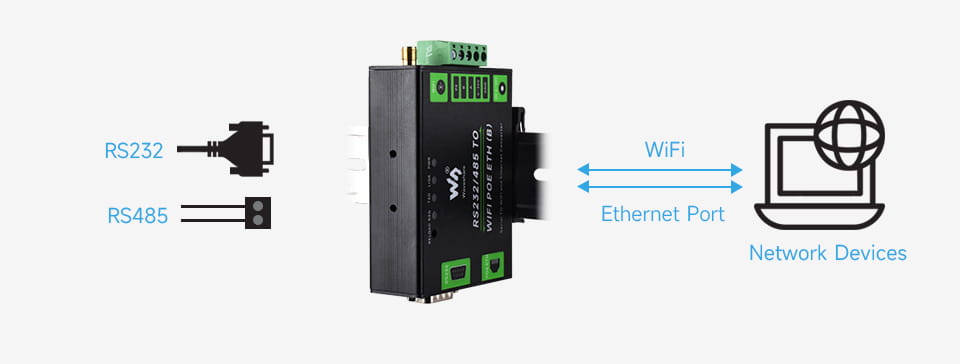

Supports RS232/RS485 to WiFi and Ethernet conversion
-
Protocol support: Modbus TCP/RTU, MQTT, HTTPD Client, TCP/UDP, VCOM.
-
Power supply: Wide range of supply voltage from 6V to 36V DC and power supply via PoE
-
Industrial housing: Metal enclosure with wall or DIN rail mounting options.
-
Safety and reliability: Integrated ESD, EFT, surge protection and galvanic isolation.
-
WiFi operating modes: Support for Station, AP and AP+Station modes.

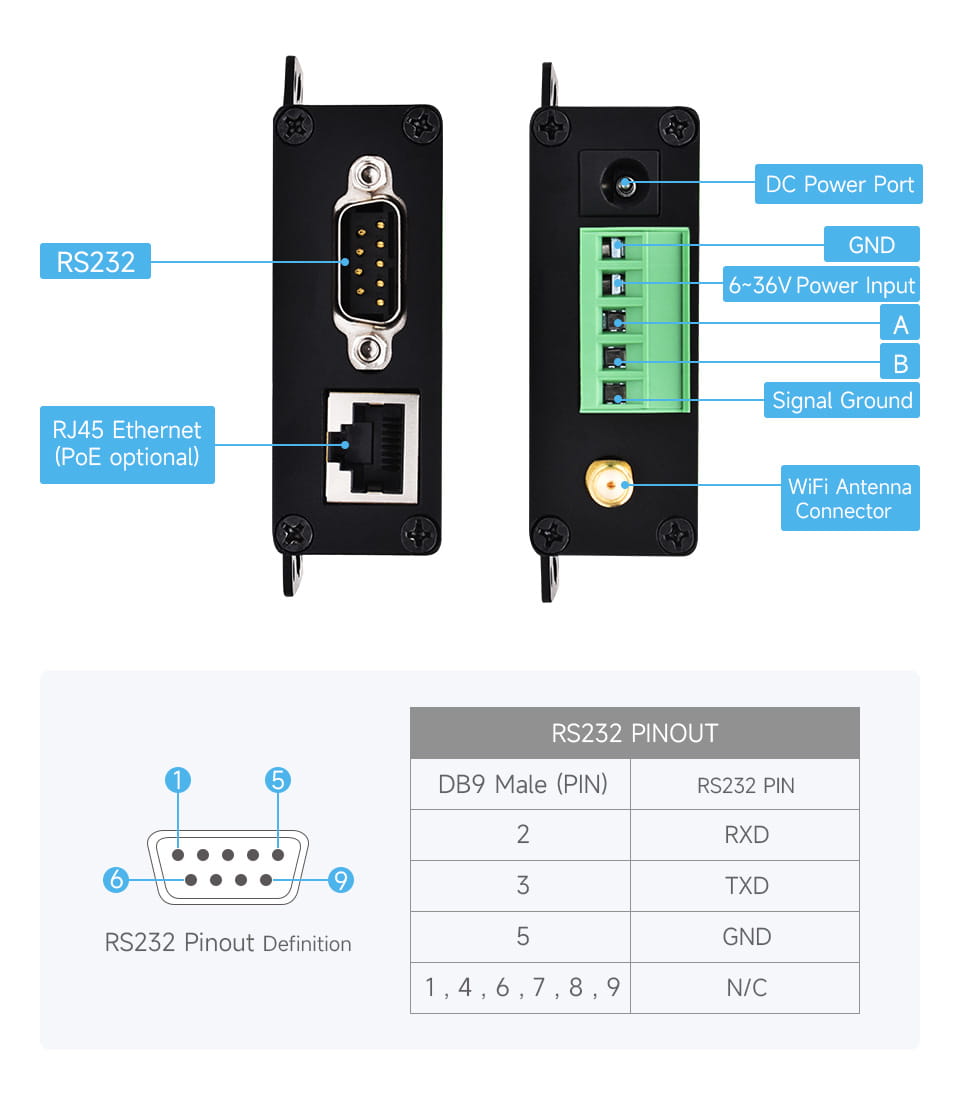

Pinout description
Technical specifications
-
Communication interfaces: RS232, RS485, Ethernet (RJ45), WiFi (802.11b/g/n).
-
Serial baud rate: 300~460800 bps.
-
Power supply: 6~36V DC or PoE (IEEE 802.3af).
-

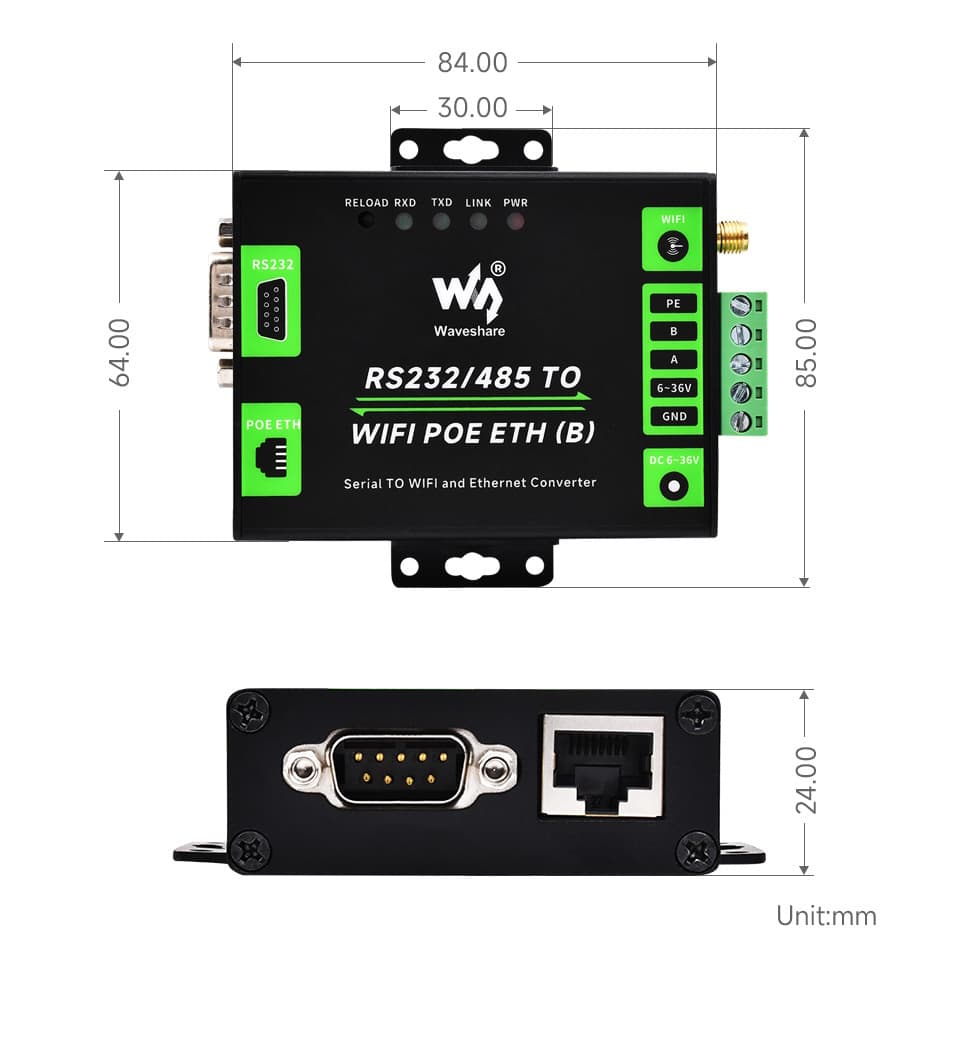

Dimensions: 84 × 64 × 24 mm.
-
Operating temperature: -40°C to 85°C.
-
Relative humidity: 5% to 95% (non-condensing).

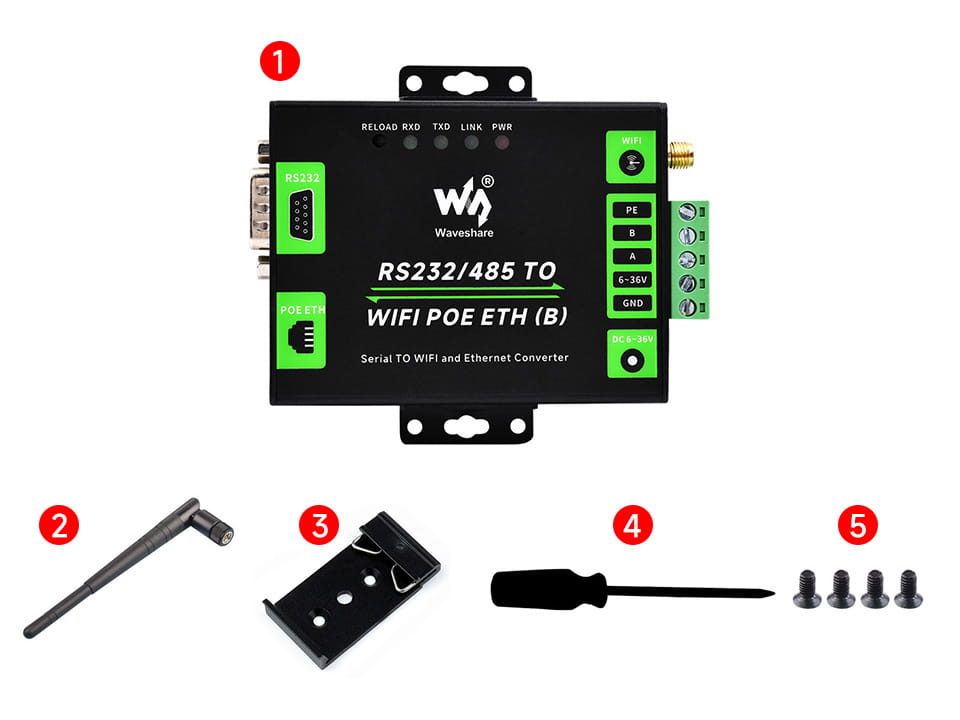

Kit contents
- RS232/485 TO WIFI POE ETH (B) x1
- 2.4G WiFi antenna x1
- DIN rail mount
- Screwdriver
- Screws
