Industrial USB to TTL converter with FT232 debugger for Raspberry Pi 5
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

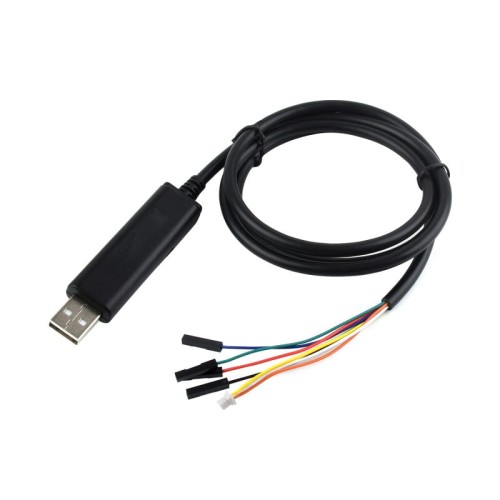

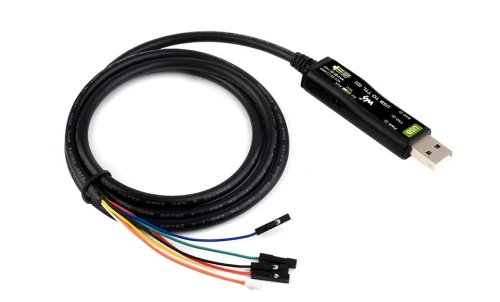

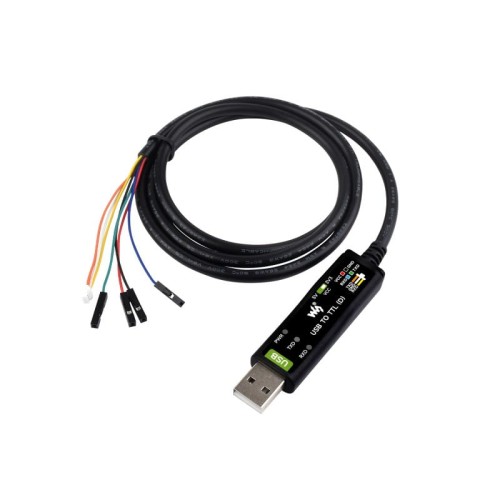

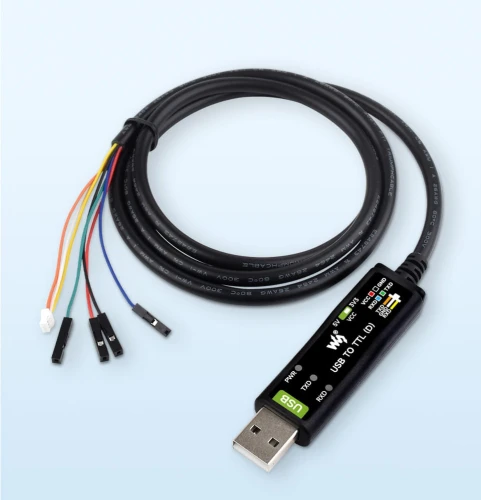

Industrial USB to TTL converter
TheUSB to TTL (D) converter is a device that enables the connection of a USB connector from a PC or other devices to devices with TTL logic level, such as microcontrollers or sensors for data communication. By using the original FT232RNL chip, the converter provides stable and fast communication, high reliability and improved compatibility. A built-in self-correcting fuse and ESD protection provide overvoltage and overcurrent protection, which improves shock resistance.
The device also has built-in IO protection to ensure stable communication and security. A 3.3V/5V TTL communication level converter circuit allows switching of the TTL communication level. Three LEDs on board enable monitoring of power and signal transmission status. The compact plastic housing with sandblasting process makes the device aesthetically pleasing and compact.
Specifications:
- Power supply: 5V
- UART level (TTL): 5V/3.3V
- Transmission speed: 300bps ~ 3Mbps
- Operating temperature: -40℃~80℃
- Supported systems: Windows 7/8/8.1/10/11, Mac, Linux, Android, WinCE
- Product category: Industrial USB to TTL cable
- Chip: Genuine FT232RNL
- Host port: USB
- Device port: UART
- USB port: Connector: USB-A, Protection: self-locking fuse, ESD protection
- UART port: Connector: separate 4-pin female connector + SH1.0 3-pin misconnection protection connector, Protection: IO protection diode
- Indicators: PWR (power supply), TXD (data transmission), RXD (data reception)
- Cable: Black, PVC sheath, total length 1m
Product features:
- Stable transmission: Original FT232RNL chip for better stability and compatibility.
- Circuit protection: Built-in self-correcting fuse and ESD protection protect against surges and overcurrents.
- TTL level switching: Built-in 3.3V/5V level converter circuit.
- LED indicators: Three LEDs to monitor power and transmission status.
- Multi-system compatibility: Support for Windows, Mac, Linux, Android and WinCE.
- Compact casing: Aesthetic and compact design due to the plastic casing.
- Support for Raspberry Pi 5: Can be directly connected to Raspberry Pi 5.

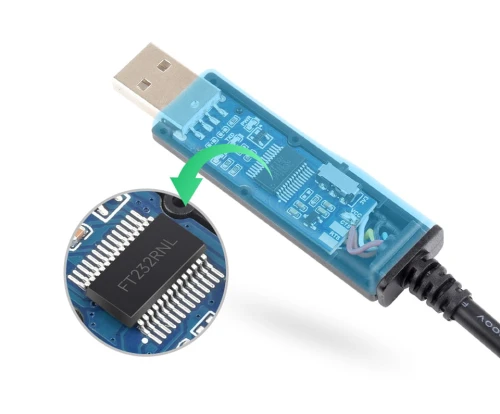

Original FT232RNL chip:

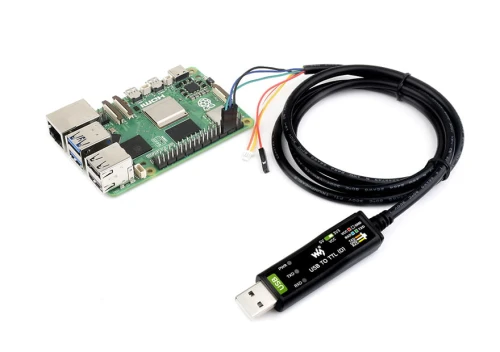

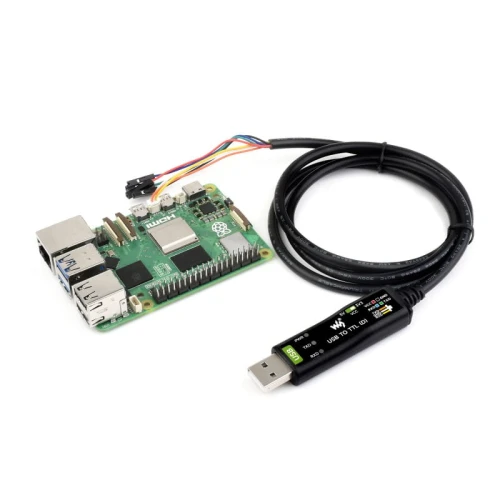

Works with Raspberry Pi:
Pinout definition:
Dimensions:
TheRaspberry Pi shown in the pictures is not part of the kit and must be purchased separately!
Kit includes:
- USB to TTL converter x1
Wiki: USB_TO_TTL_(D)
