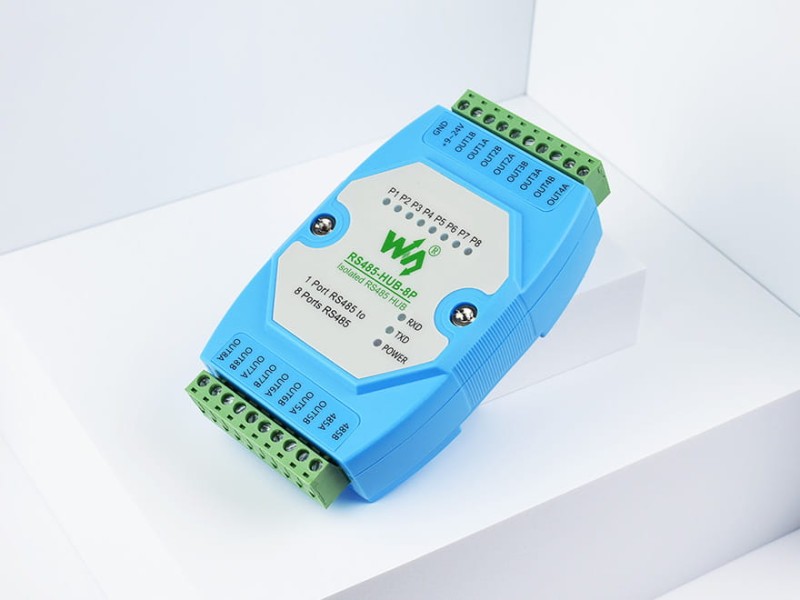

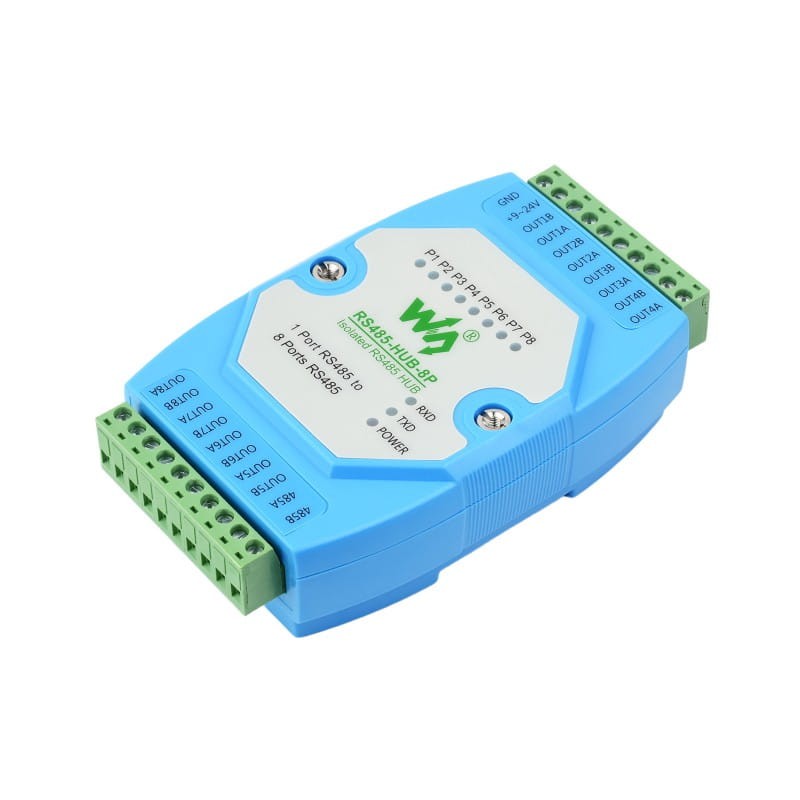

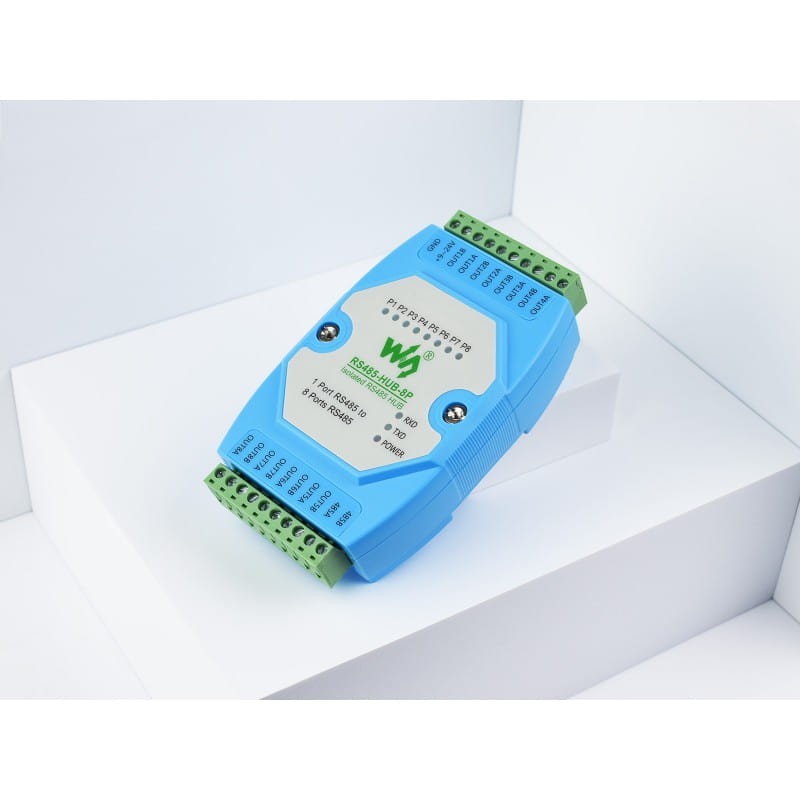

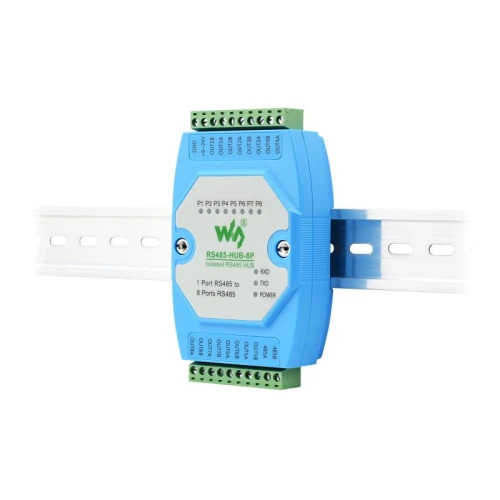

Isolated 8-Channel RS485 Hub Concentrator
product unavailable
Description

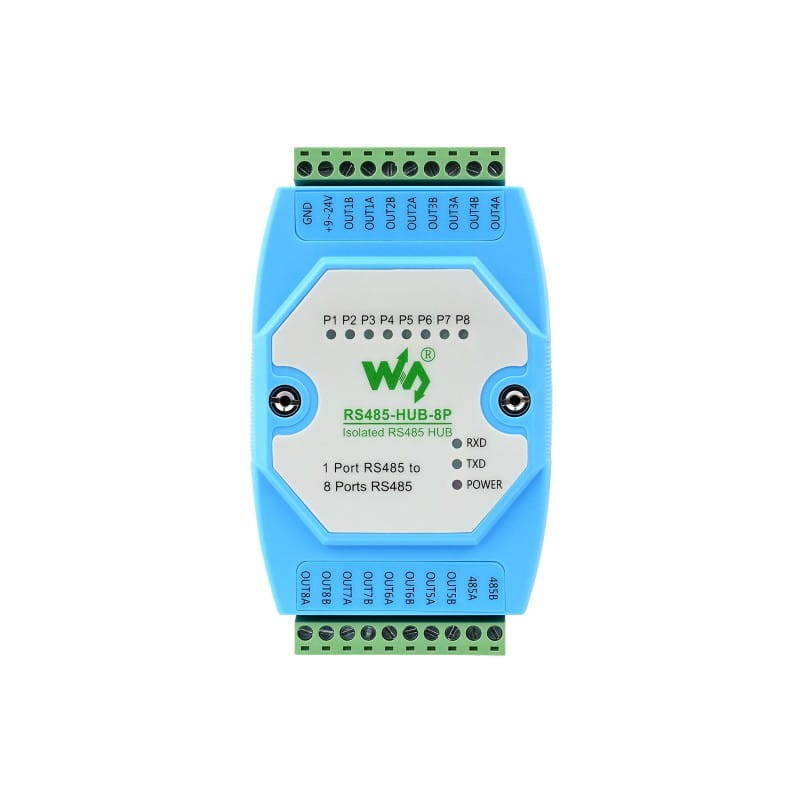

Isolated 8-Channel RS485 Hub Concentrator
The Isolated 8-Channel RS485 Hub Concentrator is a highly functional industrial-grade device that allows for the expansion of 8 RS485 channels through a single main RS485 channel. This concentrator is used for relay, expansion, and isolation functions of RS485 networks, enhancing the efficiency and data transmission security. With a screw terminal for power input, the concentrator is easy to install on a rail, making it a practical and cost-effective choice for various applications.
Specification:
- Interface Standard: RS485 compliant
- Physical Interface: RS485 screw terminals
- Transmission Speed: 300 ~ 460800bps (self-adaptive)
- Supported Nodes: Each RS485 port supports up to 32 nodes
- Communication Distance: 1200m (9600 bps)
- Operating Mode: RS485 2-wire (A, B), half-duplex transparent transmission
- Power Supply: DC 9 ~ 24V
- Operating Temperature: -45 ~ +85°C
- Operating Humidity: max 95% RH
- Transmission Medium: Normal parallel/twisted-pair computer cable
Product Features:
- Supports relay, expansion, and isolation functions of RS485 networks

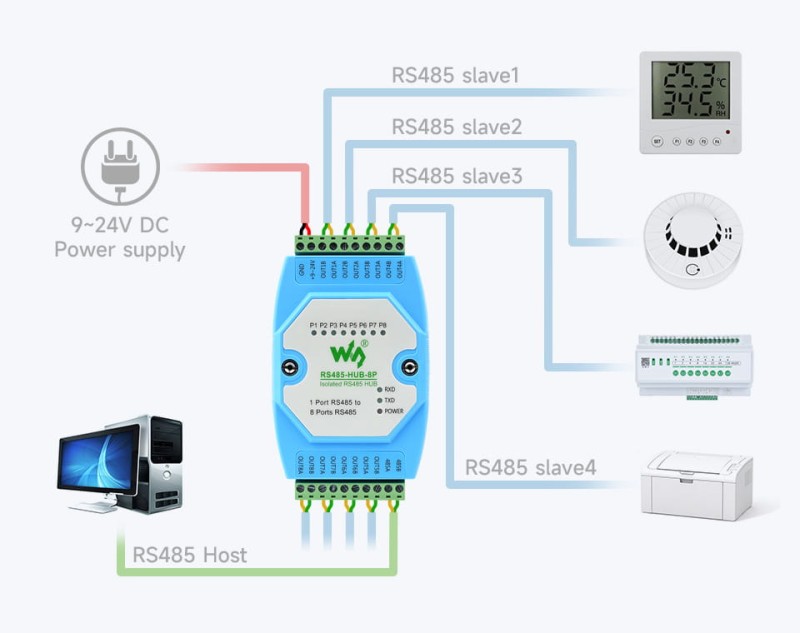

- Can connect to various RS485 slave devices such as RS485 sensors
- Effectively isolates connection disturbances between multiple RS485 networks
- Built-in circuit for photocoupler isolation, anti-static, lightning protection, and overvoltage protection
- Supports a wide range of communication speeds: 300 ~ 460800bps

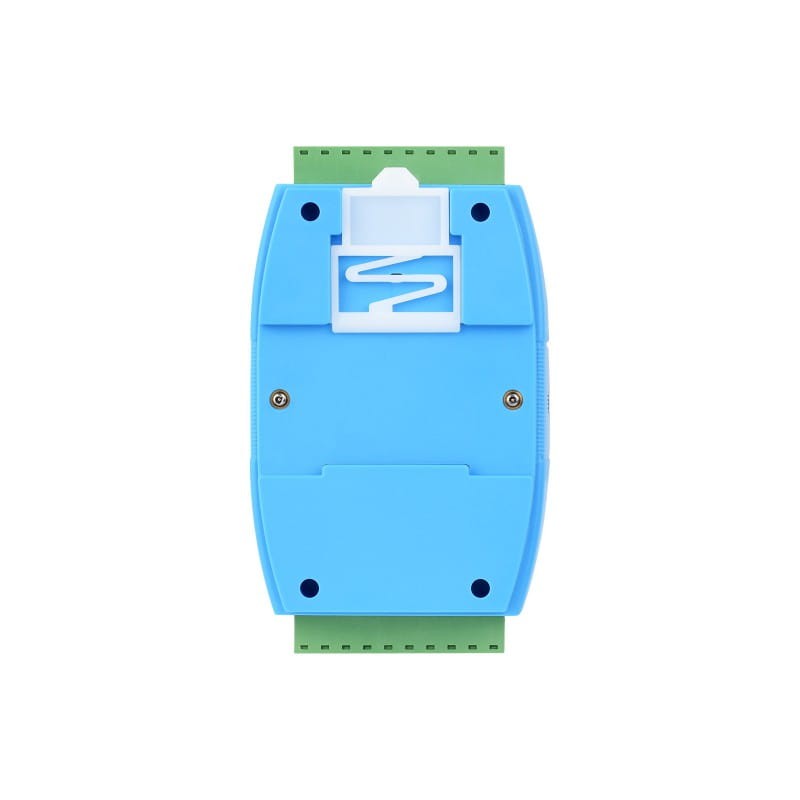

- Mounting on standard 35mm DIN rail
- Practical and cost-effective rail-mounted housing design

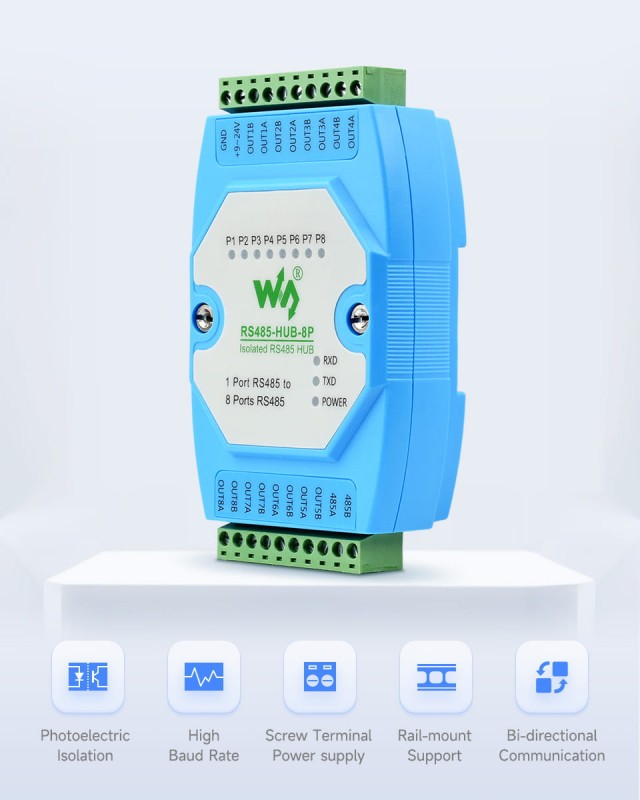

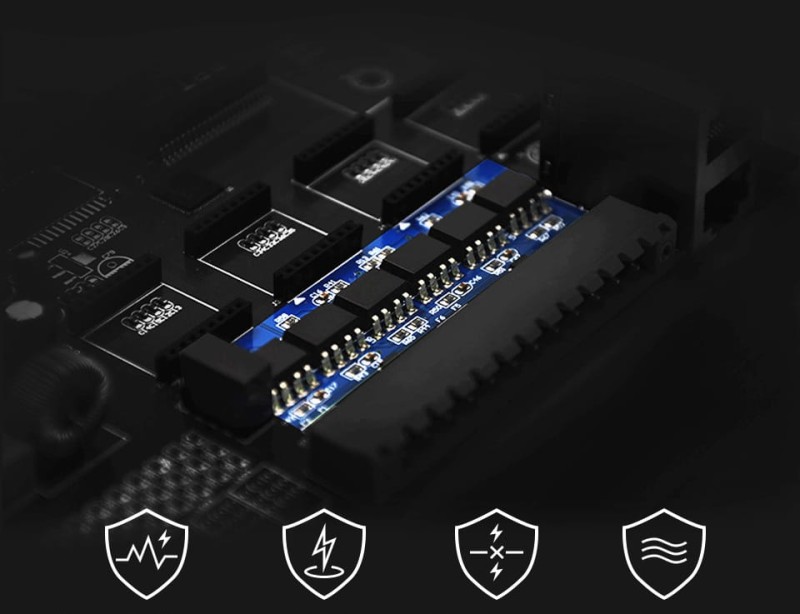

Industrial-grade Protection:

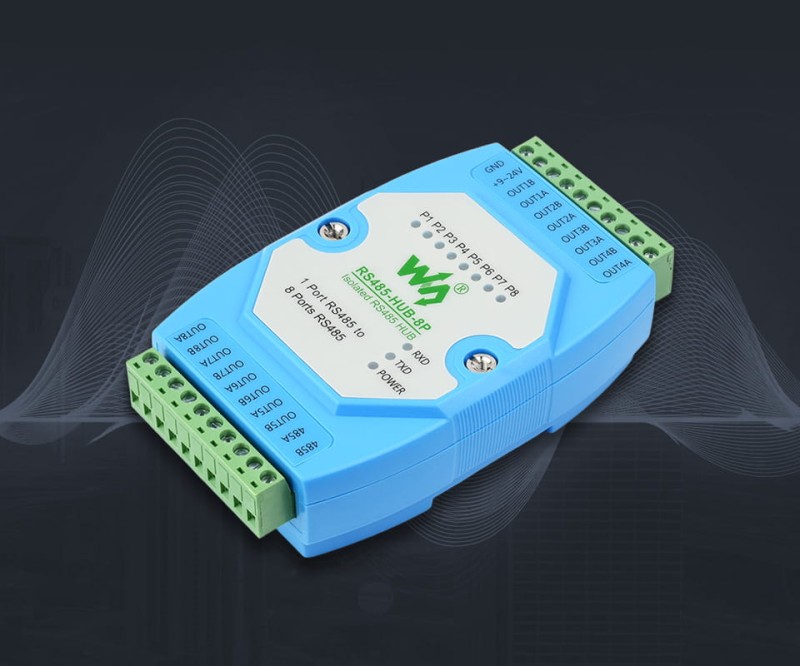

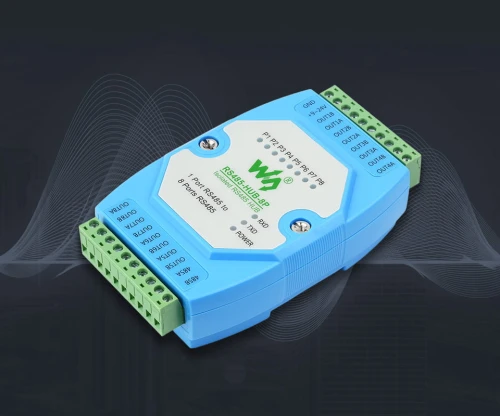

Wide Range of Transmission Speeds:

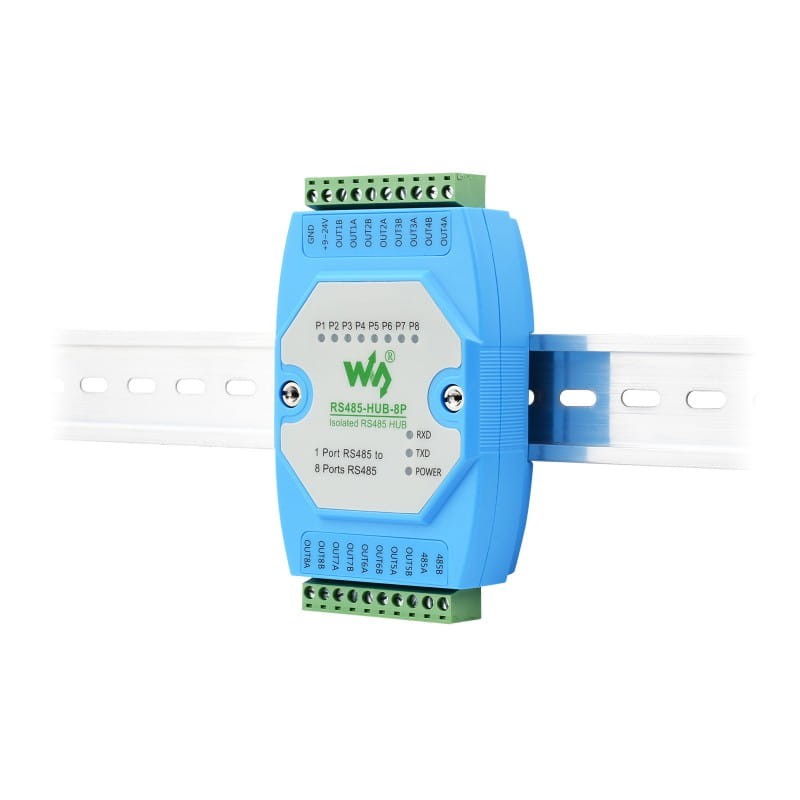

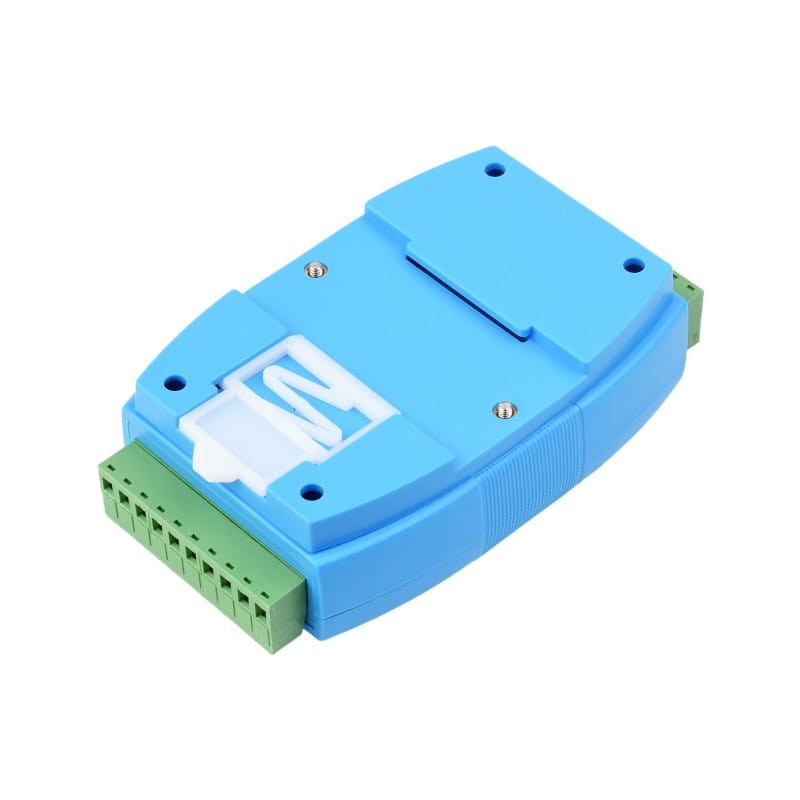

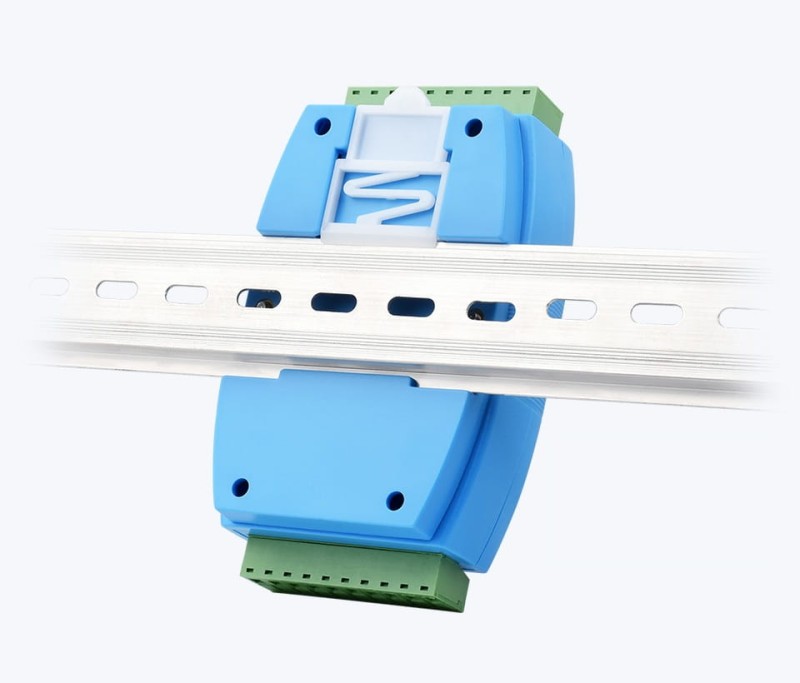

35mm DIN Rail Mounting:

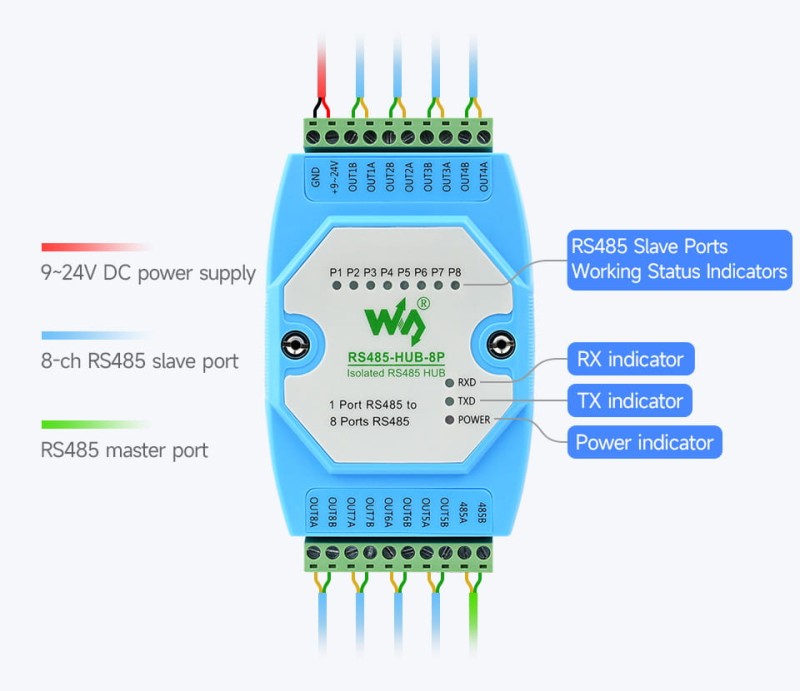

Eight RS485 Channels:

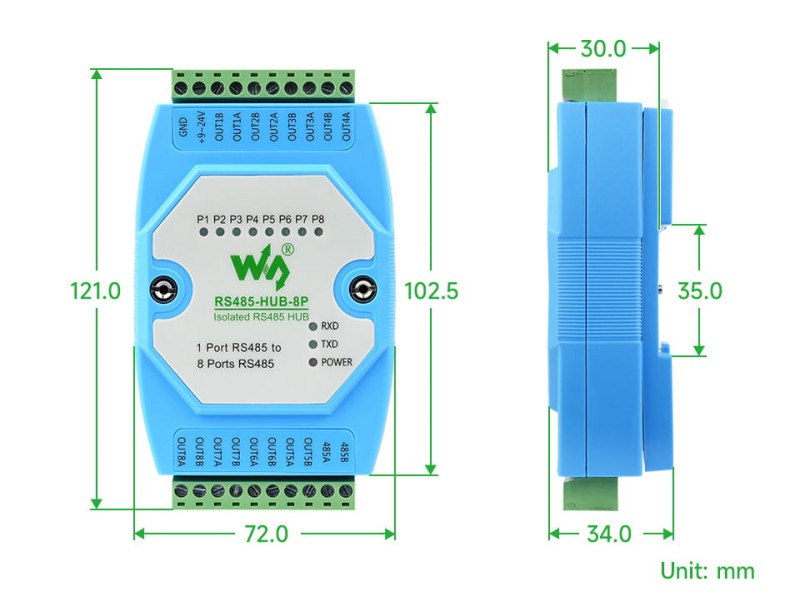

Dimensions:
Peripheral devices visible in the pictures are not included and need to be purchased separately.
Package Includes:
- Isolated 8-Channel RS485 Hub Concentrator x1
Wiki: RS485-HUB-8P
