Iteadmaple zgodne z Leaf Maple

Price: €6.94
incl. 23% TAX, excl. shipping costs
6.94
quantity szt.

product unavailable

Product code: IM120411012

Description

Description

Overview

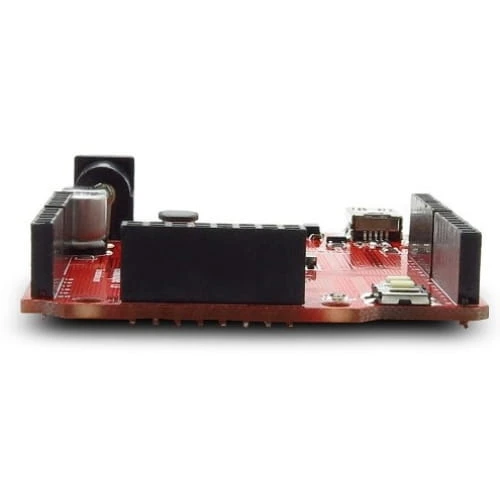

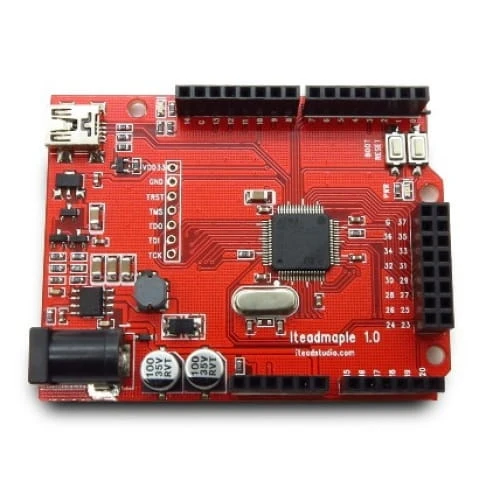

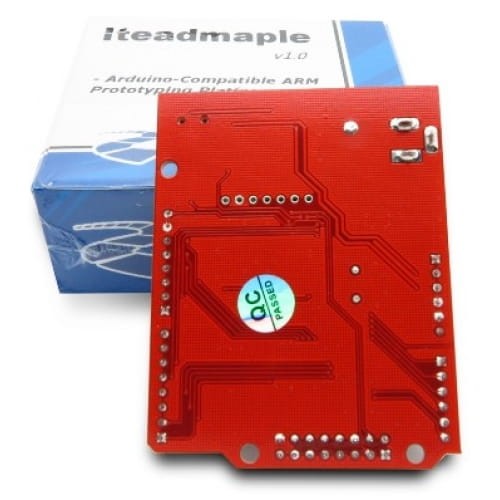

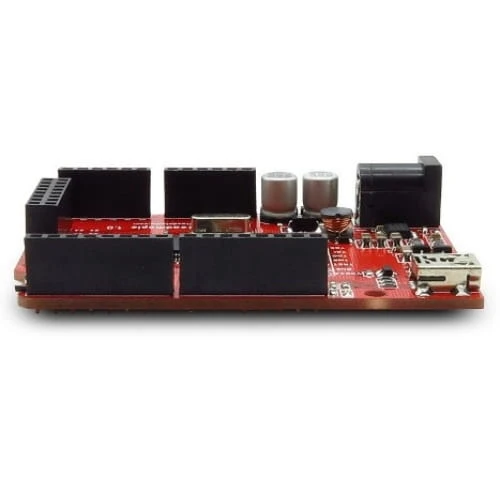

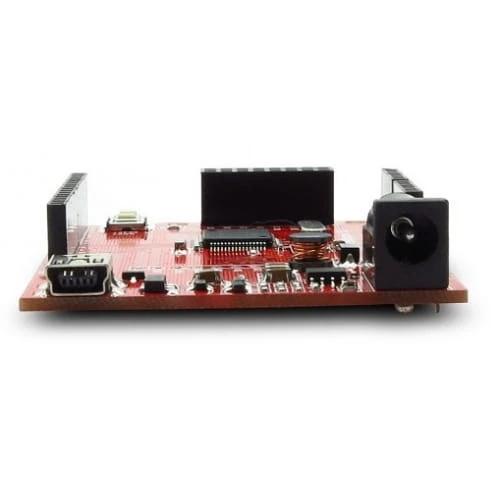

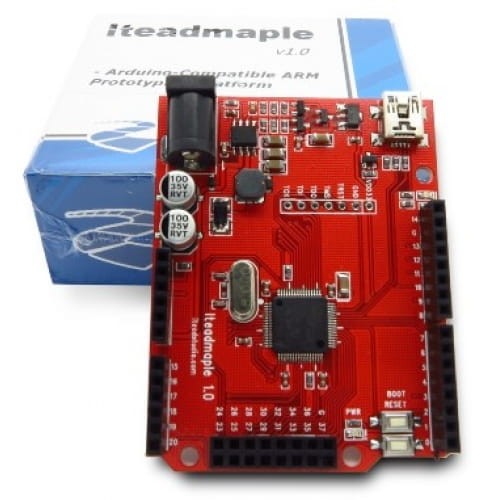

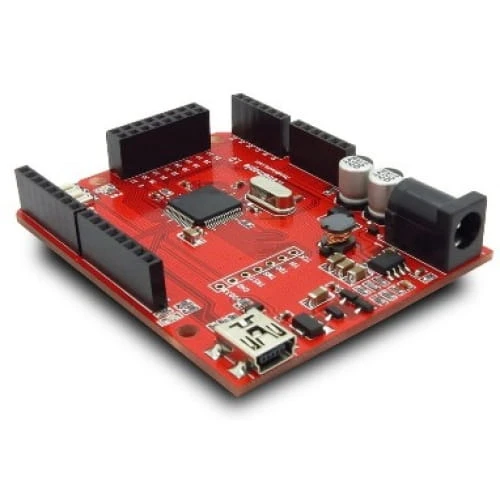

Iteadmaple is a microcontroller board based on Leaf Maple. The Iteadmaple can achieve the maximum 72 MHz, it has 39 digital input/output pins, 16 analog inputs, native full speed USB, 3 USARTs (hardware serial ports), integrated SPI/I2C support, with power jack, and reset button. Iteadmaple is programmable over USB via a provided DFU bootloader, no extra hardware required! Users can also program the onboard program flash via external X-link/X-linkEx JTAG interface. Iteadmaple offers security support for read/write protected addresses, as well as User and Handler processor modes.Iteadmaple can be powered by USB or external power supply.

Feature

  • 72MHz ARM Cortex M3 core
  • 20KB SRAM and 128KB Flash
  • 64 channel nested vector interrupt handle
  • 7 channels of Direct Memory Access(DMA)
  • Wide range external input from and USB supply adaptive
  • X-link/X-linkEx full compatible
  • Pins map full compatible for Arduino shield



Specification

Microcontroller STM32F103RB
Max Frequency 72MHz
RAM Capacity 16K
FLASH Capacity 128K
External Resources No
Power Supply External 12V
External 24V
External 7V
External 9V
USB 5V
I/O Operation Level 3.3V
Board Size 69mm x 54mm
Model IM120411012
Version 1.1
Weight 40.00g
Accessories No




Schematic

 SCH_IM120411012_iteadmaple.pdf
