LCD 1.3"240x240 circular rotary screen DWIN HMI DMG24240C013_13WN(Commercial Grade)

Features: DMG24240C013_13WN

• Based on the T5L0, running on a DGUS II, commercial grade system

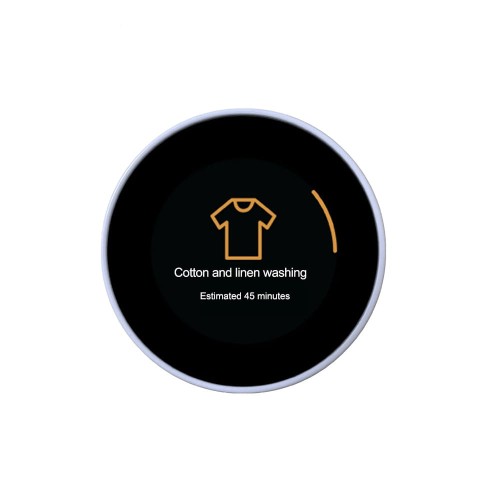

• 1.28" circular rotating screen with encoder housing
• Resolution 240*240 pixels, 262K colours, IPS-TFT-LCD, wide viewing angle
• Active area (A.A.): Diameter=32.4mm
• >20000 hours (time after which brightness drops to 50% with continuous operation at maximum brightness)
• Brightness 400nit

Features:

• T5L0 based, operating on DGUS II, commercial grade system
• 1.28" circular rotating screen with encoder housing
• Resolution 240*240 pixels, 262K colours, IPS-TFT-LCD, wide viewing angle
• Active area (A.A.): Diameter=32.4mm
• >20000 hours (time after which brightness drops to 50% with continuous operation at maximum brightness)
• Brightness 400nit

Display

• Colour: 18-bit 6R6G6B
• LCD type: IPS, TFT LCD
• Viewing angle: Wide viewing angle, 85°/85°/85°/85° (L/P/G/D)
• Display area (A.A.): Diameter=32.4mm
• Resolution: 240×240 pixels (0°/90°/180°/270°)
• Backlighting: LED
• Brightness: 400nit

Peripherals

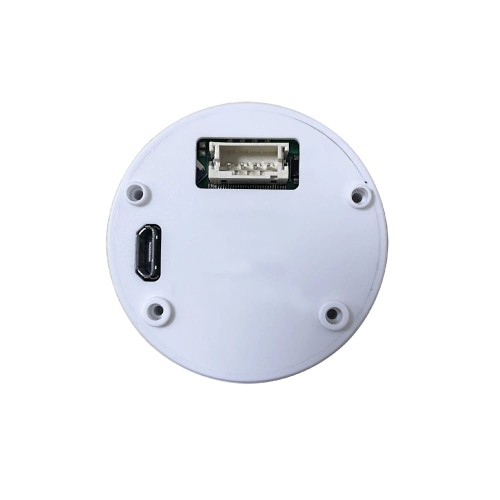

• DMG24240C013_13WN: Micro USB interface, SD card interface

Mechanical characteristics

• Torque: only suitable for C.C, device: 300±100gf.cm
• Number and position of abutments: Only suitable for C.C, device: 24 abutments (step angle: 15°±3°)
• Lifetime: Switch: 30000 times, Encoder: 30000 times
• Surface hardness: 6H
• Switch return force: 450g±200g

Voltage and current

• Digital supply voltage: 4.5~5.5V, typical value 5V
• Operating current: 95mA @ 5V

Reliability test

• Operating temperature: -20~70℃
• Storage temperature: -30~80℃
• Operating humidity: 10%~90%RH

Interface

• LCM interface: FPC12_0.5mm, 4SPI
• Baud rate: 3150~3225600bps
• Output voltage: Output 1, Iout = -4mA; 3.0~3.3V; Output 0, Iout = 4mA; 0~0.3V
• Input voltage (RXD): Input 1; 2.4~5.0V; Input 0; 0~0.5V
• Flash memory: Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash + 512Mbytes NAND Flash
• User interface: UART2: TTL/CMOS;
• Speaker: built-in speaker. Power: 2W
• SD card interface: FAT32. Files downloaded via the SD interface can be displayed in the statistics. Download speed: 4Mbps
• PGT05 interface: in the event of a product failure, PGT05 can be used to update the DGUS kernel and restore the product to its normal state
