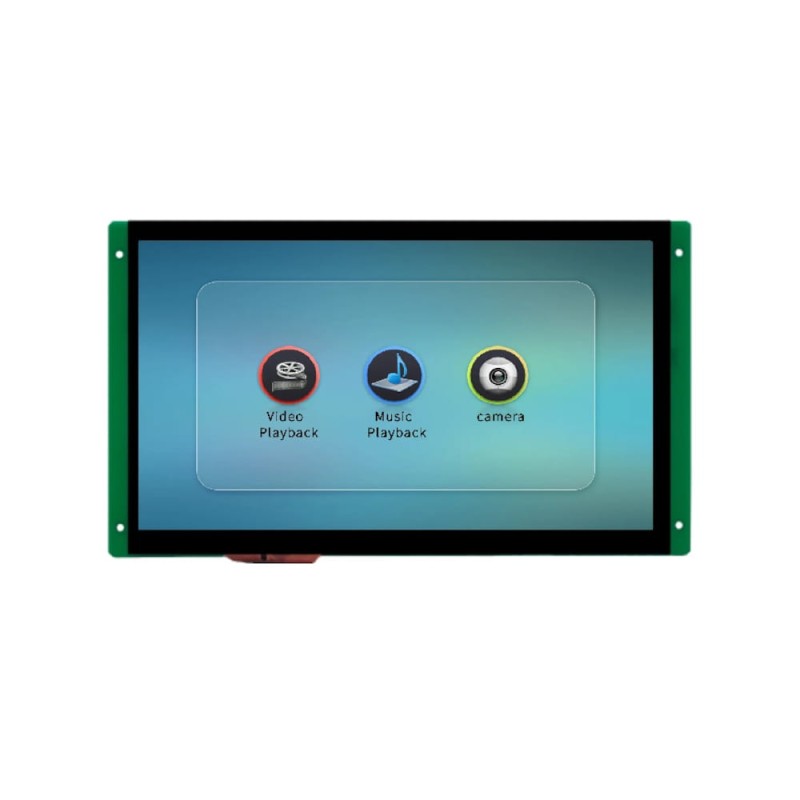

LCD 10" IPS display with video playback AVI FLV MOV MP4 DWIN HMI DMG10600T101_41W

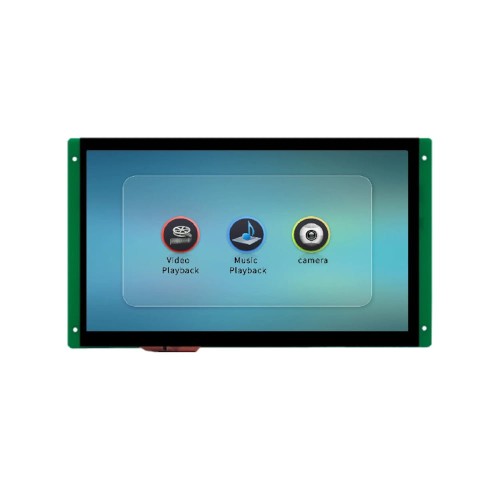

DMG10600T101_41WTC Features:

• Based on T5L ASIC chip, 10" IPS, 1024x600, 16.7M colours.
• Support for video playback, music playback, USB camera screen.
• Provides SD video and SD T5L. SD video: reads video and audio files; SD T5L: download and user configuration.
• Support for audio file formats: MP3, AAC, WAV and other formats.
• Support for video file formats: AVI, FLV, MOV, MP4 and other formats.
• Permissible operating temperature: -20~70℃

We use a dedicated DGUS TOOL application to design the user interface and define its operating principles. It allows the importing of ready-made graphics, the creation of buttons, charts and data entry fields. The compiled files are transferred to an SD card and from there copied to the display memory. From the microcontroller's point of view, operation consists of sending and receiving predefined data frames via the UART interface.

Display

• Colour: 16.7M (16777216) colours
• LCD type: IPS-TFT-LCD
• Viewing angle: Wide viewing angle, 85°/85°/85°/85° (L/P/G/D)
• Display area (A.A): 222.72mm (W) × 125.28mm (H)
• Resolution: 1024*600
• Backlighting: LED
• Brightness: DMG10600T0101_41WTC: 200nit

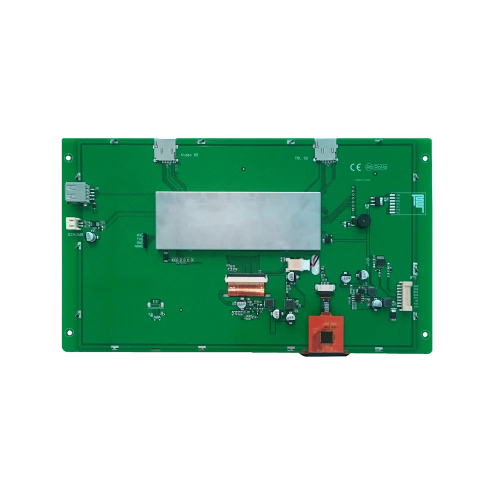

Interface

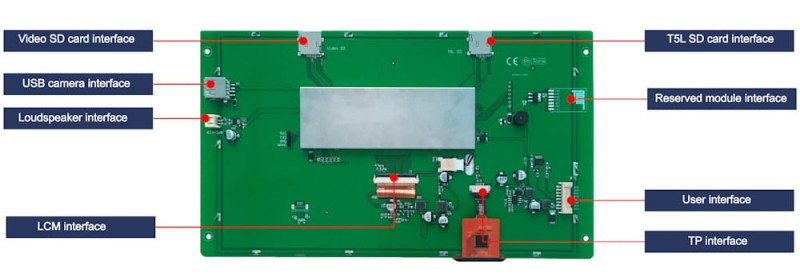

• User interface: 8Pin_2.0mm socket with locking device
• Baud rate: 3150~3225600bps, typical value is 115200bps
• UART mode: mode is determined by jumper: ON = 8N1, 3.3V & 5V TTL/CMOS; OFF = 8N1, RS232
• SD card interface: YES (SDHC/FAT32 format). SD video: reads video and audio files; SD T5L: download and user configuration
• USB interface: USB camera
• Speaker: 2pin_2.0mm

Voltage and current

• Supply voltage: 7~36V
• Operating current: VCC = +12V, backlight on: 350mA; VCC = +12V, backlight off: 110mA

Memory

• Space for fonts: 4-12Mbytes. Single font size of 256Kbytes, stores fonts, icon libraries and other binary files.
• Image storage (.ICL): 12-4Mbytes. JPEG format (number of images depends on JPEG size, size of a single JPEG image file should not exceed 760 Kbytes)
• RAM storage: Variable storage space, 128Kbytes. Data is not saved when power is turned off
• Nor Flash storage: User database, 512Kbytes. Data is saved when power is turned off

Dimensions

• Dimensions: 257.8(W) ×148.1(H) × 16.8(D) mm
• Net weight: 550g

UI and peripherals

• Peripherals: Support for capacitive touchscreen, speaker, music playback, USB camera, video playback, buzzer
• Support for audio file formats: MP3, AAC, WAV and other formats
• Support for video file formats: AVI, FLV, MOV, MP4 and other formats
