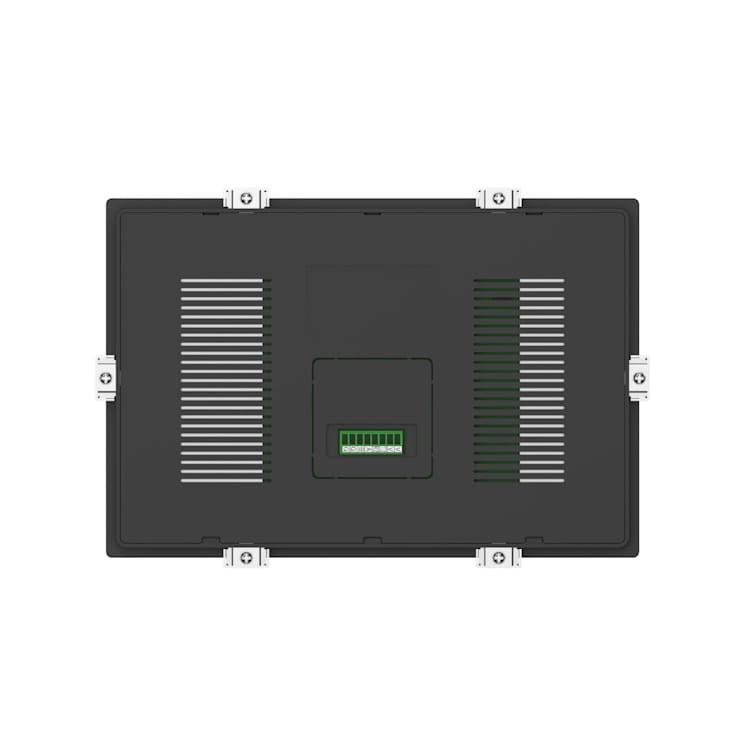

LCD 10.1 " 1024*600 resistive touch panel DWIN HMI DMG10600C101_15WTR(Commercial Grade)
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

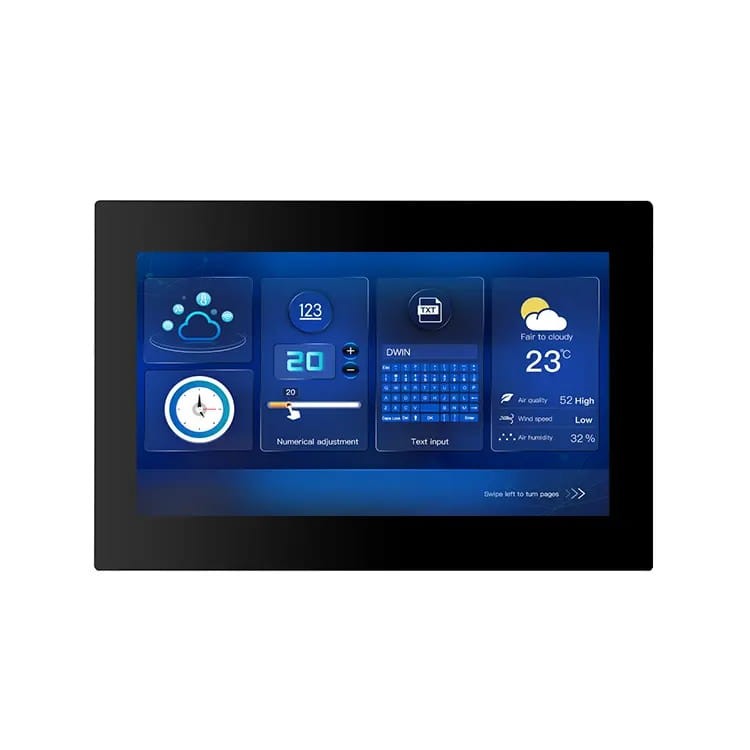

Universal HMI module with 10.1" IPS LCD display and resistive touch panel.
Features DMG10600C101_15WTR:
- T5L2-based, with DGUS II system
- 10.1", 1024*600 pixel resolution, 16.7M colours, IPS-TFT-LCD
- Resistive touch
- On-board RTC clock and buzzer

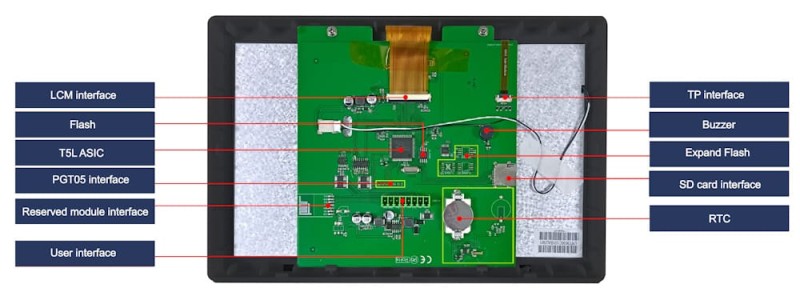

Operating principle of DWIN HMI displays
We use a dedicated DGUS TOOL application to design the user interface and define its operating principles. It allows the importing of ready-made graphics, the creation of buttons, diagrams and data input fields. The compiled files are transferred to an SD card and from there copied to the display memory. From the microcontroller's point of view, operation consists of sending and receiving predefined data frames via the UART interface.
Specyfikacja DMG10600C101_15WTR
Interfaces:
- Baudrate: 3150~3225600bps, Type. 115200bps
- Operating mode:
UART2: RS232
UART4: RS485 - User connectors:
- 8Pin_2.0mm - Flash memory: 16MBytes NOR Flash, for graphics, fonts, audio files. Number of records over: 100,000
- SD card interface: FAT32, download speed: 4Mb/s
Permissible operating environment:
- Operating temperature: -20℃ to 70℃ (12V at 60% RH)
- Storage temperature: -30℃ to 80℃
- Operating humidity: 10% to 90%RH, typical value 60% RH
Display:
- Number of colours: 24-bit 8R8G8B colours
- LCD Type IPS-TFT-LCD
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Display area 223.2mm (W)×125.8mm (H)
- Resolution 1024×600
- LED backlighting
- Brightness: 250nit
Touch panel:
- Type: RTP, resistive
- Structure: ITO film + ITO glass
- Touch mode: supports touch and swipe
- Surface hardness: 3H
- Light transmission: greater than 80%
Power supply:
- Supply voltage: 12~36V
- Current consumption with backlight on: VCC = +12V, 250mA
- Current consumption with backlight off: VCC = +12V, 90mA
Display operation
Kit includes:
- LCD 10.1 " 1024*600 resistive touch panel DWIN HMI DMG10600C101_15WTR
