LCD 15.6 " 2K HD 1920*1080 capacitive touch panel DWIN HMI DMG19108C156_05W（Commerical Grade)
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

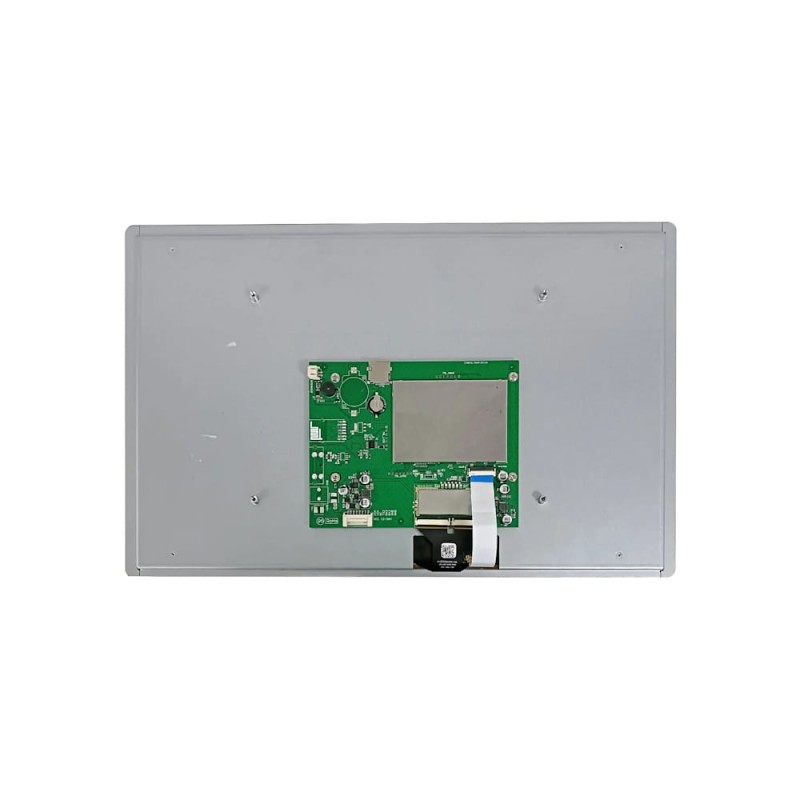

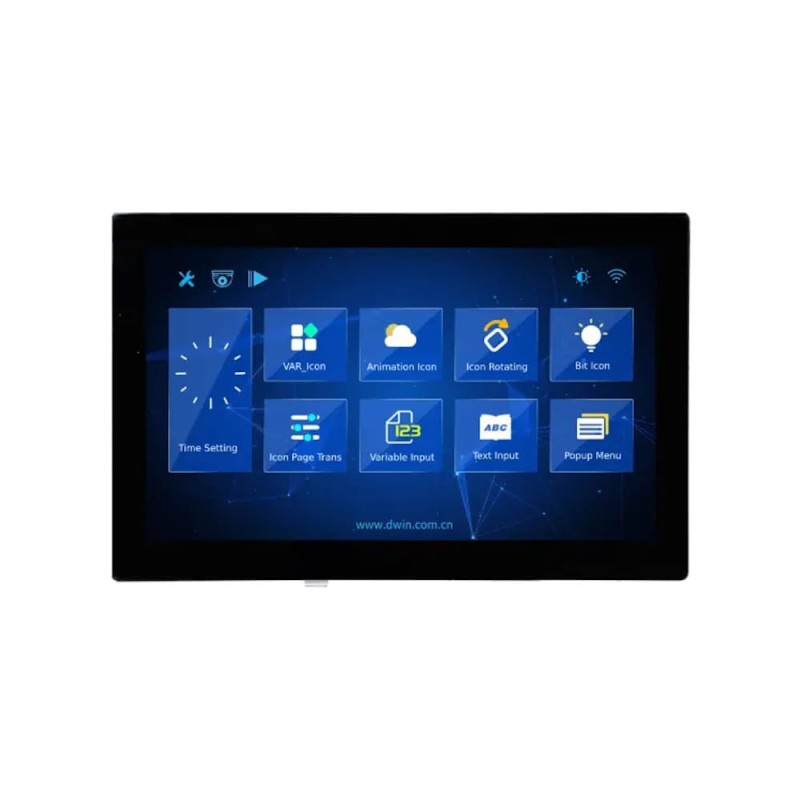

Universal HMI module with 15.6" IPS LCD display and capacitive touch panel.
Features DMG19108C156_05WTC:
- Based on T5L2, with DGUS II system
- 15.6", 1920*1080 pixel resolution, 16.7M colours, IPS-TFT-LCD, 2K HD
- Capacitive touch
- On-board RTC clock and buzzer
Operating principle of DWIN HMI displays
We use a dedicated DGUS TOOL application to design the user interface and define its operating principles. It allows the importing of pre-designed graphics, the creation of buttons, diagrams and data input fields. The compiled files are transferred to an SD card and from there copied to the display memory. From the microcontroller's point of view, operation consists of sending and receiving predefined data frames via the UART interface.
Specyfikacja DMG19108C156_05WTC

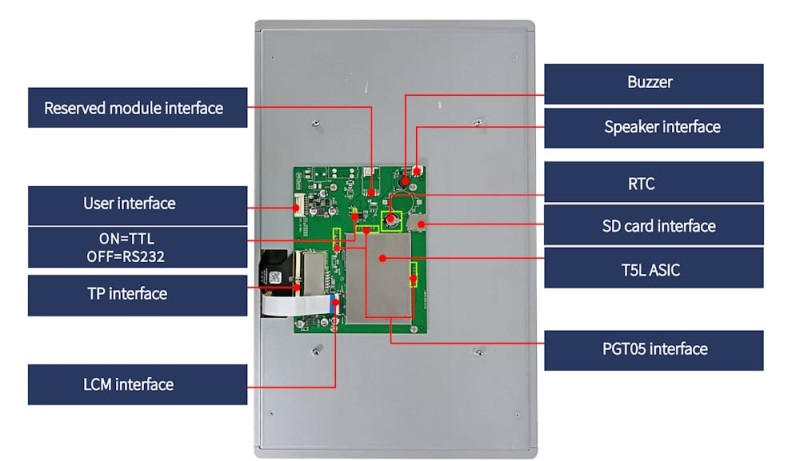

Interface:
- Baudrate: 3150~3225600bps, Type. 115200bps
- Operating mode:
UART2: N81 UART TTL ON=TTL/CMOS; OFF=RS232 - User connectors:
- 8Pin_2.0mm - Flash memory: 32MBytes NOR Flash, for graphics, fonts, audio files. Number of records over: 100,000
- SD card interface: FAT32, download speed: 4Mb/s
Display:
- Number of colours: 16.7M colours
- LCD Type IPS-TFT-LCD
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Display area 342.2mm (W)×191.6mm (H)
- Resolution 1920×1080
- LED backlighting
- Brightness: 250nit
Touch panel:
- Type: CTP (Capacitive touch panel)
- Structure: G+FF
- Touch Mode: Supports both touch and swipe
- Surface hardness: 6H
- Light transmission: greater than 90%
Power supply:
- Supply voltage: 12~36V
- Current consumption with backlight on: VCC = +12V, 580mA
- Current consumption with backlight off: VCC = +12V, 170mA
Display operation
Kit includes:
- LCD 15.6 " 2K HD 1920*1080 capacitive touch panel DWIN HMI DMG19108C156_05W（Commerical Grade)
