LCD 5.0" 800x480 resistive touch panel enclosure RS485 loudspeaker DWIN HMI
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

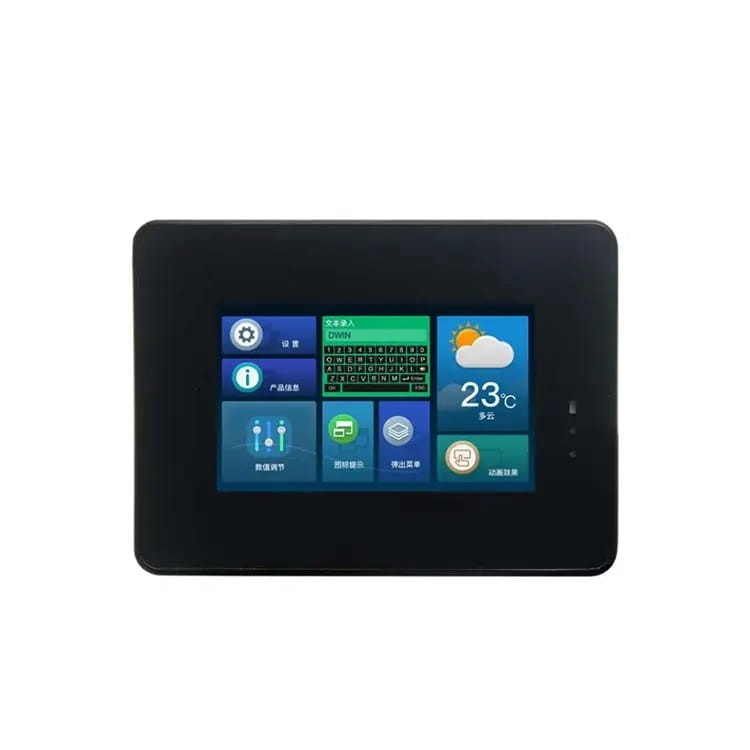

Universal HMI module with 5.0" display and resistive touch panel, housing, loudspeaker and RS485.
Features DMG80480T050_A5WTR:

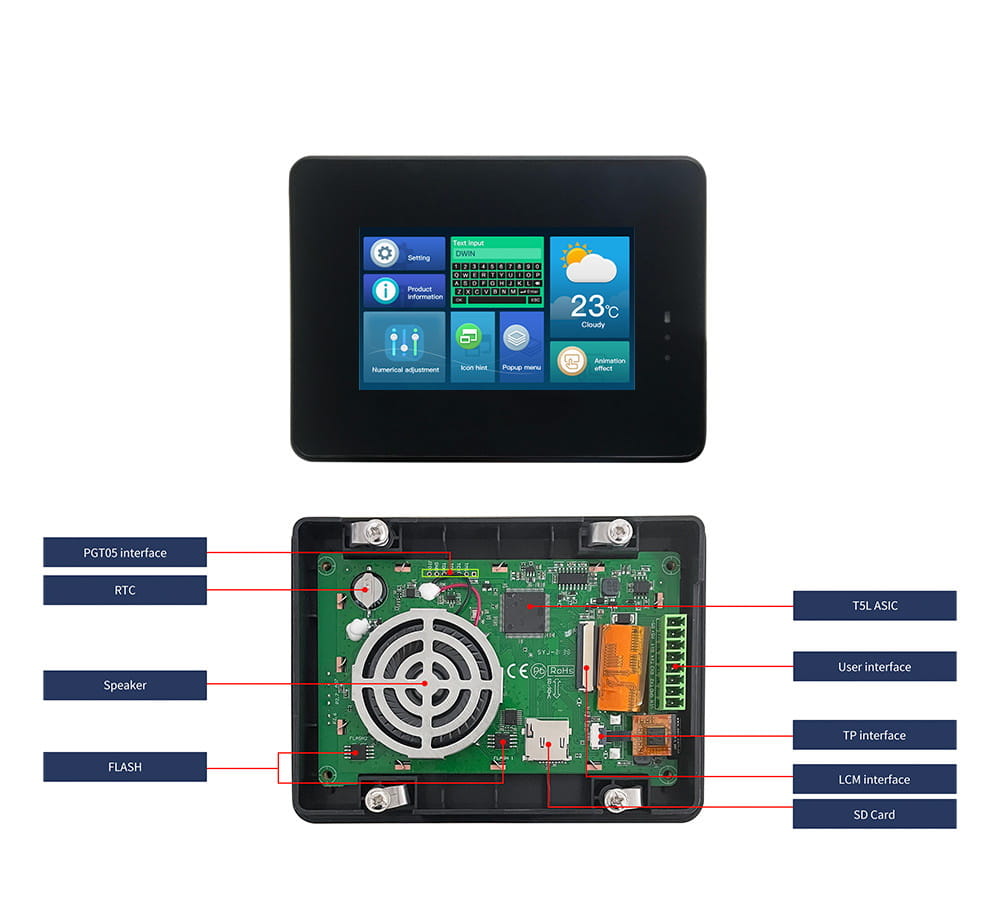

- Based on T5L ASIC, with DGUS II system
- 5.0 inch, 800x480 pixel resolution, 16.7M Colour, 24bit
- IPS display with high viewing angles: 85/85/85 (L/R/U/D)
- Resistive touch
- RS232&RS485 interfaces on 8Pin 3.81mm connector
- Intelligent HMI display for industrial applications
- Modbus supported, communication with PLCs possible
DWIN HMI principle
The design of the appearance of the user interface and its operating principle is carried out using the dedicated DGUS TOOL application. We have the option of loading ready-made graphics, creating buttons, charts, input fields, etc. Then, the compiled files are transferred to an SD memory card, from which they are copied to the display's memory.
Operation from the microcontroller side is reduced to sending and receiving predetermined data frames via the UART interface.
DMG80480T050_A5WTR
Interface:
- Baudrate: 3150~3225600bps, Type. 115200bps
- Output Voltage:
Output 1, Iout =-1mA 3.0~3.3
Output 0, Iout = 1mA 0.0~0.3 - Input voltage（RXD):
Input 1， Iin = 1mA；2.4-5.0V,
Input 0， Iin = -1mA；0~0.5V - Operation mode:
UART2: N81,RS232
UART4: N81,RS232

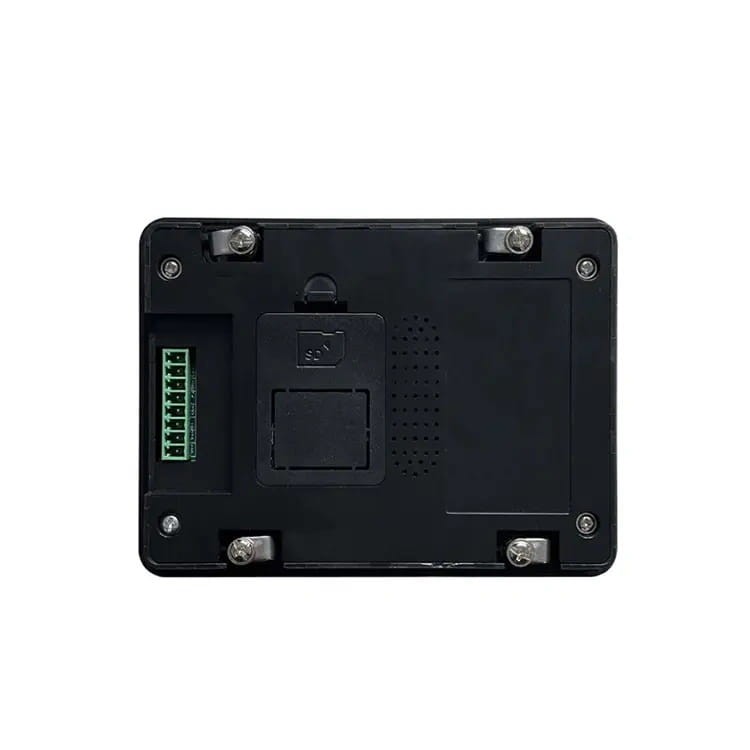

UART5: RS485 - User connectors:
- 8 Pin 3.81mm , speed: 12KByte/s
- Goldpin strip solder space - Flash memory: 16MBytes NOR Flash, for graphics, fonts, audio files. Number of writes over: 100,000
- Speaker: 2W power
- SD card interface: FAT32, download speed: 4Mbps
- PGT05 interface: for DGUS kernel update
- Brightness sensor
- LED
Display:
- Number of colours: 16.7M（16777216）
- LCD Type IPS
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Display area 93.20mm (W) ×55.76mm (H)
- 800x480 resolution
- LED backlighting
- Brightness: 200nit
Touch panel:
- Type: RTP (resistive touch panel)
- Structure: ITO film + ITO glass
- Touch mode: supports touch and swipe
- Surface hardness: 3H
- Light transmission: greater than 80%
Power supply:
- Power supply voltage: 6~36V DC
- Current consumption with backlight on: VCC = +12V, 100mA
- Current consumption with backlight off: VCC = +12V, 40mA
Kit includes:
- DMG80480T050_A5WTR LCD 5.0" 800x480 resistive touch panel DWIN HMI
