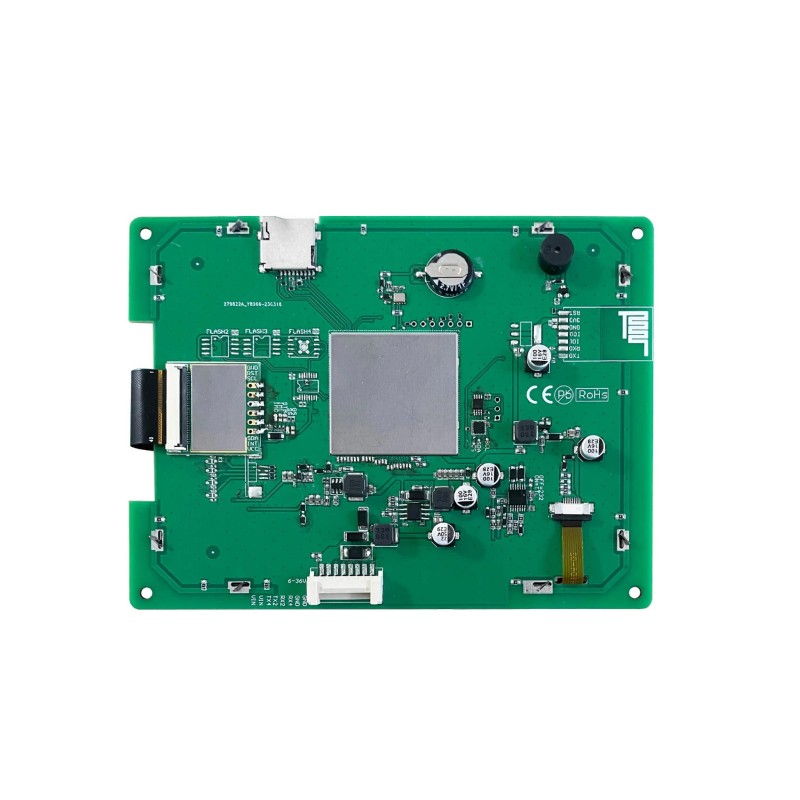

LCD 5.7" 640*480 capacitive touch panel DWIN HMI DMG64480T057_01W (Industrial Grade)
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

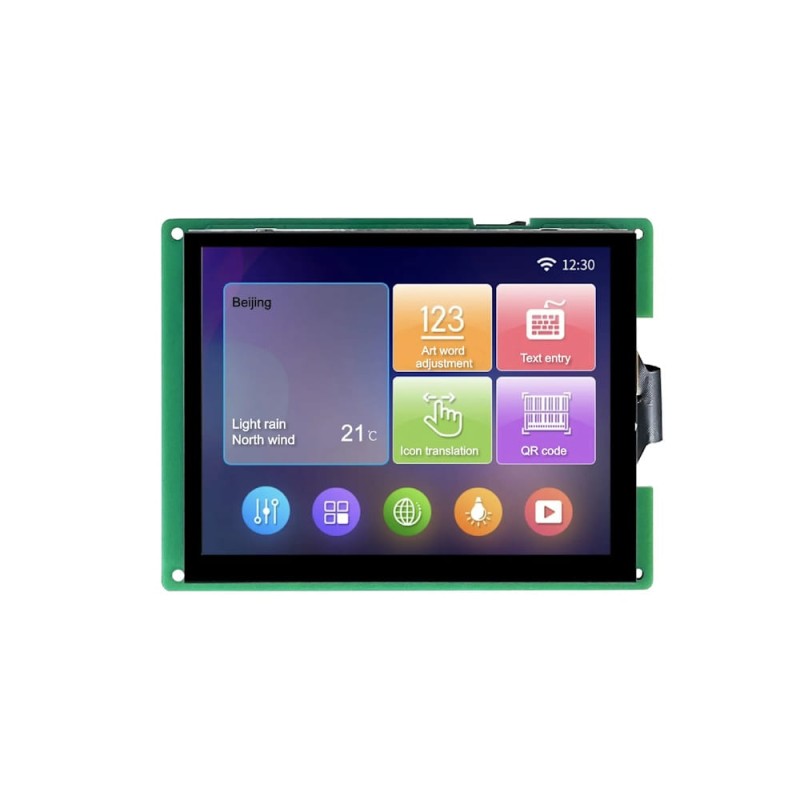

Universal HMI module with 5.7" IPS LCD display and capacitive touch panel.
Features DMG64480T057_01WTC:
- Based on T5L0 chip, operating in DGUS II system.
- 5.7" screen, 640*480 pixel resolution, 262K colours, IPS-TFT-LCD, wide viewing angle.
- Capacitive touchscreen.
- Permissible operating temperature: -20℃~70℃ (12V @ 60% RH).
- Display with conformal coating to protect its electronic components from external factors such as moisture, dust, chemicals or extreme temperatures

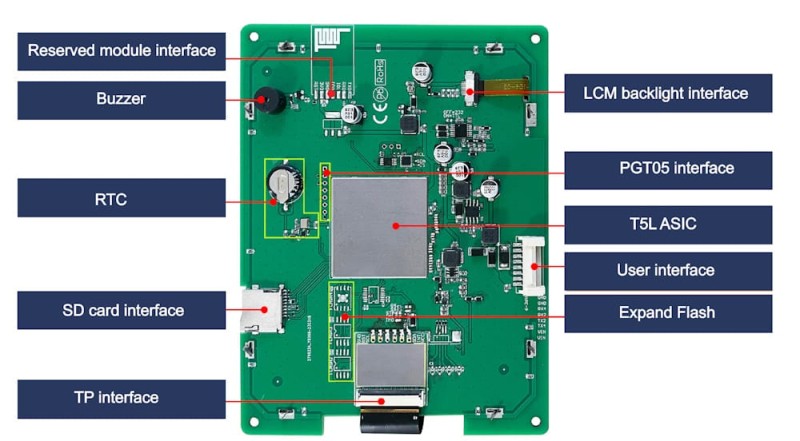

Operating principle of DWIN HMI displays
We use a dedicated DGUS TOOL application to design the user interface and define its operating principles. It allows the importing of ready-made graphics, the creation of buttons, diagrams and data input fields. The compiled files are transferred to an SD card and from there copied to the display memory. From the microcontroller's point of view, operation consists of sending and receiving predefined data frames via the UART interface.
Specyfikacja DMG64480T057_01WTC
Interface:
- Baudrate: 3150~3225600bps, Type. 115200bps
- Operating mode:
UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232 - User connectors:
- 8Pin_2.0mm - Flash memory: 16MBytes NOR Flash, for graphics, fonts, audio files. Number of records over: 100,000
- SD card interface: FAT32, download speed: 4Mb/s
Display:
- Number of colours: 18-bit 6R6G6B
- LCD Type IPS-TFT-LCD
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Display area 115.60mm (W)×86.80mm (H)
- 640x480 resolution
- LED backlighting
- Brightness: 450nit
Touch panel:
- Type: CTP (Capacitive touch panel)
- Structure: G+FF
- Touch Mode: Supports both touch and swipe
- Surface hardness: 6H
- Light transmission: greater than 90%
Power supply:
- Supply voltage: 12~36V
- Current consumption with backlight on: VCC = +12V, 240mA
- Current consumption with backlight off: VCC = +12V, 100mA
Kit includes:
- LCD 5.7" 640*480 capacitive touch panel DWIN HMI DMG64480T057_01WTC (Industrial Grade)
