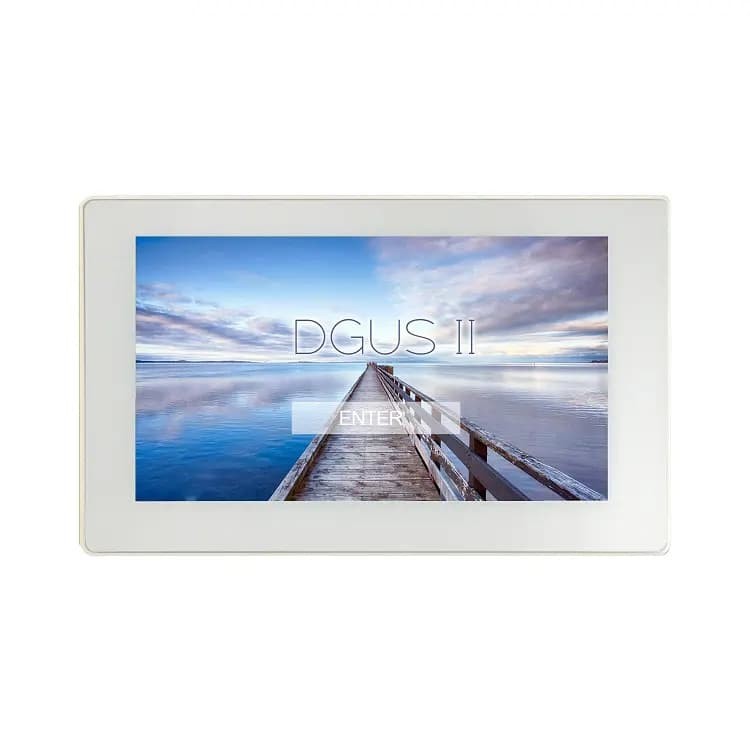

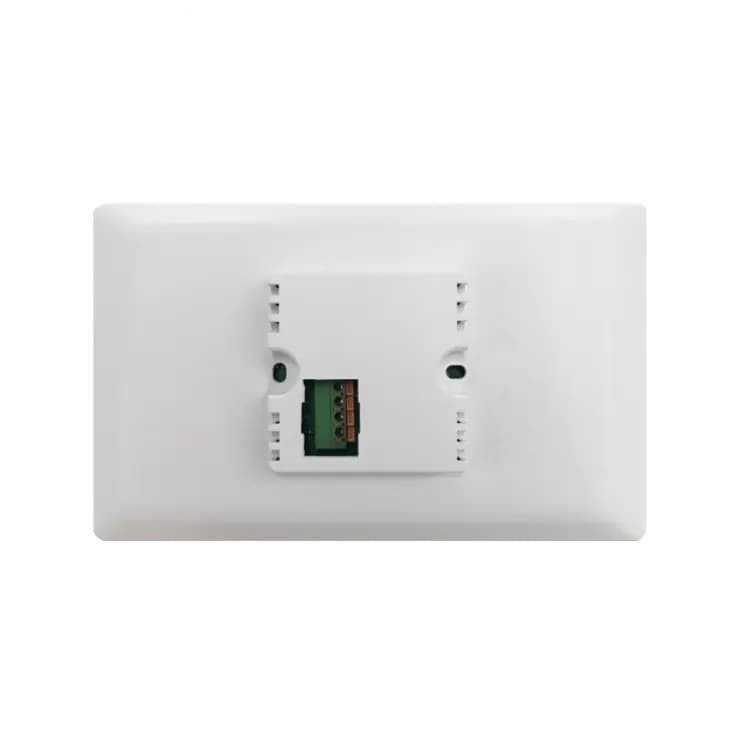

LCD 7" 1024x600 RS485 RTC White enclosure Speaker Capacitive touch panel DWIN HMI
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Universal HMI module with 7" display and capacitive touch panel.
Features TC070C22U00:
- Based on T5L with DGUS II system
- 7" IPS-TFT-LCD,16.7M Colours,24-bit, 1024×600 Pixel
- Active area vid. 153.7mm (W) * 85.2mm (H)
- Brightness: 250nit
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Capacitive touch
- Interface: RS485 (UART2&UART5 multiplexing)

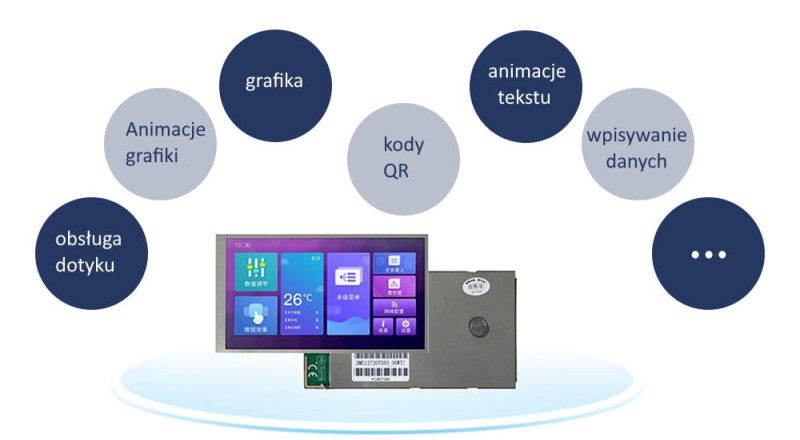

Operating principle of DWIN HMI displays
Designing the appearance of the user interface and its operating principle is done using the dedicated DGUS TOOL application. We have the option of loading ready-made graphics, creating buttons, charts, input fields, etc. then the compiled files are transferred to an SD memory card, from which they are copied to the display's memory.

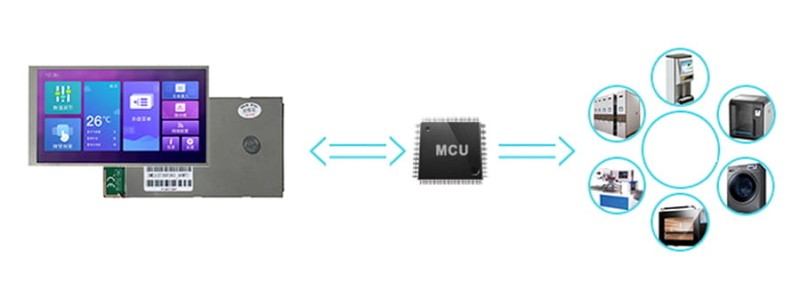

Operation from the microcontroller side is reduced to sending and receiving predetermined data frames via the UART interface.
TC070C22U specifications
Interface:
- Baudrate: 3150~3225600bps, Type. 115200bps
- Output Voltage:
Output 1, Iout =1mA 3.0~3.3
Output 0, Iout = -1mA 0.0~0.3 - Input voltage（RXD):
Input 1， Iin = 1mA；2.4-5.0V,
Input 0， Iin = -1mA；0~0.5V - Operation mode:
UART2: N81
UART4: N81/E81/O81/N82 4 (software configurable) - RS485 (UART2&UART5 multiplexing)
Display:
- Number of colours: 16.7M（16777216）
- LCD Type: IPS-TFT-LCD
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Resolution: 1024x600
- Active area: 153.7mm (W) * 85.2mm (H)
- LED backlighting
- Brightness: 250nit
Touch panel:
- Type: CTP (capacitive touch panel)
- Structure: G+G structure with surface cover of Asahi tempered glass
- Touch mode: Supports both touch and swipe
- Surface hardness: 6H
- Light transmission: more than 90%
Power supply:
- Supply voltage: 6-36V
- Current consumption with backlight on: VCC = +12V, 240mA
- Current consumption with backlight off: VCC = +12V, 80mA
Kit includes:
- TC070C22U00 7" 1024x600 capacitive touch panel DWIN HMI
