LCD 7" display with video playback AVI FLV MOV MP4 DWIN HMI DMG80480T070_41W
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

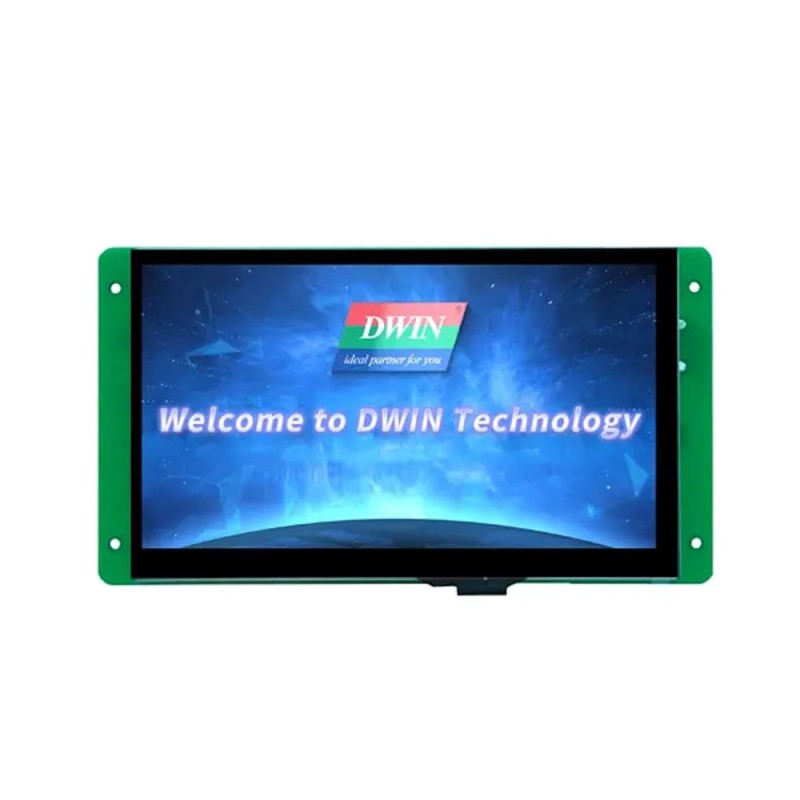

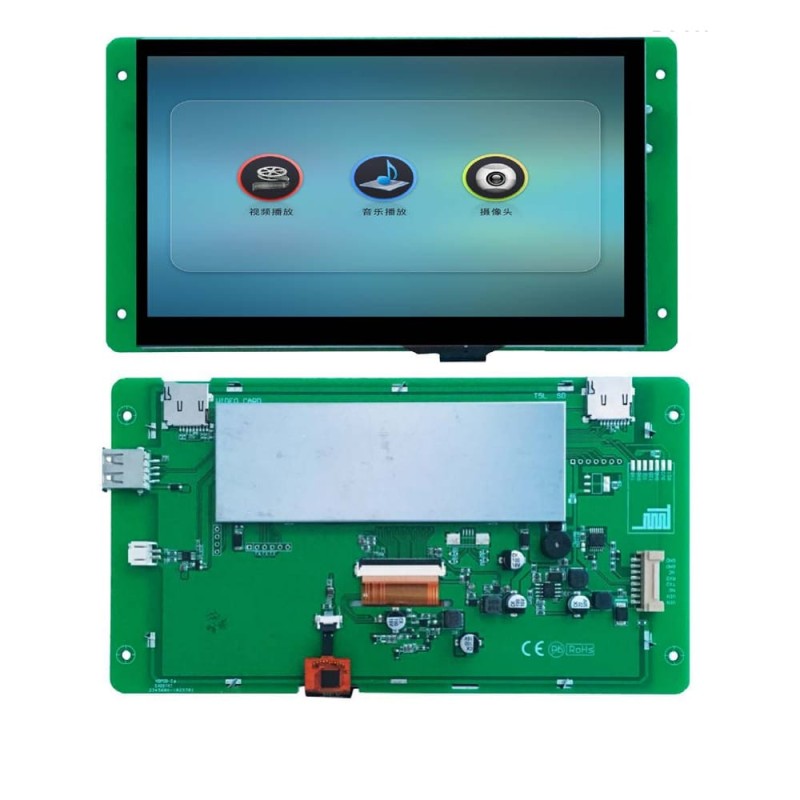

7" display with the ability to playback Video recordings from SD card, supporting AVI，FLV，MOV，MP4 formats.
DMG80480T070_41WTC Features:
- Based on T5L ASIC chip, 7.0 inch, 800xRGBx480, 16.7M colours.
- Supports video playback, music playback, USB camera screen.
- Provides SD video and SD T5L. SD video: reads video and audio files; SD T5L: user download and configuration.
- Support for audio file formats: MP3, AAC, WAV and other formats.
- Support for video file formats: AVI, FLV, MOV, MP4 and other formats.
- Permissible operating temperature: -20~70℃
Operating principle of DWIN HMI displays
We use a dedicated DGUS TOOL application to design the user interface and define its operating principles. It allows the importing of ready-made graphics, the creation of buttons, charts and data entry fields. The compiled files are transferred to an SD card and from there copied to the display memory. From the microcontroller's point of view, operation consists of sending and receiving predefined data frames via the UART interface.
Specyfikacja DMG80480T070_41WTC
Display
- Colour: 16.7M (16777216) colours, 24-bit colour 8R8G8B
- LCD type: TN-TFT-LCD
- Viewing angle: Normal viewing angle, 70°/70°/50°/70° (L/P/G/D)
- Display area (A.A): 154.08mm (W) × 85.92mm (H)
- Resolution: 800*480
- Backlighting: LED
- Brightness: DMG80480T070_41WTC: 300nit; DMG80480T070_41WTR: 250nit; DMG80480T070_41WTN: 300nit
Interface

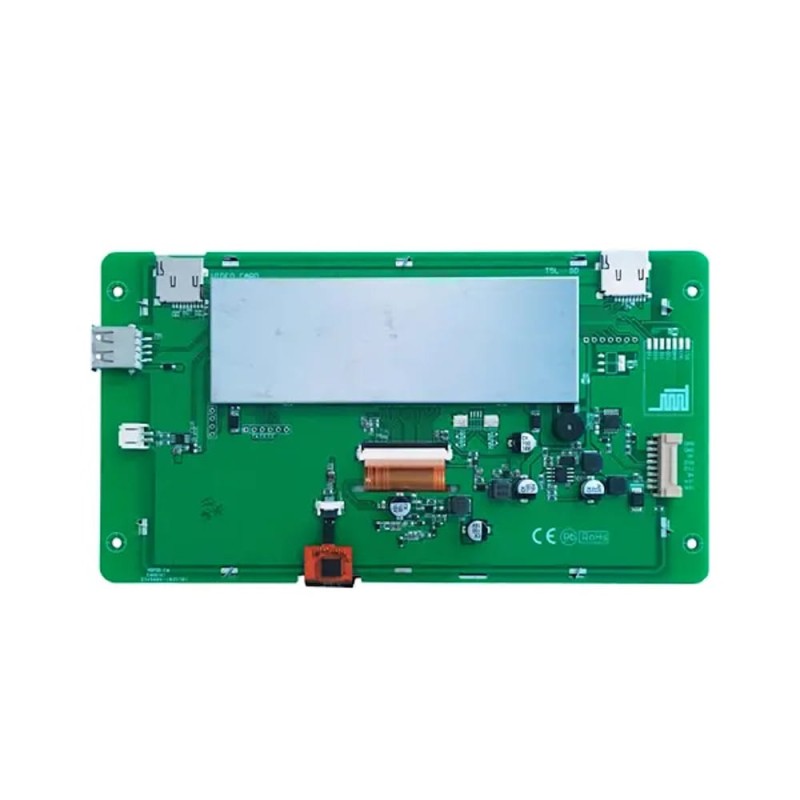

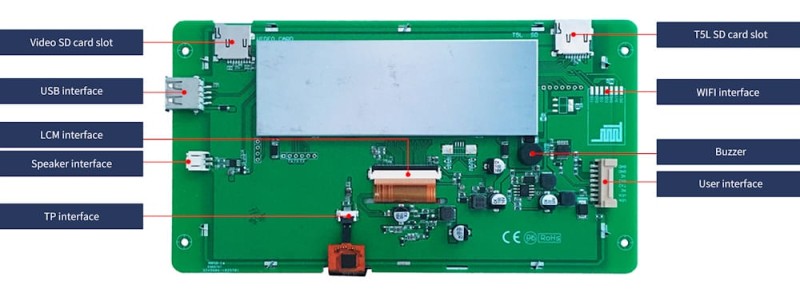

- User interface: 8Pin_2.0mm socket with locking device
- Baud rate: 3150~3225600bps, typical value is 115200bps
- Interface: mode is determined by jumper: ON = 8N1, 3.3V & 5V TTL/CMOS; OFF = 8N1, RS232
- SD card interface: YES (SDHC/FAT32 format). SD video: reads video and audio files; SD T5L: download and user configuration
- USB interface: USB camera
- Speaker: 2pin_2.0mm
- Buzzer: 3V passive buzzer. Power: <1W
- CTP interface: FPC6_0.5mm, IIC interface
- LCM interface: FPC50_0.5mm, RGB interface
- RTP interface: 4Pin_1.0mm interface
- Camera interface: 2pin_2.0mm (Support for analogue CVBS signal, both N and P system)
- Flash: 16MBytes NOR Flash, for fonts, images and audio files. Transcription cycle: more than 100,000 times
Voltage and current
- Supply voltage: 7~36V
- Operating current: VCC = +12V, backlight on: 280mA; VCC = +12V, backlight off: 140mA
Memory
- Space for fonts: 4-12Mbytes. Single font size of 256Kbytes, stores fonts, icon libraries and other binary files.
- Image storage (.ICL): 12-4Mbytes. JPEG format (number of images depends on JPEG size, size of a single JPEG image file should not exceed 760 Kbytes)
- RAM storage: Variable storage space, 128Kbytes. Data is not saved when power is turned off
- Nor Flash storage: User database, 512Kbytes. Data is saved when power is turned off
Dimensions
- Dimensions: 190.5(W) ×105.4(H) × 17.9(D) mm
- Net weight: 355g
UI and peripherals
- DMG80480T070_41WTC: Support for capacitive touchscreen, speaker, music playback, USB camera, video playback, buzzer
- Support for audio file formats: MP3, AAC, WAV and other formats
- Support for video file formats: AVI, FLV, MOV, MP4 and other formats
Display operation
Set includes:
- LCD 7" display with video playback AVI，FLV，MOV，MP4 DWIN HMI DMG80480T070_41WTC
