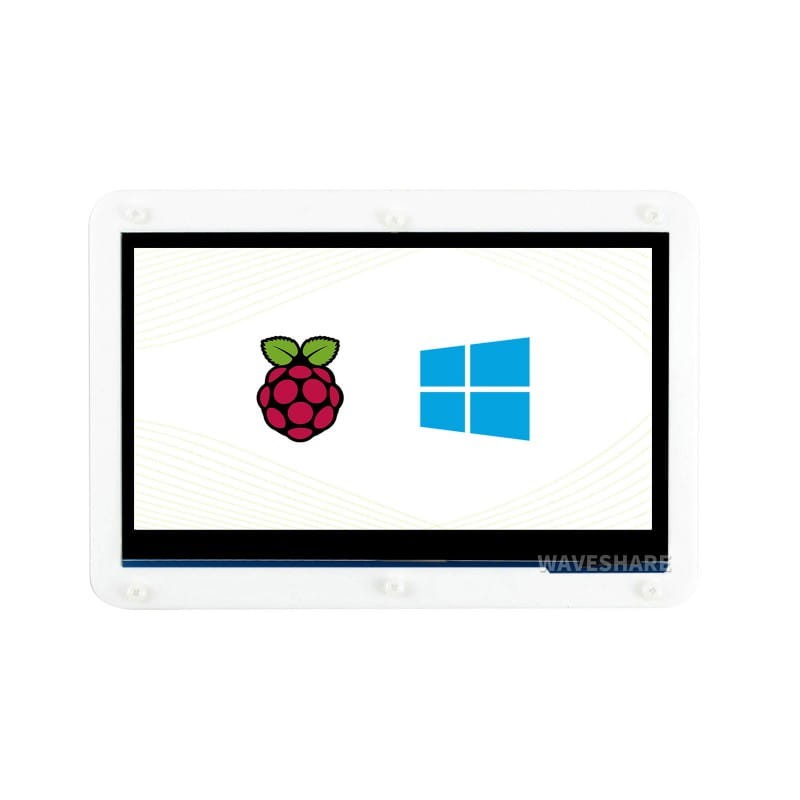

LCD display 7" 1024x600 IPS HDMI housing
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
The 7" 1024x600 IPS HDMI LCD display with capacitive touch panel works great with any version of Raspberry Pi.

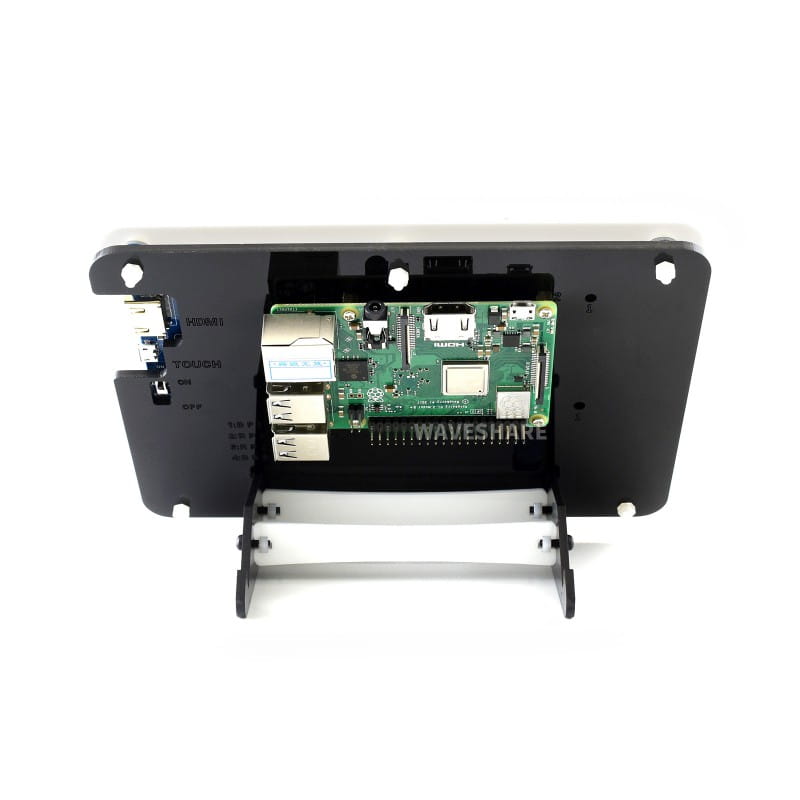

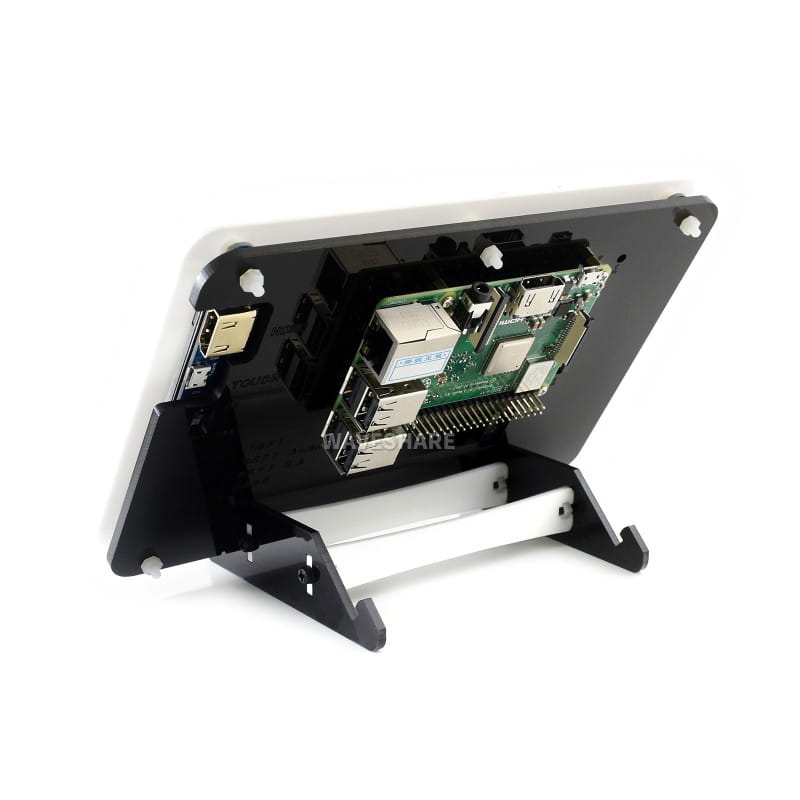

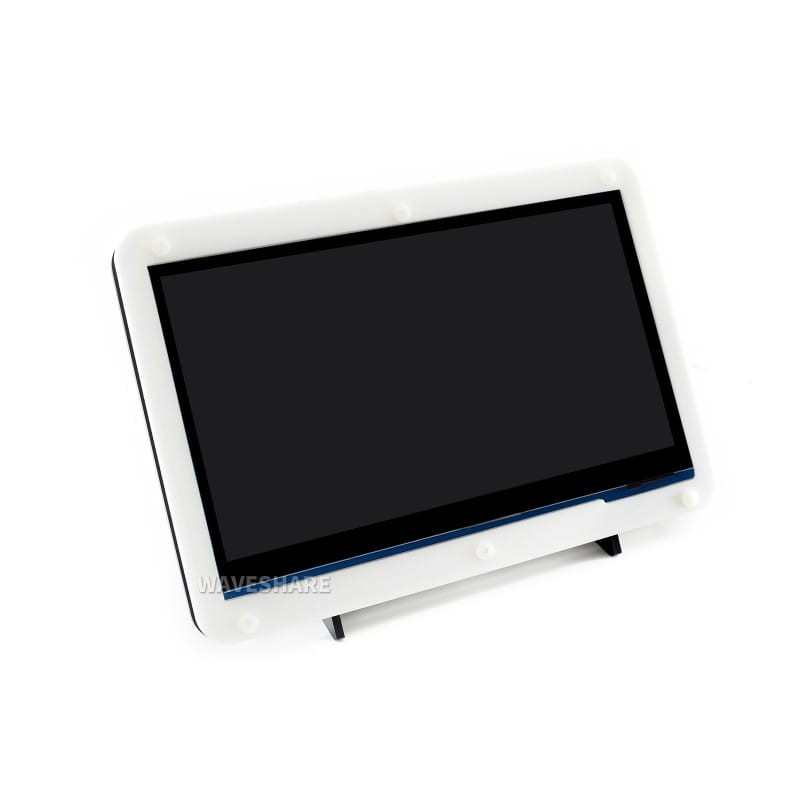

The display has been protected by a case and comes with a stand for easy use.
Specifications:
- Resolution: 1024×600 pix
- Diagonal: 7"

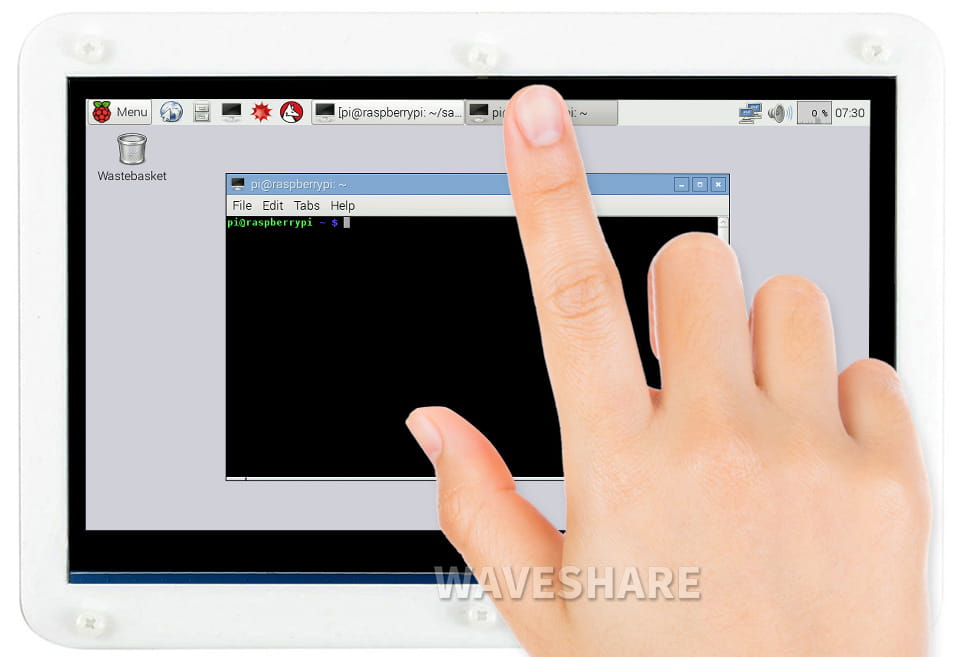

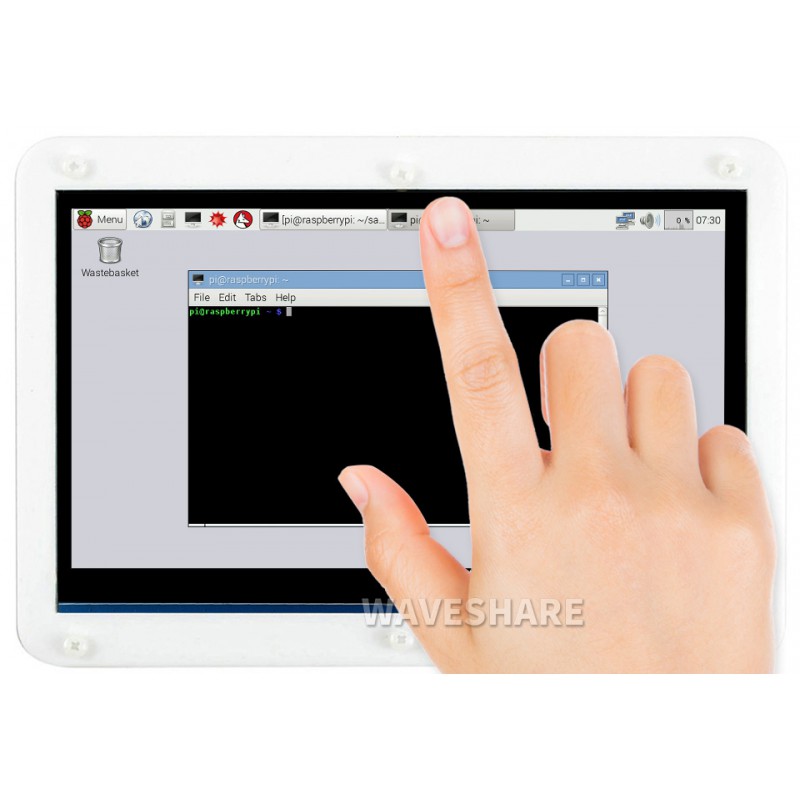

- Touch panel: capacitive, 5 touch points
- Works with Raspberry Pi B B+ 2 B+ B+, system images available: Raspbian, Ubuntu
- Works with a Windows PC as a normal monitor with HDMI input and touch panel
- Image transfer via HDMI, touch panel operated via USB
- Backlighting control possible via a switch on the display board
- After adding an additional cable to the display board, it is possible to control the backlight brightness from the RPi level
- The display is CE declared
- Connected to a PC it can also work as a touch panel monitor.
Display in the latest version: v4.1

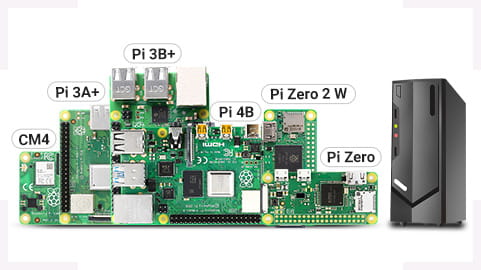

Supported systems and devices
Raspberry Pi

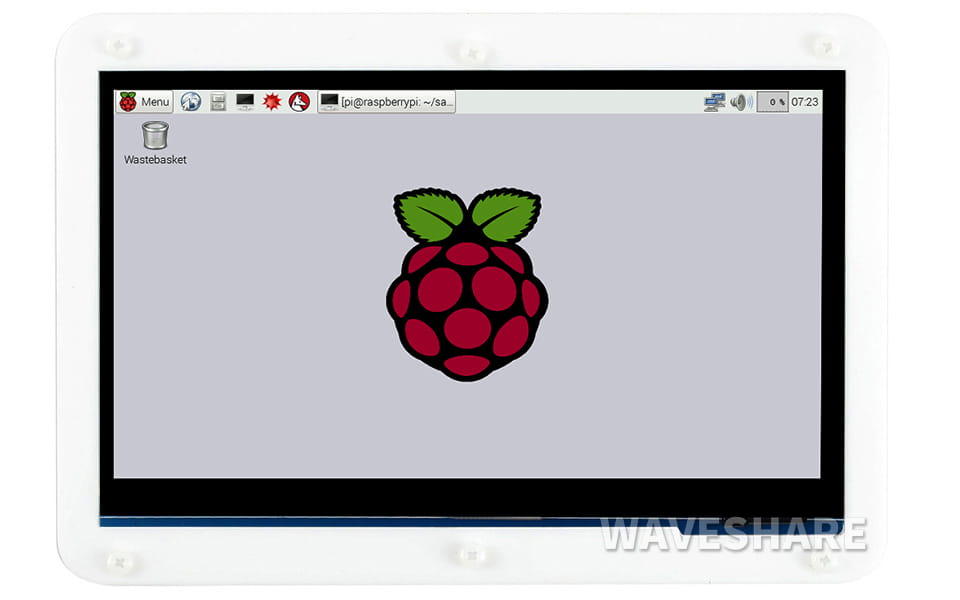

Supported Raspbian, 5 touch points
Ubuntu / Kali / WIN10 IoT supported, 1-point touch
Retropie supported,
Works with any version of Raspberry Pi
PCs
Supported Windows 10 / 8.1 / 8 / 7, 5-point touch
Connection examples

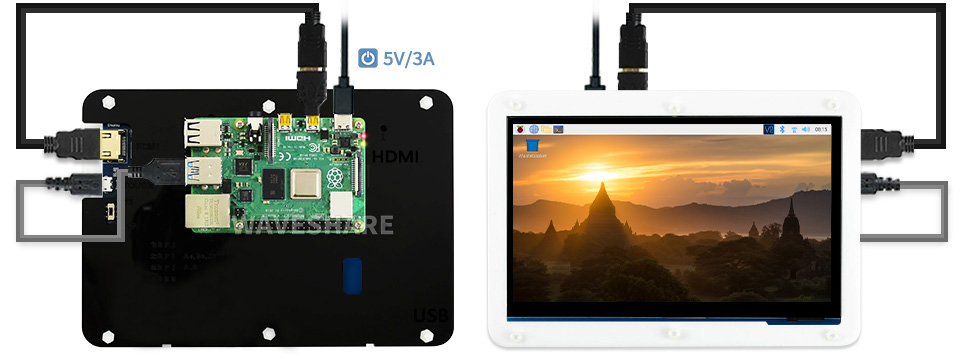

Raspberry Pi 4:

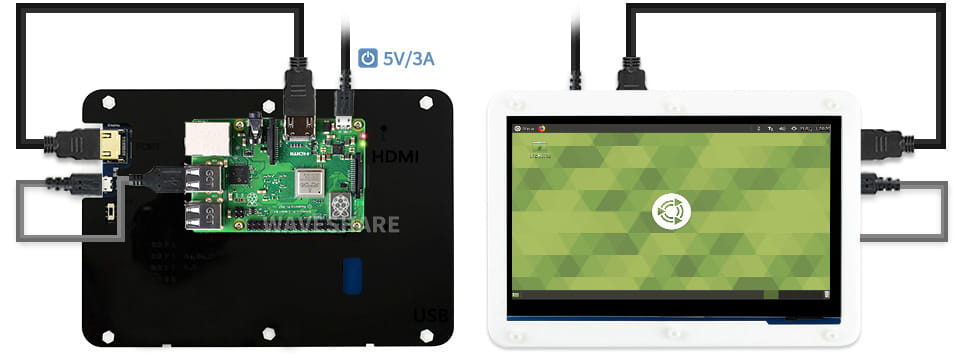

Raspberry Pi 3B+:

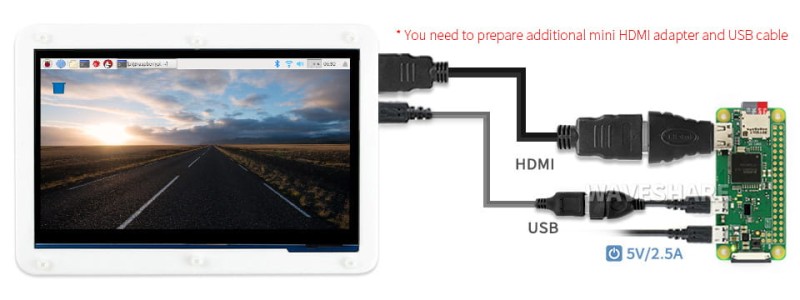

Raspberry Pi Zero W:

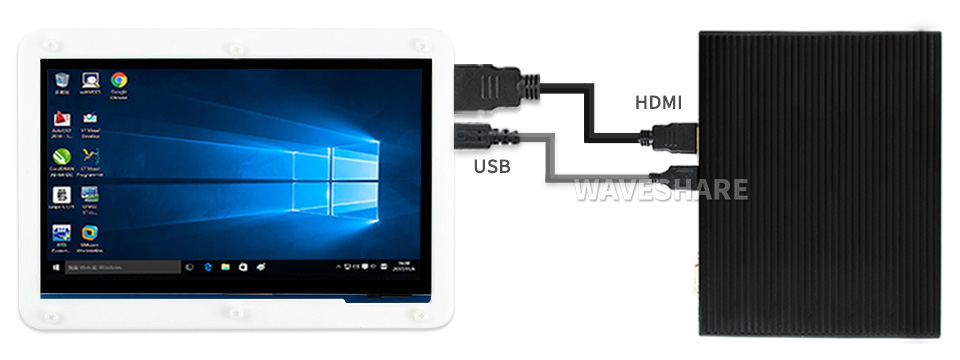

Mini PCs:
Display:

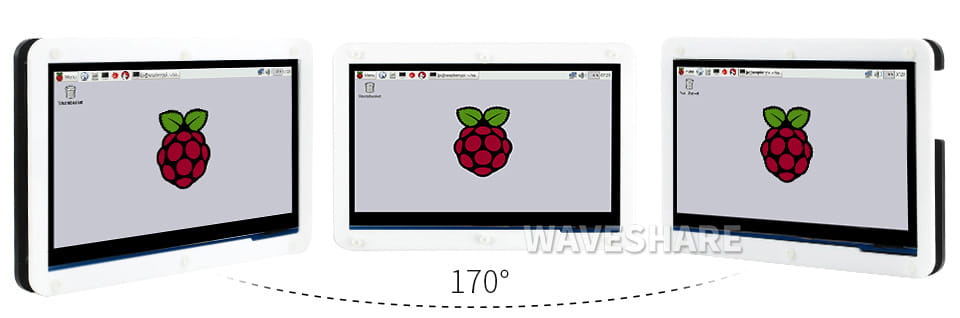

IPS panel

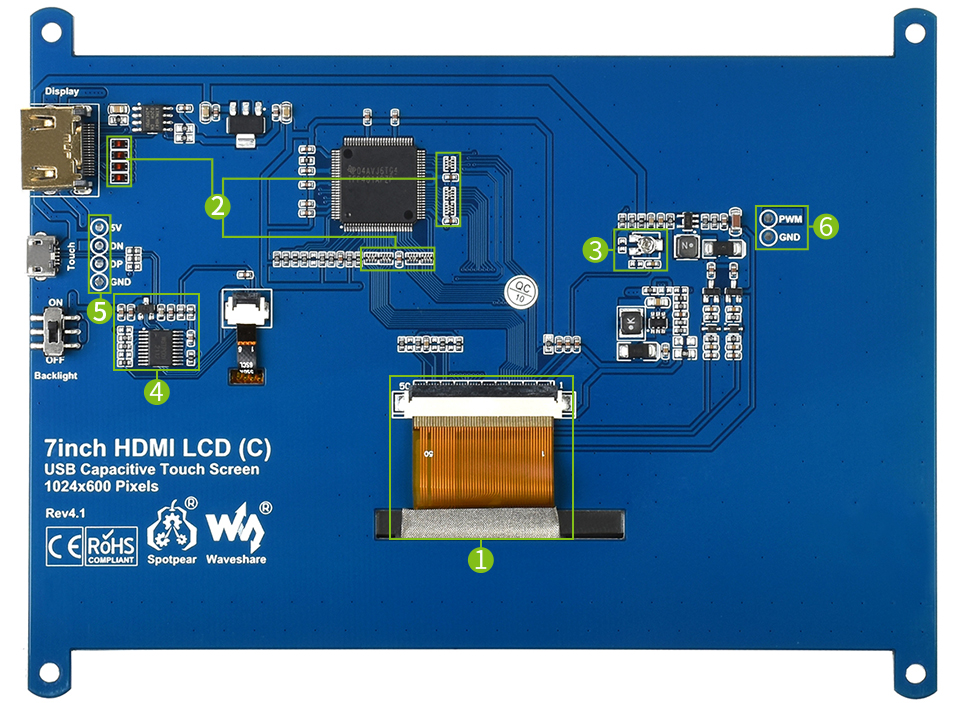

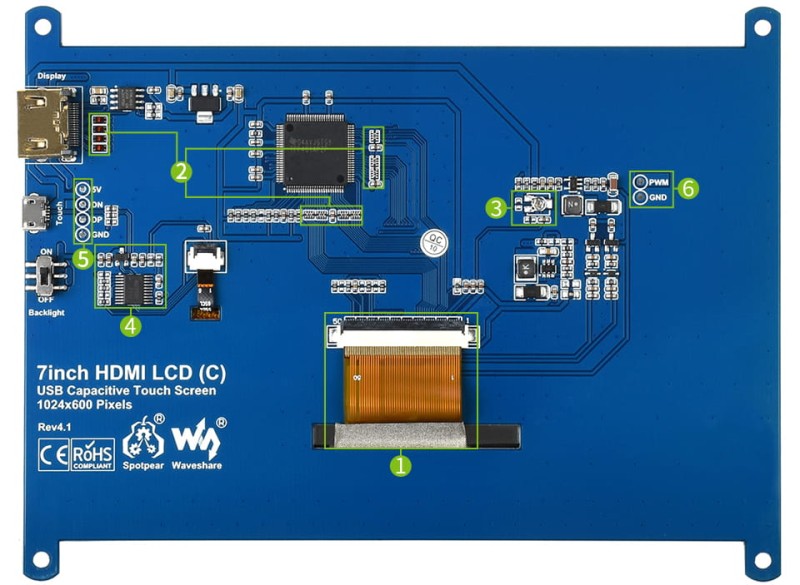

Module design:
- LCD FFC connection in interference shield, more stable for industrial applications
- EMI and ESD protection, CE certified
- VCOM, voltage regulation, to improve image quality
- USB and touch panel controller, converting to standard multi-point touch protocol for seamless multi-point touch control
- Points enabling connection of a USB cable or external power supply
- Points to enable PWM control of backlighting

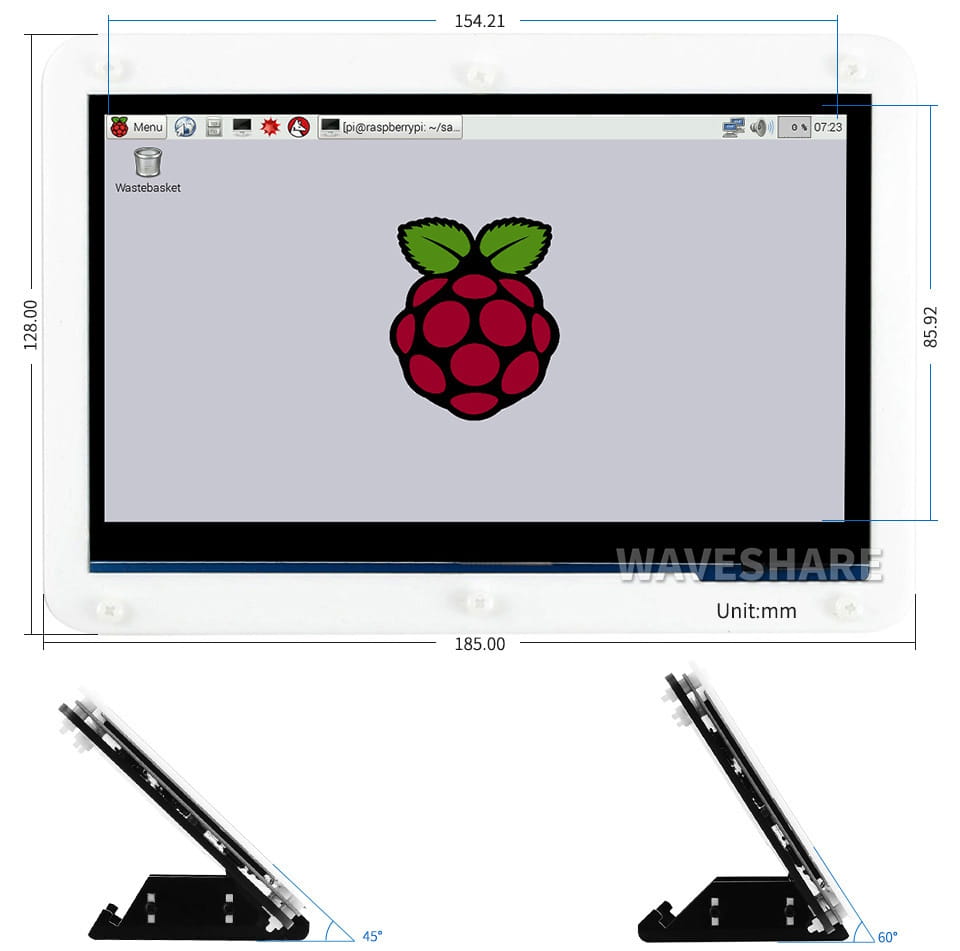

Dimensions:
The microcontrollers and peripherals shown in the pictures are not part of the offer and must be purchased separately!

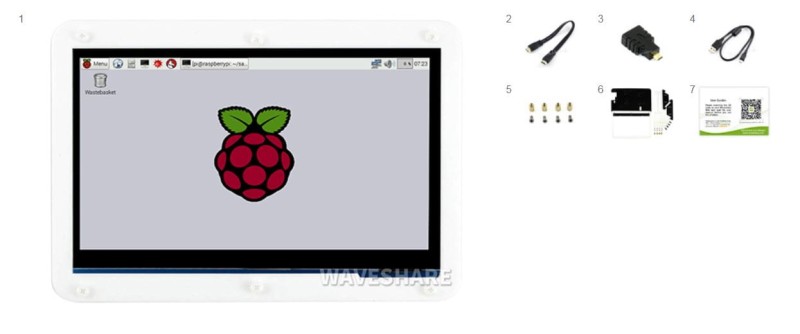

Kit includes
- 7inch HDMI LCD display (C) x 1
- HDMI cable x 1
- HDMI to Micro HDMI adapter x1
- USB type A plug to micro B plug cable x 1
- Mounting screws (4pcs) x 1
- Case x1
Wiki: 7inch_HDMI_LCD_(C)
