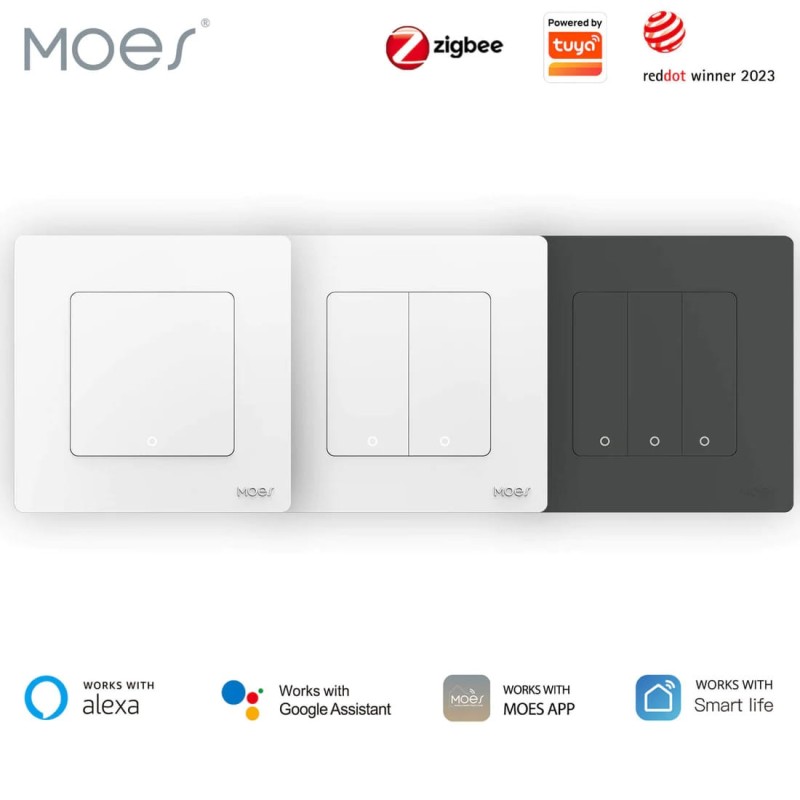

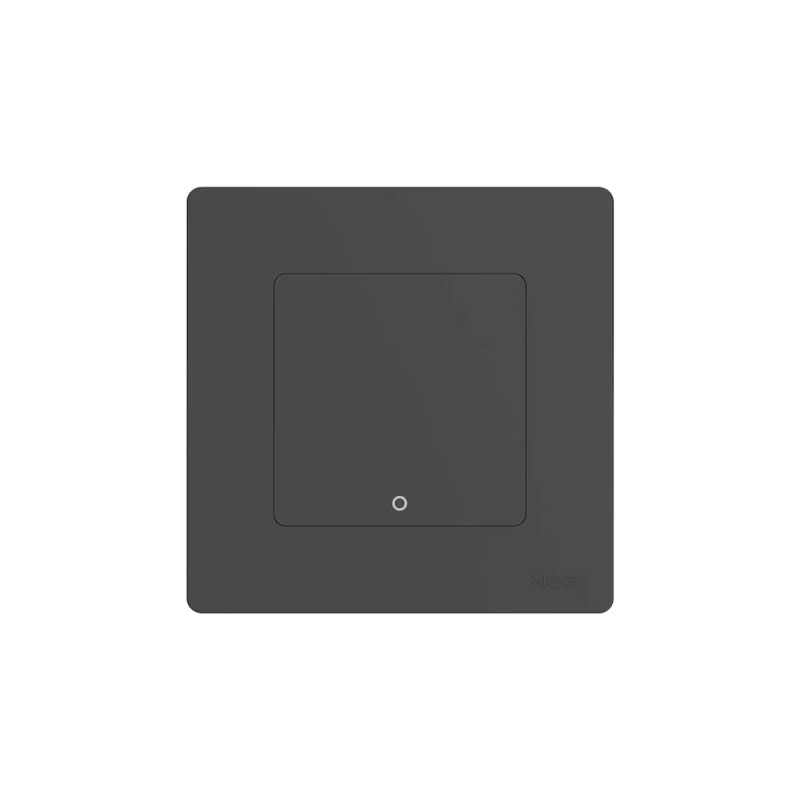

Light switch 1 channel Zigbee Tuya Sonoff without N Moes Star Ring Grey

The smart light switch is ideal for those looking for a simple way to remotely control the lighting in the home. Using a click button from Omron, known for its computer mice, the switch is pleasant to operate.

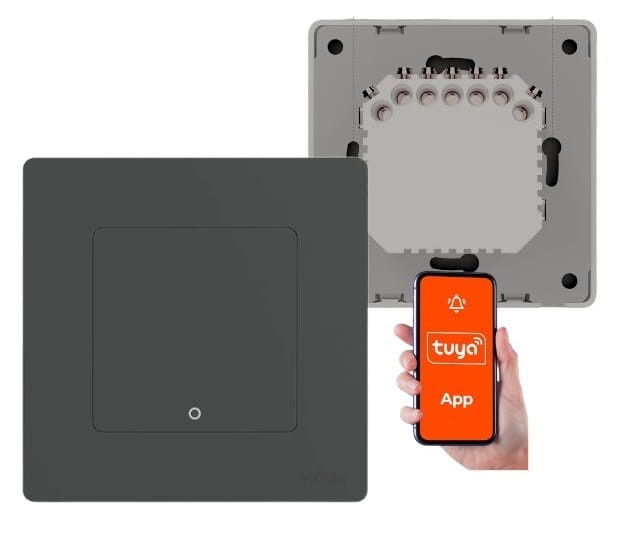

The switch allows you to replace a traditional switch and allows you to control your lights using the Tuya and eWeLink apps from anywhere in the world, all you need is an internet connection. This makes it easy to gain control of the lighting in your home, whether you are at home or away.

The switch operates without an N-line, which means that no changes to the electrical installation are required. It can therefore be easily installed in place of a traditional switch. Remote phone control is possible with the ZigBee 3.0 gateway, and the switch also works with the Sonoff ZBbridge Zigbee gateway on the eWeLink app.

In the control app, the current status of the light can be monitored, whether it has been switched on manually or via the app. It is also possible to automatically control the switch according to a schedule or with external sensors for motion, light, opening, etc. (not included). The switch also supports voice control via Google Assistant or Amazon Alexa and is compatible with SmartThings.

Key features of the switch:

Works without #N

One of the most desirable features of this switch is that there is no need for an additional N power line, so it can be easily installed in place of a traditional light switch without having to modify the existing electrical installation. This is a feature that sets this switch apart from many other smart switches on the market. As it does not require additional installation work, it makes it easy to create an automation system even in older buildings. Connecting the device is very simple - it only requires the L-in and L-out lines to be connected.

Technical specifications of the switch

Zigbee communication

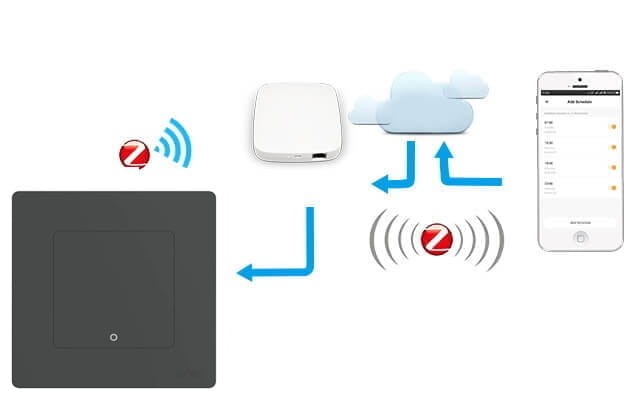

The single-circuit light switch works on the basis of Zigbee communication, which means that it requires a Zigbee gateway Tuya 3.0. This gateway acts as a mediator between the switch and the internet.

Thanks to the fact that many smart building components are compatible with the Tuya application, it is possible to easily expand the system with additional functionalities such as motion or door-opening sensors, as well as alarm systems.

Zigbee 3.0 gateways that work with the switch:

• Wifi gateway
• LAN gateway

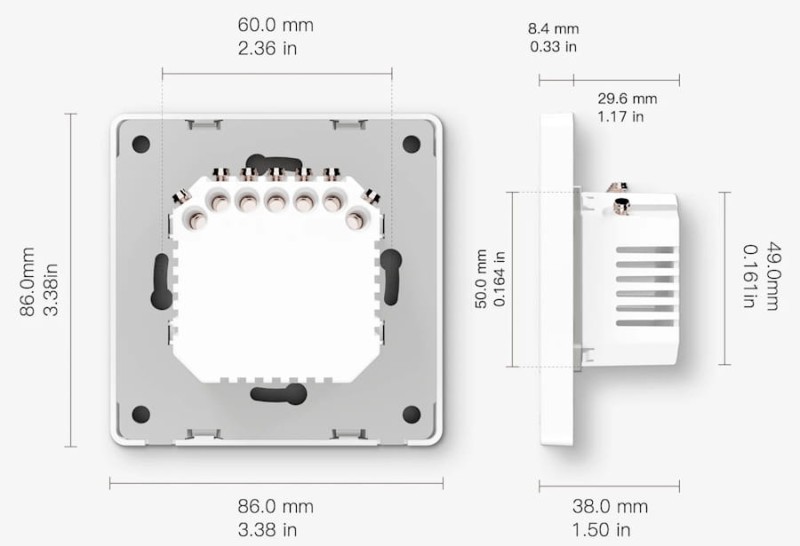

Dimensions:

Pairing the switch with a Zigbee gateway.

To add the switch to the ZigBee gateway, the switch must be put into pairing mode. To do this, after connecting the power supply, press the key for about 5s until the white light starts blinking. We then carry out the pairing according to the instructions provided by the manufacturer of the ZigBee gateway.
