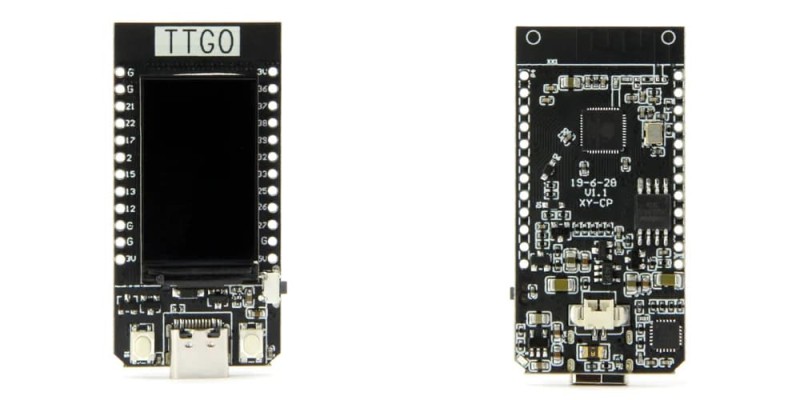

Original Lilygo G511-03 - ESP32 Developer Board with WiFi, Bluetooth and 1.14" Display

The Lilygo G511-03 is an innovative developer board that combines an advanced ESP32 microcontroller with rich communication and data visualisation capabilities. The board is ideal for developers looking for a compact but powerful tool for rapid prototyping of IoT applications.

Technical specifications:

• Processor: ESP32-D0WDQ6 V3 Xtensa dual-core LX6, clocked at up to 240MHz.
• Memory: 16MB FLASH and 520kB SRAM for efficient data storage and processing.
• USB: CP2104 chip
• Communication: WiFi 802.11 b/g/n and Bluetooth 4.2 with BLE (Bluetooth Low Energy).
• Display: 1.14-inch ST7789V IPS LCD, providing a bright and clear image with a resolution of 135 x 240 pixels and a density of 260 PPI.
• Power: Capable of being powered via a USB-C port or a JST connector for connecting a Li-Po battery.
• Connectors: USB-C for easy programming and power, additional JST connector for Li-Po battery.
• Programming interfaces: Support for Arduino IDE and MicroPython, giving a wide range of programming possibilities from different levels of expertise.

Special features:

• Large colour TFT display with ST7789 controller chip for excellent image quality and quick access to data visualisation.
• USB-C port and 3.3V - 5V pins offer flexibility in power and connections.
• Thedimensions are 51mm x 25mm, making the board very compact and ideal for integration into a variety of projects.

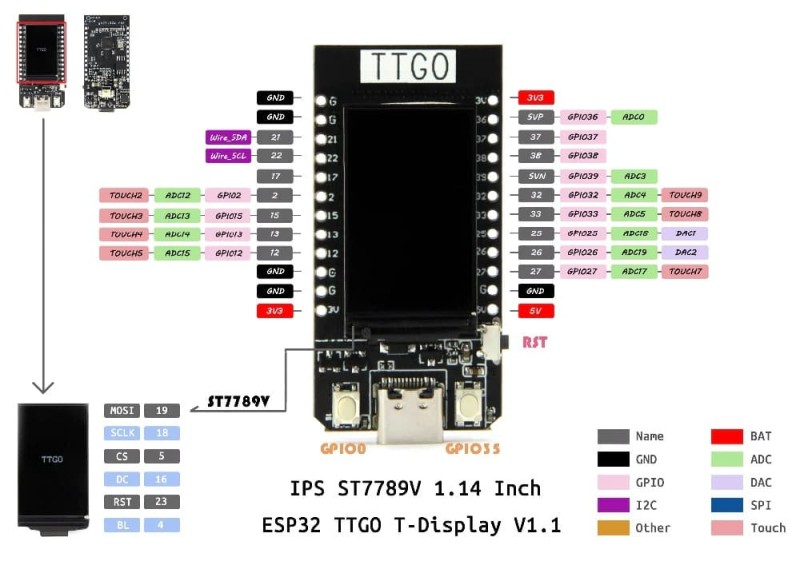

Lilygo G511-03 board pinout description

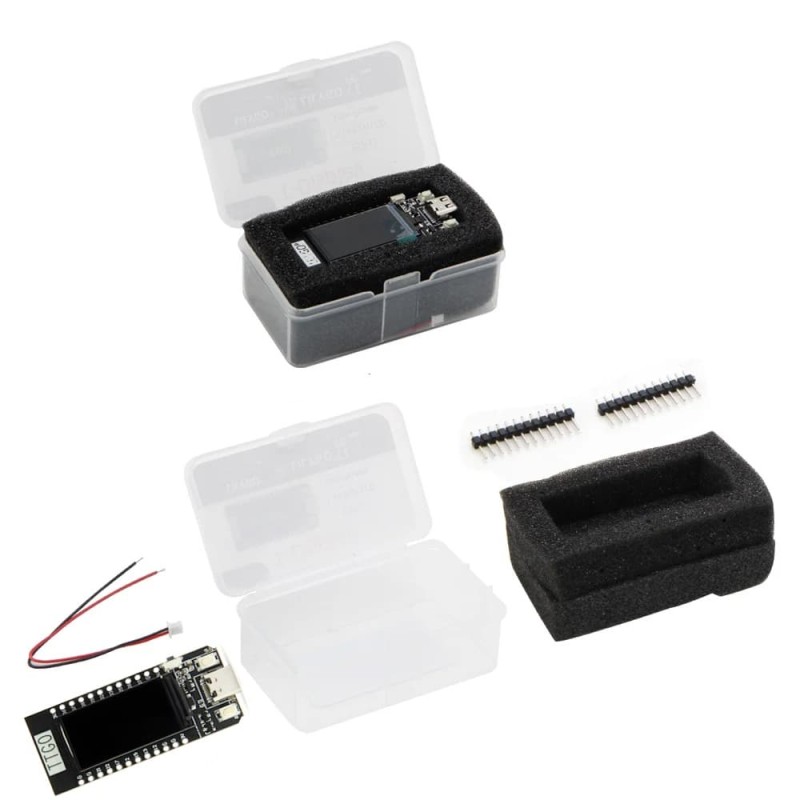

What the kit contains

The Lilygo G511-03 board is an excellent choice for hobbyists, engineers and developers working on projects requiring both advanced wireless communication and dynamic data display. With its powerful memory, efficient processor and versatile power capabilities, it is an indispensable tool for any modern IoT project.
