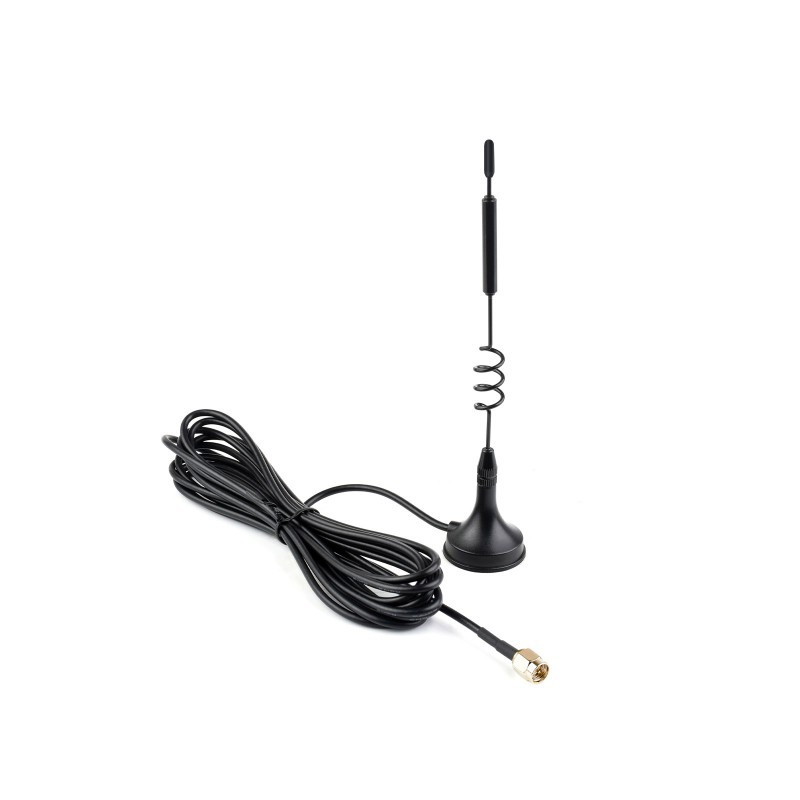

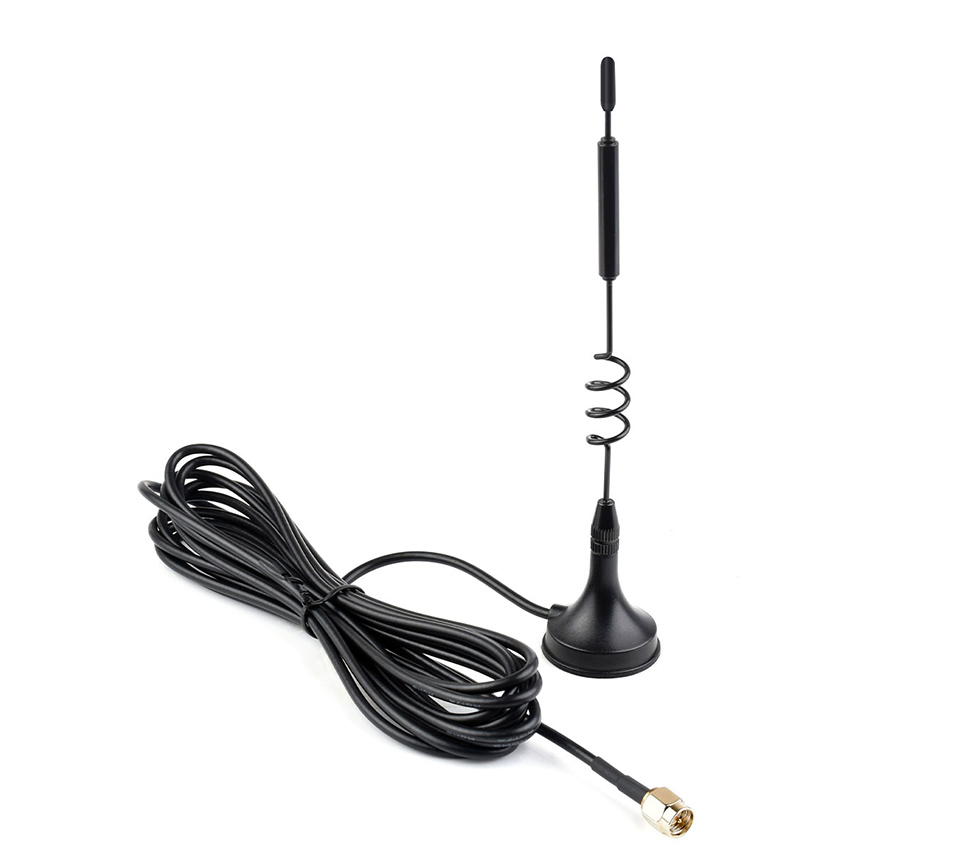

Outdoor Waterproof LPWA Antenna with Magnetic Base – 5dBi, LoRa Support
This outdoor LPWA antenna offers a high gain of 5dBi, featuring a robust, waterproof enclosure (IP65) and a magnetic base for easy and stable mounting. The antenna is universal, supporting a wide frequency range (315~500MHz). With its interchangeable antenna design and 3-meter cable, it is perfectly suited for challenging outdoor conditions.
Key Features:
- Energy Gain: 5dBi (High gain)
- Network Support: LoRa
- Wide Frequency Range: 315~500MHz
- Connector: SMA male connector
- Base: magnetic, ensuring secure mounting
- Waterproof Rating: IP65
- Antenna Height: approximately 15 cm
- Cable Length: 3 meters
- Polarization: vertical
- Design: interchangeable antenna

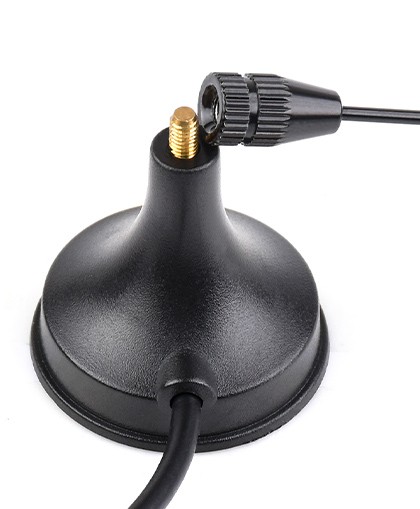

Design Details
The design allows for antenna exchange, and the stable magnetic base facilitates mounting on metal surfaces.

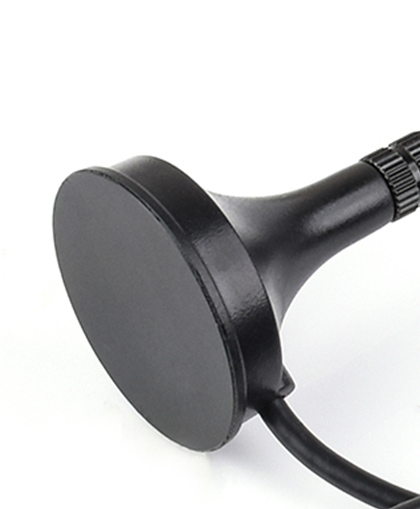

Magnetic Base
The strong magnetic base ensures quick and secure fastening, ideal for outdoor use, such as on a vehicle roof or metal cabinet.

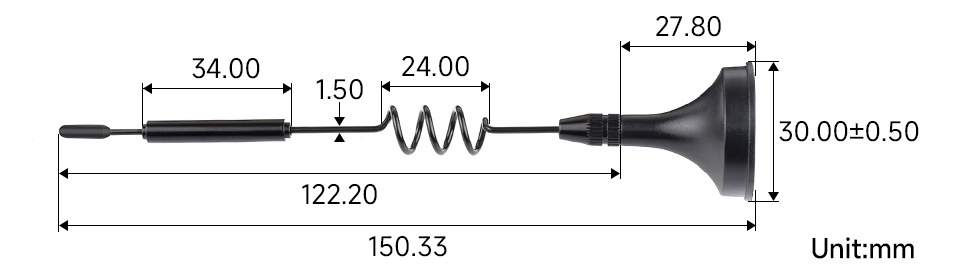

Outline Dimensions
Technical Specifications:
- Supported Networks: LoRa 433MHz
- Gain: 5dBi
- Frequency Range: 315~500MHz
- Connector: SMA male
- Maximum Power Input: 10W
- Output Impedance: 50Ω
- SWR Ratio: ≤2.0
- Polarization: vertical
- Antenna Height: ~15cm
- Cable Length: 3m
- Waterproof Rating: IP65
Package Content

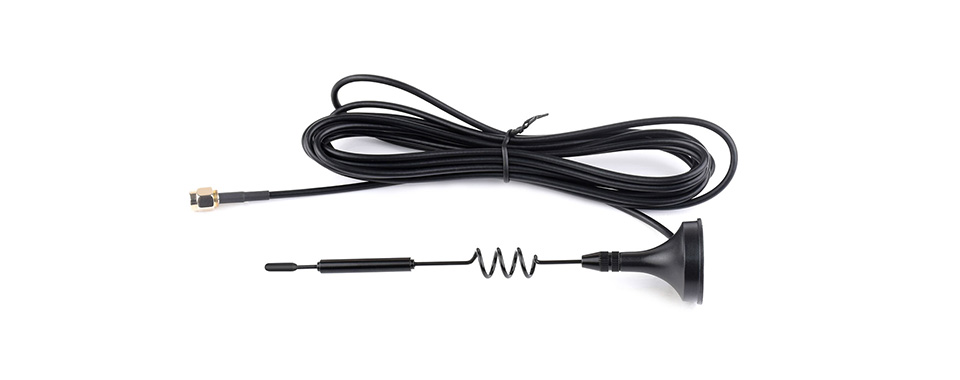

- 433MHz Magnetic Mount Antenna x1
