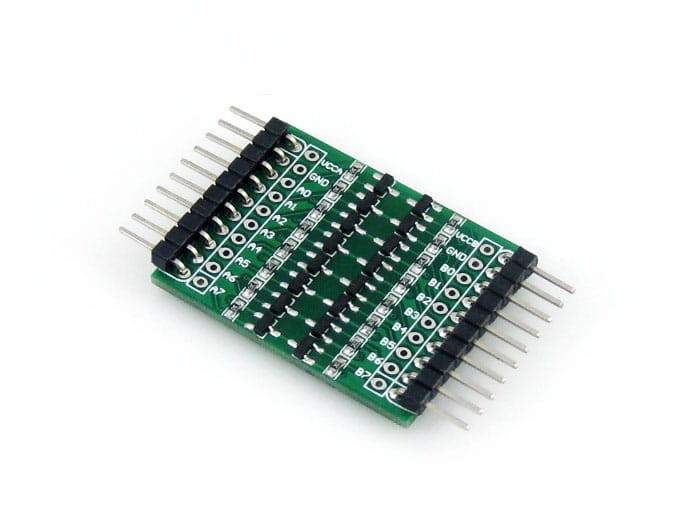

Logic Level Converter
Price:
€2.23
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Vendor:
![WaveShare]()
ELTY - Official Waveshare Distributor
Product code:
Logic Level Converter Waveshare 9127
8-kanałowy konwerter poziomów logicznych, z automatycznym wyborem kierunku.
Features
- 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
- Voltage level: 1.8V-6V
- Dimension: 31.6mm x 25.4mm
How to Use
In the case of translating between 3.3V and 5V system:
- VCCA connects to 3.3V power supply
- VCCB connects to 5V power supply
- GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
- When Ax has TTL 3.3V input, Bx will get TTL 5V output
- When Bx has TTL 5V input, Ax will get TTL 3.3V output
- NO direction control required
Photos
Package Contains
- Logic Level Converter × 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
