Tuya WiFi smart garage door controller MOES WM-102-M
MOES WM-102-M is a modern WiFi module that allows for remote control of a garage door opener using the popular Tuya app. Equipped with a wired opening sensor, it allows for real-time monitoring of the closing status from anywhere in the world. It is an ideal solution for integrating traditional gate automation with a smart home system, also supporting voice commands and automations based on geolocation.
Key features
- Remote gate control from anywhere via the free Tuya app.
- Compatibility with Google Home and Amazon Alexa voice assistants.
- Included magnetic opening sensor providing information on the current gate status.
- Alarm notifications to your phone in case of unauthorized opening.
- Event history and the ability to set automations based on geolocation.
- Physical button on the housing for manual module operation.
- Direct mains power supply 230V and convenient DIN rail mounting.
Compatibility and operating principle
The controller works with most gate openers available on the market equipped with an input for an external mechanical switch (impulse control). If the drive control panel has terminals that, when shorted, cause the gate to alternately open and close (so-called Step-by-Step input), the MOES module will integrate with it without any problems. The controller operates by potential-free circuit closing (NO relay), which mimics the manual pressing of a traditional wall button.
Technical specification
- Power supply: 100-240V AC
- Relay output type: NO (Normally Open)
- Communication: WiFi 2.4 GHz
- WiFi range: up to 30 m
- Operating temperature: from 0°C to 50°C
- Mounting method: DIN rail
- Controller dimensions: 40 x 40 x 18 mm
- Sensor cable length: 5 m

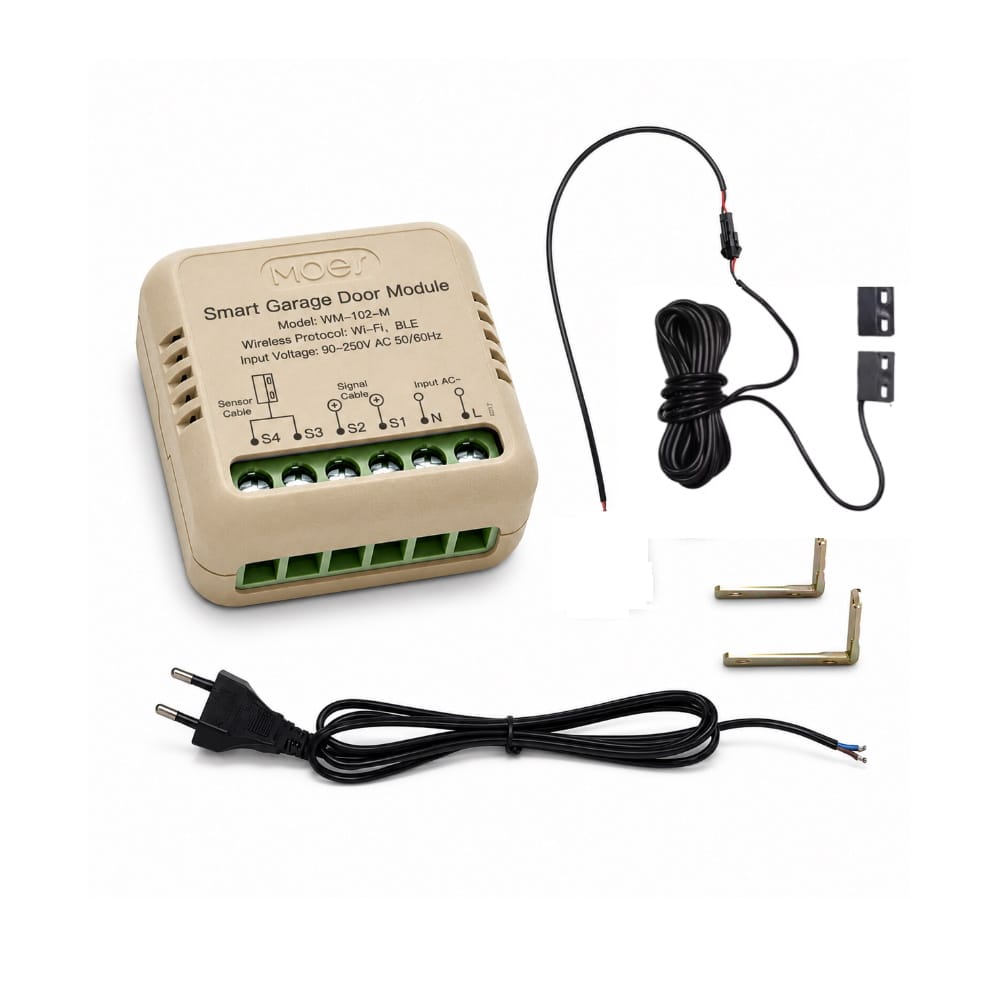

Kit contents
- MOES WM-102-M main controller module
- Magnetic opening sensor (reed switch) with 5 m cable
- Output signal cable with a length of 0,28 m
- Power cable 230V with a length of 1,5 m
- Terminal for easy DIN rail mounting
- Set of mounting accessories (screws, brackets, double-sided tape)
- User manual
