MOES Smart 63A Wi-Fi Relay with Energy Metering for DIN Rail

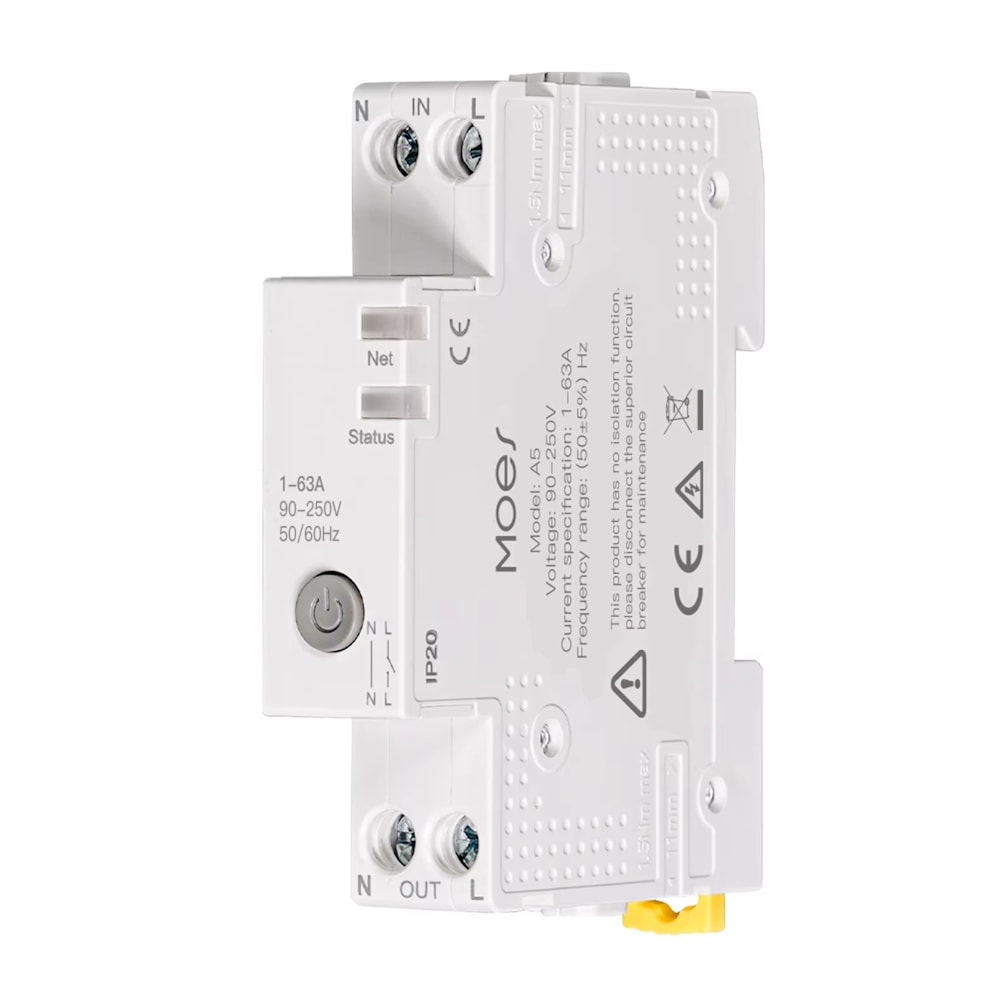

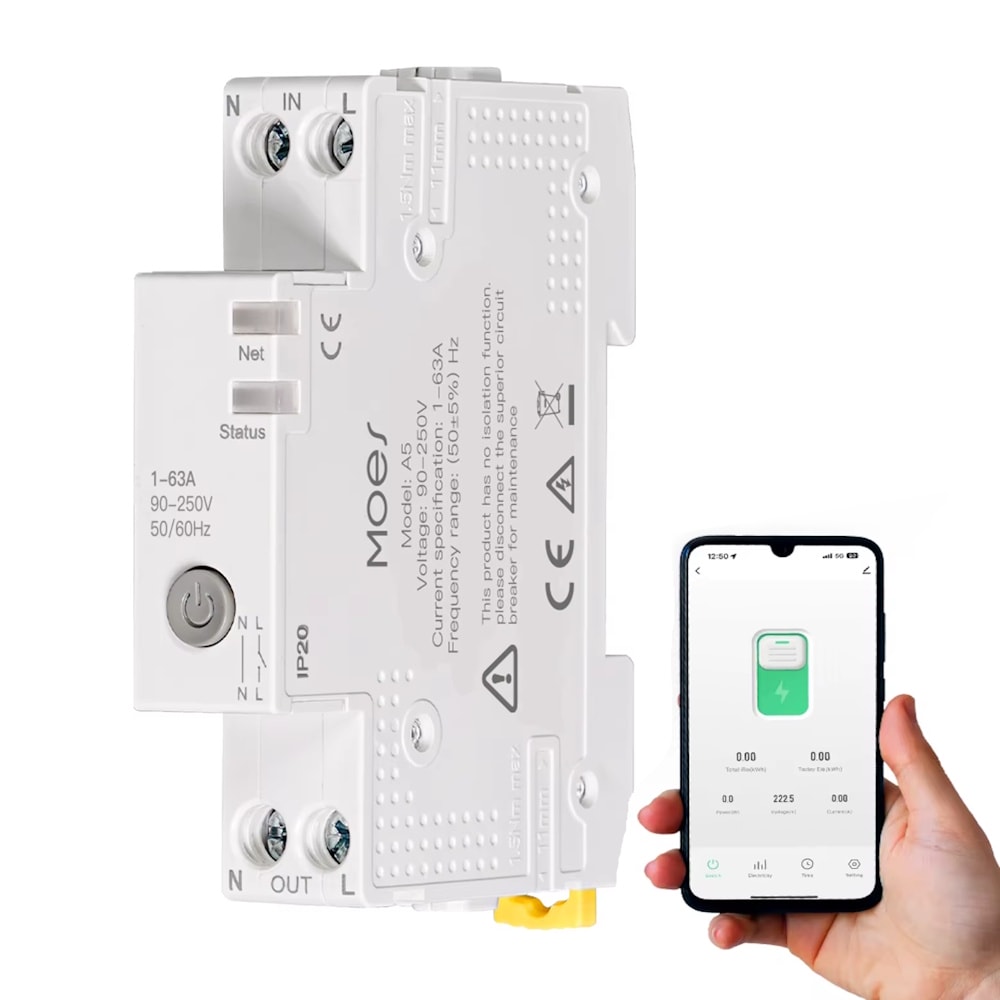

MOES WCB-A5-TW-E1 Smart 1P Wi-Fi relay (1–63 A) for remote control of single-phase circuits and detailed monitoring of electricity consumption. Thanks to full integration with the popular ecosystem Tuya and Smart Life, the module allows for creating schedules, setting automations, and managing the smart home system directly from the distribution board.
Key features:
- Wireless connectivity Wi-Fi, compatibility with applications Tuya and Smart Life.
- Built-in energy consumption monitor with access to real-time measurements and historical.
- data Extensive protection

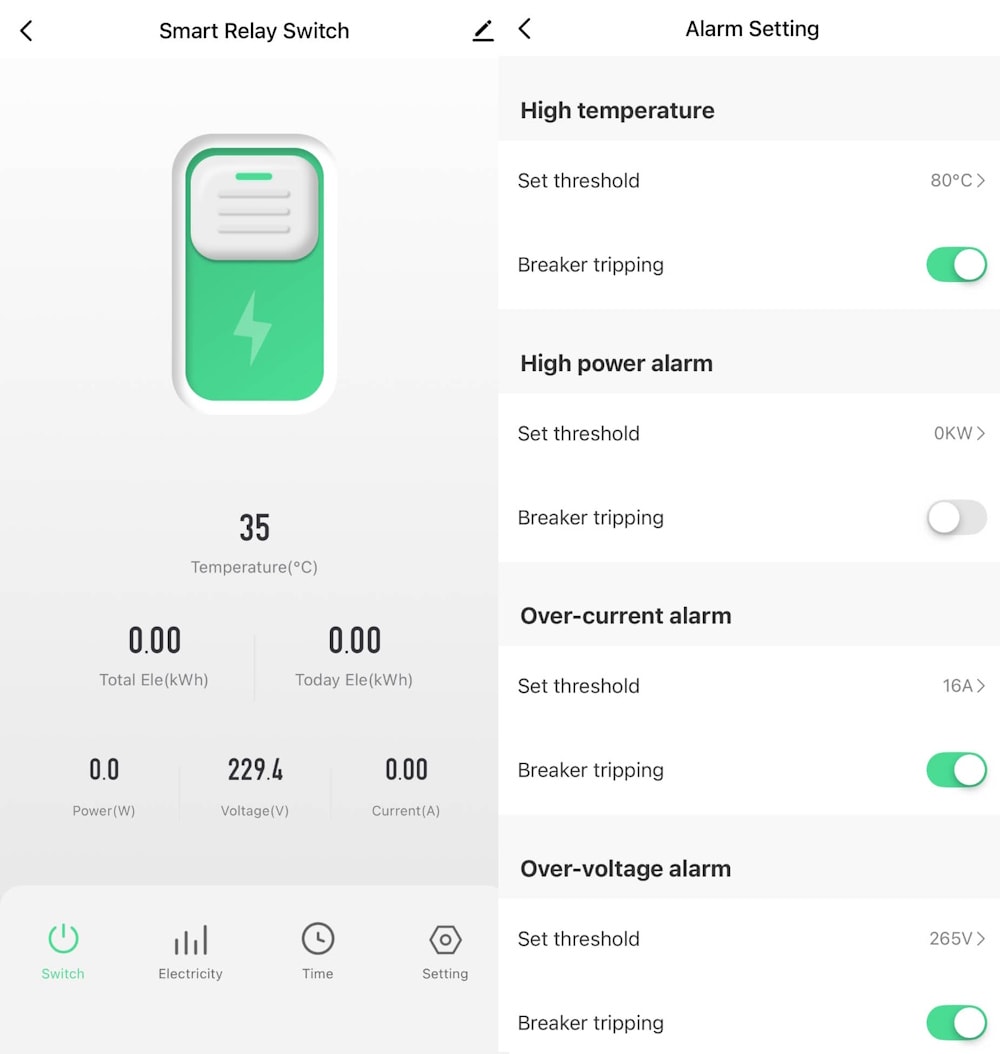

- functions: automatic cutoff upon exceeding relay temperature, current, voltage, or power limits. Independent configuration of alarm thresholds and remote alarm notifications.
- Supported current range: up to 63 A.
- Compact design (1 module width) adapted for easy mounting on a standard DIN.
- rail. Remote control capability, integration with voice assistants, and manual operation via a button on the housing.
Important safety information
Note: The offered device serves as a smart control relay with additional protections configured in the application. The relay does not replace standard hardware protections, such as miniature circuit breakers or residual current devices (home fuses). It should be used in the installation solely as an actuator and a supplement to traditional circuit protection systems.
Dimensions
Technical specification
- Supply voltage: 90 - 250 V AC
- Current range: 1 - 63 A
- Operating frequency: (50 ±5%) Hz
- Power consumption (voltage circuit): ≤ 1.5 W
- Operating temperature: -20°C to 70°C
- Permissible operating humidity: ≤ 95%
- Protection rating: IP20
- Dimensions: 91.1 x 18 x 65.5 mm
Package contents
- MOES 63A Wi-Fi DIN rail smart relay
- Multilingual user manual
