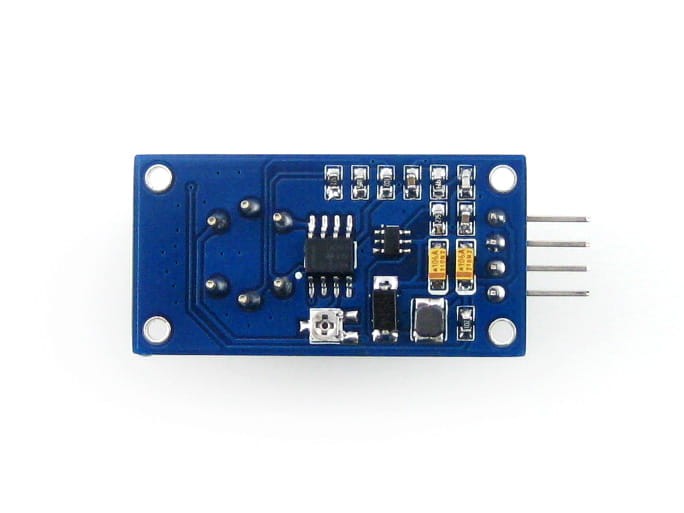

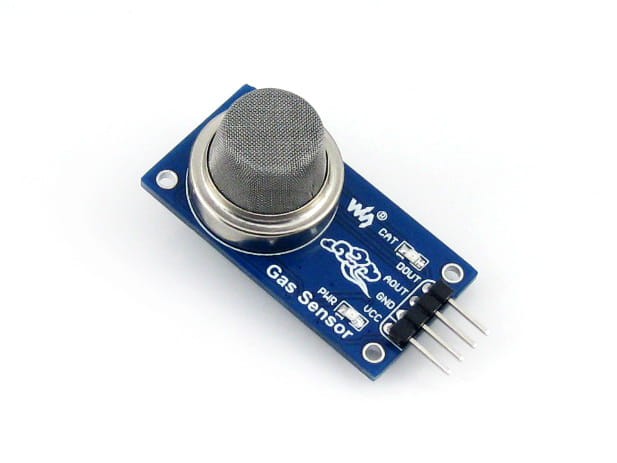

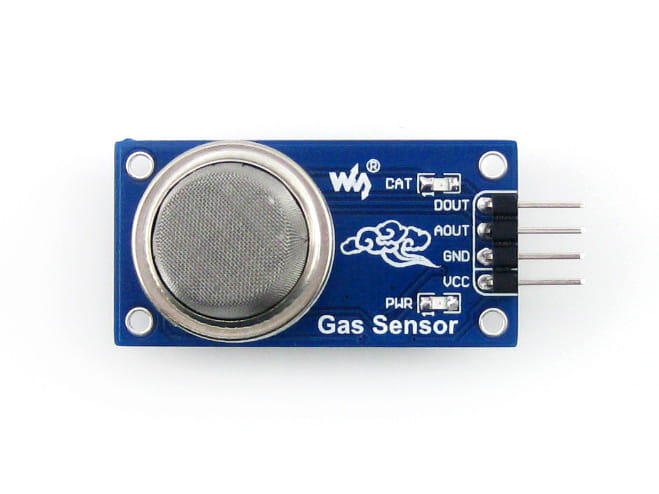

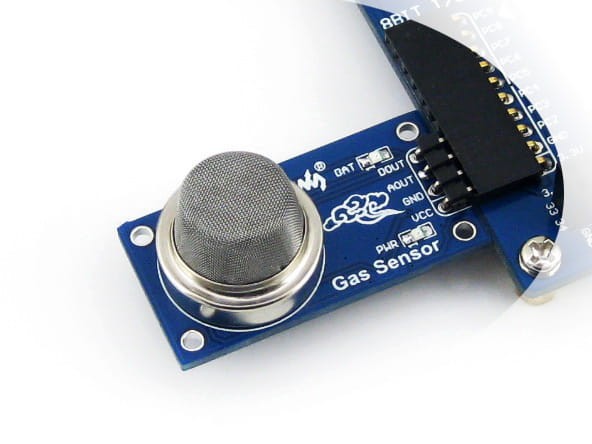

MQ-135 Gas Sensor
Price:
€5.29
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Moduł z czujnikiem jakości powietrza w zestawie znajdują się przewody połączeniowe.
Overview
- Sensitive for benzene, alcohol, smoke
- Output voltage boosts along with the concentration of the measured gases increases
- Fast response and recovery
- Adjustable sensitivity
- Signal output indicator
Specifications
- Power: 2.5V ~ 5.0V
- Dimension: 40.0mm * 21.0mm
- Mounting holes size: 2.0mm
Applications
- Air quality monitor
How to Use
In the case of working with a MCU:
- VCC ↔ 2.5V ~ 5.0V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Package Contains
- MQ-135 Gas Sensor × 1
- 4-pin custom connector jumper wire × 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
